330980-51-05 3300 XL NSv Proximitor Sensor

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330980-51-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

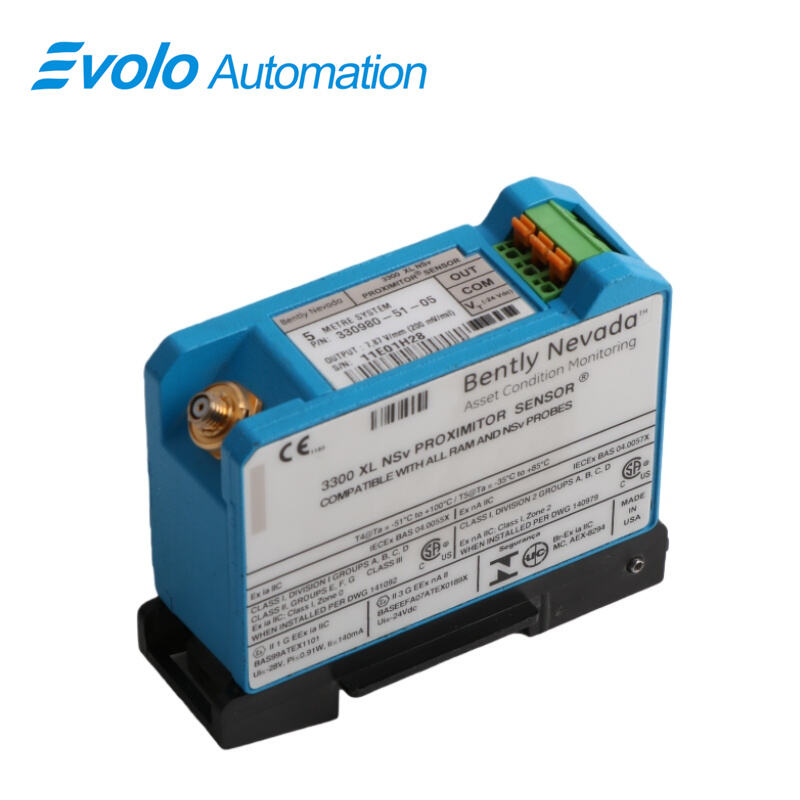

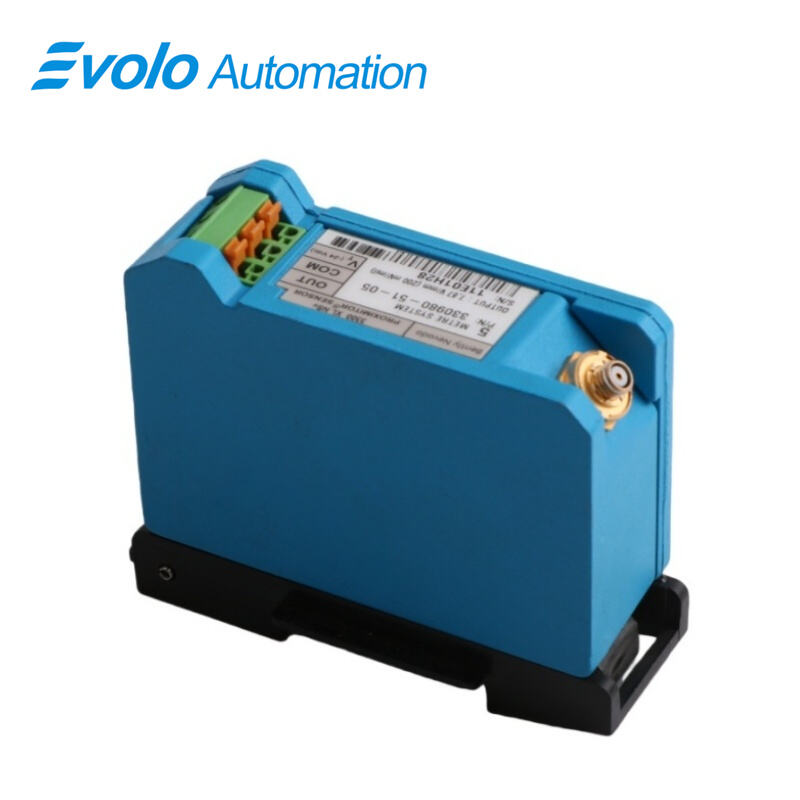

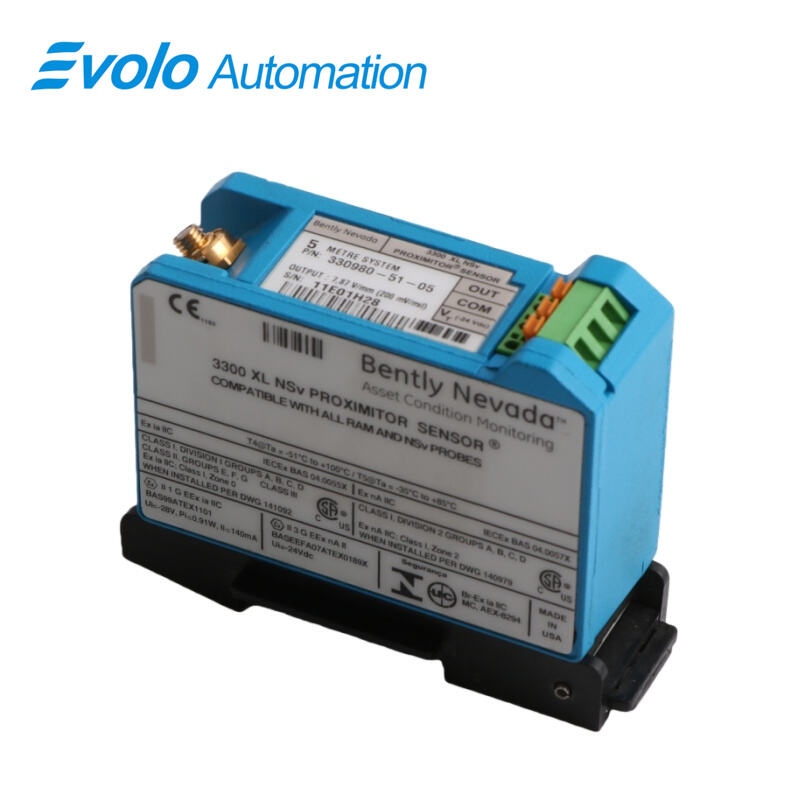

The 330980-51-05 3300 XL NSv Proximitor Sensor is designed for automated 3300 XL NSv Transducer Systems, accepting one 3300 NSv or 3300 RAM Proximity Probe with extension cable. With a 5.0-meter system length and DIN-rail mount, 330980-51-05 allows precise measurement of radial vibration and axial (thrust) position on small shafts or flat targets under tight installation constraints.

Constructed from A380 aluminum, 330980-51-05 operates from −52°C to +100°C and stores up to +105°C, with full operation at 100% condensing humidity when connectors are protected. Field wiring supports 0.2 to 1.5 mm² conductors, and the sensor maintains a 1.5 mm linear range with 50 Ω output resistance. Supply sensitivity is less than 2 mV per volt of input change, delivering accurate signals for automated monitoring, Keyphasor reference, and zero-speed measurements.

Connector protectors and ClickLoc connectors on 330980-51-05 prevent liquid ingress, while its compact design allows integration in centrifugal, refrigeration, or process gas compressors where counter bore, sideview, or rearview restrictions exist. This sensor supports upgrades from 3300 RAM and 3000/7000-series systems without changes to existing monitoring equipment.

Applications

Measure radial vibration on small shafts
330980-51-05 3300 XL NSv Proximitor Sensor processes signals from 3300 NSv Proximity Probes over 5-meter extension cables, enabling precise radial vibration measurement on shafts smaller than 51 mm. Using its 1.5 mm linear range, 330980-51-05 provides high-resolution vibration data for centrifugal compressors, refrigeration compressors, and process gas compressors.

Monitor axial (thrust) position
330980-51-05 converts axial movement of shafts or flat targets into 4–20 mA or Prox Out signals for automation controllers. Its output resistance of 50 Ω and supply sensitivity of less than 2 mV per volt change ensure consistent axial position readings under ±52°C to +100°C operating conditions.

Provide Keyphasor and speed signals
330980-51-05 supports phase reference (Keyphasor) and zero-speed measurements, enabling automated monitoring of rotor speed and shaft phase for process control systems. Its compatibility with 3300 NSv and 3300 RAM probes allows flexible integration across multiple rotating equipment types.

Upgrade existing transducer systems
Existing 3300 RAM or 3000/7000-series transducer systems can be upgraded with 330980-51-05 without changing probes or extension cables. This reduces downtime and leverages the sensor’s 5-meter DIN-rail mount and full field wiring support of 0.2–1.5 mm².

Specifications

Competitive Advantage

Operate in extreme temperatures and humidity
330980-51-05 operates from −52°C to +100°C and can store up to +105°C with 100% condensing humidity protection when connectors are shielded. This allows automation deployment in high-temperature or moisture-exposed industrial areas.

Maintain signal accuracy over distance
With 5-meter system length and 0.2–1.5 mm² wiring, 330980-51-05 delivers consistent 1.5 mm linear range signals from 3300 NSv probes to automation controllers, reducing measurement errors in extended or complex installations.

Prevent liquid ingress
ClickLoc connectors and connector protectors on 330980-51-05 block moisture and oil from entering, maintaining signal integrity for continuous automated monitoring in lubrication-heavy environments.

Enable quick installation and replacement
Compact DIN-rail mounting and compatibility with multiple probe types allow 330980-51-05 to be rapidly installed or replaced in automated systems, reducing commissioning time and enabling seamless upgrades.
