330930-065-01-CN 3300 NSv Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330930-065-01-CN
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

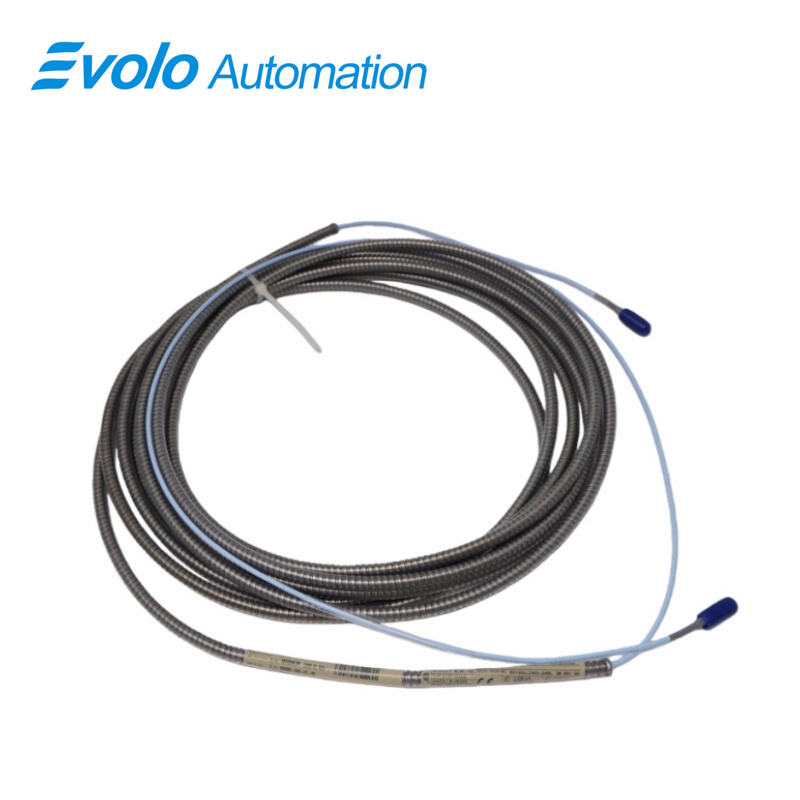

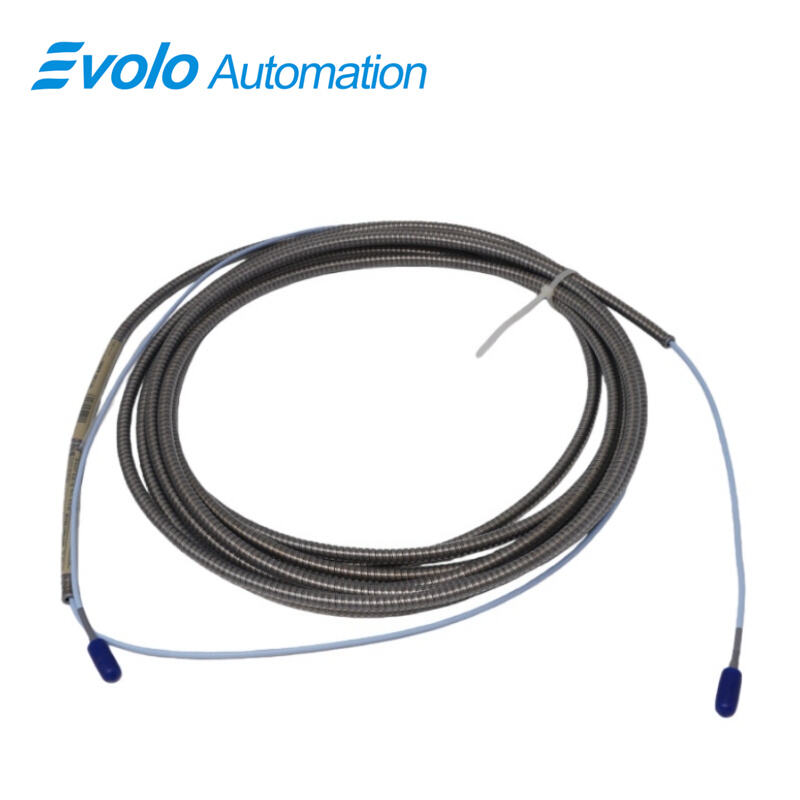

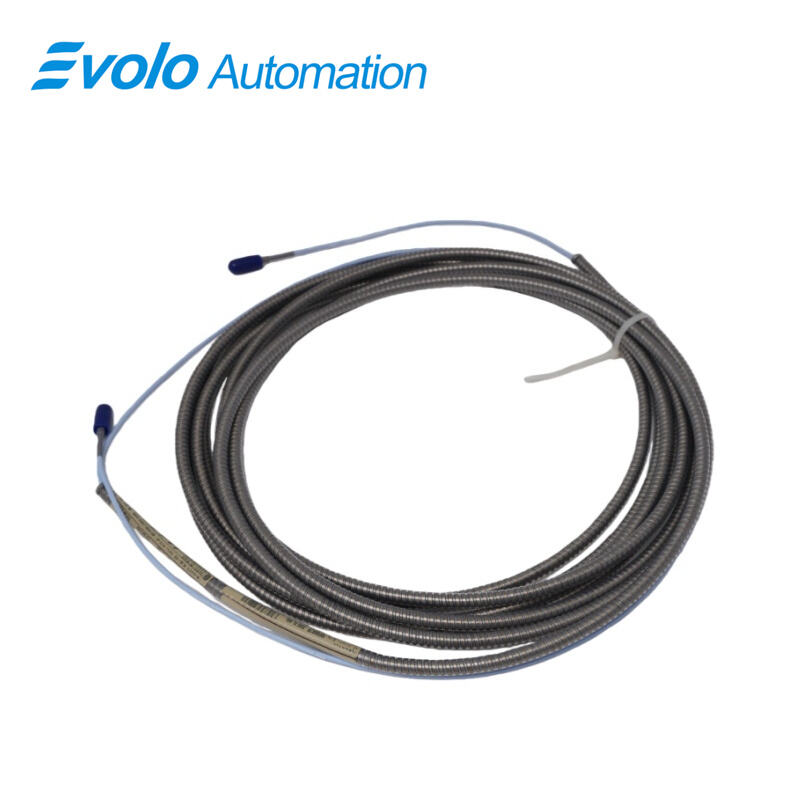

The 330930-065-01-CN 3300 NSv Extension Cable provides a 6.5-meter (21.3 feet) connection for 3300 XL NSv Proximity Transducer systems, designed for centrifugal, refrigeration, and process gas compressors with tight installation spaces. The 330930-065-01-CN 3300 NSv Extension Cable features stainless steel armor and FEP jacket, allowing routing through high-humidity and chemically active areas while maintaining signal integrity. It supports probe temperature ranges from -52°C to +177°C (-62°F to +351°F) and field wiring from 0.2 to 1.5 mm² (16 to 24 AWG), with 50 Ω output resistance and supply sensitivity under 2 mV per volt. The 330930-065-01-CN 3300 NSv Extension Cable enables precise radial vibration measurement on shafts smaller than 51 mm (2 in), axial position monitoring on flat targets below 15 mm (0.6 in), and tachometer or Keyphasor signal transmission. Its robust ClickLoc connectors and CableLoc design provide 220 N (50 lb) pull strength and secure probe connections, while TipLoc molding ensures a solid probe tip bond. The 330930-065-01-CN 3300 NSv Extension Cable simplifies upgrades from 3300 RAM or 3000/7000-series systems, making it a compact, reliable solution for automated monitoring and vibration control in industrial machinery.

Applications

Connect Probes in Tight Compressor Spaces
The 330930-065-01-CN 3300 NSv Extension Cable allows installers to route probes through centrifugal, refrigeration, and process gas compressors with limited side-view or counterbore space. Its 6.5-meter (21.3 feet) cable length and stainless steel armor enable flexible installation while maintaining accurate signal transmission.

Measure Radial Vibration on Small Shafts
Paired with the 330930-065-01-CN 3300 NSv Extension Cable, probes can capture radial vibration on shafts smaller than 51 mm (2 in). The 1.5 mm linear range and 7.87 V/mm output ensure high-precision data for small-target monitoring in fluid-filmed bearing machines.

Monitor Axial (Thrust) Position
The 330930-065-01-CN 3300 NSv Extension Cable supports axial displacement measurements on flat targets under 15 mm (0.6 in). Supply sensitivity of less than 2 mV per volt ensures accurate readings even with minor input voltage variations.

Transmit Tachometer and Keyphasor Signals
The 330930-065-01-CN 3300 NSv Extension Cable reliably transmits zero-speed, tachometer, and phase reference signals. Its 50 Ω output resistance and ClickLoc connectors maintain signal quality in automated monitoring systems.

Upgrade Existing Systems Without Full Rewiring
When upgrading from 3300 RAM or 3000/7000-series systems, the 330930-065-01-CN 3300 NSv Extension Cable connects directly to legacy probes, enabling stepwise automation improvements without replacing monitoring infrastructure.

Specifications

Competitive Advantage

Protect the Cable in Harsh Chemical or High-Humidity Areas
The 330930-065-01-CN 3300 NSv Extension Cable’s FEP jacket and stainless steel armor allow routing through corrosive or humid zones. Temperature range from -52°C to +177°C (-62°F to +351°F) ensures safe installation near hot or cold equipment.

Lock Probe and Cable Quickly During Installation
ClickLoc connectors and TipLoc molding on the 330930-065-01-CN 3300 NSv Extension Cable secure the probe and cable, allowing installers to set the 1.0 mm recommended gap efficiently and avoid connection loosening.

Measure Small Shafts and Limited Side-View Targets Accurately
With 1.5 mm linear range and 7.87 V/mm output, the 330930-065-01-CN 3300 NSv Extension Cable enables precise radial vibration and axial position measurements where standard probes cannot fit.

Upgrade Monitoring Systems Stepwise
The 330930-065-01-CN 3300 NSv Extension Cable allows integration with legacy 3300 RAM probes. Technicians can replace probes or extension cables incrementally, reducing downtime in automated systems.

Prevent Cable Pulling and Liquid Damage
CableLoc design and connector protectors on the 330930-065-01-CN 3300 NSv Extension Cable provide 220 N (50 lb) pull strength and resist liquid ingress, ensuring reliable vibration and Keyphasor signal measurements in automated machinery.
