330930-065-01-05 3300 NSv Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330930-065-01-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

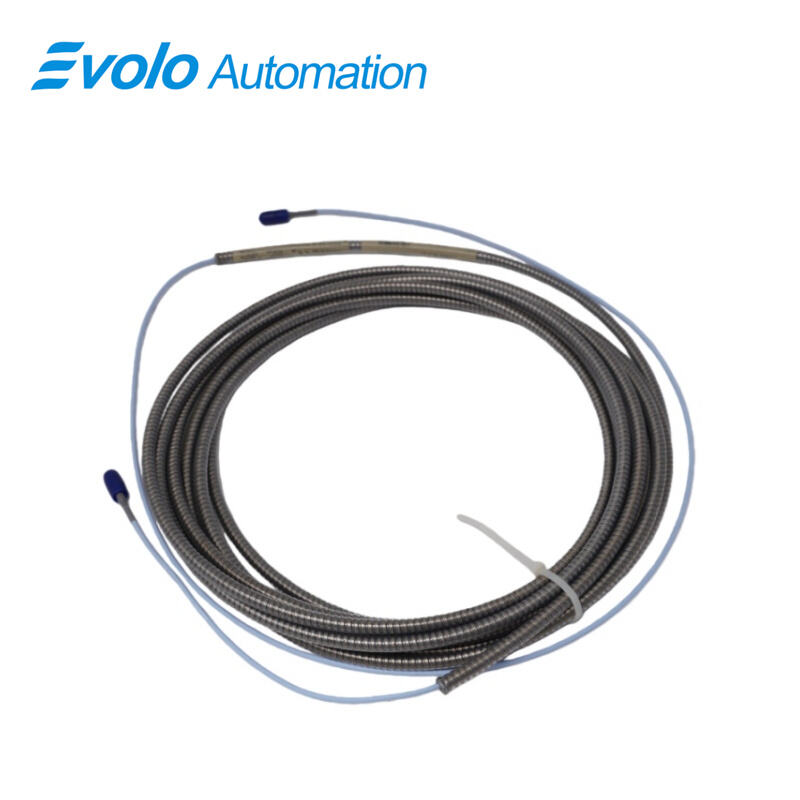

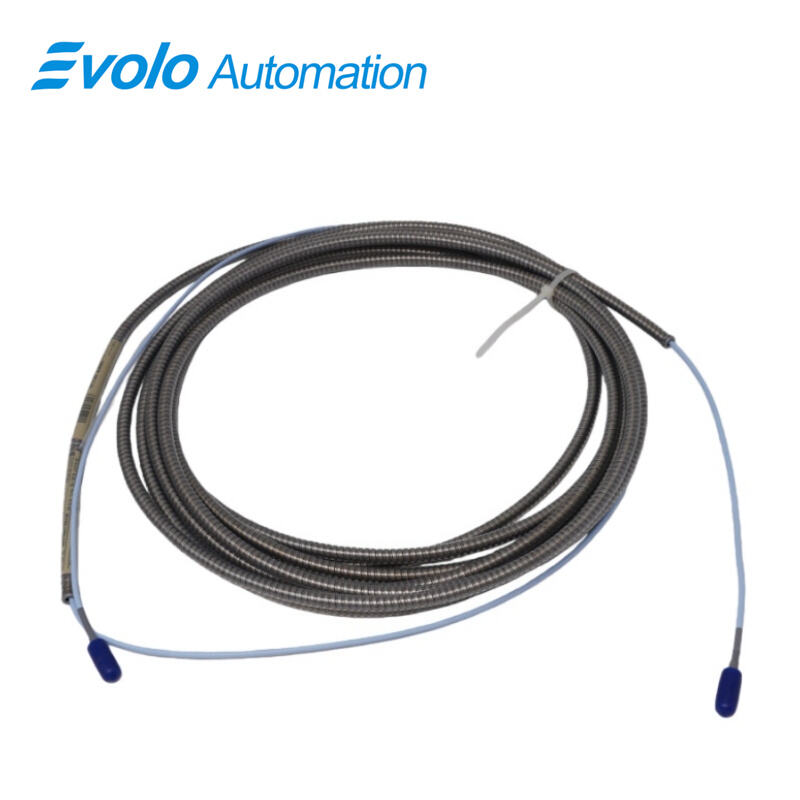

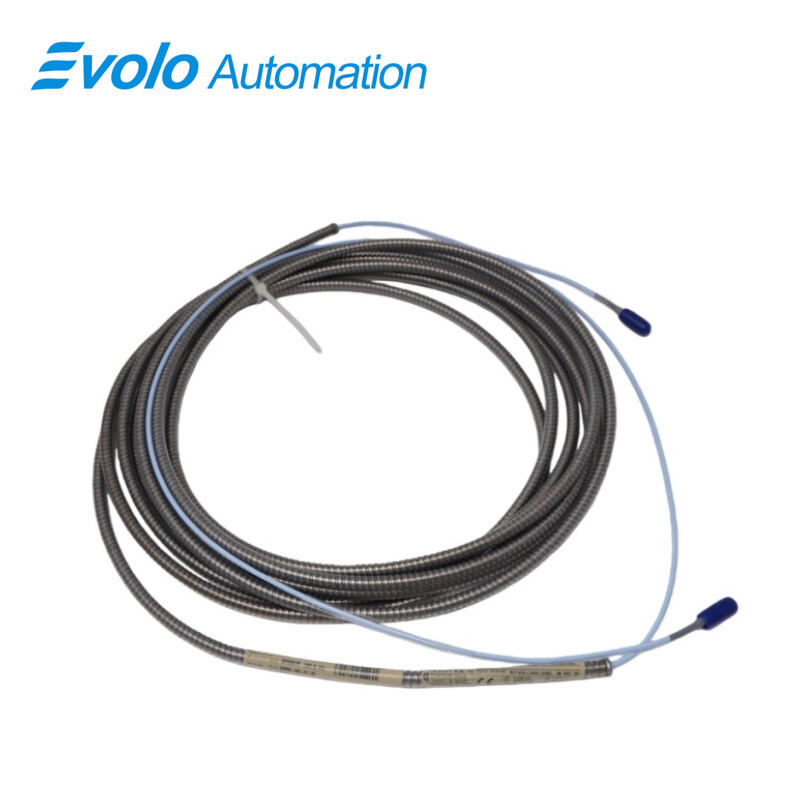

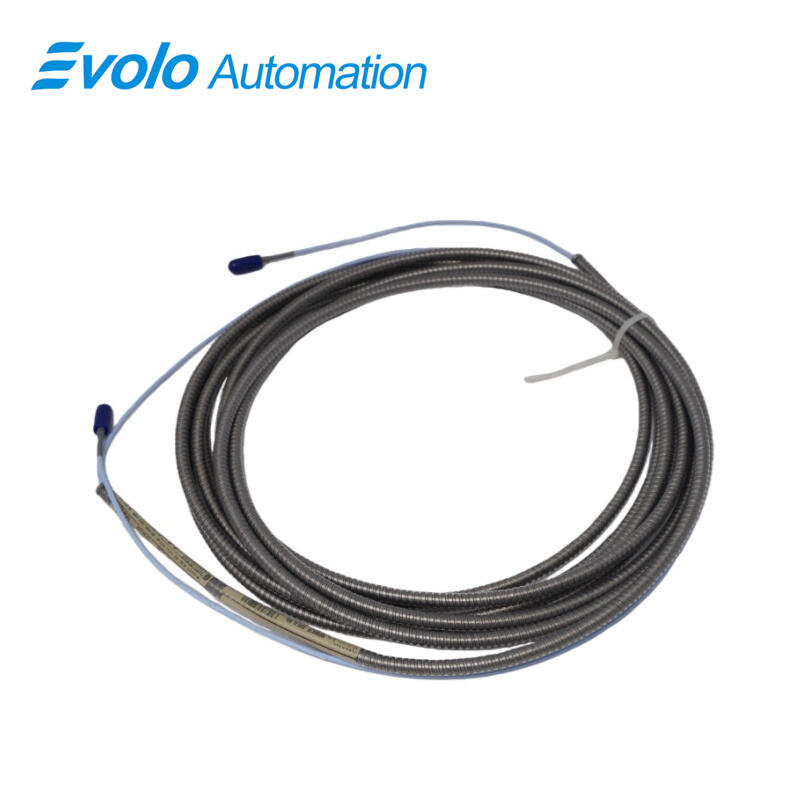

330930-065-01-05 3300 NSv Extension Cable is a 6.5-meter (21.3 feet) extension cable designed for use with 3300 NSv Proximity Probe systems in industrial automation. This cable features stainless steel armor and a FEP jacket, providing mechanical protection and chemical resistance for harsh environments. 330930-065-01-05 3300 NSv Extension Cable supports field wiring from 0.2 to 1.5 mm² (16 to 24 AWG) and is compatible with probes having 1.5 mm (60 mils) linear range and recommended gap of 1.0 mm (40 mils). Operating and storage temperatures from –52°C to +177°C allow 330930-065-01-05 3300 NSv Extension Cable to function in extreme conditions. Output resistance is 50 Ω, with supply sensitivity below 2 mV per volt change. Connector protectors ensure secure, liquid-resistant connections to Proximitor Sensors. This cable maintains signal integrity over long runs while enabling precise radial and axial measurements in fluid-film bearing machinery.

Applications

Install in High-Density Compressor Rooms
The 330930-065-01-05 3300 NSv Extension Cable, with its 6.5-meter (21.3 feet) length and stainless steel armor, enables compact mounting in centrifugal and refrigeration compressors. Its FEP jacket ensures signal integrity in chemically aggressive or high-humidity environments, allowing the 330930-065-01-05 3300 NSv Extension Cable to maintain precise vibration readings even in tight spaces.

Measure Radial Vibration on Small Shafts
Paired with the 330930-065-01-05 3300 NSv Extension Cable, probes can measure radial vibration on shafts smaller than 51 mm (2 in). The 1.5 mm linear range and 7.87 V/mm output of the 330930-065-01-05 3300 NSv Extension Cable system provide highly accurate vibration data for small-target machines.

Monitor Axial (Thrust) Position
Using the 330930-065-01-05 3300 NSv Extension Cable, probes can measure axial displacement on flat targets smaller than 15 mm (0.6 in). The supply sensitivity of less than 2 mV per volt ensures that minor variations in input voltage do not distort critical thrust position readings.

Transmit Tachometer and Zero Speed Signals
The 330930-065-01-05 3300 NSv Extension Cable reliably transmits tachometer and zero-speed signals due to its 50 Ω output resistance and robust ClickLoc connections. This ensures accurate Keyphasor phase reference signals in fluid-filmed bearing machines.

Specifications

Competitive Advantage

Protect the Cable in Harsh Chemical or High-Humidity Areas
The 330930-065-01-05 3300 NSv Extension Cable features stainless steel armor and a FEP jacket, allowing operators to route the cable through chemical exposure zones or high-humidity environments without signal loss. Its temperature tolerance from -52°C to +177°C (-62°F to +351°F) ensures the cable can be installed near hot or cold equipment safely.

Lock the Probe and Cable Quickly During Installation
Using ClickLoc connectors and TipLoc molding, the 330930-065-01-05 3300 NSv Extension Cable allows installers to secure the probe to the cable and maintain the recommended 1.0 mm gap efficiently, reducing installation time and preventing loosening.

Measure Small Shafts or Limited Side-View Targets
With a 1.5 mm linear range and 7.87 V/mm output, the 330930-065-01-05 3300 NSv Extension Cable allows operators to connect probes to shafts smaller than 51 mm (2 in) or flat targets smaller than 15 mm (0.6 in), capturing precise radial vibration and axial displacement data.

Upgrade Existing Systems Without Rewiring
The 330930-065-01-05 3300 NSv Extension Cable connects directly to legacy 3300 RAM probes, enabling stepwise upgrades to the 3300 XL NSv system. Technicians can replace sensors and cables incrementally without changing the existing monitoring setup.

Prevent Cable Pulling and Liquid Damage
Patented CableLoc design and connector protectors on the 330930-065-01-05 3300 NSv Extension Cable allow it to withstand up to 220 N (50 lb) pull force and resist liquid ingress. Operators can run the cable through industrial environments without worrying about mechanical or liquid damage, maintaining accurate signal output for vibration, tachometer, and Keyphasor measurements.
