330930-065-01-01 3300 NSv Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330930-065-01-01
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

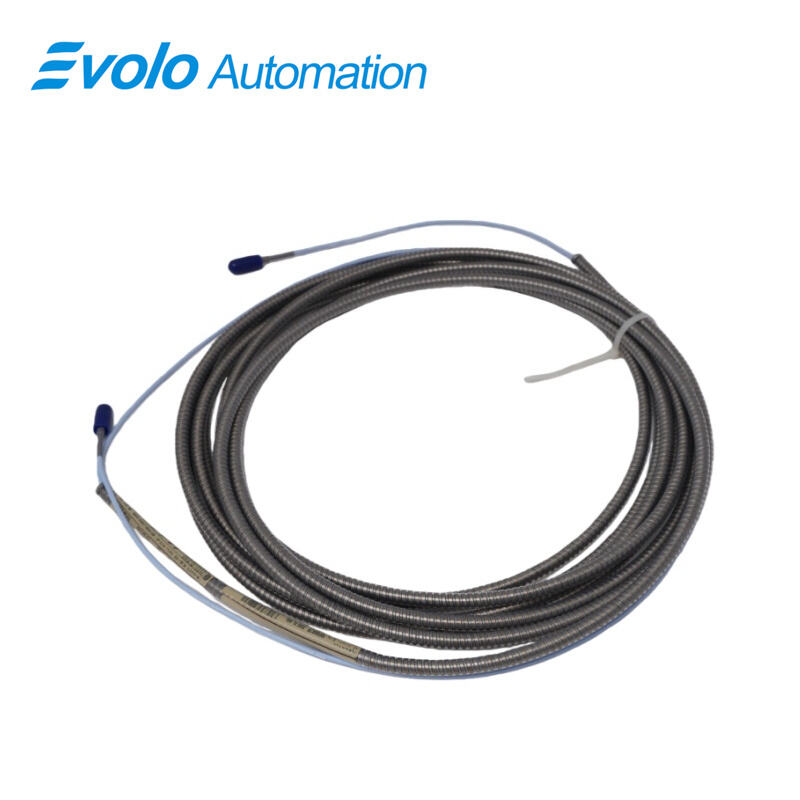

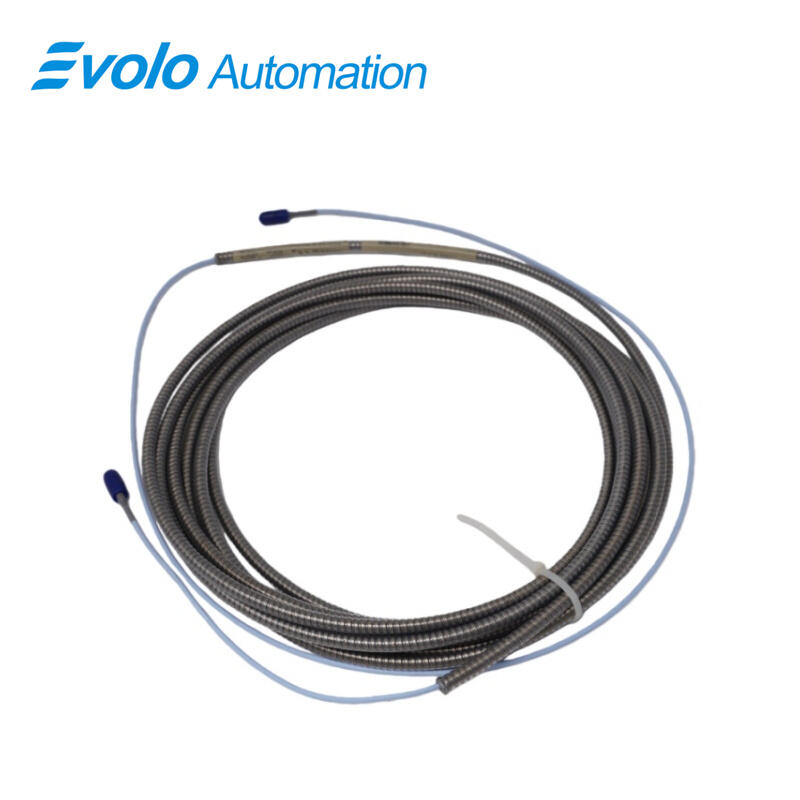

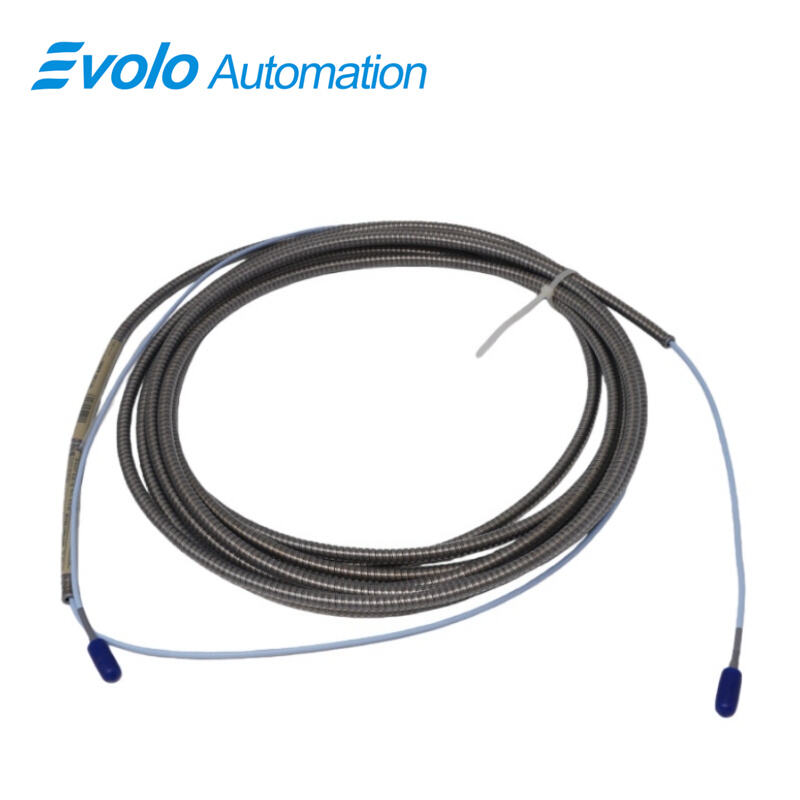

The 330930-065-01-01 3300 NSv Extension Cable provides a 6.5-meter (21.3 feet) connection for 3300 XL NSv Proximity Transducer systems in centrifugal, refrigeration, and process gas compressors with limited side-view or counterbore space. The 330930-065-01-01 3300 NSv Extension Cable features stainless steel armor and a FEP jacket, enabling routing through high-humidity or chemically active areas. It supports probe temperature ranges from -52°C to +177°C (-62°F to +351°F) and field wiring from 0.2 to 1.5 mm² (16 to 24 AWG), with 50 Ω output resistance and supply sensitivity under 2 mV per volt. The 330930-065-01-01 3300 NSv Extension Cable allows precise radial vibration measurements on shafts smaller than 51 mm (2 in), axial position readings on flat targets under 15 mm (0.6 in), and tachometer or Keyphasor signal transmission. Patented CableLoc design and ClickLoc connectors provide 220 N (50 lb) pull strength and secure connections, making the 330930-065-01-01 3300 NSv Extension Cable an efficient solution for automated monitoring and vibration control in industrial machines.

Applications

Route Probes Through Limited Spaces
The 330930-065-01-01 3300 NSv Extension Cable enables operators to connect probes in centrifugal, refrigeration, and process gas compressors with counter bore or side-view restrictions. Its 6.5-meter (21.3 feet) length and stainless steel armor allow flexible routing in tight installations.

Measure Radial Vibration on Small Shafts
Paired with the 330930-065-01-01 3300 NSv Extension Cable, probes capture radial vibration on shafts smaller than 51 mm (2 in). Its 1.5 mm linear range and 7.87 V/mm output provide high-resolution data for fluid-filmed bearing machines.

Monitor Axial (Thrust) Position
The 330930-065-01-01 3300 NSv Extension Cable supports axial displacement measurements on flat targets under 15 mm (0.6 in). Supply sensitivity of less than 2 mV per volt ensures accurate readings for automated control systems.

Transmit Tachometer and Keyphasor Signals
The 330930-065-01-01 3300 NSv Extension Cable reliably transmits zero-speed, tachometer, and phase reference signals due to its 50 Ω output resistance and ClickLoc connectors, maintaining precise measurements in automated monitoring systems.

Upgrade Existing Monitoring Systems Stepwise
The 330930-065-01-01 3300 NSv Extension Cable connects with legacy 3300 RAM or 3000/7000-series probes, allowing incremental upgrades without replacing monitoring infrastructure or extension cables.

Specifications

Competitive Advantage

Protect the Cable in Harsh Industrial Environments
The 330930-065-01-01 3300 NSv Extension Cable features stainless steel armor and FEP jacket, enabling safe installation in high-humidity or chemically active zones. Temperature tolerance from -52°C to +177°C (-62°F to +351°F) allows deployment near hot or cold equipment.

Secure Probe and Cable Connections Quickly
ClickLoc connectors and CableLoc design on the 330930-065-01-01 3300 NSv Extension Cable lock the probe to the cable and maintain the recommended 1.0 mm gap, allowing fast installation and preventing loosening.

Measure Small Targets Accurately
With 1.5 mm linear range and 7.87 V/mm output, the 330930-065-01-01 3300 NSv Extension Cable enables precise radial and axial measurements even on limited side-view targets, improving automated vibration and position monitoring.

Enable Stepwise Automation Upgrades
The 330930-065-01-01 3300 NSv Extension Cable connects with legacy 3300 RAM probes, allowing technicians to upgrade automation systems incrementally without rewiring or replacing existing monitoring equipment.

Prevent Cable Pulling and Liquid Damage
The patented CableLoc design on the 330930-065-01-01 3300 NSv Extension Cable provides 220 N (50 lb) pull strength, while ClickLoc connectors prevent loosening and resist liquid ingress, ensuring consistent signal output in industrial machines.
