330930-065-00-05 3300 NSv Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330930-065-00-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

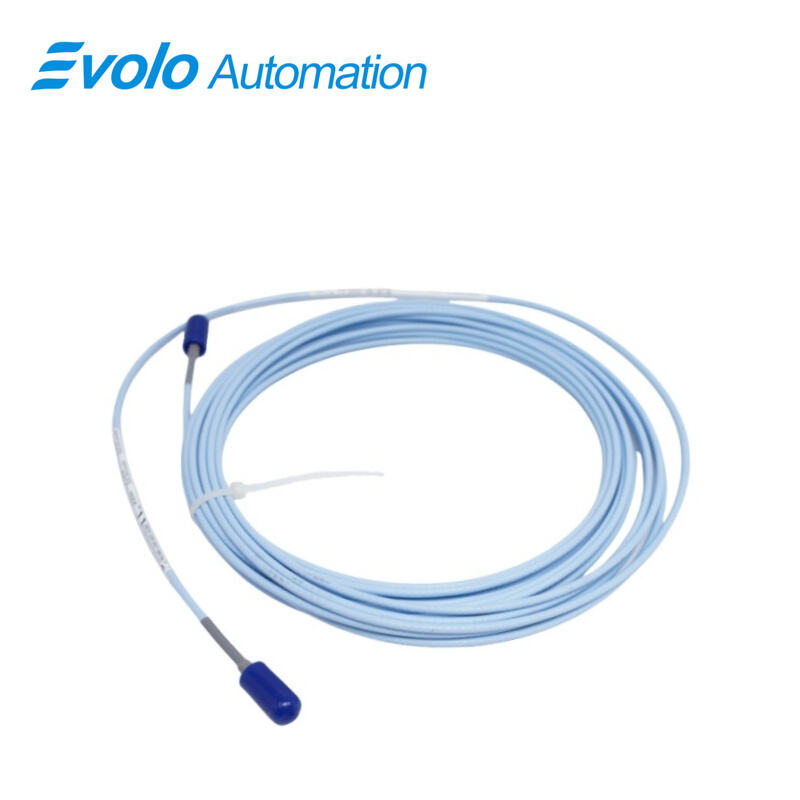

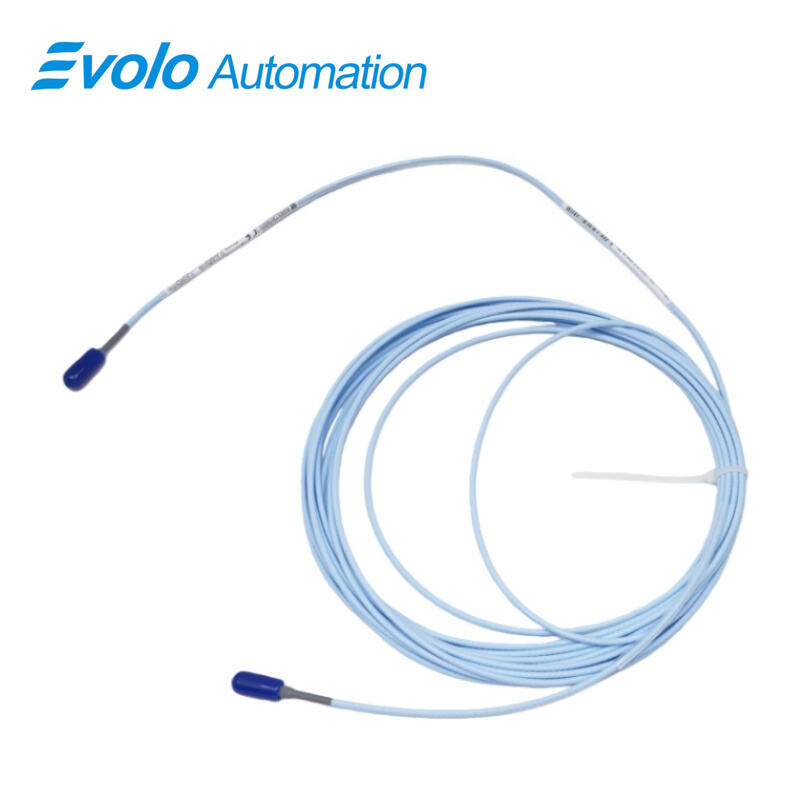

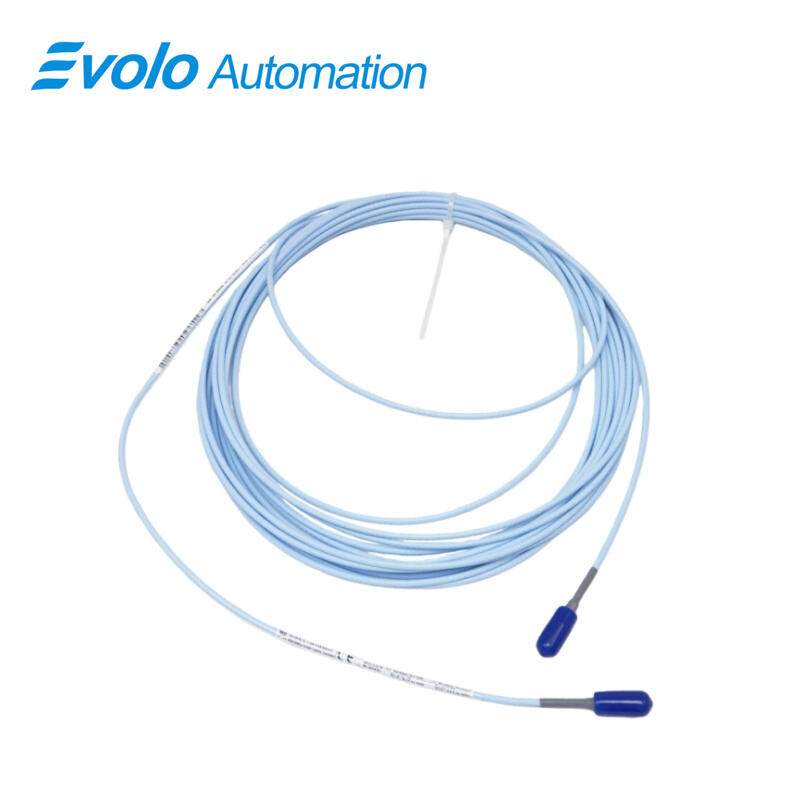

The 330930-065-00-05 3300 NSv Extension Cable is a high-reliability component designed for industrial automation systems and machinery protection solutions, enabling seamless signal transmission from 3300 NSv Proximity Probes to Proximitor Sensors. With a total length of 6.5 meters (21.3 feet), this unarmored extension cable provides flexibility in tight installation spaces such as centrifugal air compressors, refrigeration compressors, and process gas compressors. The cable operates across an extreme temperature range of -52°C to +177°C (-62°F to +351°F), ensuring stable performance under harsh operating conditions. Its polyphenylene sulfide (PPS) probe tip material and AISI 304 stainless steel casing guarantee mechanical robustness and chemical resistance, while gold-plated ClickLoc connectors secure electrical connections and prevent signal degradation. The 3300 NSv Extension Cable supports linear ranges up to 1.5 mm (60 mils) and a recommended probe-to-target gap of 1.0 mm (40 mils), maintaining precise radial and axial vibration measurements. Field wiring accommodates 16–24 AWG conductors, and the cable exhibits low supply sensitivity (<2 mV/V) to ensure consistent output. Compatible and mechanically interchangeable with previous 3300 RAM systems, this extension cable facilitates upgrades or replacements without requiring recalibration of the overall transducer system. Connector protectors can be used to shield the ClickLoc connections from oil, moisture, and other contaminants, guaranteeing reliable automation control signal delivery.

Applications

1. Centrifugal Air Compressor Integration
Connects 3300 NSv Proximity Probes to automation systems in compact compressor housings while maintaining accurate vibration and position measurements.

2. Process Gas and Refrigeration Compressors
Enables remote probe placement where tight spaces or high temperatures prevent direct sensor mounting, ensuring system-wide automation monitoring.

3. Small Shaft Radial Vibration Measurement
Supports installations on shafts smaller than 51 mm (2 in), preserving linear signal output over distances up to 6.5 meters.

4. Axial Thrust and Position Monitoring
Maintains signal integrity for axial position measurements on flat targets smaller than 15 mm (0.6 in), critical for turbine and pump control loops.

5. Retrofitting Existing 3300 RAM Systems
Provides a direct replacement or upgrade path, enabling existing machinery to integrate NSv Proximity Probes without recalibration or modification of control hardware.

Specifications

Competitive Advantage

1. Long-Length Flexibility
With a 6.5-meter (21.3 ft) cable, the extension allows sensors to be installed in constrained spaces while keeping the Proximitor Sensor accessible.

2. Extreme Temperature and Chemical Resistance
PPS probe tip and stainless steel casing allow operation from -52°C to +177°C and resist chemical exposure common in industrial compressors.

3. Mechanically and Electrically Compatible
Interchangeable with 3300 RAM systems, reducing downtime and costs during upgrades or replacements.

4. Secure ClickLoc Connector Design
Gold-plated connectors with locking mechanism prevent disconnections, signal loss, or false alarms in automated control loops.

5. Reduced Signal Sensitivity to Power Variations
Less than 2 mV change per volt of input ensures stable 4–20 mA output signals for accurate vibration monitoring in automation systems.
