330930-060-03-05 3300 NSv Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330930-060-03-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

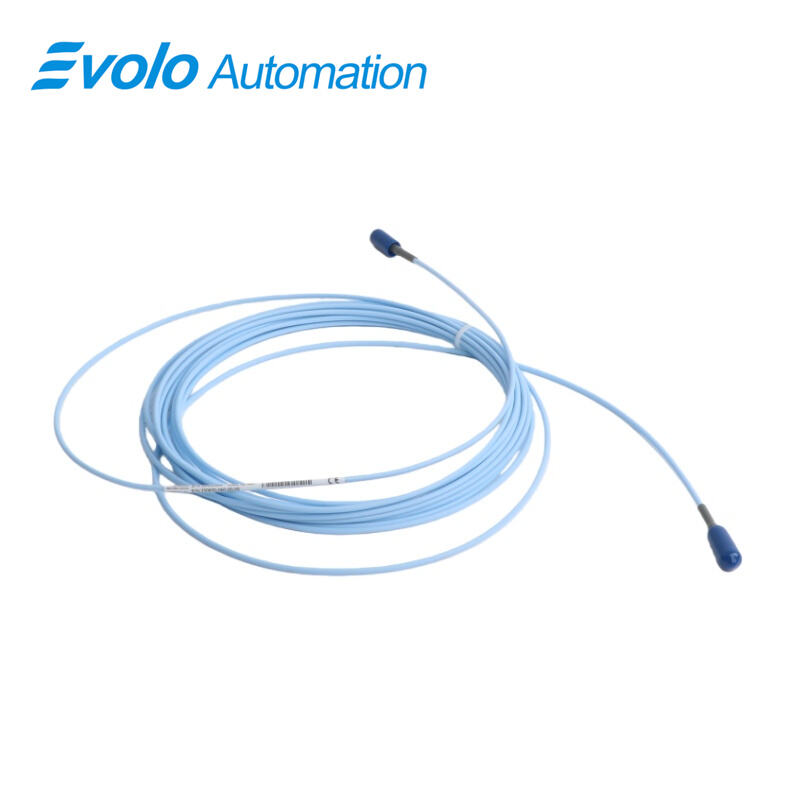

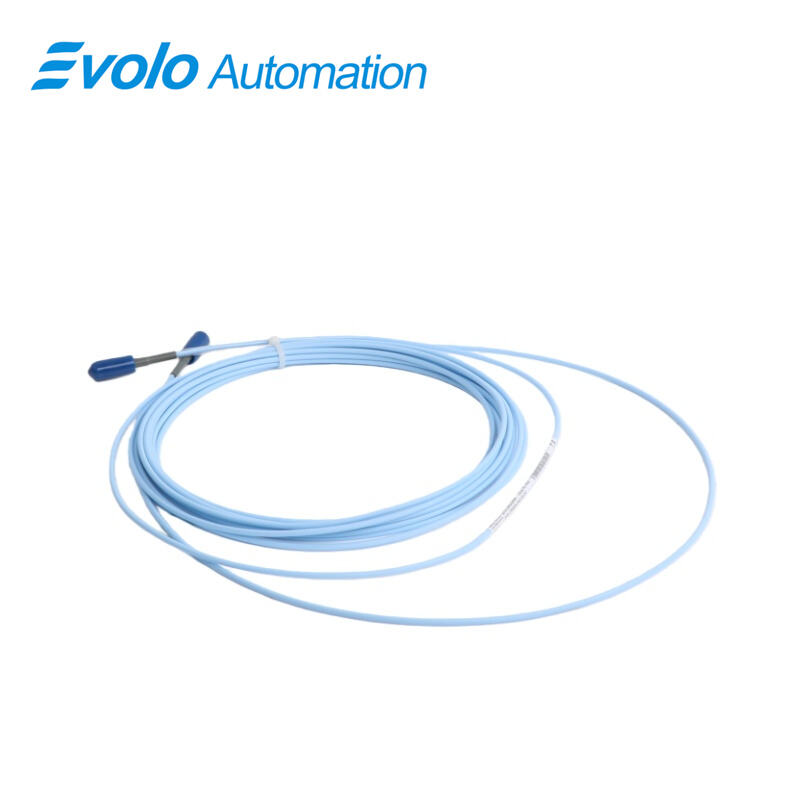

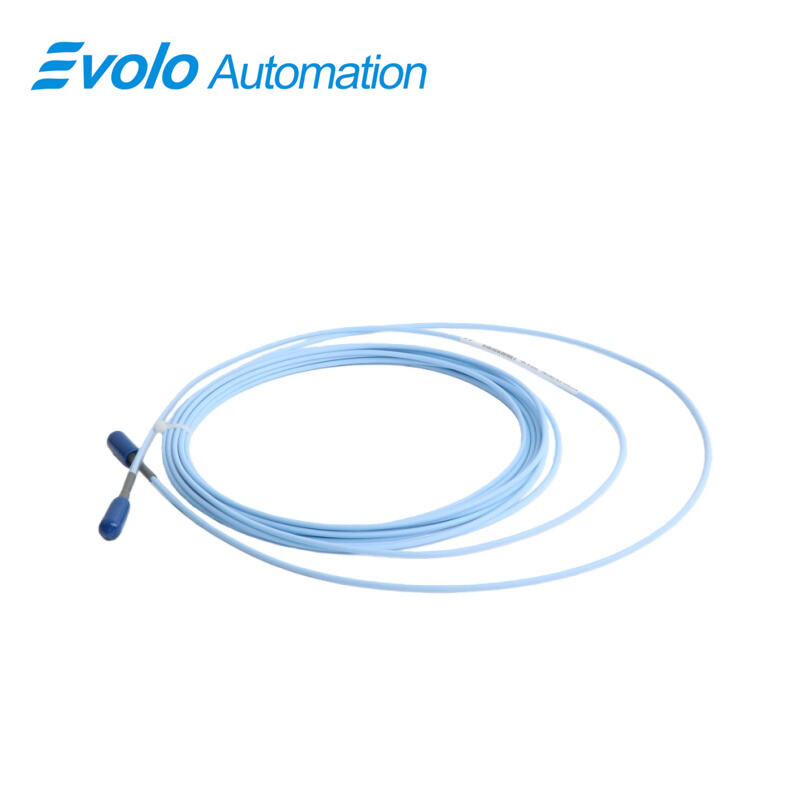

The 330930-060-03-05 3300 NSv Extension Cable is engineered for integration with 3300 XL NSv Proximity Probe systems used in centrifugal air compressors, refrigeration compressors, process gas compressors, and other automated machinery with limited installation space. With a cable length of 6.0 meters (19.7 feet) and a miniature coaxial ClickLoc connector with connector protector, the 330930-060-03-05 3300 NSv ensures secure, reliable signal transmission for automation systems. This extension cable operates across a temperature range of −52°C to +177°C (−62°F to +351°F) and features a linear range of 1.5 mm (60 mils) with a recommended gap setting of 1.0 mm (40 mils), providing consistent radial and axial vibration measurements. The 330930-060-03-05 3300 NSv has an output resistance of 50 Ω and maintains less than 2 mV change per volt of input variation, guaranteeing high-fidelity data for machinery protection, PLCs, and industrial monitoring systems. Its AISI 304 stainless steel construction and chemical-resistant PPS components allow long-term durability in harsh process environments, while gold-plated ClickLoc connectors prevent signal loss and ensure seamless integration with 3300 XL NSv Proximity Probe systems. The 330930-060-03-05 3300 NSv is compatible with previous 3300 RAM and 3000/7000-series transducer systems, making it ideal for upgrades and automation system retrofits without the need for extensive recalibration.

Applications

Radial and Axial Vibration Monitoring
The 330930-060-03-05 3300 NSv Extension Cable works seamlessly with 3300 XL NSv Proximity Probes to transmit high-fidelity radial and axial vibration signals from shafts smaller than 51 mm. Its linear range of 1.5 mm (60 mils) and recommended gap of 1.0 mm (40 mils) ensure precise vibration measurements for automated machinery protection and predictive maintenance systems.

Tachometer and Keyphasor Signal Transmission
When paired with 3300 XL NSv Proximity Probe systems, the 330930-060-03-05 3300 NSv reliably transmits tachometer and Keyphasor signals to control and monitoring systems. With a cable length of 6.0 meters (19.7 feet) and 50 Ω output resistance, the model supports long-distance signal transmission without loss, making it suitable for large industrial plants with complex automation networks.

Retrofit and System Upgrades
The 330930-060-03-05 3300 NSv Extension Cable is fully compatible with previous 3300 RAM and 3000/7000-series transducer systems. This compatibility allows users to upgrade existing monitoring systems to 3300 XL NSv Proximity Probe systems without replacing probes or Proximitor Sensors, minimizing downtime and calibration effort.

Specifications

Competitive Advantage

High Temperature and Chemical Resistance
The 330930-060-03-05 3300 NSv operates in a wide temperature range of −52°C to +177°C (−62°F to +351°F) and is constructed with AISI 304 stainless steel and PPS probe tip materials, enabling durability in harsh process environments and chemical exposure common in industrial automation.

Robust Electrical and Mechanical Integrity
Gold-plated ClickLoc connectors and the patented CableLoc design provide 220 N (50 lb) pull strength, preventing cable loosening or signal loss. These features ensure that the 330930-060-03-05 3300 NSv maintains reliable data transmission even under high vibration conditions typical in compressors and pumps.

Automation-Ready Design
The 330930-060-03-05 3300 NSv Extension Cable is fully integrated with 3300 XL NSv Proximity Probe systems and supports automation applications such as real-time monitoring, predictive maintenance, and PLC signal input. Its standard cable and connector protector prevent contamination and maintain signal integrity, which is critical for automated industrial processes.

Cost-Effective System Integration
With backward compatibility to older 3300 RAM and 3000/7000-series systems, the 330930-060-03-05 3300 NSv allows plant operators to upgrade to advanced 3300 XL NSv Proximity Probe systems without extensive replacement of existing components, reducing upgrade costs and simplifying system integration in automated facilities.
