330910-03-16-10-02-00 3300 NSv Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330910-03-16-10-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

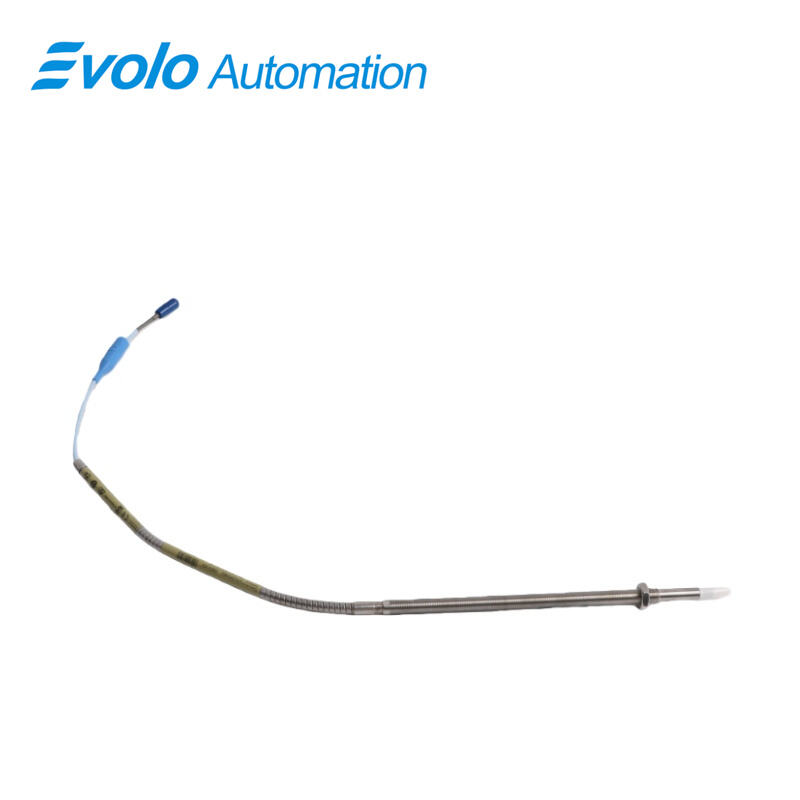

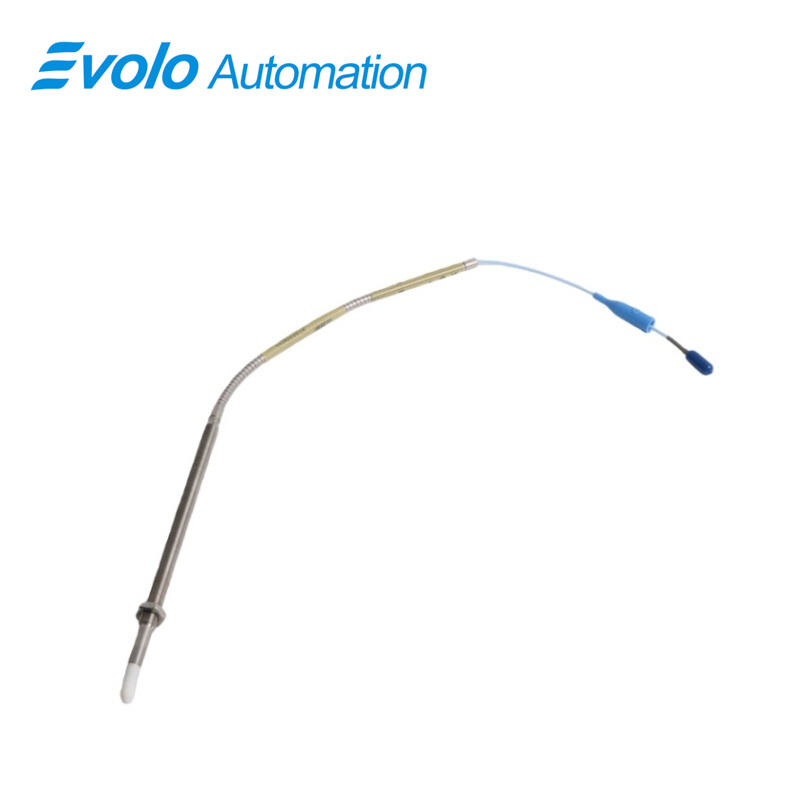

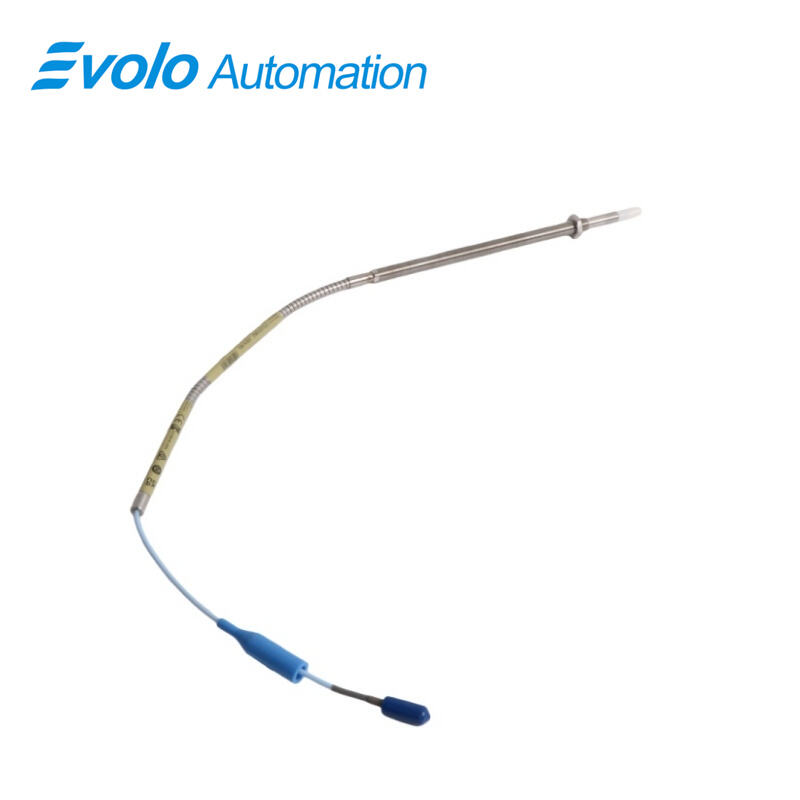

The 330910-03-16-10-02-00 3300 NSv Proximity Probe is designed for tight-installation industrial environments such as centrifugal air compressors, refrigeration compressors, and process gas compressors. Each 330910-03-16-10-02-00 3300 NSv Proximity Probe features an M8X1 threaded stainless steel case, unthreaded length of 30 mm, overall case length of 160 mm, and 1.0 meter (39 in) miniature coaxial ClickLoc cable for reliable signal transmission. The PPS probe tip provides chemical resistance in harsh process applications, and the linear range of 1.5 mm (60 mils) with recommended gap of 1.0 mm (40 mils) ensures precise radial and axial measurements. Output resistance is 50 Ω, and supply sensitivity is less than 2 mV per volt, supporting Keyphasor signals, zero-speed detection, and tachometer monitoring.

Applications

Radial Vibration Measurement on Small Shafts
The 330910-03-16-10-02-00 3300 NSv Proximity Probe measures radial vibration on shafts smaller than 51 mm, providing accurate position data in tight spaces where standard 3300 or 3300 XL probes cannot fit.

Axial Position Monitoring
With a linear range of 1.5 mm and recommended gap of 1.0 mm, the 330910-03-16-10-02-00 3300 NSv Proximity Probe detects axial thrust displacement on flat targets smaller than 15 mm, enabling precise shaft alignment verification.

Tachometer and Zero-Speed Detection
The 330910-03-16-10-02-00 3300 NSv Proximity Probe generates reliable output voltage for zero-speed sensing and phase reference (Keyphasor) applications in automated monitoring systems.

Process Compressor Applications
Chemical-resistant PPS tips allow the 330910-03-16-10-02-00 3300 NSv Proximity Probe to operate in gas and refrigeration compressors with aggressive fluids or high-temperature environments (-52°C to +177°C).

Specifications

Competitive Advantage

Robust Mechanical and Electrical Connections
ClickLoc connectors and CableLoc design with 220 N pull strength securely attach the cable to the probe tip, while TipLoc molding strengthens the probe tip-to-body bond for reliable long-term operation.

Interchangeable with Legacy Systems
The 330910-03-16-10-02-00 3300 NSv Proximity Probe works with previous 3300 RAM probes and extension cables, enabling straightforward upgrades without changing existing Proximitor sensors.

Chemical and Temperature Resistance
The PPS probe tip and AISI 304 stainless steel case allow the 330910-03-16-10-02-00 3300 NSv Proximity Probe to operate in temperatures from -52°C to +177°C and resist corrosion from process fluids, maintaining accurate signal output.

Compact Design for Small Targets
With 1.5 mm linear range and 30 mm unthreaded length, the 330910-03-16-10-02-00 3300 NSv Proximity Probe is ideal for measuring radial or axial motion on shafts and flat targets smaller than 51 mm and 15 mm respectively.
