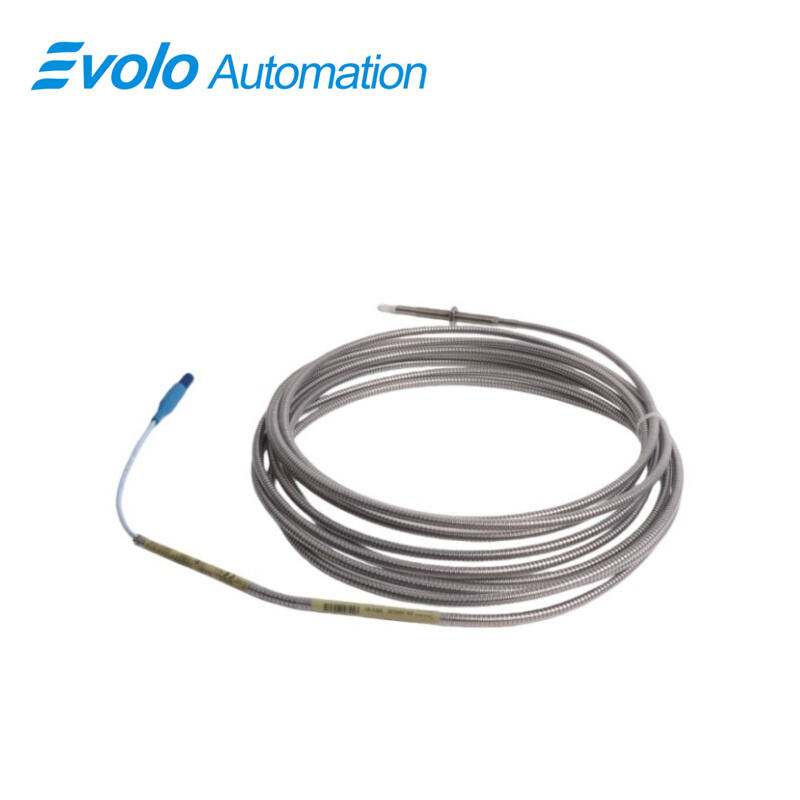

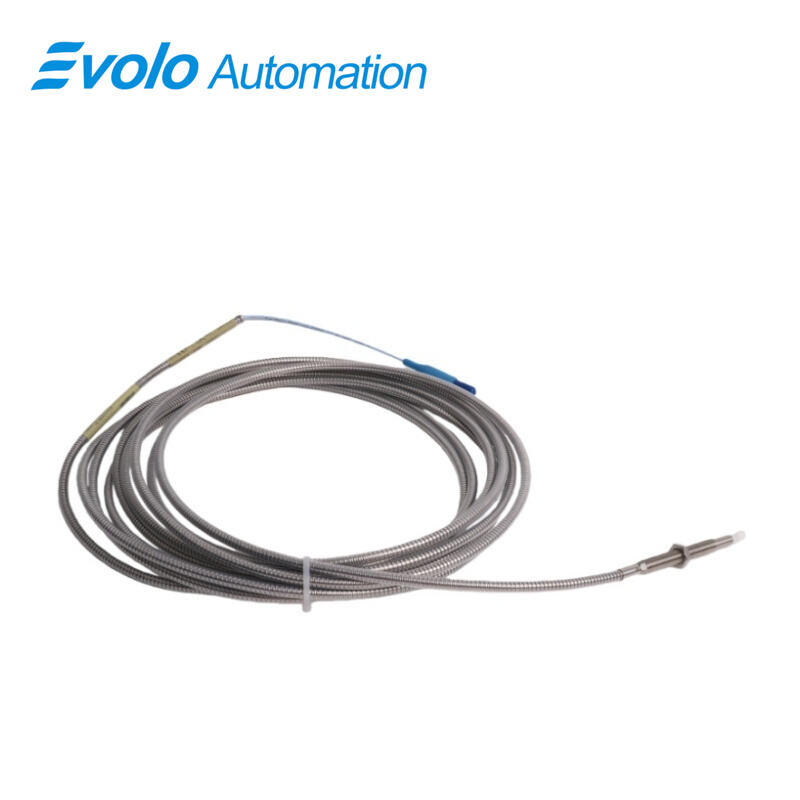

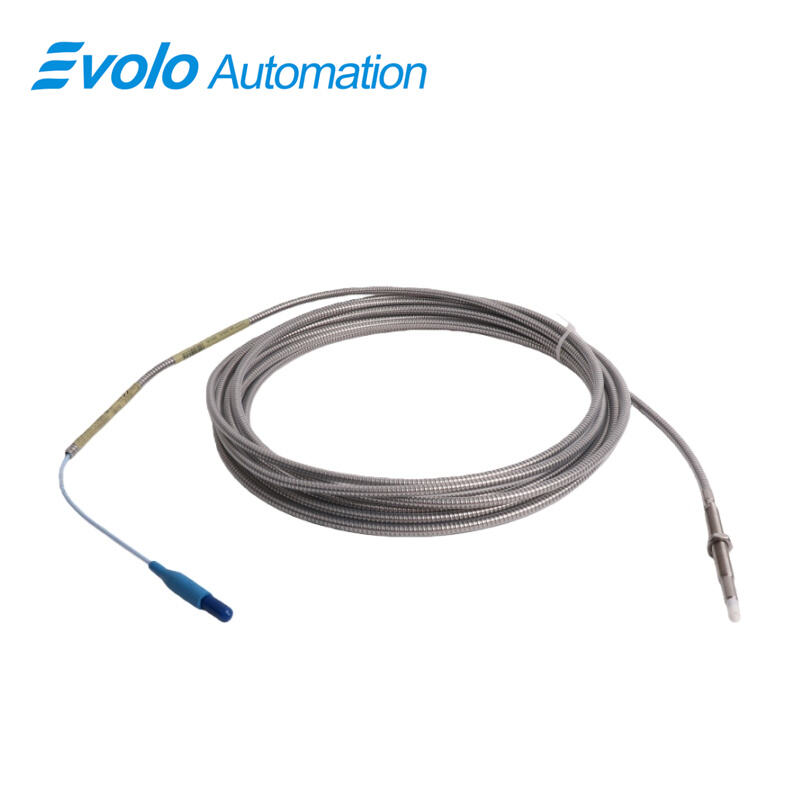

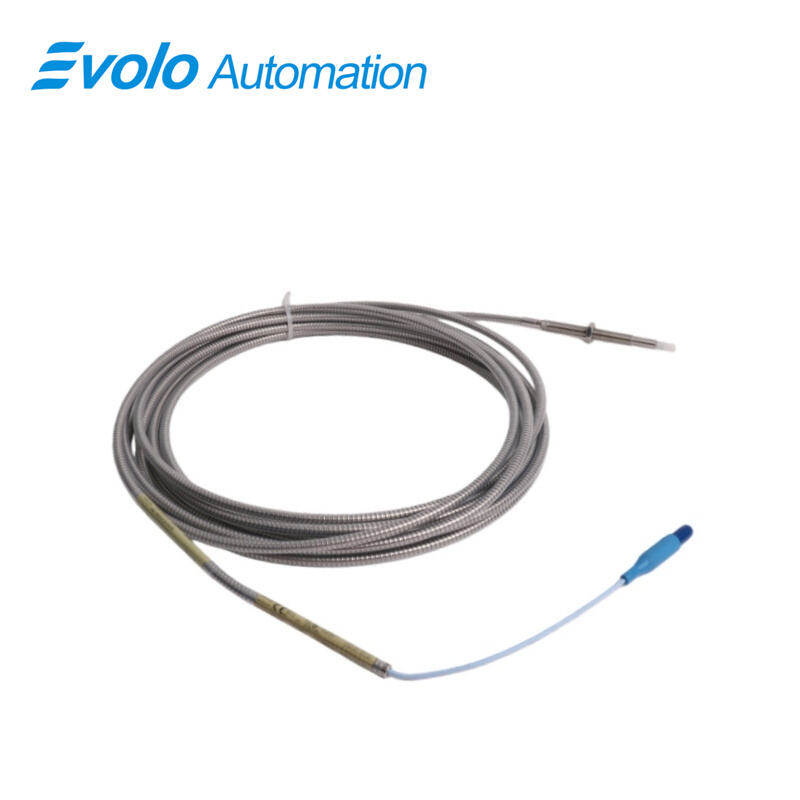

330910-02-10-70-01-00 3300 NSv Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330910-02-10-70-01-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330910-02-10-70-01-00 3300 NSv Proximity Probe is a high-performance eddy current transducer engineered for industrial automation, particularly in centrifugal air compressors, refrigeration compressors, and process gas compressors with space-constrained installation requirements. The 330910-02-10-70-01-00 3300 NSv Proximity Probe features a 1.5 mm (60 mils) linear range and a recommended 1.0 mm (40 mils) gap, delivering precise radial and axial measurements on small shafts under 51 mm (2 in) and flat targets smaller than 15 mm (0.6 in). Built with a polyphenylene sulfide (PPS) probe tip and AISI 304 stainless steel case, the 330910-02-10-70-01-00 3300 NSv Proximity Probe ensures chemical resistance, mechanical robustness, and reliable operation across extreme temperatures from -52°C to +177°C (-62°F to +351°F). Equipped with a 7-meter cable with miniature coaxial ClickLoc connector and connector protector, the 330910-02-10-70-01-00 3300 NSv Proximity Probe maintains a 50 Ω output resistance and less than 2 mV change per volt supply variation, ensuring stable signal integrity for automated systems. Its M10X1 threaded probe case, 20 mm unthreaded length, and 100 mm overall case length allow for compact installation. Patented TipLoc and CableLoc designs provide a 220 N (50 lb) pull strength and secure cable attachment, making the 330910-02-10-70-01-00 3300 NSv Proximity Probe ideal for radial vibration monitoring, thrust position measurement, tachometer and zero-speed applications, and Keyphasor signal generation in automated industrial systems. The 330910-02-10-70-01-00 3300 NSv Proximity Probe is fully compatible with legacy 3300 RAM and 3000-/7000-series 190 transducer systems, enabling seamless upgrades while offering superior small-target and side-view performance.

Applications

1. Radial Vibration Measurement
The 330910-02-10-70-01-00 3300 NSv Proximity Probe measures radial vibration on shafts under 51 mm, providing high-precision feedback for automated monitoring systems to prevent machinery imbalance and reduce downtime.

2. Axial (Thrust) Position Monitoring
The 330910-02-10-70-01-00 3300 NSv Proximity Probe delivers accurate axial displacement data for fluid-film bearing machines, supporting automated control and ensuring optimal performance of high-speed compressors and turbines.

3. Tachometer and Zero-Speed Detection
The 330910-02-10-70-01-00 3300 NSv Proximity Probe provides reliable rotational speed measurements and zero-speed detection, enabling precise automated safety and operational controls in critical industrial processes.

4. Phase Reference (Keyphasor) Signals
The 330910-02-10-70-01-00 3300 NSv Proximity Probe generates stable Keyphasor signals, essential for phase-based vibration analysis and predictive maintenance in automated systems.

5. Restricted and Compact Installation
Engineered for counter bore, side-view, and rear-view applications, the 330910-02-10-70-01-00 3300 NSv Proximity Probe excels where standard 3300 or 3300 XL 5/8 mm probes cannot fit, providing flexible integration in space-limited automation environments.

Specifications

Competitive Advantage

1. Superior Accuracy and Scale Factor
With an average scale factor of 7.87 V/mm (200 mV/mil) and 1.5 mm linear range, the 330910-02-10-70-01-00 3300 NSv Proximity Probe outperforms legacy 3000-series 190 probes in small-target applications, ensuring reliable measurements for automation systems.

2. Extreme Temperature and Environmental Resistance
The 330910-02-10-70-01-00 3300 NSv Proximity Probe operates from -52°C to +177°C, with PPS tip and stainless steel construction ensuring long-term durability and chemical resistance in harsh industrial conditions.

3. Mechanical and Electrical Compatibility
The 330910-02-10-70-01-00 3300 NSv Proximity Probe is fully compatible with 3300 RAM probes and extension cables, enabling smooth upgrades without requiring monitor system changes.

4. Robust Connector and Cable Design
Featuring patented TipLoc and CableLoc designs, gold-plated ClickLoc connectors, and connector protectors, the 330910-02-10-70-01-00 3300 NSv Proximity Probe ensures secure connections, 220 N pull strength, and protection from moisture, maintaining reliable automated system performance.

5. Flexible Installation Options
The 330910-02-10-70-01-00 3300 NSv Proximity Probe supports M10X1, M8X1, 1/4-28, and 3/8-24 threads, with armored and unarmored cases, reverse-mount configurations, and side-view options, providing installation flexibility in complex automation setups.
