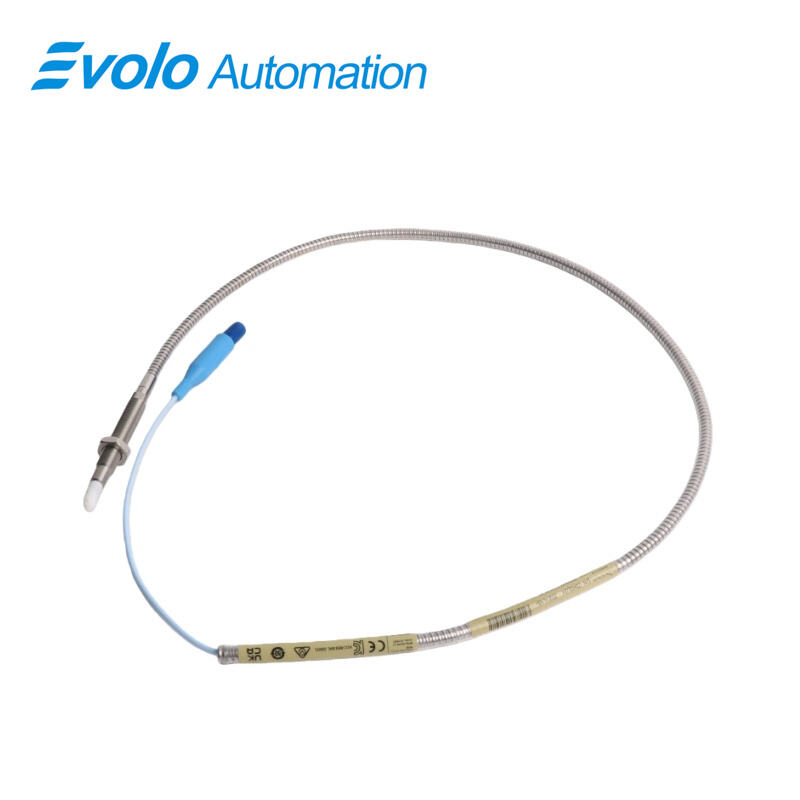

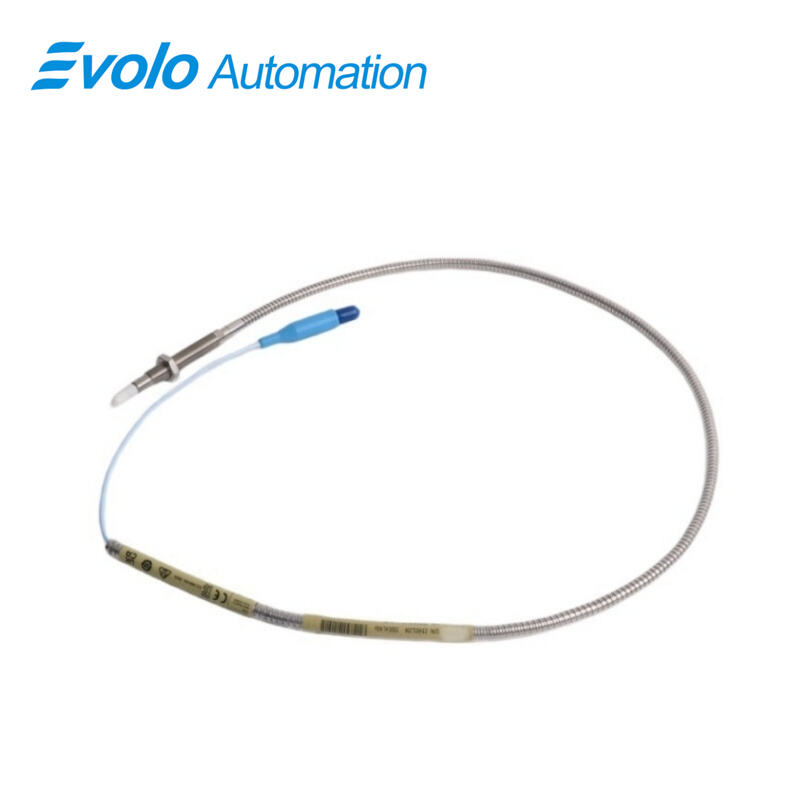

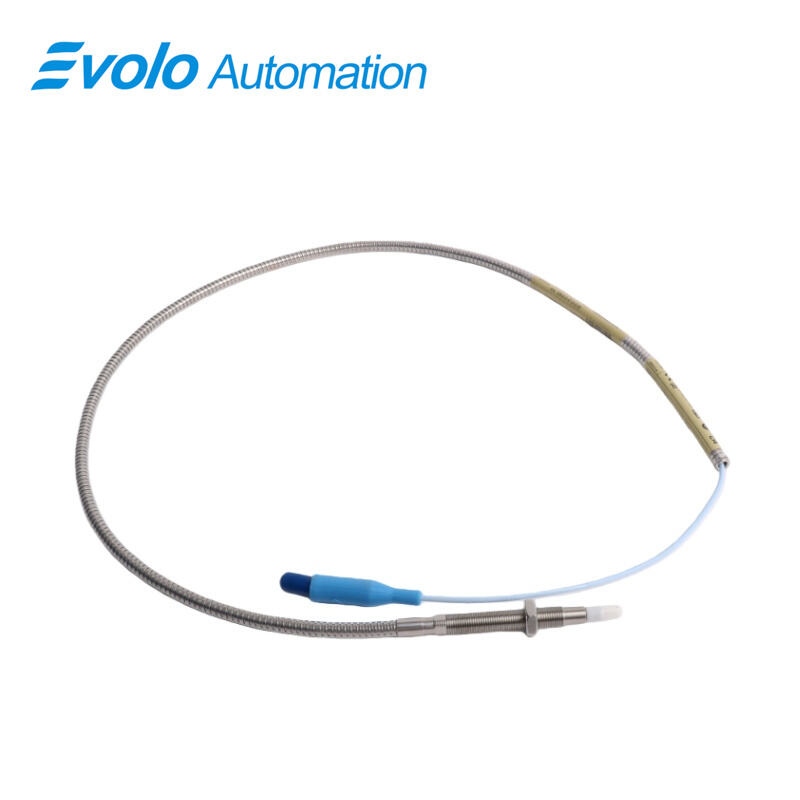

330910-01-08-10-01-05 3300 NSv Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330910-01-08-10-01-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330910-01-08-10-01-05 3300 NSv Proximity Probe is designed for centrifugal air compressors, refrigeration compressors, and process gas compressors with limited installation space. With a total cable length of 1.0 meter (39 in) and a linear range of 1.5 mm (60 mils), the 330910-01-08-10-01-05 3300 NSv Proximity Probe delivers precise radial vibration and axial position measurements on small shafts (<51 mm) or flat targets (<15 mm). The probe features an M8X1 thread, polyphenylene sulfide (PPS) tip, and AISI 304 stainless steel case, supporting field wiring from 0.2 to 1.5 mm² (16–24 AWG). Its ClickLoc connector with protector ensures secure attachment and prevents liquid ingress. Operating between -52°C and +177°C (-62°F to +351°F), the 330910-01-08-10-01-05 3300 NSv Proximity Probe maintains less than 2 mV/V output variation and 50 Ω output resistance, providing reliable signal transmission for Keyphasor, tachometer, and zero-speed monitoring. Compatible with previous 3300 RAM probes and upgradeable from 3000- and 7000-series transducer systems, the 330910-01-08-10-01-05 3300 NSv Proximity Probe supports automated monitoring while preserving precise gap and target measurement in compact or restricted mounting environments.

Applications

Measure Radial Shaft Vibration on Small Shafts
The 330910-01-08-10-01-05 3300 NSv Proximity Probe measures radial vibration on shafts smaller than 51 mm (2 in) in centrifugal and process gas compressors, ensuring precise monitoring of shaft dynamics in compact machines.

Axial Position Monitoring on Flat Targets
Use the 330910-01-08-10-01-05 3300 NSv Proximity Probe to track axial (thrust) position on flat targets smaller than 15 mm (0.6 in), supporting automation systems that require high-precision gap measurement.

Keyphasor and Tachometer Signal Generation
The 330910-01-08-10-01-05 3300 NSv Proximity Probe provides accurate phase reference signals and tachometer outputs for speed measurement and zero-speed detection in rotating equipment monitoring.

Upgrades for Legacy Systems
Upgrade from 3300 RAM or 3000/7000-series transducer systems using the 330910-01-08-10-01-05 3300 NSv Proximity Probe while retaining existing extension cables and monitoring hardware when compatible, simplifying automation retrofits.

Specifications

Competitive Advantage

Compact Probe Design for Tight Spaces
The 330910-01-08-10-01-05 3300 NSv Proximity Probe features an 80 mm overall case and 10 mm unthreaded length, enabling installation in restricted side-view or rear-view applications.

High-Temperature and Chemical Resistance
With an operating range of -52°C to +177°C (-62°F to +351°F) and a PPS probe tip, the 330910-01-08-10-01-05 3300 NSv Proximity Probe withstands harsh industrial environments in automated compressor systems.

Secure Electrical Connection
The 330910-01-08-10-01-05 3300 NSv Proximity Probe uses a ClickLoc connector with protector, providing 220 N pull strength and preventing liquid ingress, ensuring uninterrupted signal transmission.

Precise Linear Range and Output
With a 1.5 mm (60 mils) linear range, 50 Ω output resistance, and less than 2 mV/V supply sensitivity, the 330910-01-08-10-01-05 3300 NSv Proximity Probe delivers repeatable measurements for automation and predictive maintenance.

Interchangeable with Existing Probes
Mechanically and electrically compatible with previous 3300 RAM probes, the 330910-01-08-10-01-05 3300 NSv Proximity Probe simplifies inventory management and reduces commissioning time in automated systems.
