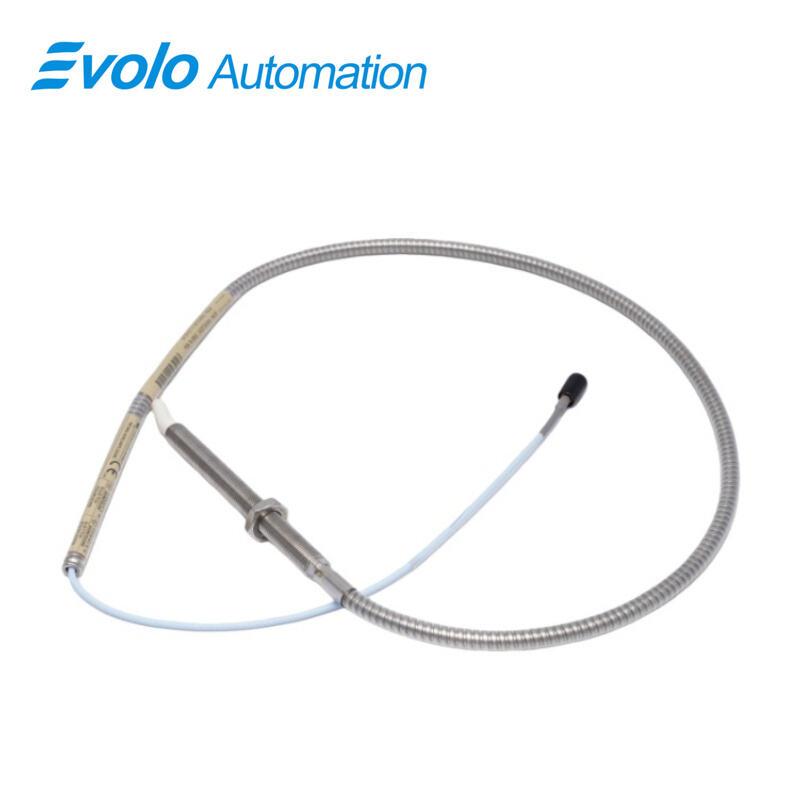

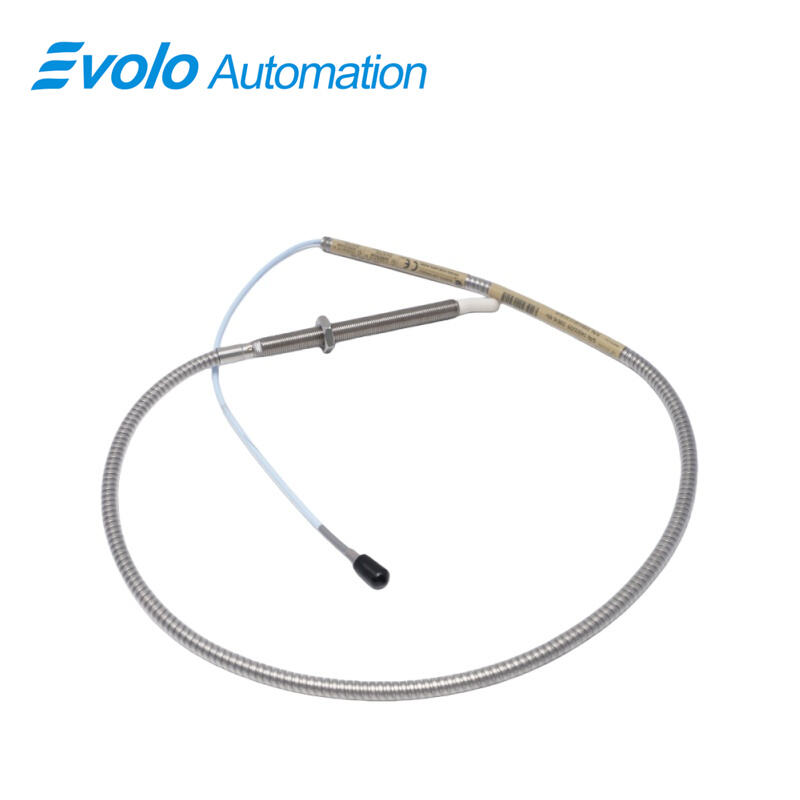

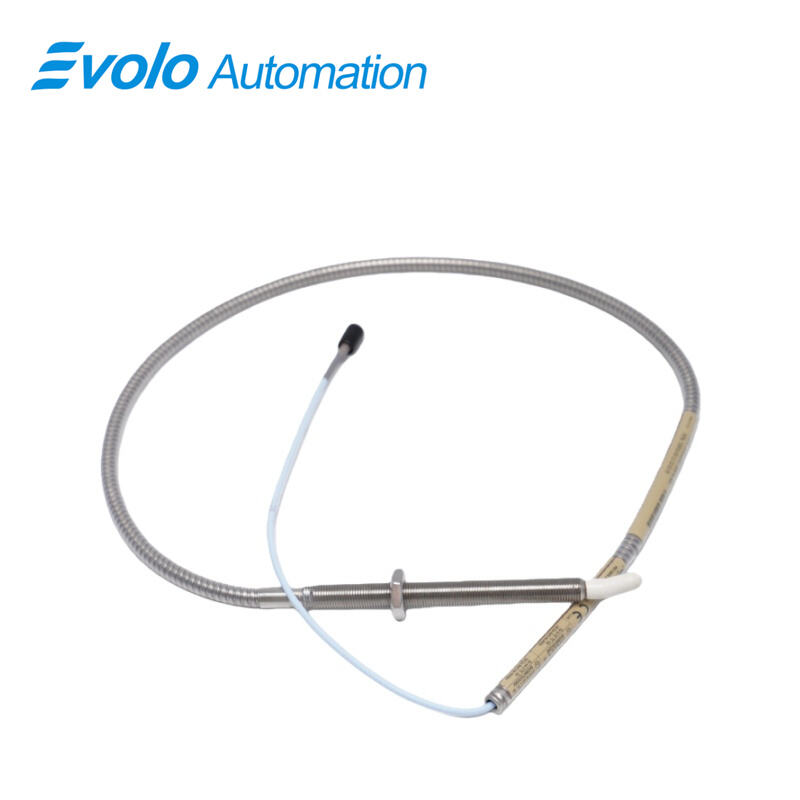

330910-00-10-50-02-05 3300 NSv Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330910-00-10-50-02-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330910-00-10-50-02-05 3300 NSv Proximity Probe is designed for precise non-contact measurement of shaft vibration and axial displacement in centrifugal air compressors, refrigeration compressors, and process gas compressors. With a 5.0-meter (16.4 feet) cable, M10X1 probe thread, and overall case length of 100 mm, the 330910-00-10-50-02-05 3300 NSv provides a 1.5 mm (60 mils) linear range and 1.0 mm (40 mils) recommended gap for high-resolution radial and axial measurements. Its PPS probe tip and AISI 304 stainless steel case support operating temperatures from -52°C to +177°C (-62°F to +351°F). The 330910-00-10-50-02-05 3300 NSv pairs with a miniature ClickLoc connector, 50 Ω output resistance, and less than 2 mV voltage change per volt of input, ensuring accurate automation signal capture. Ideal for small target areas where counter bore, side-view, or rear-view restrictions exist, the 330910-00-10-50-02-05 3300 NSv enables radial vibration, axial position, tachometer, zero-speed, and Keyphasor phase measurements. The robust TipLoc and CableLoc designs lock the probe and cable, while connector protectors safeguard signals in automated monitoring systems.

Applications

Measure Shaft Radial Vibration
The 330910-00-10-50-02-05 3300 NSv provides a 1.5 mm (60 mils) linear range and 1.0 mm (40 mils) recommended gap, enabling precise radial vibration measurements on shafts smaller than 51 mm (2 in). The probe’s PPS tip and AISI 304 stainless steel case support operation from -52°C to +177°C (-62°F to +351°F), ensuring accurate vibration capture under extreme conditions.

Monitor Axial (Thrust) Position
Using its 5.0-meter (16.4 feet) cable and miniature ClickLoc connector, the 330910-00-10-50-02-05 3300 NSv measures axial displacement on fluid-film bearing machines, providing a 4–20 mA proportional signal when paired with a compatible Proximitor Sensor.

Tachometer and Zero-Speed Detection
The 330910-00-10-50-02-05 3300 NSv enables tachometer readings and zero-speed detection for automation control, supporting rotational monitoring in centrifugal air compressors, refrigeration compressors, and process gas compressors.

Keyphasor Phase Reference
The 330910-00-10-50-02-05 3300 NSv captures Keyphasor signals for phase synchronization in control systems, making it ideal for automated machinery protection and data acquisition.

Specifications

Competitive Advantage

Enhanced Side-View Installation
The compact probe case (100 mm) and M10X1 thread allow installation in areas with counter bore, side-view, or rear-view restrictions.

High Output Precision
With 50 Ω output resistance and <2 mV voltage change per volt input, the 330910-00-10-50-02-05 3300 NSv delivers precise measurements for automation systems.

Robust Mechanical Design
TipLoc molding and CableLoc design provide 220 N (50 lb) pull strength, securely attaching the probe and cable for high-vibration environments.

Chemical Resistance for Process Environments
The PPS tip and stainless steel case of the 330910-00-10-50-02-05 3300 NSv tolerate aggressive chemicals, allowing direct use in compressors and industrial processes.

Interchangeable with Previous Systems
Compatible with prior 3300 RAM probes and extension cables, enabling upgrades without replacing monitoring systems, reducing downtime in automated setups.
