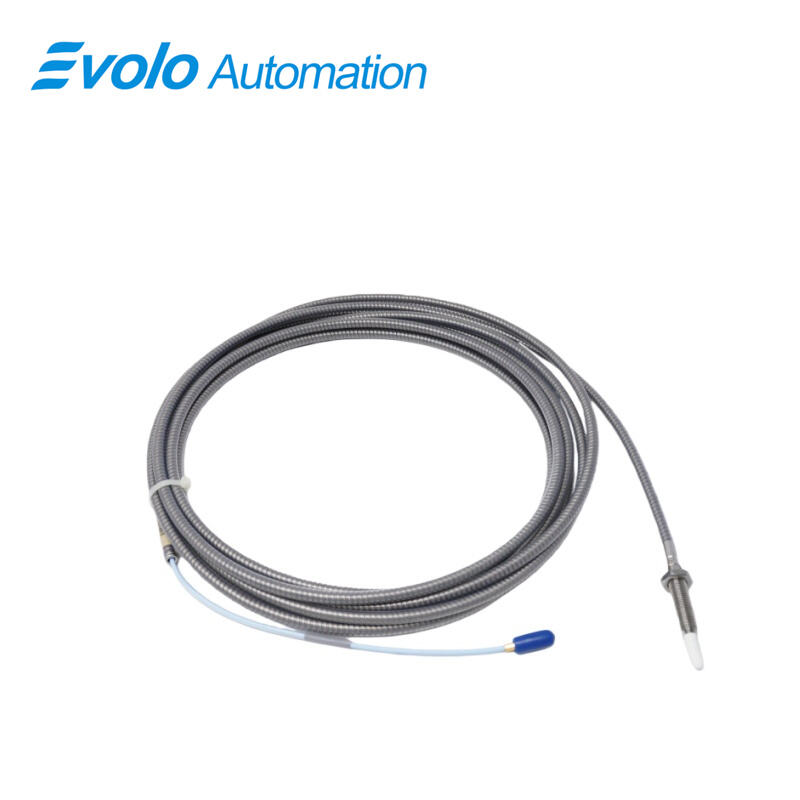

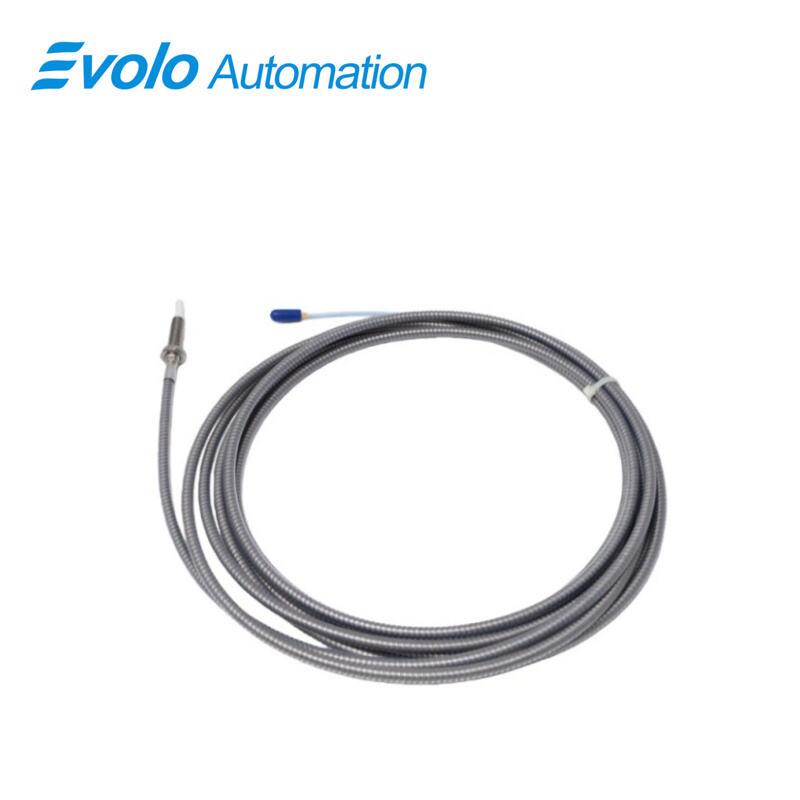

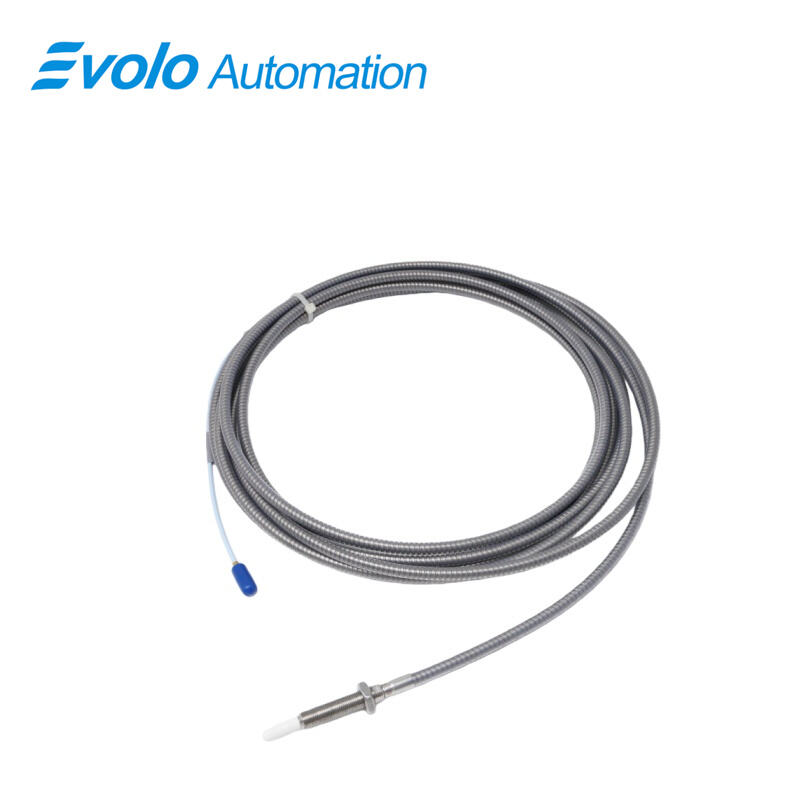

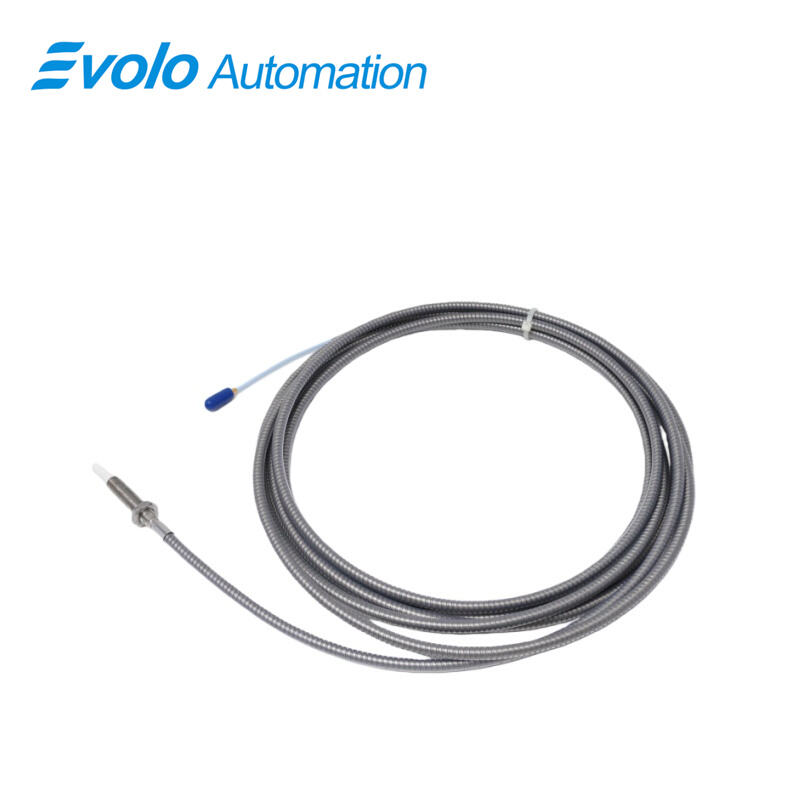

330910-00-05-50-02-00 3300 NSv Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330910-00-05-50-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The Bently Nevada 330910-00-05-50-02-00 3300 NSv Proximity Probe is engineered for high-precision displacement and vibration measurement in compact industrial automation environments where installation space is limited. Designed with an M8X1 threaded stainless-steel housing and a 5.0-meter coaxial ClickLoc cable assembly, the 3300 NSv Proximity Probe provides reliable radial vibration, axial position, and phase reference monitoring on small shaft diameters and tight counter-bore conditions typically found in centrifugal air compressors, process gas compressors, and refrigeration machinery. With a linear range of 1.5 mm and an output sensitivity of 200 mV/mil, the 330910-00-05-50-02-00 enhances measurement accuracy for shafts below 51 mm and flat targets below 15 mm, making it suitable for OEM automation upgrades and retrofitting. The probe withstands harsh process environments with a wide operating temperature range from -52°C to +177°C, improved chemical resistance, and a strong PPS tip molded via TipLoc technology, while CableLoc reinforcement ensures up to 220 N pull strength for robust field reliability. In advanced industrial control systems, the 3300 NSv Proximity Probe enables condition-based monitoring, predictive maintenance strategies, and optimized machinery protection functions.

Applications

Rotating Machinery Monitoring
The 330910-00-05-50-02-00 measures axial and radial shaft vibration with a 1.5 mm linear range and 1.0 mm recommended gap, detecting misalignment or imbalance in turbines, motors, and pumps to prevent mechanical failures.

Long-Distance Industrial Installations
With a 5.0-meter cable and 50 mm case, the 330910-00-05-50-02-00 supports extended measurement points in large machinery layouts while maintaining high-fidelity signal transmission.

Predictive Maintenance Programs
The 330910-00-05-50-02-00 provides continuous displacement and vibration data, enabling predictive maintenance and reducing unplanned downtime in industrial operations.

Harsh Environment Operation
Constructed with PPS probe tip and stainless steel case, and rated for -52°C to +177°C, the 330910-00-05-50-02-00 performs reliably in high-temperature, contaminated, or mechanically demanding environments.

Specifications

Competitive Advantage

Compact NSv Geometry for Restricted Installations
M8X1 threaded case and reduced side-view clearance allow deployment where standard 5 mm and 8 mm probes cannot be installed.

High Sensitivity with Standard Industry Scale Factor
Delivers ~200 mV/mil (7.87 V/mm) sensitivity, ensuring compatibility with existing instrumentation in turbomachinery control and vibration monitoring systems.

Enhanced Chemical and Environmental Resistance
PPS tip and stainless-steel construction sustain aggressive process conditions from -52°C to +177°C, extending sensor service life in petrochemical applications.

Secure Mechanical Connectivity via ClickLoc and CableLoc
ClickLoc prevents connector loosening while CableLoc withstands 220 N pull force, reducing maintenance frequency and signal failure risk.
