330910-00-05-10-02-00 3300 NSv Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330910-00-05-10-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

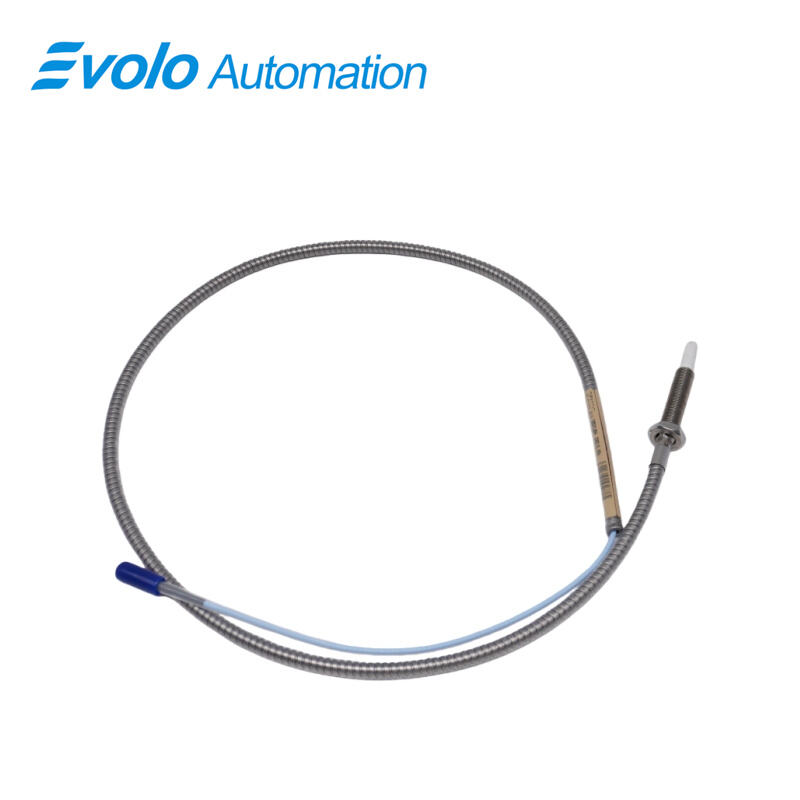

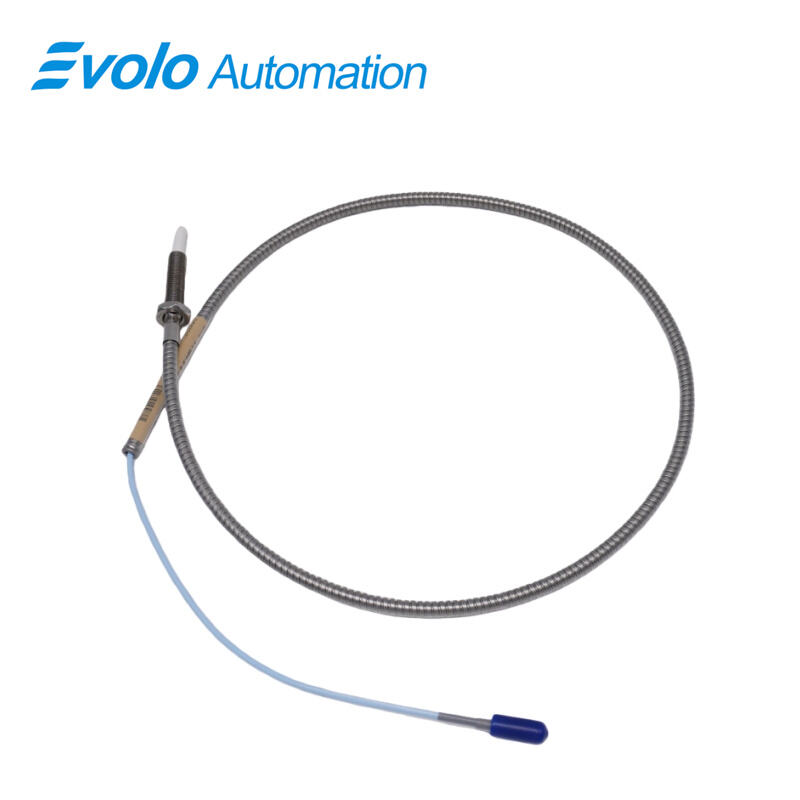

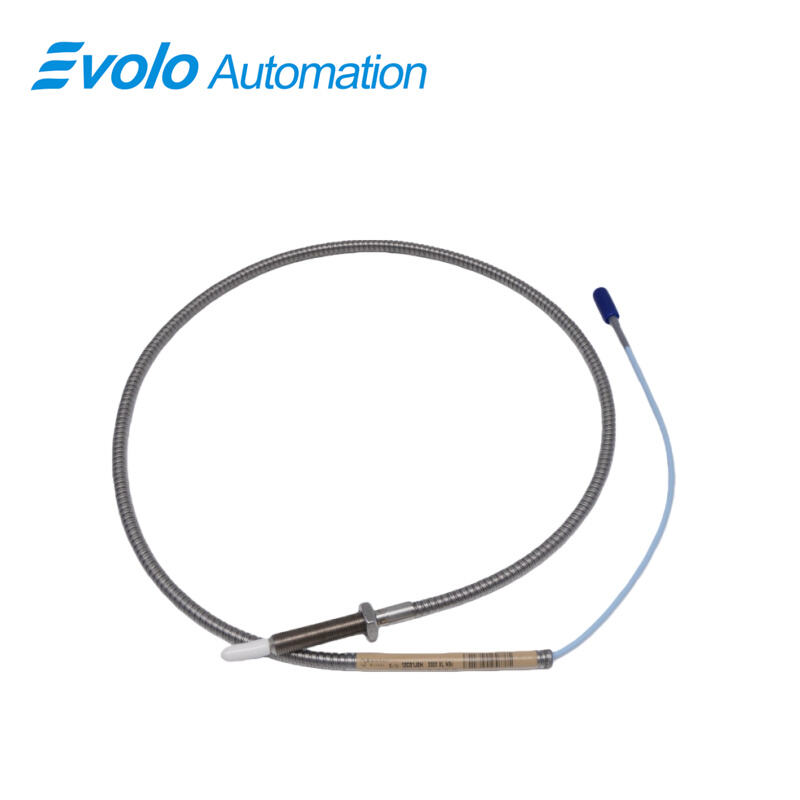

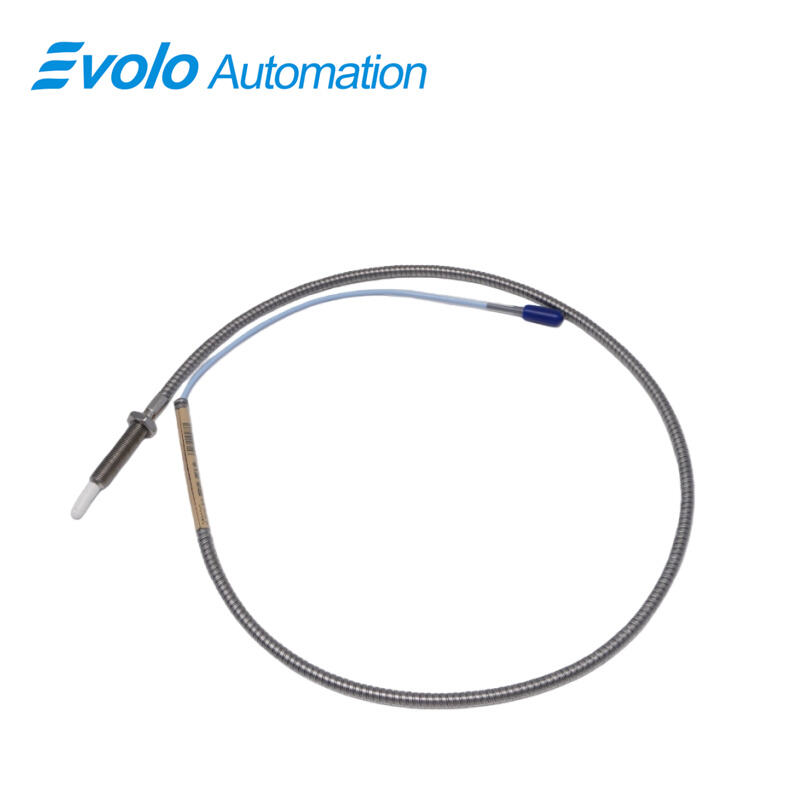

The 330910-00-05-10-02-00 3300 NSv Proximity Probe is a compact, high-precision eddy current probe engineered for automation and machinery monitoring in space-constrained industrial equipment. Designed for centrifugal air compressors, refrigeration compressors, and process gas compressors, this probe provides accurate radial vibration and axial position measurements on small shafts or flat targets. With a 50 mm case length, M8X1 threaded mount, and 1.5 mm (60 mils) linear range, it delivers consistent output even under extreme operating temperatures from -52°C to +177°C. Constructed with a PPS probe tip and AISI 304 stainless steel case, it offers enhanced chemical resistance and durability in demanding process environments. Featuring ClickLoc miniature coaxial connectors and Bently Nevada’s patented TipLoc and CableLoc designs, the probe ensures secure mechanical and electrical connections with a 220 N pull strength. The 3300 NSv probe is compatible with previous 3300 RAM and 3000/7000-series 190 systems, enabling straightforward upgrades while maintaining precise automated monitoring performance.

Applications

1. Radial Vibration Monitoring on Small Shafts
Measures vibration on shafts smaller than 51 mm (2 in), supporting precise automated control and protection of compact machinery.

2. Axial (Thrust) Position Measurement
Tracks axial displacement on targets smaller than 15 mm (0.6 in), enabling high-accuracy machinery positioning in tight spaces.

3. Keyphasor and Tachometer Signal Generation
Provides phase reference and zero-speed signals for advanced automation systems, improving machine timing and performance diagnostics.

4. Process Gas Compressor Applications
Chemical-resistant PPS tip ensures reliable operation in aggressive chemical environments typical of industrial compressors.

5. Automation System Upgrades
Seamlessly replaces 3300 RAM and 3000/7000-series 190 probes while reusing existing extension cables and monitoring systems, reducing downtime and costs.

Specifications

Competitive Advantage

1. Compact Form Factor for Restricted Spaces
50 mm case length with M8X1 thread allows installation in areas where standard probes are too large, enhancing automation flexibility.

2. High Measurement Accuracy
1.5 mm linear range with 7.87 V/mm scale factor ensures precise radial and axial measurements for small targets.

3. Robust Mechanical and Electrical Design
Patented TipLoc and CableLoc designs provide strong probe tip bonding and 220 N pull strength, minimizing maintenance and signal loss.

4. Durable and Chemical-Resistant Materials
PPS probe tip and stainless steel housing withstand extreme temperatures (-52°C to +177°C) and process chemicals, ensuring long-term reliability.

5. Easy System Interchangeability
Compatible with previous 3300 RAM and 3000/7000-series 190 systems, enabling efficient upgrades without replacing extension cables or Proximitor sensors.
