330910-00-03-10-02-00 3300 NSv Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330910-00-03-10-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

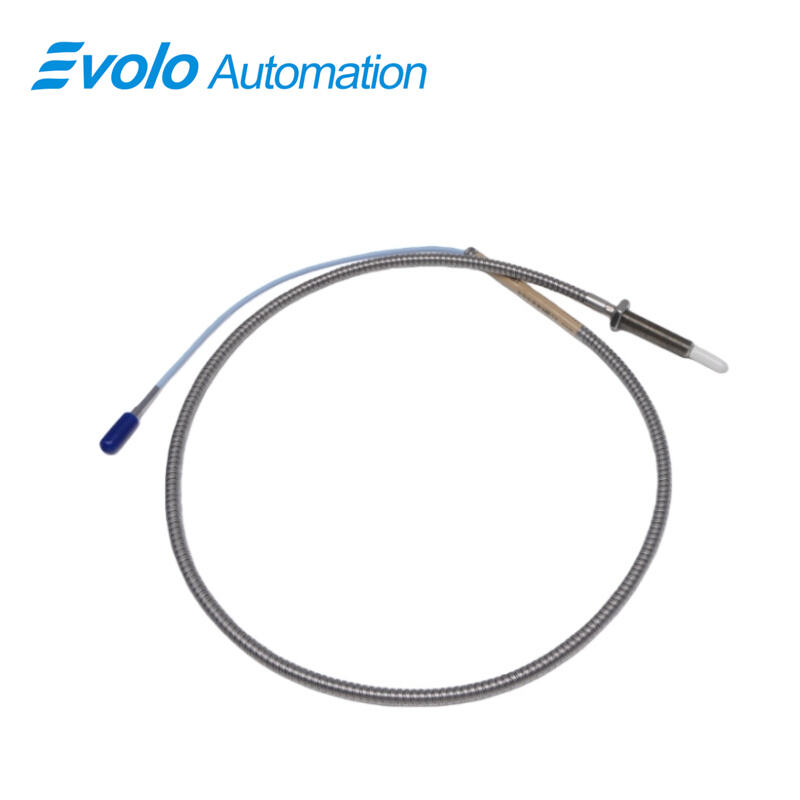

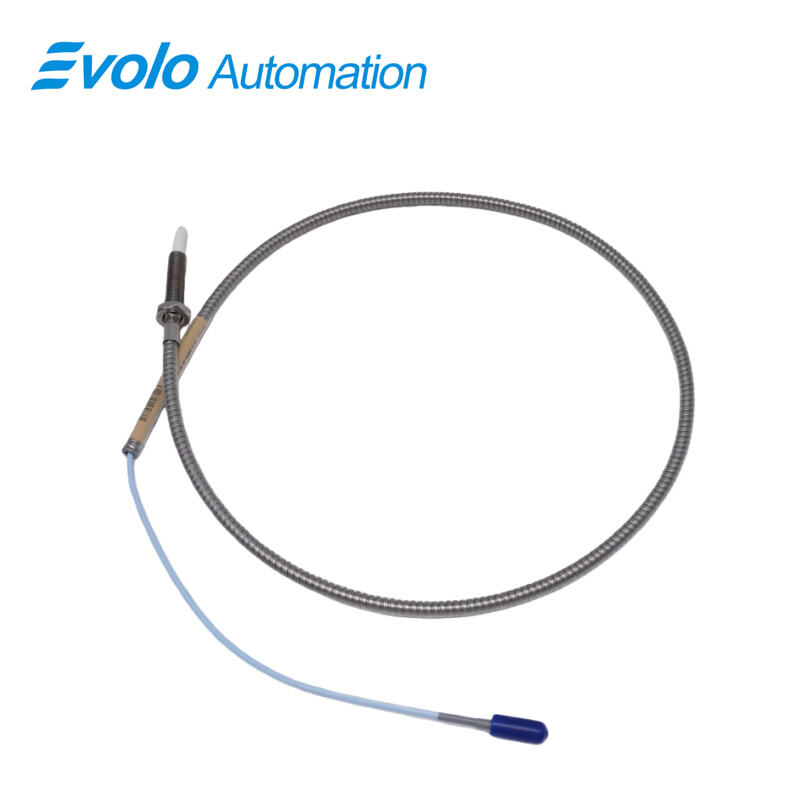

330910-00-03-10-02-00 3300 NSv Proximity Probe is a compact eddy current displacement sensor developed for industrial automation and machinery protection in equipment with extremely limited installation space. The 330910-00-03-10-02-00 converts the distance between the probe tip and a conductive target into a proportional voltage signal, enabling reliable radial vibration, axial position, speed, and phase reference measurement in automated rotating machinery. Featuring an M8×1 threaded probe case, 12 mm maximum thread engagement, 30 mm overall case length, and 0 mm unthreaded length, the 330910-00-03-10-02-00 is optimized for shallow mounting locations. The 1.0 m standard cable with a miniature coaxial ClickLoc connector supports secure signal transmission in control systems. With compact dimensions of 68.3 × 1.7 × 2 cm and a lightweight 0.15 kg design, the 330910-00-03-10-02-00 simplifies integration into automation panels and compressor skids. Designed for small target applications, the 330910-00-03-10-02-00 is well suited for centrifugal air compressors, refrigeration compressors, and process gas compressors where standard 5 mm or 8 mm probes cannot be installed, supporting precise monitoring and control in modern automated machinery.

Applications

Radial Vibration Monitoring in Ultra Compact Installations
330910-00-03-10-02-00 is used for radial vibration monitoring on centrifugal air compressors and refrigeration compressors where mounting depth and side-view clearance are extremely limited. With an overall case length of 30 mm and an M8×1 thread, 330910-00-03-10-02-00 enables accurate vibration detection on small shafts below 51 mm, supporting automated condition monitoring in compact machinery layouts.

Axial Position Measurement on Small Thrust Targets
For axial position measurement, 330910-00-03-10-02-00 provides precise displacement feedback on flat thrust targets smaller than 15 mm. The compact probe geometry allows 330910-00-03-10-02-00 to be installed close to the measurement surface, improving signal response for automated thrust control systems.

Speed and Phase Reference in Limited Space Machinery
330910-00-03-10-02-00 is applied in tachometer, zero speed, and phase reference functions where conventional proximity probes cannot be accommodated. The 1.0 m standard cable with ClickLoc connector ensures secure signal transmission, allowing 330910-00-03-10-02-00 to deliver reliable speed and Keyphasor data to automation and protection systems.

Specifications

Competitive Advantage

Ultra Short Mechanical Design for Restricted Mounting Areas
The 30 mm overall case length, 0 mm unthreaded length, and 12 mm maximum thread engagement allow 330910-00-03-10-02-00 to fit into shallow counterbores and narrow housings where longer NSv probes cannot be installed.

Lightweight Construction for Easy Integration
With a weight of only 0.15 kg and compact dimensions of 68.3 × 1.7 × 2 cm, 330910-00-03-10-02-00 reduces mechanical load on brackets and simplifies integration into automation panels and skid-mounted equipment.

Secure Signal Connection for Automation Systems
The miniature coaxial ClickLoc connector prevents loosening under vibration, allowing 330910-00-03-10-02-00 to maintain stable signal transmission in continuous monitoring and automated control environments.
