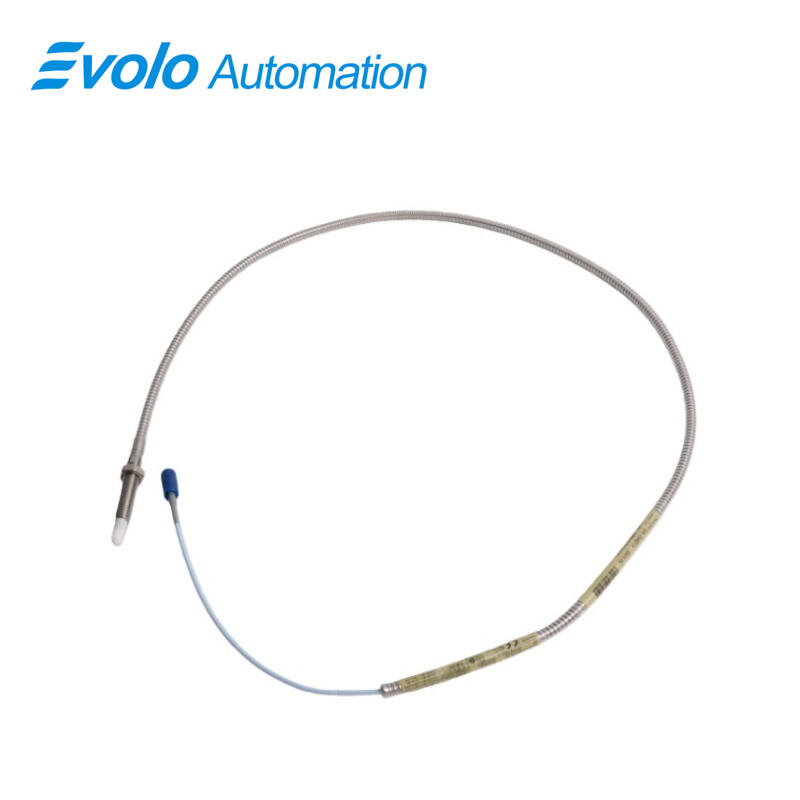

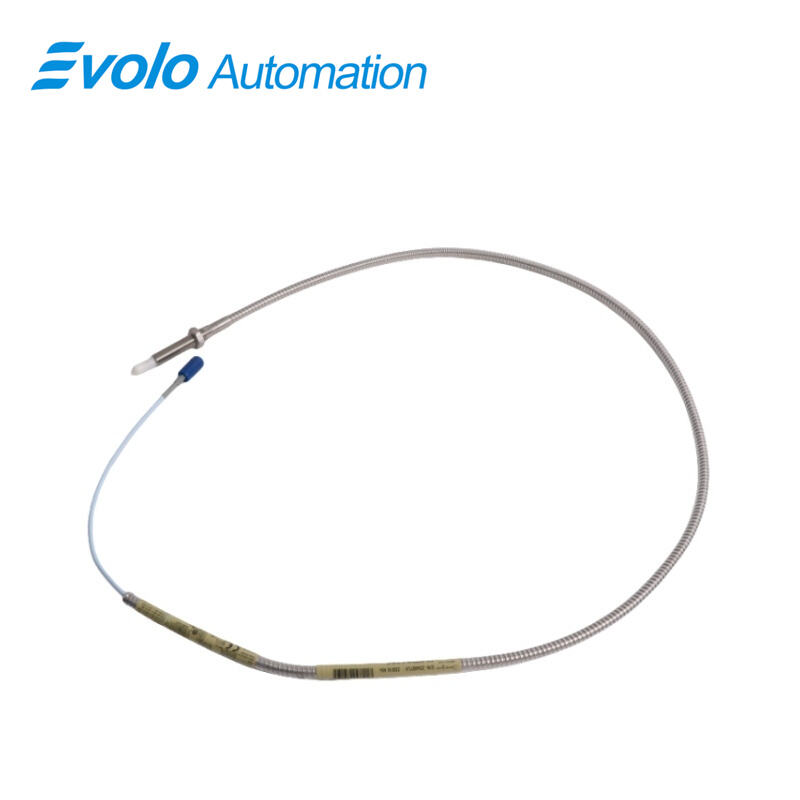

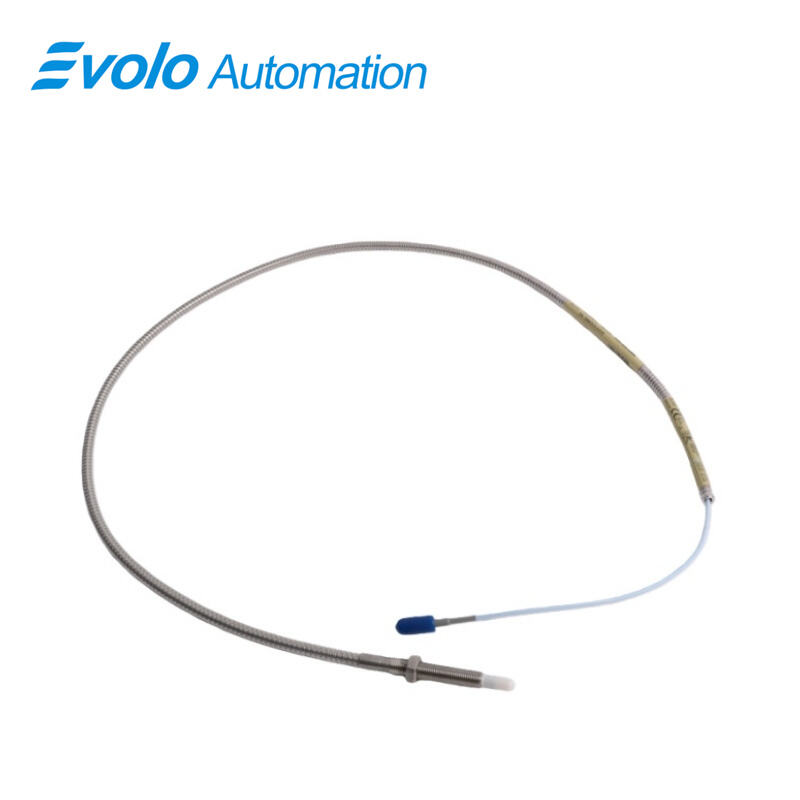

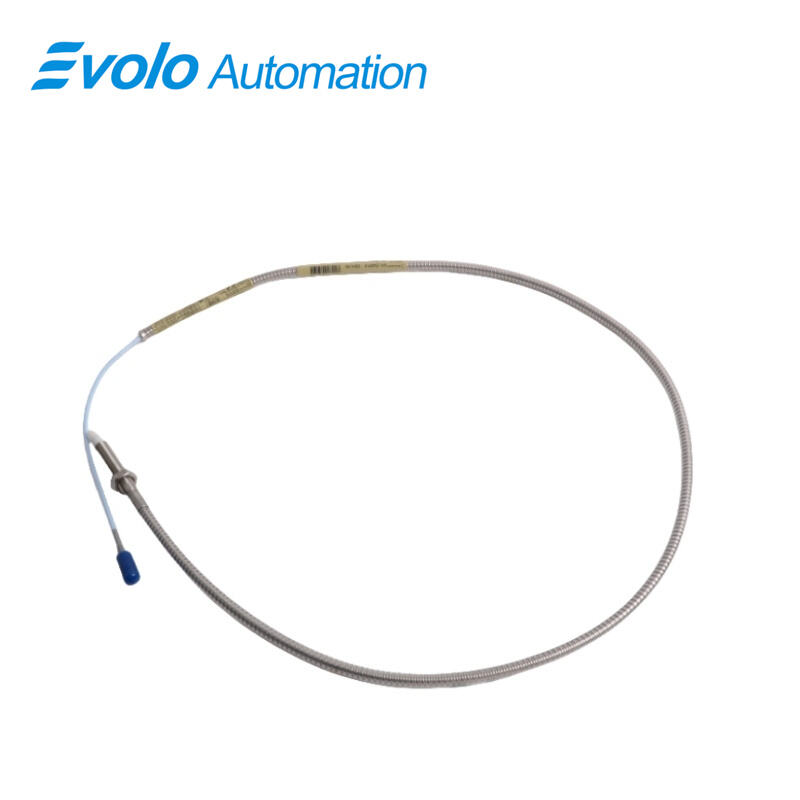

330909-00-20-05-02-05 3300 NSv Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330909-00-20-05-02-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330909-00-20-05-02-05 3300 NSv Proximity Probe is designed for automation in centrifugal air compressors, refrigeration compressors, and process gas compressors where space is limited. With an overall case length of 2.0 in, linear range of 1.5 mm (60 mils), and 1/4-28 UNF probe thread, the 330909-00-20-05-02-05 3300 NSv Proximity Probe enables precise radial vibration and axial (thrust) position measurements on shafts smaller than 51 mm. The polyphenylene sulfide (PPS) probe tip and AISI 304 stainless steel case allow chemical-resistant deployment. The 50 Ω output resistance and supply sensitivity under 2 mV per volt provide stable voltage signals for automation control loops. The ClickLoc connector and patented CableLoc design secure the 330909-00-20-05-02-05 3300 NSv Proximity Probe with 220 N pull strength. Recommended gap setting of 1.0 mm ensures accurate Keyphasor and zero-speed detection. This probe fits restricted counter bore, sideview, and rearview locations, making the 330909-00-20-05-02-05 3300 NSv Proximity Probe a versatile option for automated monitoring of small-target machines.

Applications

Radial Vibration Monitoring on Small Shafts
Use the 330909-00-20-05-02-05 3300 NSv Proximity Probe to measure radial vibration on shafts smaller than 51 mm in centrifugal and process compressors. Its 1.5 mm linear range ensures precise readings for automation controllers.

Axial (Thrust) Position Detection
Install the 330909-00-20-05-02-05 3300 NSv Proximity Probe to monitor axial displacement on flat targets under 15 mm. The recommended gap of 1.0 mm allows accurate thrust monitoring for automated shutdown or adjustment sequences.

Keyphasor and Zero Speed Signal Generation
The 330909-00-20-05-02-05 3300 NSv Proximity Probe outputs reliable Keyphasor signals and zero-speed measurements, enabling precise rotor phase detection for automated synchronization and process control.

Sideview and Rearview Limited Installation
The compact 2.0 in case and ClickLoc connector allow the 330909-00-20-05-02-05 3300 NSv Proximity Probe to fit into restricted areas without affecting signal quality, supporting tight automation layouts.

Specifications

Competitive Advantage

Chemical-Resistant Probe Tip for Harsh Process Conditions
The PPS probe tip on the 330909-00-20-05-02-05 3300 NSv Proximity Probe withstands aggressive compressor fluids, enabling direct installation in process environments without protective sleeves.

High-Strength Cable Attachment for Secure Operation
The CableLoc design provides 220 N pull strength, ensuring that the 330909-00-20-05-02-05 3300 NSv Proximity Probe remains connected during automated machine operations.

Direct Replacement for Legacy Systems
The 330909-00-20-05-02-05 3300 NSv Proximity Probe is compatible with previous 3300 RAM probes and extension cables, allowing system upgrades with minimal downtime and retaining existing automation setups.

Accurate Measurements on Small Targets
With a linear range of 1.5 mm and output resistance of 50 Ω, the 330909-00-20-05-02-05 3300 NSv Proximity Probe provides precise readings for automation systems monitoring shafts under 51 mm or flat surfaces under 15 mm.

Enhanced Signal Quality in Restricted Spaces
The ClickLoc connector and compact design of the 330909-00-20-05-02-05 3300 NSv Proximity Probe maintain high-quality signals even in counter bore or sideview-limited installations, ensuring reliable automation input.
