Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330908-00-20-70-02-05 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option: |
0.0 in |
|
Overall Case Length Option: |
2.0 in |
|
Cable Length Option: |
7.0 meters (23.0 feet) |
|
Connector and Cable Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
Multiple Approvals |
|
Probe Case Thread: |
3/8-24 UNF thread |
|
Maximum Length of Thread Engagement: |
0.563 in |
|
Dimension: |
1.5x1.3x115cm |
|
Weight: |
0.05kg |
Description

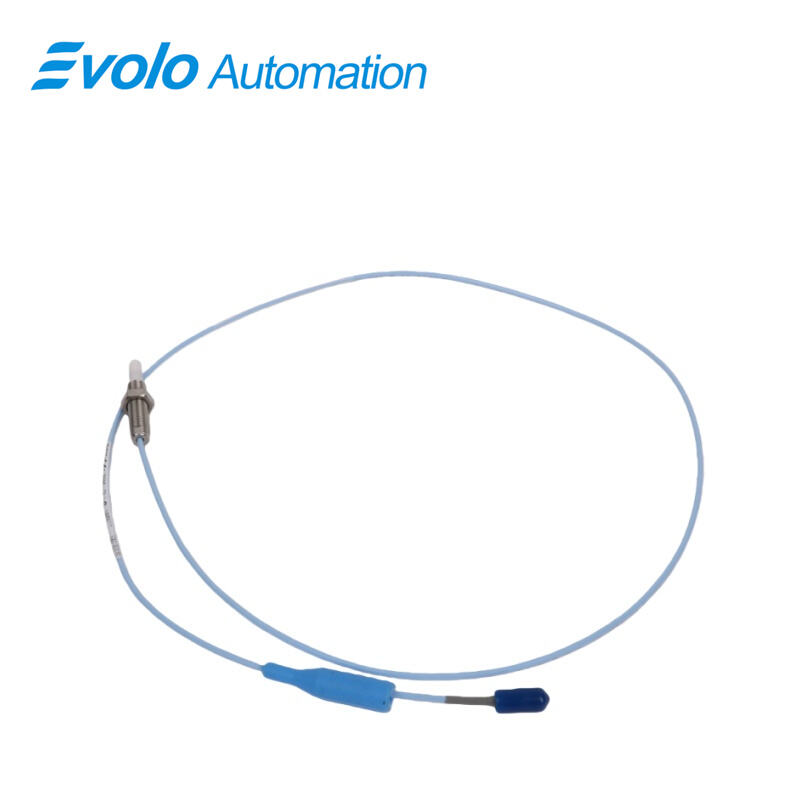

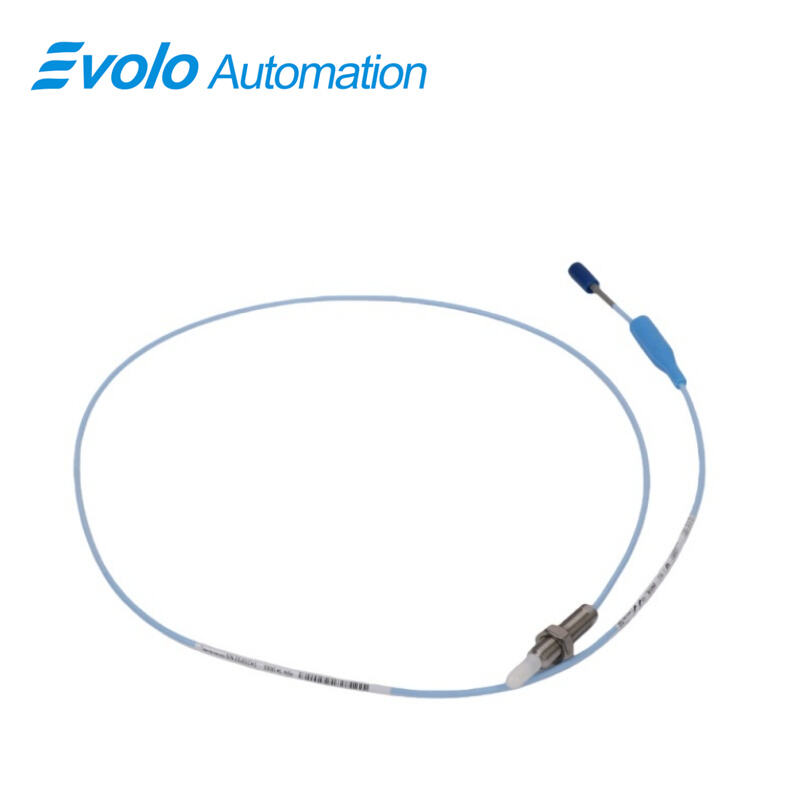

The 330908-00-20-70-02-05 3300 NSv Proximity Probe is a precision eddy-current sensor designed for advanced industrial automation and condition monitoring applications where space is limited. Engineered for use with the 3300 XL NSv Transducer System, this probe provides highly accurate radial vibration, axial thrust, and Keyphasor phase reference signals on high-speed compressors, process gas machinery, and fluid-film bearing equipment. Its 3/8-24 UNF threaded stainless steel housing and chemically resistant PPS probe tip allow reliable operation across a wide temperature range from -52°C to +177°C (-62°F to +351°F). With a 1.5 mm linear range and a recommended 1.0 mm gap, the probe is suitable for tight installations. The included 7-meter (23-foot) standard cable with miniature ClickLoc connector ensures secure connection and integration with automated monitoring systems in predictive maintenance and vibration control.
Applications
Centrifugal Compressor Vibration Monitoring
Measures radial vibration on shafts smaller than 51 mm, providing precise feedback for predictive maintenance and real-time condition monitoring.
Axial Thrust and Position Feedback
Delivers accurate axial (thrust) position measurement on flat targets under 15 mm, optimizing fluid-film bearing performance in refrigeration and process compressors.
Keyphasor and Phase Reference Applications
Supports high-precision phase reference signals for tachometer functions and rotor synchronization in automated industrial control systems.
Fluid-Film Bearing Zero-Speed Monitoring
Enables detection of zero speed and start-up ramp analysis, safeguarding rotating machinery and reducing unplanned downtime in industrial automation.
Space-Constrained Automation Installations
Compact design allows installation in tight spaces with side-view, rear-view, or counterbore restrictions while maintaining accurate measurement and process control.
Specifications
|
Probe Temperature Range: |
-52°C to +177°C (-62°F to +351°F) |
|
Storage Temperature: |
-52°C to +177°C (-62°F to +351°F) |
|
Probe Tip Material: |
Polyphenylene sulfide (PPS) |
|
Probe Case Material: |
AISI 304 stainless steel (SST) |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG)[0.25 to 0.75 mm2 (18 to 23 AWG) with ferrules] |
|
Linear Range: |
1.5 mm (60 mils) |
|
Recommended Gap Setting: |
1.0 mm (40 mils) |
|
Output resistance: |
50 Ω |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
Competitive Advantage
Extended Cable for Flexible Installation
7-meter (23-foot) cable allows remote installation and flexible routing in complex automation setups without signal loss.
Robust Materials for Harsh Environments
AISI 304 stainless steel case and PPS tip provide enhanced chemical and mechanical resistance compared to legacy 3300 RAM probes, increasing durability in industrial conditions.
High-Precision Eddy-Current Output
Average scale factor of 7.87 V/mm ensures reliable linear displacement and vibration measurement, essential for advanced predictive maintenance analytics.
Superior Side-View and Small Target Measurement
Enhanced side-view performance allows accurate monitoring of compact or limited-access targets, surpassing 3000-series probes in constrained installations.
Secure, Long-Lasting Electrical Connection
Gold-plated ClickLoc connectors with CableLoc design provide 220 N pull strength and prevent loosening, guaranteeing stable electrical performance in automated systems.
