Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330908-00-19-10-02-05 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option: |
0.0 in |
|
Overall Case Length Option: |
1.9 in |
|
Cable Length Option: |
1.0 meter (39 in) |
|
Connector and Cable Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
Multiple Approvals |
|
Probe Case Thread: |
3/8-24 UNF thread |
|
Maximum Length of Thread Engagement: |
0.563 in |
|
Dimension: |
1.6x1.4x120cm |
|
Weight: |
0.05kg |
Description

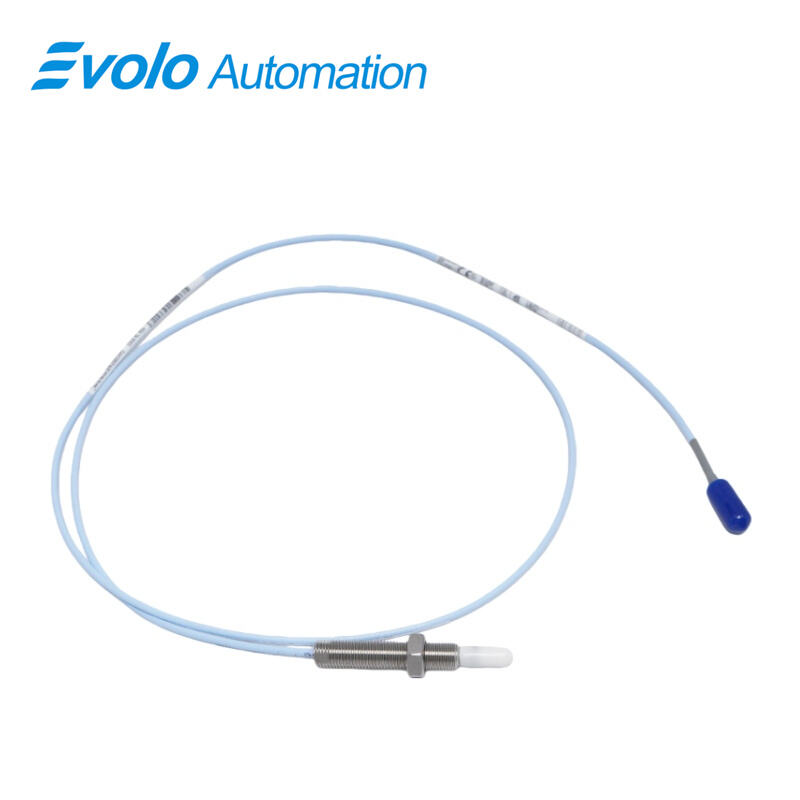

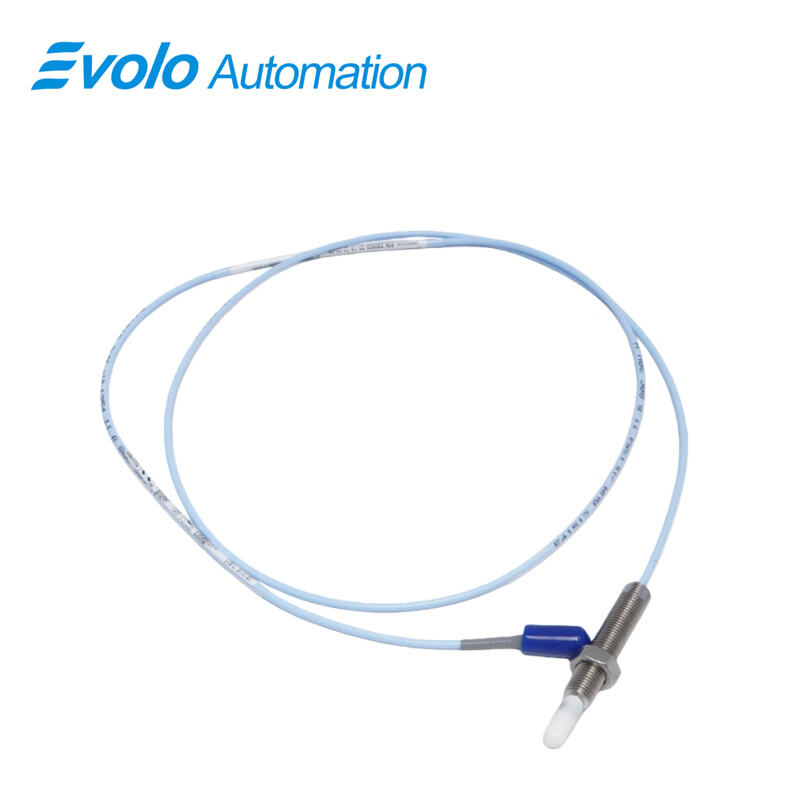

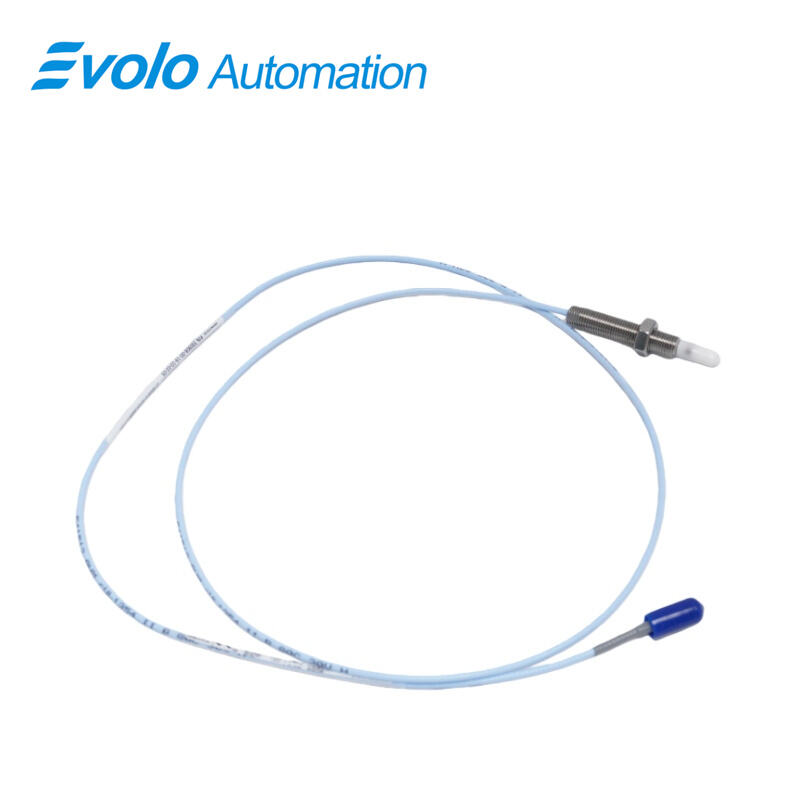

The 330908-00-19-10-02-05 3300 NSv Proximity Probe measures radial and axial vibration as well as static position on fluid-film bearing machines. The 330908-00-19-10-02-05 3300 NSv Proximity Probe has a 3/8-24 UNF stainless steel case, 1.9 in overall length, and 1.0-meter miniature coaxial ClickLoc cable. Its PPS probe tip provides a 1.5 mm linear range, 50 Ω output resistance, and supply sensitivity under 2 mV per volt, operating from -52°C to +177°C. Patented TipLoc and CableLoc designs of the 330908-00-19-10-02-05 3300 NSv Proximity Probe secure the probe tip and cable with 220 N pull strength. The side-view design allows installation in tight spaces, making the 330908-00-19-10-02-05 3300 NSv Proximity Probe ideal for small shafts under 51 mm and flat targets under 15 mm in compressors, turbines, and other automated rotating machinery.
Applications
Measure Radial Shaft Vibration
The 330908-00-19-10-02-05 3300 NSv Proximity Probe measures radial vibration on shafts smaller than 51 mm using its 1.5 mm linear range, providing real-time automated feedback for machine monitoring.
Monitor Axial Shaft Movement
The 330908-00-19-10-02-05 3300 NSv Proximity Probe detects axial displacement on flat targets under 15 mm. Its 1.9 in overall length and side-view design allow installation in limited spaces for automated position measurement.
Provide Tachometer Speed Signals
The 330908-00-19-10-02-05 3300 NSv Proximity Probe outputs 50 Ω signals for speed detection and zero-speed monitoring in automated control systems.
Generate Keyphasor Phase Signals
The 330908-00-19-10-02-05 3300 NSv Proximity Probe generates Keyphasor signals to synchronize rotor phase tracking and automated machine operation.
Specifications
|
Probe Temperature Range: |
-52°C to +177°C (-62°F to +351°F) |
|
Storage Temperature: |
-52°C to +177°C (-62°F to +351°F) |
|
Probe Tip Material: |
Polyphenylene sulfide (PPS) |
|
Probe Case Material: |
AISI 304 stainless steel (SST) |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG)[0.25 to 0.75 mm2 (18 to 23 AWG) with ferrules] |
|
Linear Range: |
1.5 mm (60 mils) |
|
Recommended Gap Setting: |
1.0 mm (40 mils) |
|
Output resistance: |
50 Ω |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
Competitive Advantage
Replace 3300 RAM Probes Without Rewiring
The 330908-00-19-10-02-05 3300 NSv Proximity Probe uses existing extension cables and Proximitor sensors, reducing installation time and machine downtime.
Secure Probe Tip Attachment for Accurate Signals
Patented TipLoc molding ensures the PPS tip of the 330908-00-19-10-02-05 3300 NSv Proximity Probe remains fixed to the stainless steel body for consistent automated measurements.
High Pull Strength for Continuous Operation
CableLoc design provides 220 N pull strength on the 330908-00-19-10-02-05 3300 NSv Proximity Probe, maintaining secure cable attachment for reliable automated monitoring.
Chemical and Temperature Resilience
The PPS tip and stainless steel case of the 330908-00-19-10-02-05 3300 NSv Proximity Probe operate from -52°C to +177°C, allowing use in fluid-exposed and high-temperature process environments.
