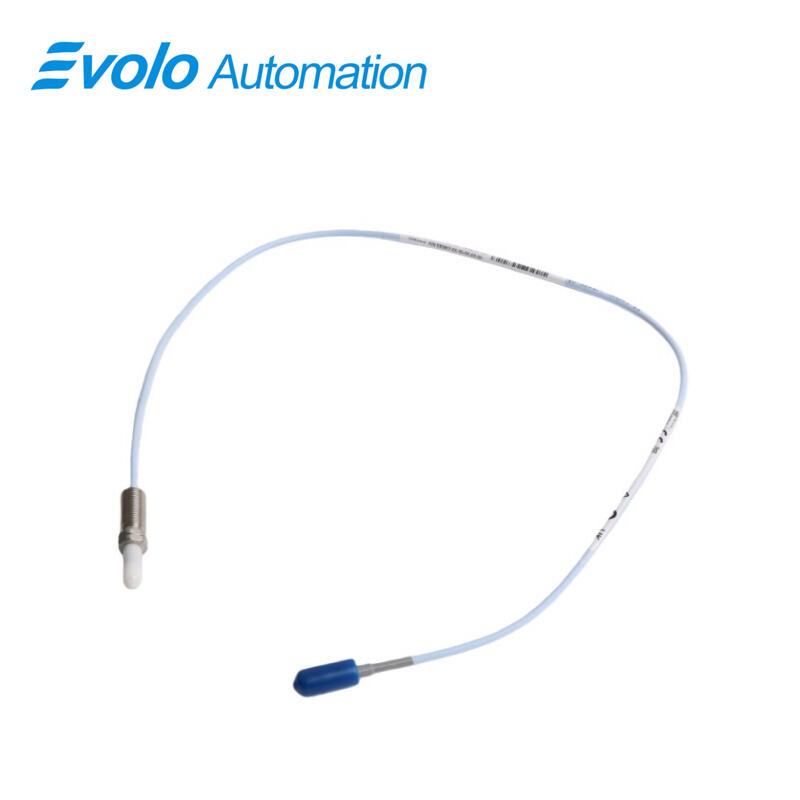

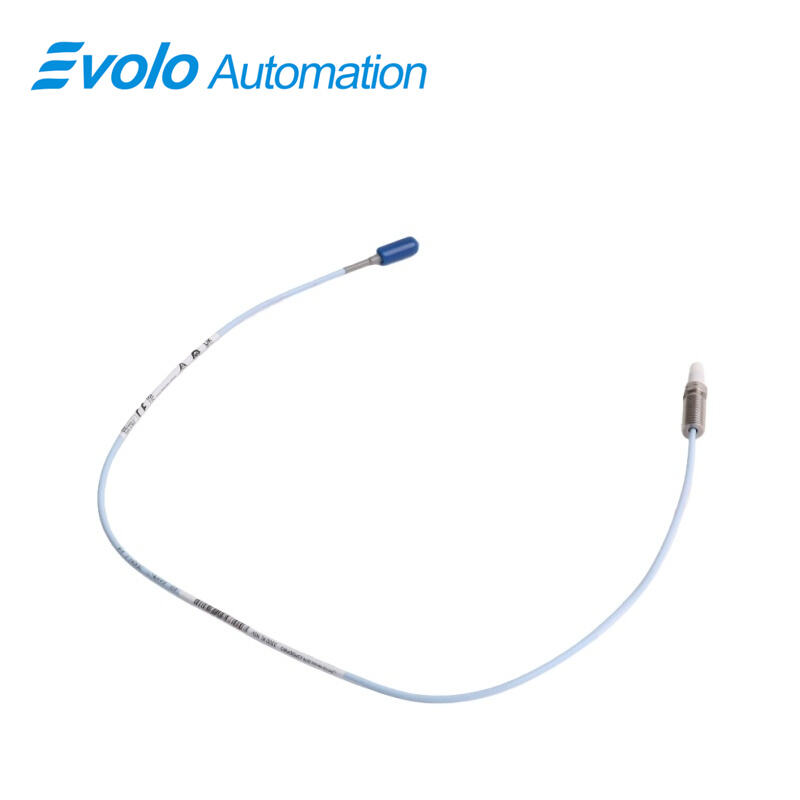

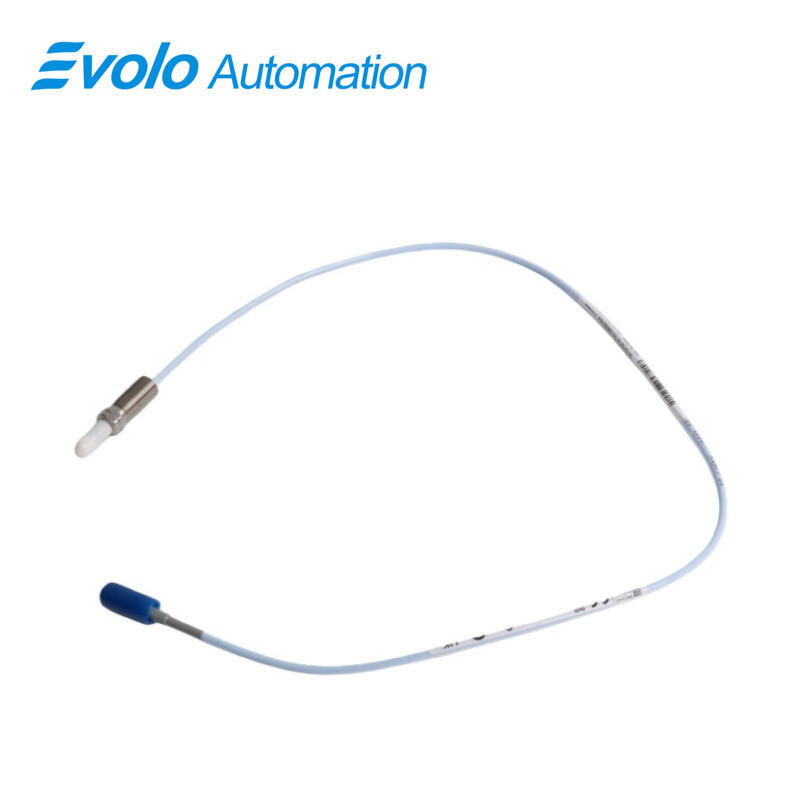

330907-05-30-05-02-05 3300 NSv Reverse Mount Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330907-05-30-05-02-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

330907-05-30-05-02-05 3300 NSv Reverse Mount Probe is designed for fluid-film bearing machines with limited space, including centrifugal air compressors, refrigeration compressors, and process gas compressors. The 330907-05-30-05-02-05 3300 NSv Reverse Mount Probe features a 1.5 mm linear range, 50 Ω output resistance, and supply sensitivity below 2 mV per volt change, providing precise radial and axial vibration measurements. Its M10X1 threaded case with 15 mm maximum engagement and PPS tip allows accurate gapping with a recommended 1.0 mm distance. The 330907-05-30-05-02-05 3300 NSv Reverse Mount Probe includes a 0.5-meter miniature coaxial ClickLoc cable rated for -52°C to +177°C (-62°F to +351°F), suitable for tight installation and small shaft targets down to 51 mm. The patented TipLoc molding and CableLoc design enhance mechanical bonding and cable attachment for automated monitoring in industrial applications.

Applications

Measure Radial Vibration on Small Shafts
The 330907-05-30-05-02-05 3300 NSv Reverse Mount Probe measures radial vibration on shafts as small as 51 mm using its 1.5 mm linear range and PPS probe tip. Its -52°C to +177°C temperature range ensures accurate readings in compressors and tight industrial spaces.

Monitor Axial (Thrust) Position on Flat Targets
Use the 330907-05-30-05-02-05 3300 NSv Reverse Mount Probe to track axial movement on flat targets smaller than 15 mm. The M10X1 probe case and recommended 1.0 mm gapping support precise automated position monitoring.

Provide Keyphasor Reference and Speed Signals
The 330907-05-30-05-02-05 3300 NSv Reverse Mount Probe outputs 50 Ω DC signals with supply sensitivity under 2 mV per volt, making it suitable for phase reference (Keyphasor) and zero-speed detection in compressors and process machinery.

Install in Tight Reverse-Mount Applications
The 330907-05-30-05-02-05 3300 NSv Reverse Mount Probe is ideal for areas with counter bore, sideview, or rearview limitations. The 0.5-meter ClickLoc cable and 15 mm max thread engagement allow installation in restricted spaces without affecting measurement performance.

Specifications

Competitive Advantage

Secure Cable and Probe Attachment
The 330907-05-30-05-02-05 3300 NSv Reverse Mount Probe features patented CableLoc design with 220 N pull strength, ensuring the probe cable is firmly attached to the probe tip for automated monitoring.

Durable Probe Construction for Harsh Conditions
The 330907-05-30-05-02-05 3300 NSv Reverse Mount Probe has a PPS tip and AISI 304 stainless steel case, providing resistance to high temperatures and chemical exposure in industrial environments.

Interchangeable with Previous Systems
The 330907-05-30-05-02-05 3300 NSv Reverse Mount Probe can replace 3300 RAM and 3000/7000-series 190 Transducer Systems using the same extension cables and monitoring components, reducing installation time.

Precise Gap Adjustment
With a recommended 1.0 mm gapping and 1.5 mm linear range, the 330907-05-30-05-02-05 3300 NSv Reverse Mount Probe provides consistent readings even in small-target applications, supporting accurate automated diagnostics.
