330906-02-12-05-02-00 3300 NSv Reverse Mount Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330906-02-12-05-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

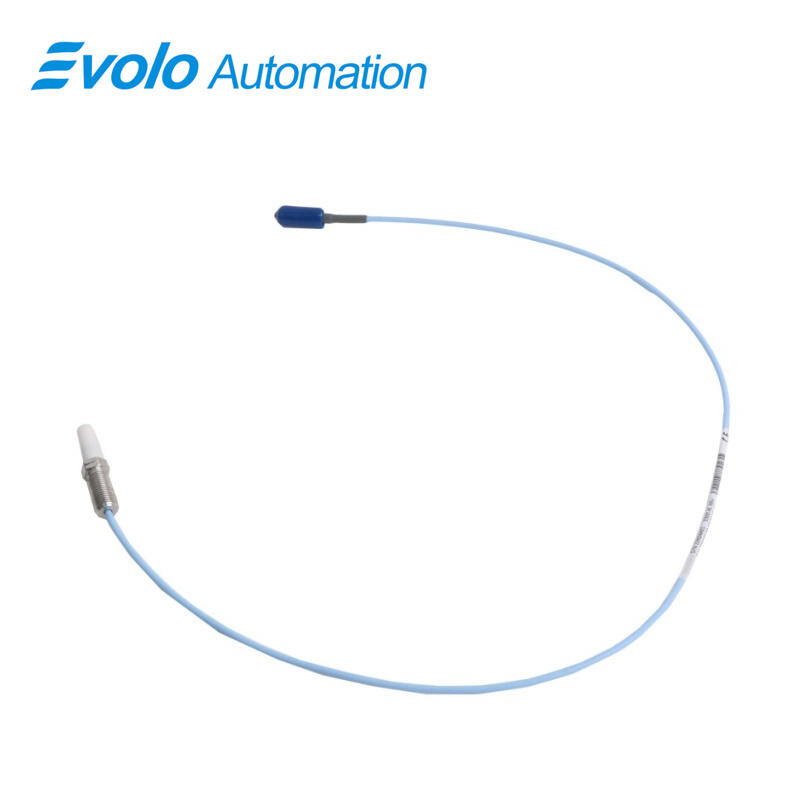

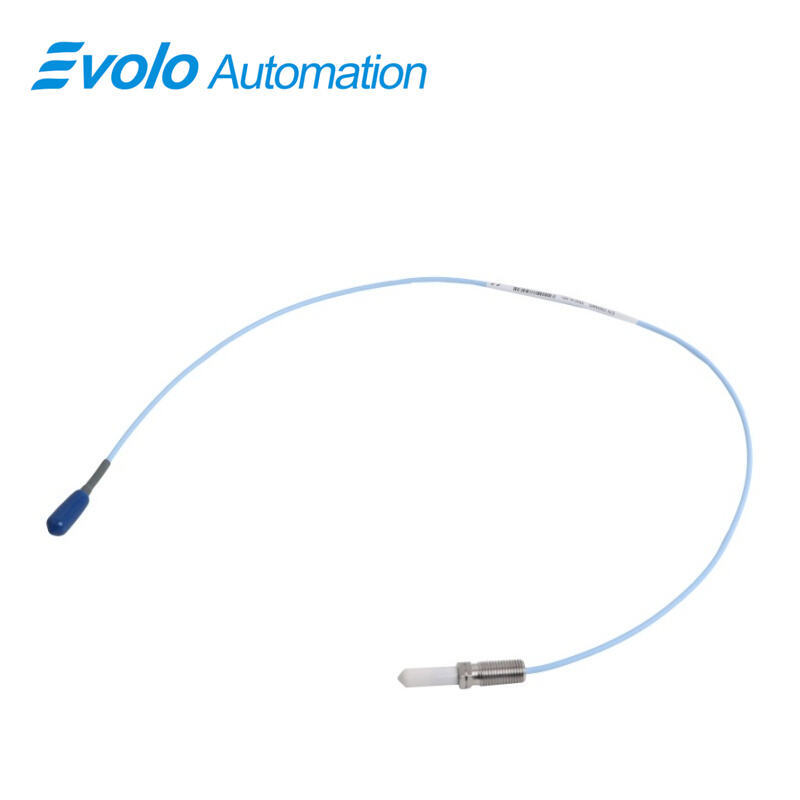

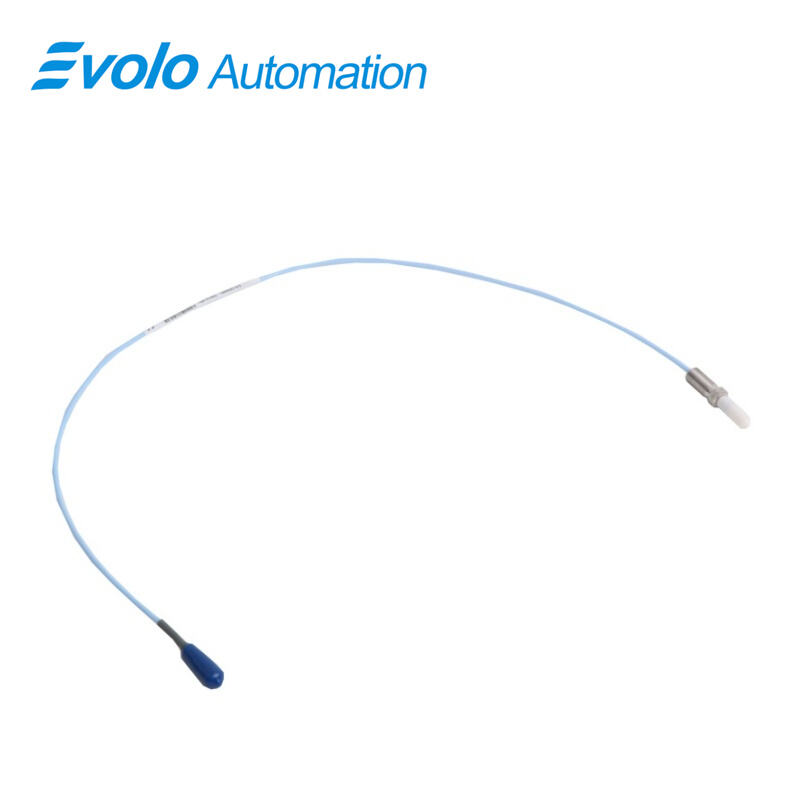

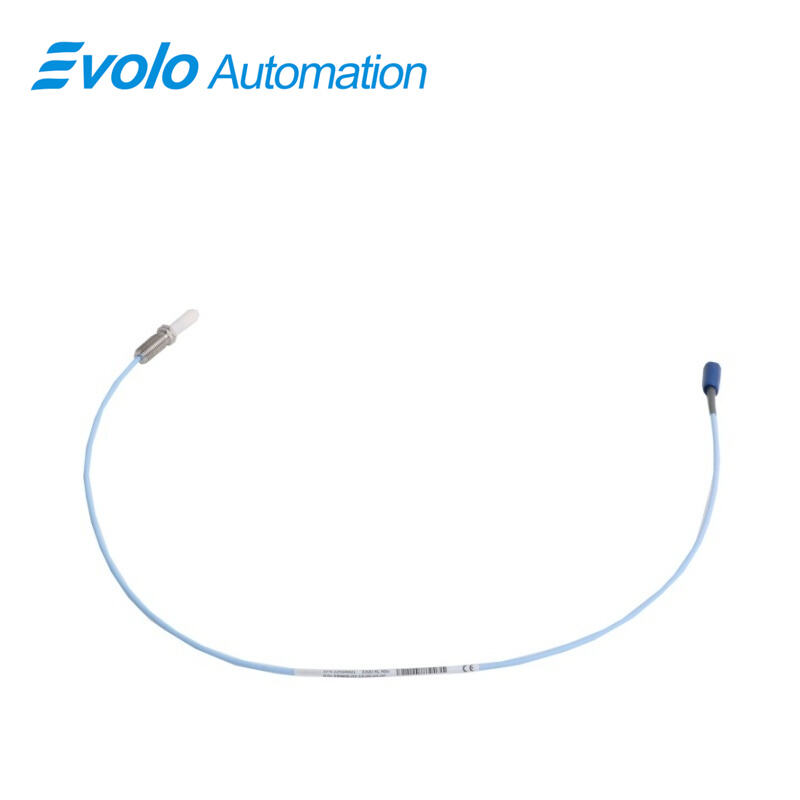

The 330906-02-12-05-02-00 3300 NSv Reverse Mount Probe is designed for precise monitoring in centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines with restricted installation spaces. With a 0.5-meter (20 in) cable and 3/8-24 UNF thread, the 330906-02-12-05-02-00 ensures secure mounting and accurate measurements. Its linear range of 1.5 mm (60 mils) and recommended gap of 1.0 mm (40 mils) allow detailed radial vibration and axial position tracking. The probe operates over -52°C to +177°C (-62°F to +351°F) and features a polyphenylene sulfide (PPS) tip with AISI 304 stainless steel body, supporting automated monitoring under demanding conditions. Gold-plated ClickLoc connectors with 7.5 N•m recommended torque provide reliable connections, while the patented TipLoc and CableLoc designs deliver robust cable-to-probe bonding. The 330906-02-12-05-02-00 facilitates upgrades from older 3300 RAM and 3000/7000-series 190 transducer systems, allowing automation systems to use existing extension cables and monitoring setups while improving small-target sideview measurements.

Applications

Radial Vibration Measurement
The 330906-02-12-05-02-00 3300 NSv Reverse Mount Probe measures radial vibration on shafts smaller than 51 mm (2 in) using its 1.5 mm (60 mils) linear range and recommended gap of 1.0 mm (40 mils), providing precise monitoring for centrifugal and refrigeration compressors.

Axial Position Tracking
With a PPS probe tip and AISI 304 stainless steel body, the 330906-02-12-05-02-00 can detect axial (thrust) movement on flat targets down to 15 mm (0.6 in), enabling accurate position readings in fluid-film bearing machines.

Keyphasor and Speed Detection
Equipped with gold-plated ClickLoc connectors and a supply sensitivity of less than 2 mV per volt, the 330906-02-12-05-02-00 3300 NSv Reverse Mount Probe delivers reliable phase reference and zero-speed signals for automated control systems.

Specifications

Competitive Advantage

Short Cable Installation
The 330906-02-12-05-02-00 comes with a 0.5-meter (20 in) miniature coaxial cable and ClickLoc connector, allowing installation in tight spaces while maintaining a robust 7.5 N•m recommended torque connection.

High Temperature Range
Operating between -52°C to +177°C (-62°F to +351°F), the 330906-02-12-05-02-00 supports extreme process environments without performance loss, ensuring reliable automated measurement.

Enhanced Mounting Security
The 330906-02-12-05-02-00 3300 NSv Reverse Mount Probe features a patented TipLoc probe tip and CableLoc design with 220 N (50 lb) pull strength, reducing probe movement and maintaining consistent signal accuracy.

Small Target Optimization
The 330906-02-12-05-02-00 is optimized for sideview and rearview applications, providing precise monitoring where older 3300 RAM or 190 series probes cannot reach, without requiring system recalibration.
