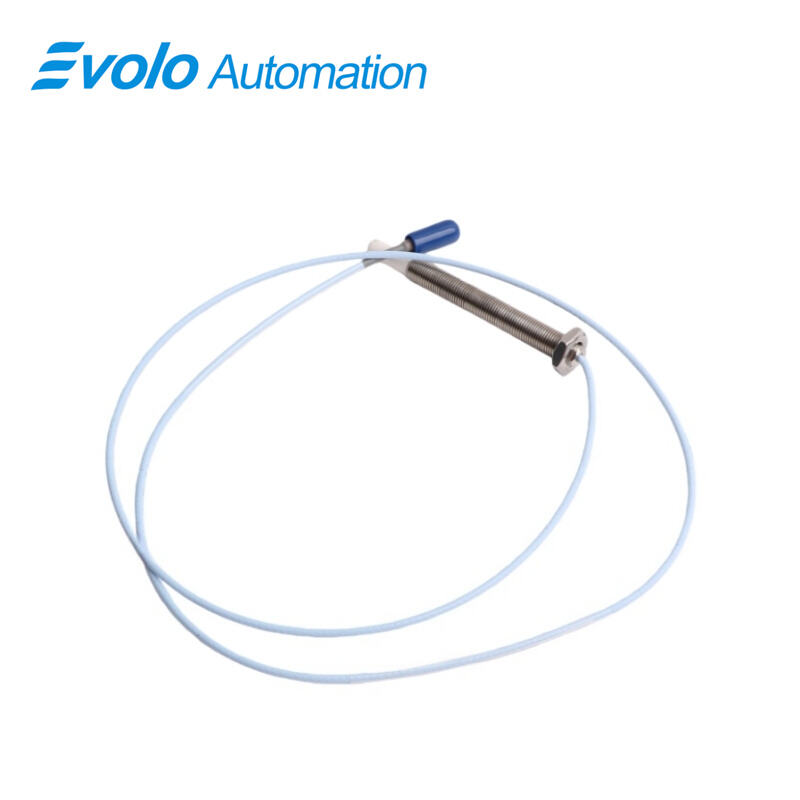

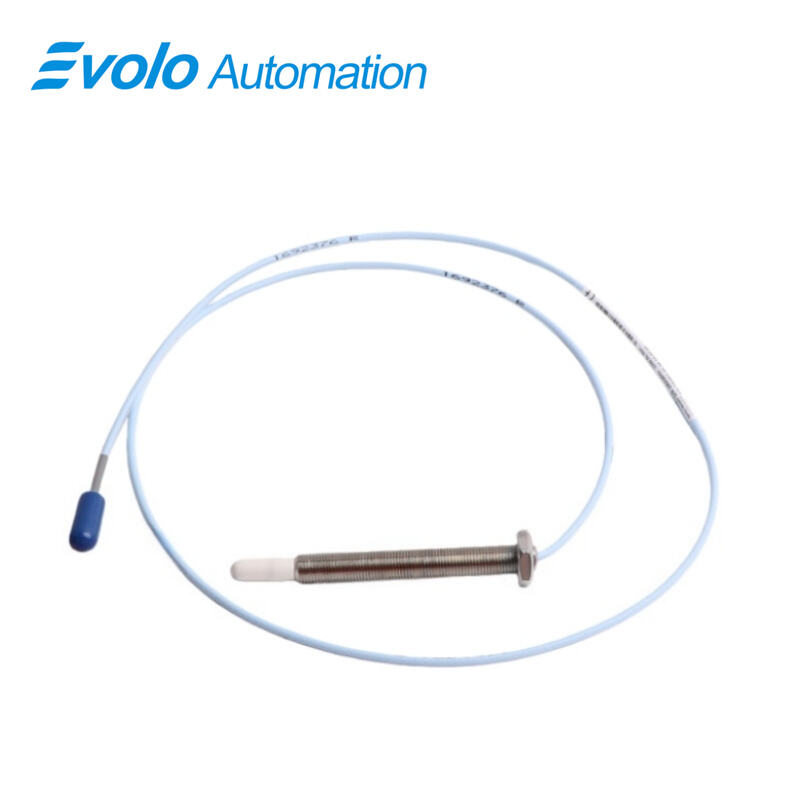

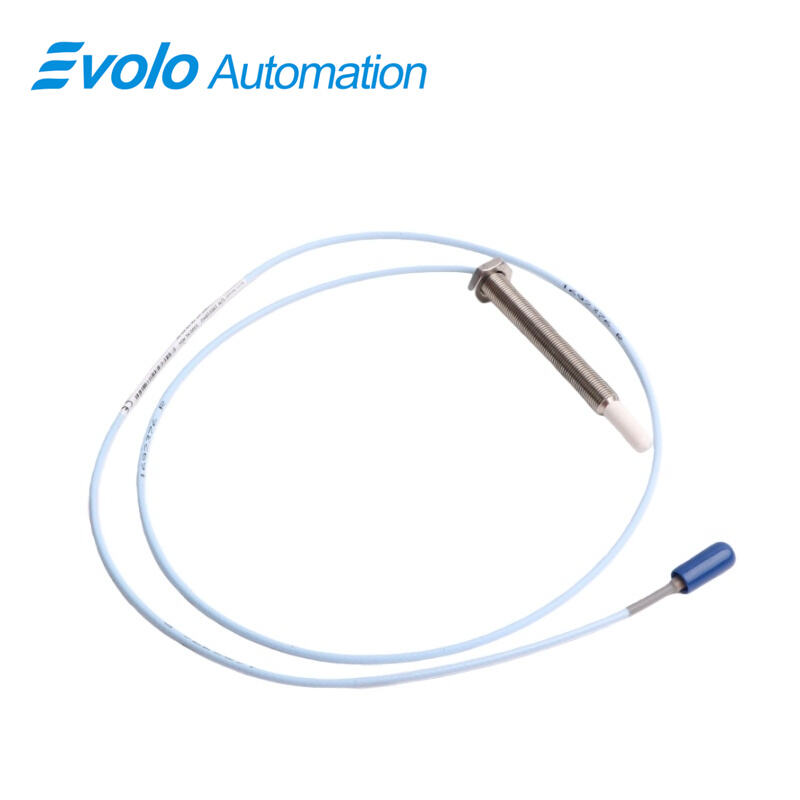

330905-02-10-05-02-CN 3300 NSv Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330905-02-10-05-02-CN
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330905-02-10-05-02-CN 3300 NSv Proximity Probe is a precision eddy current transducer designed for tight installation environments and industrial automation applications. The 330905-02-10-05-02-CN 3300 NSv Proximity Probe measures radial vibration, axial position, and rotational speed on fluid-film bearing machines, providing accurate output voltage proportional to target displacement. With a linear range of 1.5 mm (60 mils), recommended gap setting of 1.0 mm (40 mils), output resistance of 50 Ω, and supply sensitivity of less than 2 mV change per volt, the 330905-02-10-05-02-CN 3300 NSv Proximity Probe ensures reliable, high-fidelity signals for predictive maintenance and automated monitoring. Constructed from AISI 304 stainless steel with a PPS probe tip, and operating over a temperature range of -52°C to +177°C (-62°F to +351°F), the 330905-02-10-05-02-CN 3300 NSv Proximity Probe withstands harsh industrial conditions while maintaining consistent performance. Its M10X1 probe thread, maximum engagement of 15 mm, and miniature coaxial ClickLoc connector with standard cable allow easy integration into existing 3300 NSv, RAM, or 3000/7000-series monitoring systems. Patented TipLoc and CableLoc designs provide robust mechanical bonding and 220 N (50 lb) pull strength, while connector protectors prevent liquid ingress, ensuring continuous operation in automated environments.

Applications

Centrifugal and Process Gas Compressor Monitoring
The 330905-02-10-05-02-CN 3300 NSv Proximity Probe is engineered for tight compressor housings, including centrifugal air compressors and process gas compressors. Its 1.5 mm (60 mils) linear range and recommended 1.0 mm (40 mils) gap setting allow precise radial vibration and axial position measurements on small shafts below 51 mm (2 in). The probe operates reliably from -52°C to +177°C (-62°F to +351°F), ensuring stable readings in extreme process conditions.

Radial Vibration and Shaft Position Analysis
For automated monitoring systems, the 330905-02-10-05-02-CN 3300 NSv Proximity Probe provides accurate radial vibration signals and axial thrust measurements with output resistance of 50 Ω and supply sensitivity under 2 mV per volt. Its M10X1 probe thread and maximum 15 mm thread engagement enable secure installation, while the PPS probe tip ensures chemical resistance in harsh industrial environments.

Tachometer, Zero Speed, and Keyphasor Measurements
The 330905-02-10-05-02-CN 3300 NSv Proximity Probe delivers precise rotational speed (tachometer) and zero-speed measurements, as well as phase reference (Keyphasor) signals. Its miniature coaxial ClickLoc connector with standard cable provides reliable electrical connections, and the TipLoc and CableLoc designs maintain 220 N (50 lb) pull strength for uninterrupted signal performance.

Upgrades and Integration with Existing Systems
The 330905-02-10-05-02-CN 3300 NSv Proximity Probe is fully compatible with existing 3300 RAM, 3000-series, and 7000-series transducer systems. Its dimensions (100 mm overall case length, 0.5 m cable length, 20 mm unthreaded section) and ClickLoc connector design allow seamless integration into automated vibration monitoring and predictive maintenance platforms without requiring extensive recalibration.

Specifications

Competitive Advantage

Compact Design for Restricted Spaces
The 330905-02-10-05-02-CN 3300 NSv Proximity Probe supports side-view and reverse mount applications where conventional 3300 XL probes cannot fit. Its short unthreaded length of 20 mm and overall case length of 100 mm allow installation in confined spaces without compromising performance.

High-Fidelity Vibration and Position Measurement
With a linear range of 1.5 mm, output resistance of 50 Ω, and recommended gap of 1.0 mm, the 330905-02-10-05-02-CN 3300 NSv Proximity Probe provides precise, repeatable data for automated condition monitoring and predictive maintenance systems.

Durable and Chemically Resistant
The 330905-02-10-05-02-CN 3300 NSv Proximity Probe features a PPS probe tip and AISI 304 stainless steel body, offering superior chemical resistance and long-term durability in industrial compressor applications.

Secure and Reliable Connections
Patented TipLoc and CableLoc designs ensure robust bonding and 220 N pull strength, while ClickLoc connectors with protectors prevent liquid ingress, maintaining uninterrupted signal integrity in automated industrial systems.
