330905-00-25-05-02-00 3300 NSv Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330905-00-25-05-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

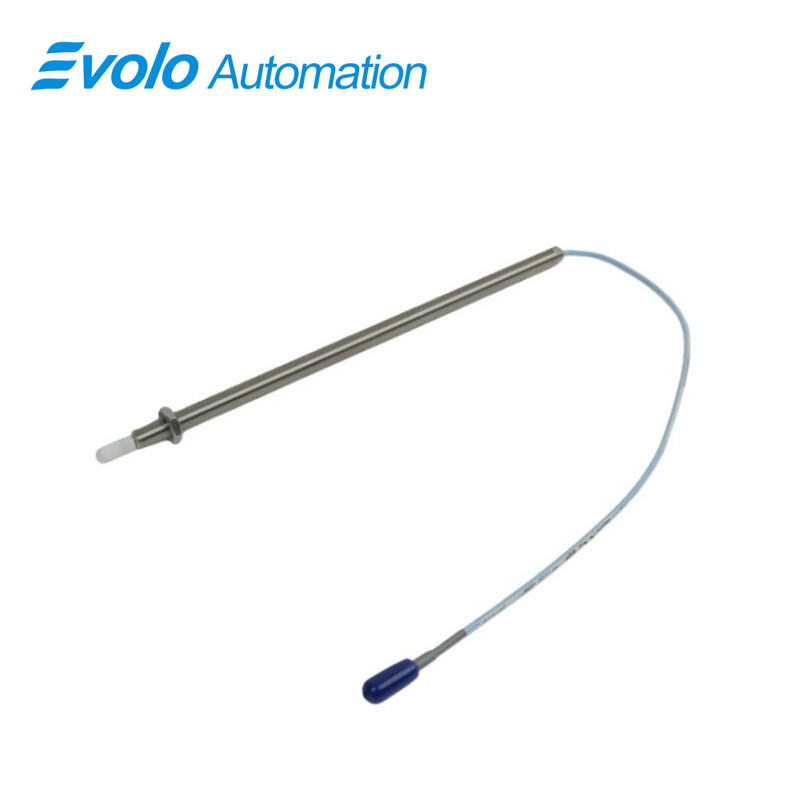

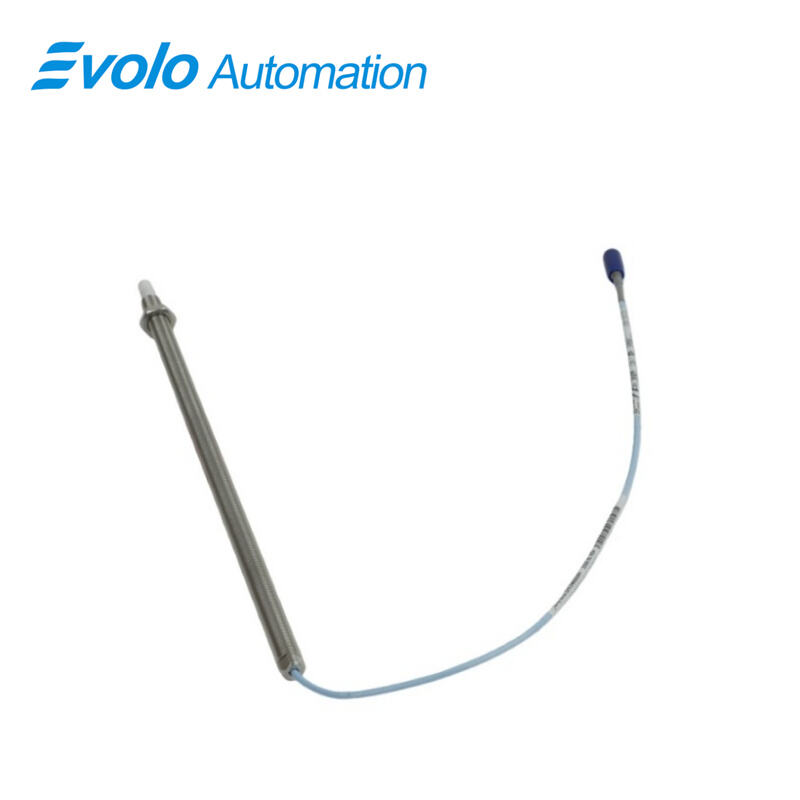

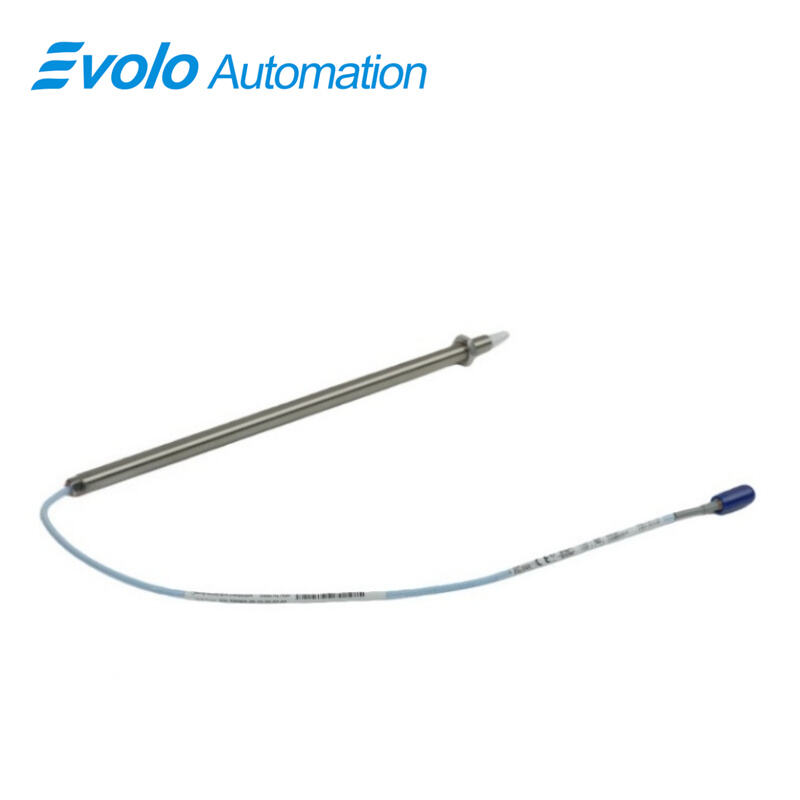

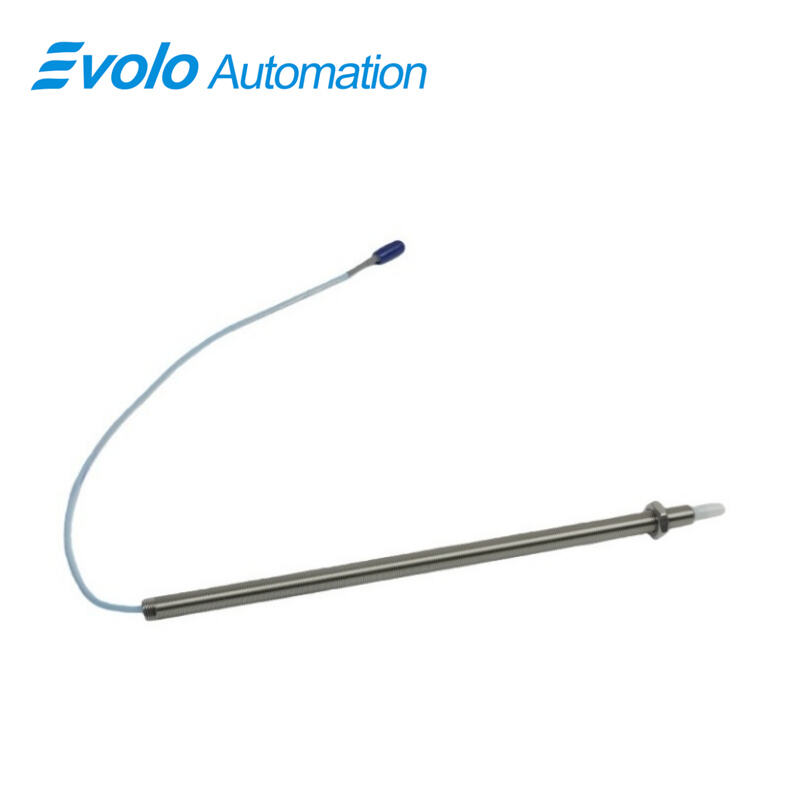

The 330905-00-25-05-02-00 3300 NSv Proximity Probe is a precision eddy current sensor engineered for advanced industrial automation applications, offering reliable monitoring of both radial vibration and axial position on fluid-filmed bearing machines. This model, 330905-00-25-05-02-00 3300 NSv, features a M10X1 threaded case with a maximum thread engagement of 15 mm and an overall case length of 250 mm, making it suitable for installations requiring extended reach and secure mounting. The probe’s linear range of 1.5 mm (60 mils) with a recommended gap setting of 1.0 mm (40 mils) ensures precise measurements for dynamic and static applications. Equipped with a 0.5 meter (20 in) standard cable and miniature coaxial ClickLoc connector, the 330905-00-25-05-02-00 3300 NSv delivers secure, vibration-resistant connections essential for automated control systems. Operating over an extreme temperature range of −52°C to +177°C (−62°F to +351°F), the probe incorporates a PPS tip and AISI 304 stainless steel case for high chemical and mechanical resistance, ideal for compressors, refrigeration equipment, and process gas machinery. With an output resistance of 50 Ω and supply sensitivity under 2 mV/V, the 330905-00-25-05-02-00 3300 NSv provides stable signals to PLCs and machinery monitoring systems. Its TipLoc and CableLoc designs, delivering 220 N (50 lb) pull strength, enhance mechanical robustness, while optional connector protectors prevent moisture ingress, ensuring consistent, high-fidelity signal transmission. Fully compatible with previous 3300 RAM and 3000/7000-series systems, the 330905-00-25-05-02-00 3300 NSv allows seamless upgrades in automated vibration and position monitoring applications without replacing existing extension cables or Proximitor Sensors.

Applications

1. Radial Vibration Monitoring
The 330905-00-25-05-02-00 3300 NSv is designed for precise radial vibration measurement on fluid-filmed bearing machines. Its linear range of 1.5 mm (60 mils) and recommended gap setting of 1.0 mm (40 mils) ensure accurate detection of shaft displacement and vibration amplitude, enabling predictive maintenance in automated compressors and motors.

2. Axial (Thrust) Position Measurement
Using the 330905-00-25-05-02-00 3300 NSv, axial shaft displacement or thrust position can be monitored with high reliability. The probe’s M10X1 threaded case and overall case length of 250 mm allow installation in tight axial clearance areas, making it suitable for automation systems controlling thrust-bearing performance.

3. Tachometer and Zero-Speed Detection
The 330905-00-25-05-02-00 3300 NSv provides output compatible with Proximitor Sensors, allowing integration into automated control systems for shaft speed monitoring and zero-speed detection. Its miniature coaxial ClickLoc connector ensures secure signal transmission over its 0.5-meter cable, supporting PLCs and monitoring modules in industrial automation.

4. Phase Reference (Keyphasor) Applications
This probe supports Keyphasor signals for phase reference applications. The 330905-00-25-05-02-00 3300 NSv provides consistent and stable outputs over the operating temperature range of −52°C to +177°C (−62°F to +351°F), critical for automated machinery diagnostics and real-time process control.

Specifications

Competitive Advantage

1. Mechanical and Electrical Compatibility
The 330905-00-25-05-02-00 3300 NSv is fully interchangeable with previous 3300 RAM and 3000/7000-series proximity systems, allowing upgrades without replacing extension cables or Proximitor Sensors. This reduces downtime and simplifies automation system integration.

2. Robust Design for Harsh Environments
Featuring a PPS probe tip and AISI 304 stainless steel case, the 330905-00-25-05-02-00 3300 NSv resists chemical and mechanical damage, operating reliably across extreme temperatures from −52°C to +177°C. Its TipLoc and CableLoc designs, providing 220 N pull strength, ensure secure cable attachment for automated machinery operations.

3. High Signal Fidelity for Automation Systems
The 330905-00-25-05-02-00 3300 NSv maintains stable output with less than 2 mV change per volt of input variation, and an output resistance of 50 Ω, delivering precise, repeatable measurements to PLCs, DCS, and industrial monitoring systems.

4. Flexible Mounting Options
With a maximum thread engagement of 15 mm and a 250 mm overall case length, the 330905-00-25-05-02-00 3300 NSv can be installed in restricted spaces and side-view or rear-mount configurations, ideal for automated equipment where space is constrained.

5. Easy Maintenance and Integration
Gold-plated ClickLoc connectors prevent loosening and minimize signal errors. Optional connector protectors safeguard against liquids, making the 330905-00-25-05-02-00 3300 NSv suitable for long-term use in automated, high-humidity, or process-critical environments.
