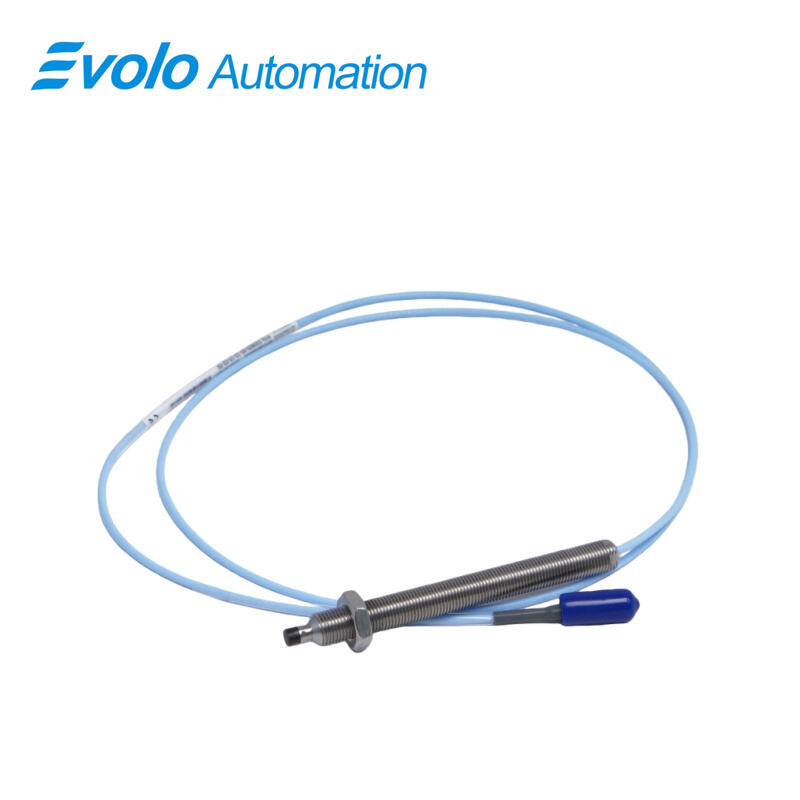

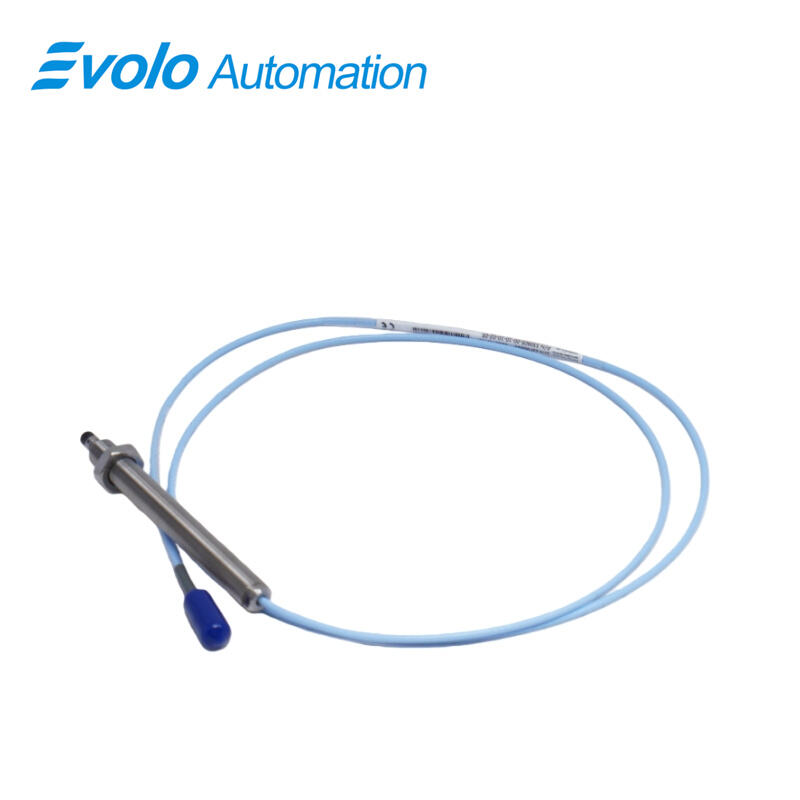

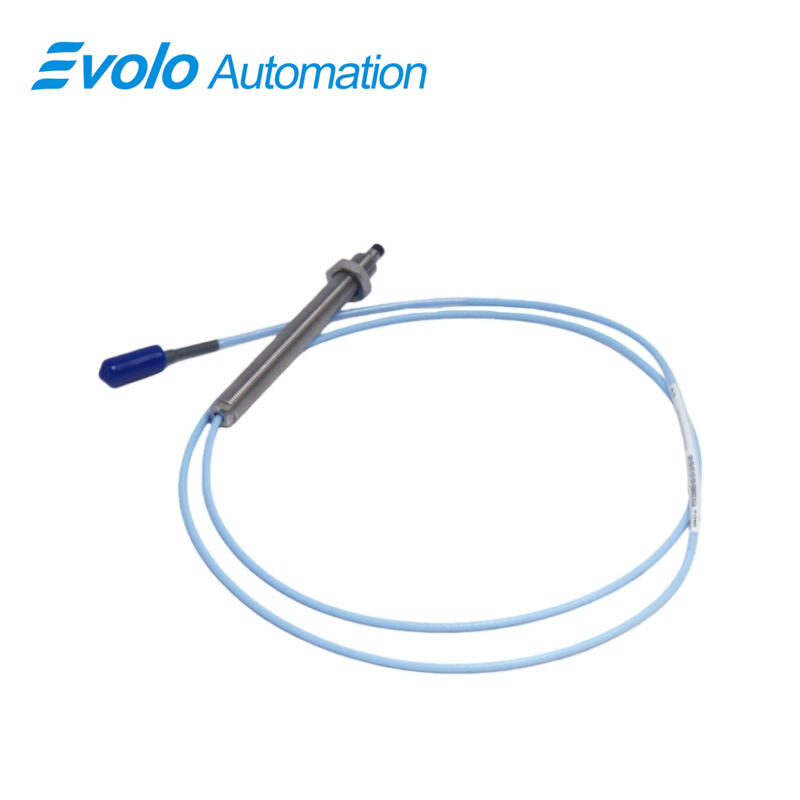

330905-00-10-10-02-05 3300 NSv Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330905-00-10-10-02-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330905-00-10-10-02-05 3300 NSv Proximity Probe is a high-precision eddy current probe designed for automated monitoring in tight-space industrial machinery. Engineered for centrifugal air compressors, refrigeration compressors, and process gas compressors, it provides reliable radial vibration and axial position measurements even in applications with severe installation constraints such as counterbores, sideview, or rearview limitations. With a 1.5 mm (60 mils) linear range, recommended gap of 1.0 mm (40 mils), and an average scale factor of 7.87 V/mm, it delivers highly accurate displacement readings for fluid-film bearing machines. The probe is constructed with a PPS tip and AISI 304 stainless steel case, offering superior chemical resistance and durability. Equipped with a ClickLoc miniature coaxial connector and the patented TipLoc and CableLoc designs, it ensures robust electrical and mechanical connections with 220 N pull strength. The 3300 NSv probe is compatible with Bently Nevada’s 3300 RAM and 3000/7000-series 190 systems, allowing seamless upgrades while maintaining precise performance in automation and machinery protection systems.

Applications

Radial Vibration Monitoring in Tight Shafts
330905-00-10-10-02-05 captures precise radial vibration data for shafts smaller than 51 mm (2 in). Using 330905-00-10-10-02-05, centrifugal compressors, small motors, and pumps can be monitored for early detection of mechanical wear.

Axial (Thrust) Displacement Measurement on Small Targets
330905-00-10-10-02-05 measures axial movement on flat targets under 15 mm (0.6 in). The 1.5 mm linear range of 330905-00-10-10-02-05 ensures accurate position readings, supporting fine-tuned control and automated machinery protection.

Keyphasor and Zero-Speed Signal Output
330905-00-10-10-02-05 generates phase reference and zero-speed signals for automation systems. Data from 330905-00-10-10-02-05 allows synchronized monitoring of shaft speed and phase, enabling real-time diagnostics for high-speed rotating machinery.

Continuous Operation in Chemical Process Environments
The PPS probe tip of 330905-00-10-10-02-05 resists chemical exposure, enabling continuous operation in process gas compressors and other harsh chemical environments. 330905-00-10-10-02-05 maintains precise vibration and position signals without degradation.

Upgrades for Legacy 3300 RAM and 3000/7000-Series Systems
330905-00-10-10-02-05 is fully compatible with 3300 RAM and 3000/7000-series systems. Using 330905-00-10-10-02-05, automation systems can be enhanced or modernized without replacing extension cables or existing Proximitor sensors, reducing downtime and installation effort.

Specifications

Competitive Advantage

Compact Probe Installation in Restricted Areas
330905-00-10-10-02-05 features a 100 mm case length with M10X1 threads, allowing installation in tight spaces where standard probes cannot fit. Using 330905-00-10-10-02-05, automation systems can monitor shafts and bearings in compact compressors, motors, and pumps.

Precise Measurement for Small Shafts and Targets
With a 1.5 mm linear range and 7.87 V/mm scale factor, 330905-00-10-10-02-05 delivers accurate radial and axial position readings on small shafts and flat targets. 330905-00-10-10-02-05 enables high-resolution monitoring of critical machinery components.

Secure Probe-to-Cable Connection with 220 N Pull Strength
330905-00-10-10-02-05 uses TipLoc and CableLoc designs for strong probe-to-cable bonding, providing 220 N pull force. This ensures 330905-00-10-10-02-05 maintains signal integrity in high-vibration industrial environments, reducing maintenance requirements.

Chemical and Temperature-Resistant Construction
The PPS tip and stainless steel body of 330905-00-10-10-02-05 withstand temperatures from -52°C to +177°C and resist chemical exposure. 330905-00-10-10-02-05 can operate continuously in process gas compressors, chemical pumps, and other harsh industrial environments.

Direct Upgrade Path for Existing Proximitor Systems
330905-00-10-10-02-05 is compatible with prior 3300 RAM and 3000/7000-series 190 probes. Using 330905-00-10-10-02-05, automation systems can be upgraded without replacing extension cables or Proximitor sensors, reducing downtime and installation effort.
