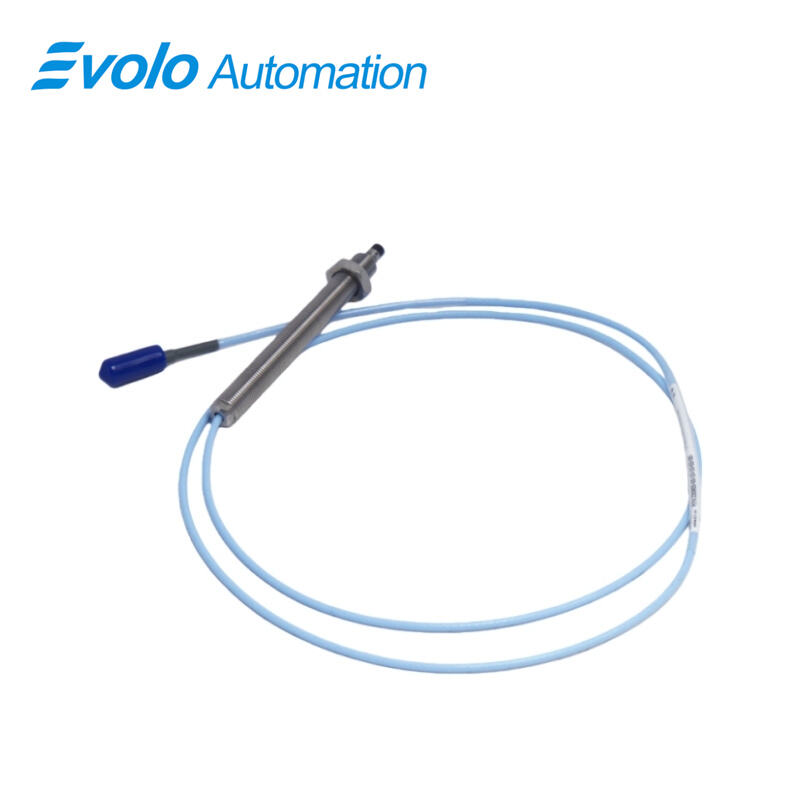

330905-00-10-05-02-05 3300 NSv Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330905-00-10-05-02-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330905-00-10-05-02-05 3300 NSv Proximity Probe is designed for tight installations in centrifugal air compressors, refrigeration compressors, and process gas compressors. Featuring a 100 mm overall case length, M8X1 threaded probe, and 0.5-meter miniature ClickLoc cable, the 330905-00-10-05-02-05 3300 NSv Proximity Probe enables precise radial vibration and axial position measurements on small shafts (<51 mm) and flat targets (<15 mm). Its 1.5 mm linear range and 1.0 mm recommended gap deliver consistent output for tachometer, zero-speed, and Keyphasor phase reference signals. The 330905-00-10-05-02-05 3300 NSv Proximity Probe uses a PPS probe tip and AISI 304 stainless steel case, providing chemical resistance suitable for process compressor automation. The probe’s 50 Ω output resistance and <2 mV/V supply sensitivity ensure accurate eddy current measurements. Gold-plated ClickLoc connectors lock securely, and the TipLoc/CableLoc design provides 220 N pull strength, maintaining mechanical and electrical integrity during automated monitoring. The 330905-00-10-05-02-05 3300 NSv Proximity Probe is compatible with legacy 3300 RAM systems, allowing seamless upgrades in automated vibration and position measurement applications.

Applications

Measure Radial Vibration on Small Shafts
The 330905-00-10-05-02-05 3300 NSv Proximity Probe is ideal for radial vibration measurements on shafts smaller than 51 mm (2 in), using its 1.5 mm linear range and 1.0 mm recommended gap to provide precise distance-to-target outputs for automated monitoring systems.

Axial (Thrust) Position Monitoring
Using the 330905-00-10-05-02-05 3300 NSv Proximity Probe, axial position measurements on flat targets smaller than 15 mm (0.6 in) can be performed efficiently. The probe’s M8X1 threaded case and 0.5-meter ClickLoc cable allow easy integration in confined automation setups.

Tachometer and Zero-Speed Detection
The 330905-00-10-05-02-05 3300 NSv Proximity Probe provides output signals suitable for tachometer and zero-speed detection in centrifugal air compressors and process gas compressors, leveraging the 50 Ω output resistance for accurate speed calculations in automated control systems.

Phase Reference (Keyphasor Signals)
For machines requiring phase synchronization, the 330905-00-10-05-02-05 3300 NSv Proximity Probe delivers reliable Keyphasor signals, supporting automated vibration monitoring and predictive maintenance.

Specifications

Competitive Advantage

Compact Design for Tight Installations
The 330905-00-10-05-02-05 3300 NSv Proximity Probe features a 100 mm case length and M8X1 probe thread, allowing installation in restricted spaces where standard 5 mm or 8 mm probes cannot fit.

Chemical-Resistant Materials
The 330905-00-10-05-02-05 3300 NSv Proximity Probe uses PPS probe tip and AISI 304 stainless steel case, enabling use in process compressor environments with exposure to chemicals.

High Pull-Strength Connection
Equipped with gold-plated ClickLoc connectors and patented TipLoc/CableLoc design, the 330905-00-10-05-02-05 3300 NSv Proximity Probe maintains secure mechanical and electrical connections under automated system vibrations, with 220 N pull strength.

Seamless Upgrade Path
The 330905-00-10-05-02-05 3300 NSv Proximity Probe is mechanically and electrically compatible with existing 3300 RAM systems, allowing automated system upgrades without replacing extension cables or sensors.

Precision Output for Automation
With <2 mV/V supply sensitivity and 1.5 mm linear range, the 330905-00-10-05-02-05 3300 NSv Proximity Probe delivers accurate eddy current signals for automated position and vibration control.
