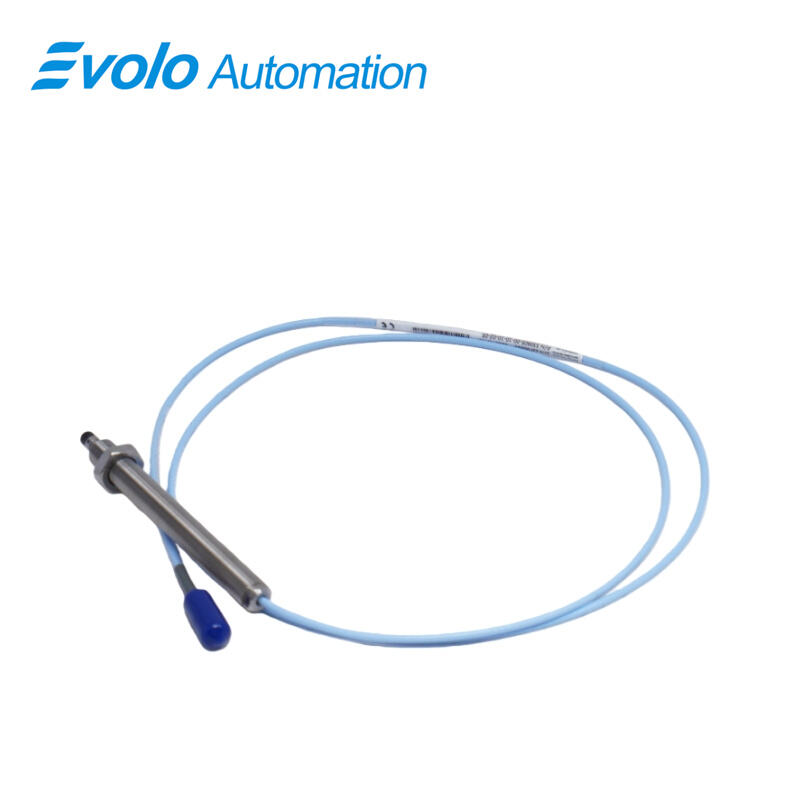

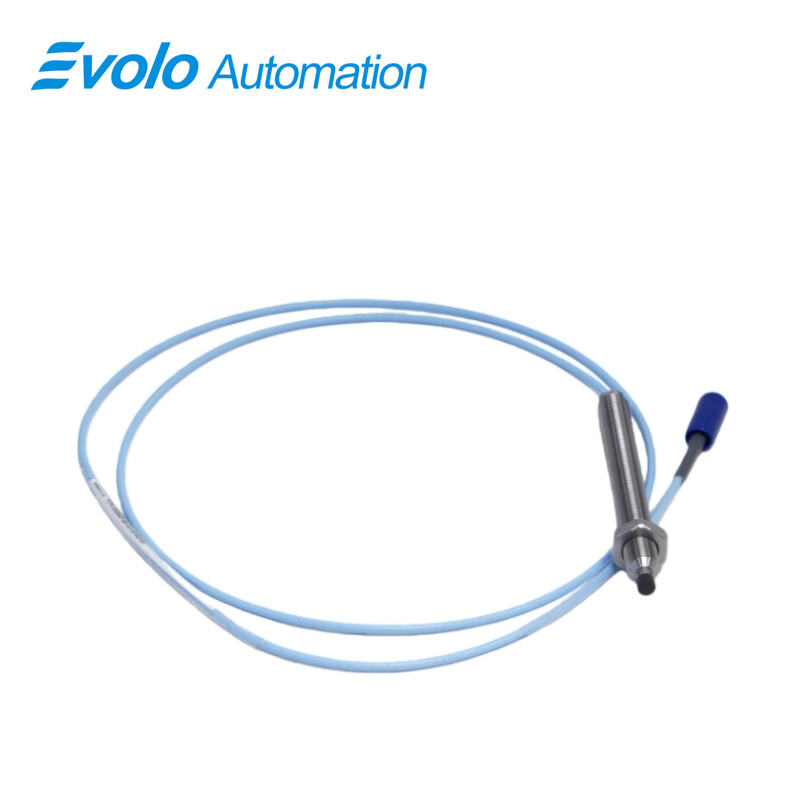

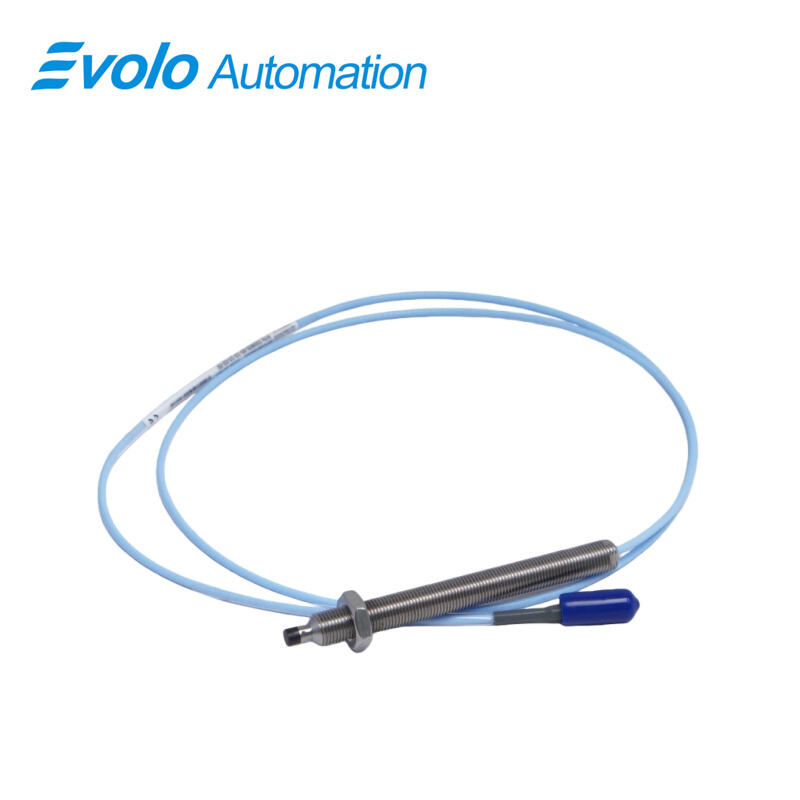

330905-00-10-05-02-00 3300 NSv Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330905-00-10-05-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330905-00-10-05-02-00 3300 NSv Proximity Probe provides precise measurement of radial vibration and axial position on fluid-filmed bearing machines with tight installation spaces. Featuring a 100 mm overall case length and 0.5-meter standard cable, 330905-00-10-05-02-00 supports shafts smaller than 51 mm and flat targets under 15 mm. Its M8X1 threaded probe case, polyphenylene sulfide tip, and AISI 304 stainless steel housing allow operation from -52°C to +177°C while maintaining a 1.5 mm linear range and 50 Ω output resistance. The miniature coaxial ClickLoc connector with connector protector secures signal transmission, and supply sensitivity under 2 mV per volt ensures consistent automated system readings. 330905-00-10-05-02-00 integrates with existing 3300 NSv extension cables and Proximitor sensors, enabling automation systems to monitor radial vibration, axial position, Keyphasor signals, and zero-speed detection. Its design allows installation in counterbore, sideview, or rearview restricted locations without compromising measurement accuracy, supporting centrifugal, refrigeration, and process gas compressor applications.

Applications

Application: Radial Vibration Measurement on Small Shafts
330905-00-10-05-02-00 is optimized for measuring radial vibration on shafts smaller than 51 mm (2 in) in centrifugal, refrigeration, and process gas compressors. Its 1.5 mm linear range and 50 Ω output resistance ensure precise automated monitoring and integration with NSv Proximitor sensors.

Application: Axial (Thrust) Position Detection
Use 330905-00-10-05-02-00 to monitor axial position on flat targets under 15 mm. With a recommended gap of 1.0 mm and operating temperature from -52°C to +177°C, it supports high-accuracy rotor thrust measurements in fluid-filmed bearing machinery.

Application: Zero-Speed and Tachometer Monitoring
330905-00-10-05-02-00 enables automated zero-speed detection and tachometer signal generation. The miniature coaxial ClickLoc connector with protector maintains reliable signal transfer under temperature extremes and field wiring variations.

Application: Phase Reference (Keyphasor) Signals
The 330905-00-10-05-02-00 probe provides Keyphasor outputs for synchronization and vibration analysis in automated control systems, supporting predictive maintenance and real-time machinery diagnostics.

Specifications

Competitive Advantage

Competitive Advantage: High-Temperature Operation
The 330905-00-10-05-02-00 operates continuously up to +177°C and can survive short peaks, making it suitable for extreme process environments where accurate readings are required without recalibration.

Competitive Advantage: Secure and Consistent Signal
With a 50 Ω output, <2 mV/V supply sensitivity, and ClickLoc connectors with protector, 330905-00-10-05-02-00 maintains reliable electrical signal for automated monitoring and control.

Competitive Advantage: Compact Design for Tight Spaces
The 100 mm overall case and M8X1 thread of 330905-00-10-05-02-00 allow installation in restricted counterbore, sideview, or rearview areas, expanding usability in automation setups where space is limited.

Competitive Advantage: Seamless NSv System Integration
330905-00-10-05-02-00 is fully compatible with NSv extension cables and Proximitor sensors, allowing upgrades from older 3300 RAM or 3000-series systems without altering existing automation configurations.
