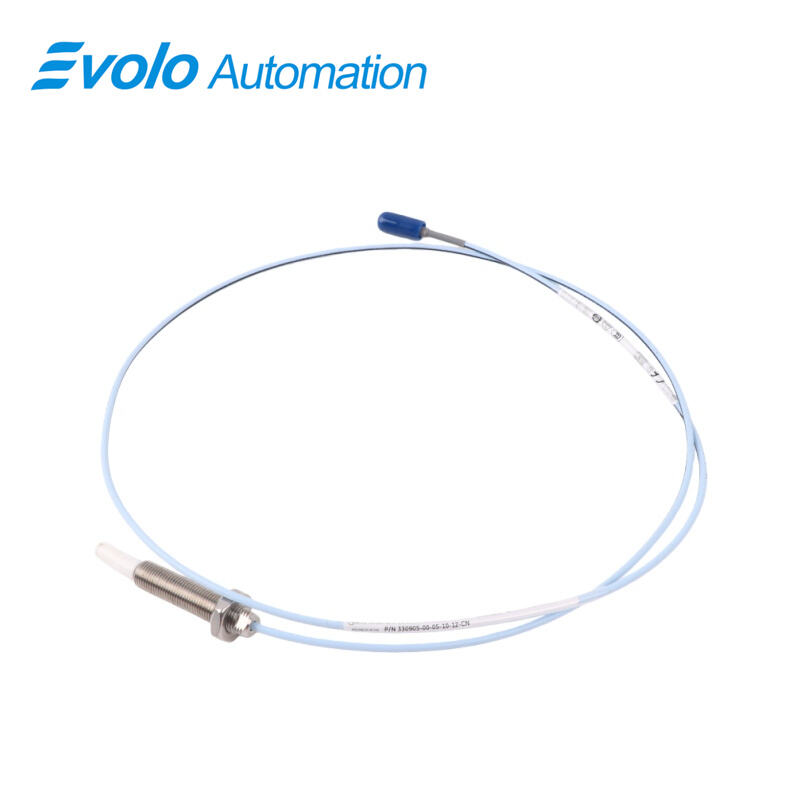

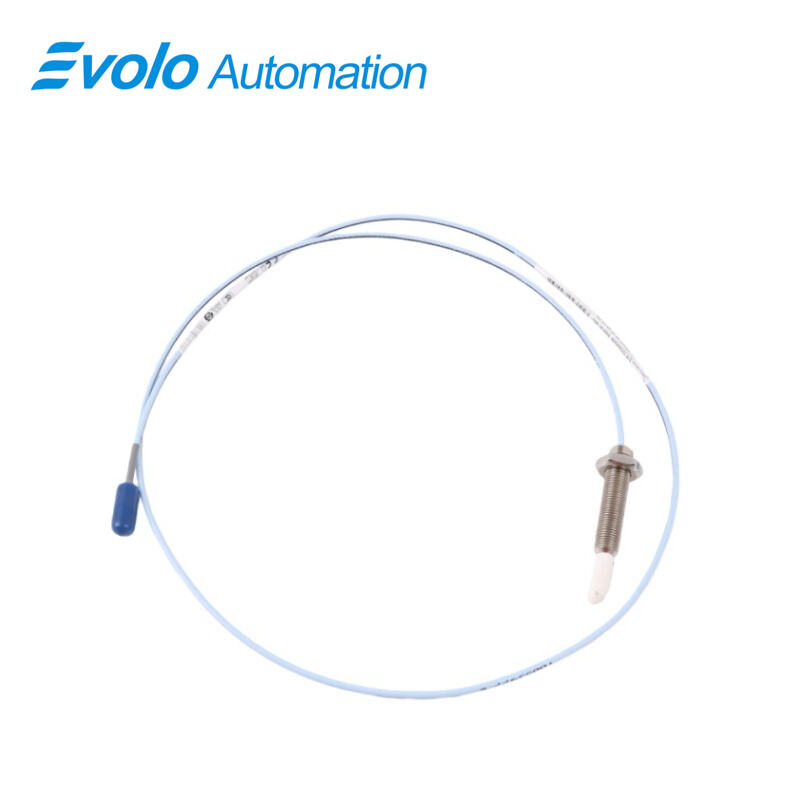

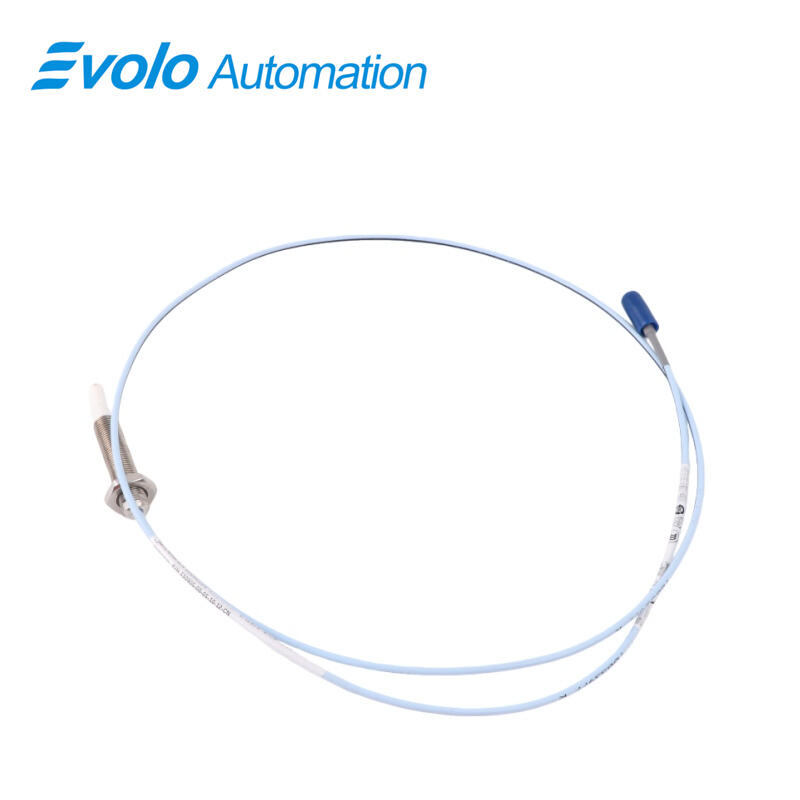

330905-00-05-10-02-05 3300 NSv Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330905-00-05-10-02-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330905-00-05-10-02-05 3300 NSv Proximity Probe is designed for automated machinery monitoring in centrifugal, refrigeration, and process gas compressors. With an M8X1 probe thread, 50 mm overall case length, and 1.5 mm linear range, 330905-00-05-10-02-05 accurately measures radial vibration, axial shaft position, and phase reference signals in tight or restricted installation spaces.

The 330905-00-05-10-02-05 probe operates from −52°C to +177°C and outputs precise voltage with less than 2 mV change per volt of supply variation. Its AISI 304 stainless steel case and PPS probe tip allow chemical resistance and durability for process compressor applications. The 1-meter standard cable with gold-plated miniature coaxial ClickLoc connector and 50 Ω output resistance ensures secure signal transmission to automation controllers. Field wiring supports 0.2 to 1.5 mm² conductors, accommodating industrial installation needs.

Enhanced design features of 330905-00-05-10-02-05 include the patented TipLoc molding method for a robust probe tip bond, CableLoc design with 220 N pull strength, and connector protectors to prevent liquid ingress. These features allow 330905-00-05-10-02-05 to reliably provide real-time vibration and position data, enabling automated monitoring, Keyphasor input, and precise control in compact fluid-filmed bearing machinery.

Applications

Measure radial vibration on small shafts
330905-00-05-10-02-05 3300 NSv Proximity Probe monitors radial vibration on shafts smaller than 51 mm, converting shaft movement into accurate signals for automation and monitoring systems. Its 1.5 mm linear range and 1-meter cable ensure precise data transmission to Proximitor sensors.

Track axial (thrust) shaft position in compact machines
With a recommended gap of 1.0 mm and M8X1 probe thread, 330905-00-05-10-02-05 allows installation in tight compressor housings or side-view restricted locations, measuring axial shaft displacement for control and diagnostics.

Provide Keyphasor and zero speed signals
330905-00-05-10-02-05 outputs proportional voltage for phase reference and tachometer measurements, enabling automated rotation tracking and speed monitoring in centrifugal or refrigeration compressors.

Operate in chemical or process environments
The PPS probe tip and AISI 304 stainless steel case of 330905-00-05-10-02-05 allow its use in process compressors where exposure to lubricants, chemical vapors, or moisture occurs, while maintaining accurate signal output.

Specifications

Competitive Advantage

Ensures secure probe and cable connection
Patented TipLoc molding and CableLoc design provide 330905-00-05-10-02-05 with 220 N pull strength, locking the probe tip and cable for reliable automated monitoring.

Maintains precise output with supply variations
With less than 2 mV change per volt of input voltage and 50 Ω output resistance, 330905-00-05-10-02-05 delivers consistent signals for automation and control systems.

Supports tight or restricted installations
The 50 mm case length, M8X1 thread, and miniature coaxial ClickLoc connector of 330905-00-05-10-02-05 allow installation in confined spaces where side or rear access is limited.
