Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330904-08-15-10-02-05 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option: |
80 mm |
|
Overall Case Length Option: |
150 mm |
|
Cable Length Option: |
1.0 meter (39 in) |
|
Connector and Cable Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
Multiple Approvals |
|
Probe Case Thread: |
M8X1 thread |
|
Maximum Length of Thread Engagement: |
12 mm |
|
Dimension: |
1.4x1.2x116cm |
|
Weight: |
0.1kg |
Description

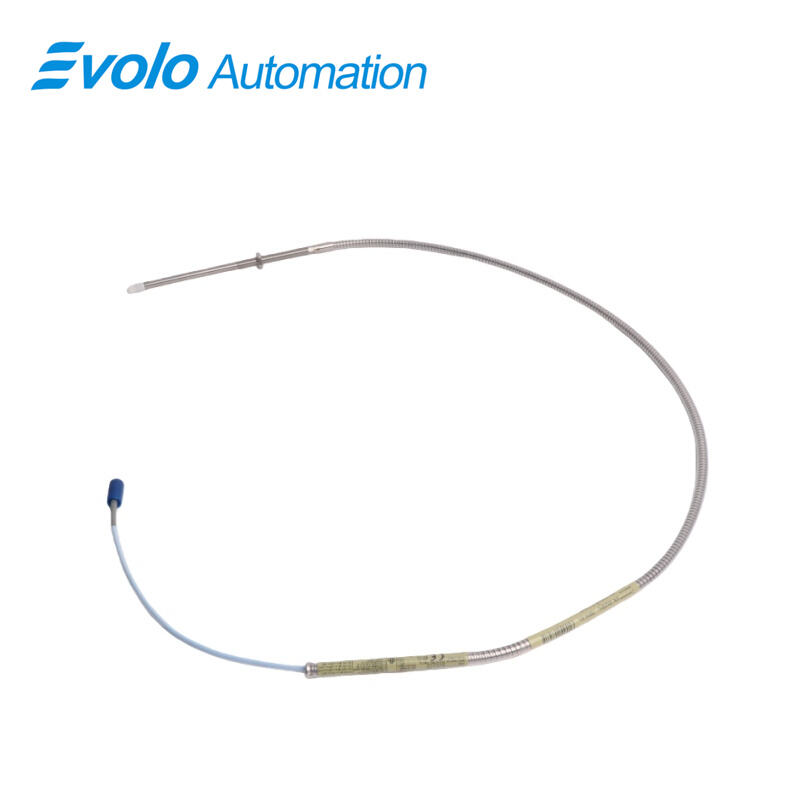

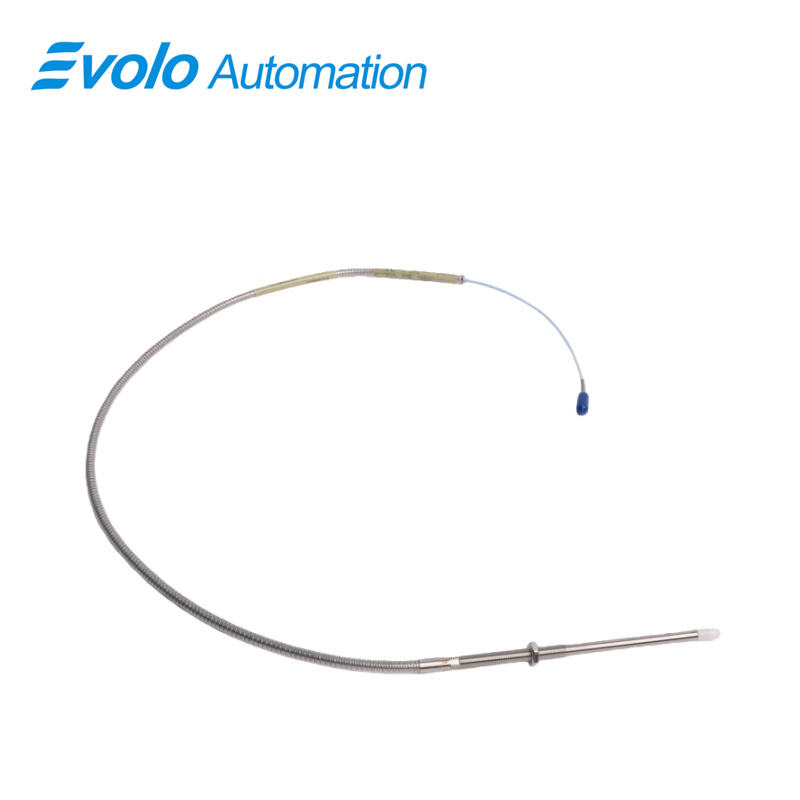

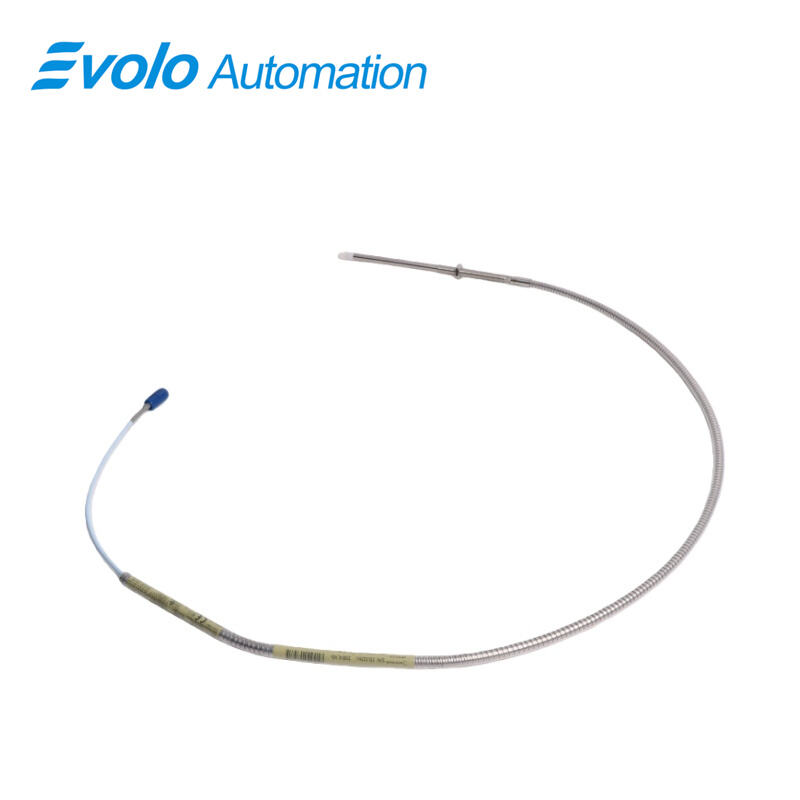

The 330904-08-15-10-02-05 3300 NSv Proximity Probe is engineered for centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines with limited installation space. With an unthreaded length of 80 mm, overall case length of 150 mm, and 1.0-meter cable, the 330904-08-15-10-02-05 3300 NSv Proximity Probe provides accurate radial vibration and axial position measurement on shafts smaller than 51 mm (2 in) and flat targets under 15 mm (0.6 in). Featuring M8X1 probe thread, 12 mm maximum thread engagement, PPS tip, and AISI 304 SST case, it operates from -52°C to +177°C while delivering <2 mV/V supply sensitivity and 50 Ω output resistance for precise automation monitoring.
Applications
Measure Radial Vibration on Small Shafts: The 330904-08-15-10-02-05 3300 NSv Proximity Probe tracks radial movement on shafts under 51 mm, enabling automated vibration analysis.
Monitor Axial Position on Flat Targets: Use the 330904-08-15-10-02-05 3300 NSv Proximity Probe to detect axial displacement on targets smaller than 15 mm for automated feedback.
Provide Keyphasor Phase Reference Signals: Integrates with speed and phase monitoring systems using the 330904-08-15-10-02-05 3300 NSv Proximity Probe.
Enable Zero-Speed Detection: The 330904-08-15-10-02-05 3300 NSv Proximity Probe supports automated shutdown or startup sequences on process compressors.
Specifications
|
Probe Temperature Range: |
-52°C to +177°C (-62°F to +351°F) |
|
Storage Temperature: |
-52°C to +177°C (-62°F to +351°F) |
|
Probe Tip Material: |
Polyphenylene sulfide (PPS) |
|
Probe Case Material: |
AISI 304 stainless steel (SST) |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG)[0.25 to 0.75 mm2 (18 to 23 AWG) with ferrules] |
|
Linear Range: |
1.5 mm (60 mils) |
|
Recommended Gap Setting: |
1.0 mm (40 mils) |
|
Output resistance: |
50 Ω |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
Competitive Advantage
Upgrade Existing Systems Easily: Compatible with 3300 RAM probes and extension cables; the 330904-08-15-10-02-05 3300 NSv Proximity Probe allows plug-and-play system replacement.
Chemical-Resistant Probe Tip: PPS tip resists process fluids, enabling use in compressor applications without degradation.
Secure Connections with ClickLoc and CableLoc: Gold-plated ClickLoc connectors and CableLoc design prevent loosening and provide 220 N pull strength for reliable automation integration.
Compact Side-View Design: Short overall case and unthreaded length allow the 330904-08-15-10-02-05 3300 NSv Proximity Probe to fit in counter bore and side-restricted installations.
Consistent Output in Harsh Environments: Operates from -52°C to +177°C with 1.5 mm linear range and recommended 1.0 mm gap for precise automated measurement.
