330904-02-10-70-01-00 3300 NSv Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330904-02-10-70-01-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

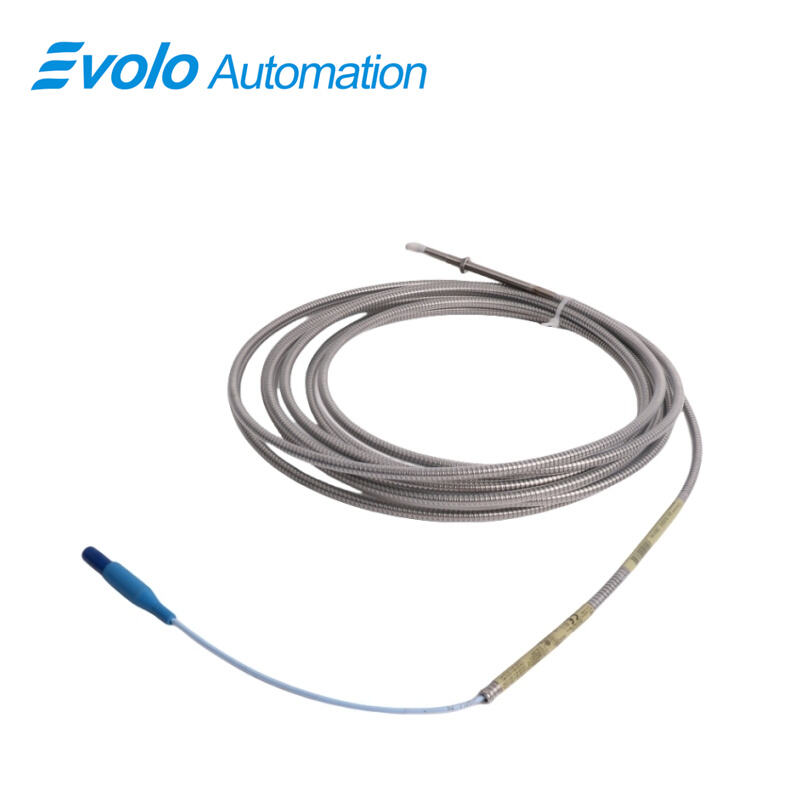

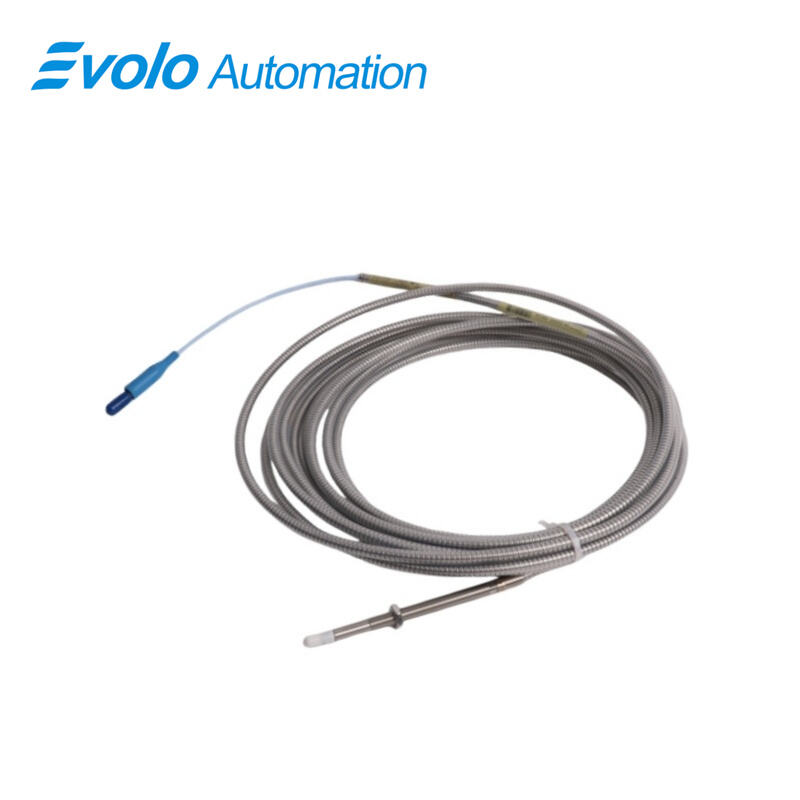

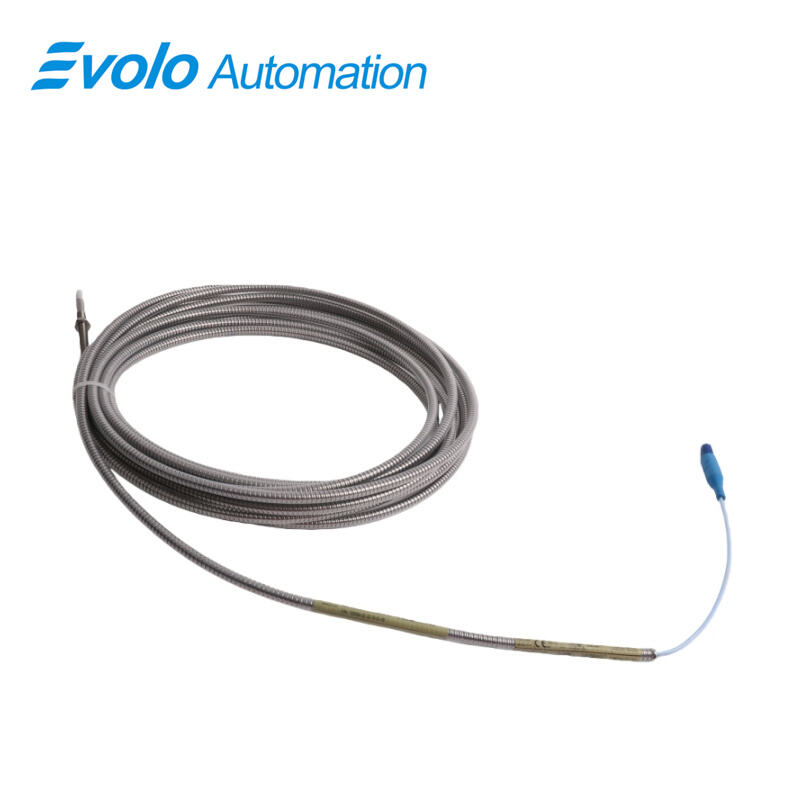

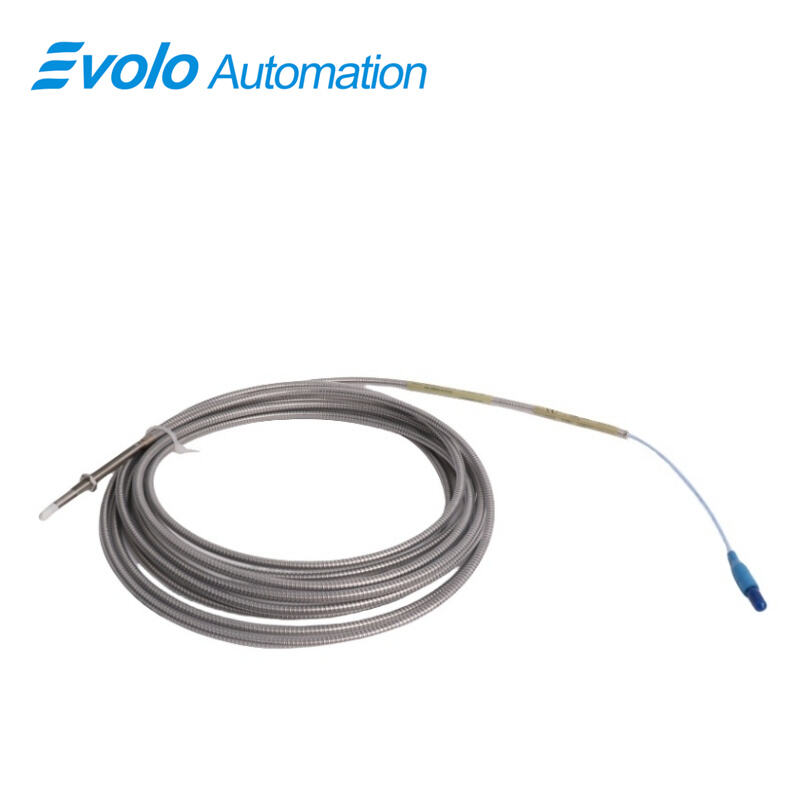

The 330904-02-10-70-01-00 3300 NSv Proximity Probe is a precision-engineered eddy current transducer designed for advanced industrial automation, particularly in centrifugal air compressors, refrigeration compressors, and process gas compressors where installation space is limited. The 330904-02-10-70-01-00 3300 NSv Proximity Probe features a 1.5 mm (60 mils) linear range with a recommended 1.0 mm (40 mils) gap, delivering highly accurate radial and axial measurements on small shafts below 51 mm (2 in) or flat targets smaller than 15 mm (0.6 in). Constructed with a polyphenylene sulfide (PPS) probe tip and AISI 304 stainless steel probe case, the 330904-02-10-70-01-00 3300 NSv Proximity Probe provides exceptional chemical resistance and durability in harsh industrial environments. Its M8X1 threaded case, 20 mm unthreaded length, and 100 mm overall case length allow installation in tight or restricted spaces. The 330904-02-10-70-01-00 3300 NSv Proximity Probe includes a 7-meter cable with miniature coaxial ClickLoc connector and connector protector, offering 50 Ω output resistance and less than 2 mV change per volt of supply voltage variation, ensuring consistent and reliable signal integrity. Patented TipLoc and CableLoc designs secure the probe tip and cable with 220 N (50 lb) pull strength, making the 330904-02-10-70-01-00 3300 NSv Proximity Probe ideal for automated condition monitoring, radial vibration analysis, axial position measurement, tachometer applications, and Keyphasor signal generation. Compatible with legacy 3300 RAM and 3000-/7000-series 190 transducer systems, this model allows seamless upgrades with superior small-target and side-view performance.

Applications

1. Radial Vibration Monitoring
The 330904-02-10-70-01-00 3300 NSv Proximity Probe measures radial vibration on shafts under 51 mm, delivering accurate vibration analysis for automated industrial machinery and predictive maintenance programs.

2. Axial (Thrust) Position Measurement
The 330904-02-10-70-01-00 3300 NSv Proximity Probe provides precise axial position measurements on fluid-film bearing machines, supporting automated control systems and high-speed rotating equipment monitoring.

3. Tachometer and Zero-Speed Detection
Integrated into compressors or turbines, the 330904-02-10-70-01-00 3300 NSv Proximity Probe supplies accurate speed feedback and zero-speed detection, enabling automated machine protection and monitoring.

4. Phase Reference (Keyphasor) Signals
The 330904-02-10-70-01-00 3300 NSv Proximity Probe generates stable Keyphasor signals, improving phase-based vibration diagnostics and predictive maintenance in automated industrial operations.

5. Compact or Side-View Installations
The 330904-02-10-70-01-00 3300 NSv Proximity Probe is engineered for counter bore, side-view, and rear-view applications where standard 3300 and 3300 XL 5 or 8 mm probes cannot fit, providing flexibility for tight automation setups.

Specifications

Competitive Advantage

1. High Accuracy and Scale Factor
With an average scale factor of 7.87 V/mm (200 mV/mil) and 1.5 mm linear range, the 330904-02-10-70-01-00 3300 NSv Proximity Probe offers superior measurement precision compared to legacy 3000-series 190 probes in small-target applications.

2. Wide Temperature and Environmental Resistance
The 330904-02-10-70-01-00 3300 NSv Proximity Probe operates from -52°C to +177°C, with PPS probe tip and stainless steel case ensuring chemical and thermal durability in demanding industrial environments.

3. Mechanical and Electrical Compatibility
Fully compatible with 3300 RAM probes and extension cables, the 330904-02-10-70-01-00 3300 NSv Proximity Probe allows seamless upgrades without the need to reconfigure existing monitoring systems.

4. Robust Connector and Cable Design
Patented TipLoc and CableLoc designs, along with gold-plated ClickLoc connectors and connector protectors, provide 220 N pull strength and prevent moisture ingress, ensuring stable and reliable signal output for automated systems.

5. Flexible Installation Options
The 330904-02-10-70-01-00 3300 NSv Proximity Probe supports M8X1, M10X1, 1/4-28, and 3/8-24 threads, with armored and unarmored configurations, allowing side-view, reverse-mount, and tight-space installations in complex automation environments.
