Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330904-00-25-50-02-00 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option: |
0 mm |
|
Overall Case Length Option: |
250 mm |
|
Cable Length Option: |
5.0 meters (16.4 feet) |
|
Connector and Cable Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
Not required |
|
Probe Case Thread: |
M8X1 thread |
|
Maximum Length of Thread Engagement: |
12 mm |
|
Dimension: |
1.5x1.3x116cm |
|
Weight: |
0.1kg |
Description

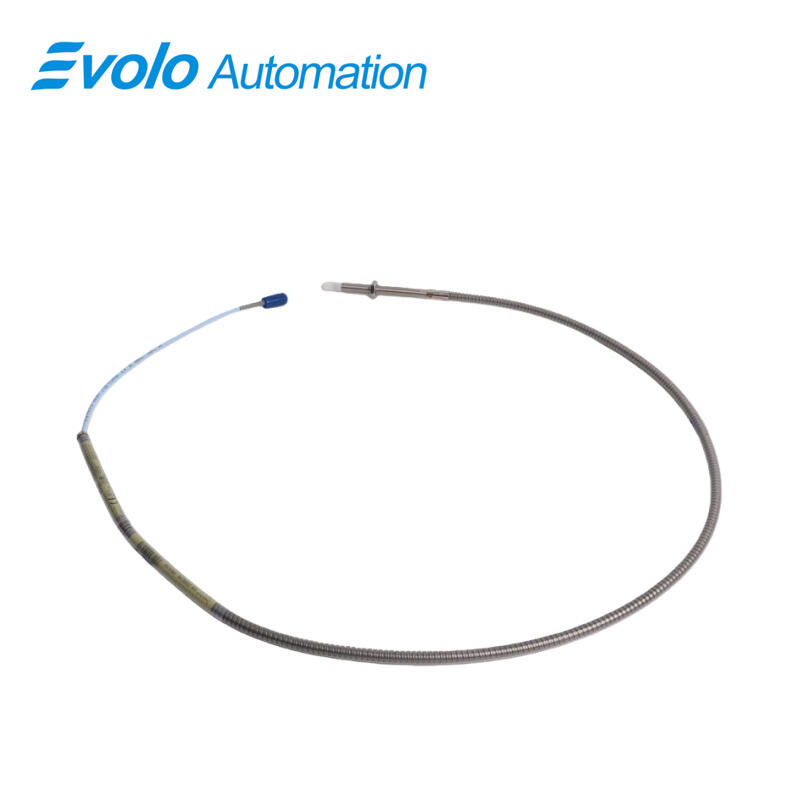

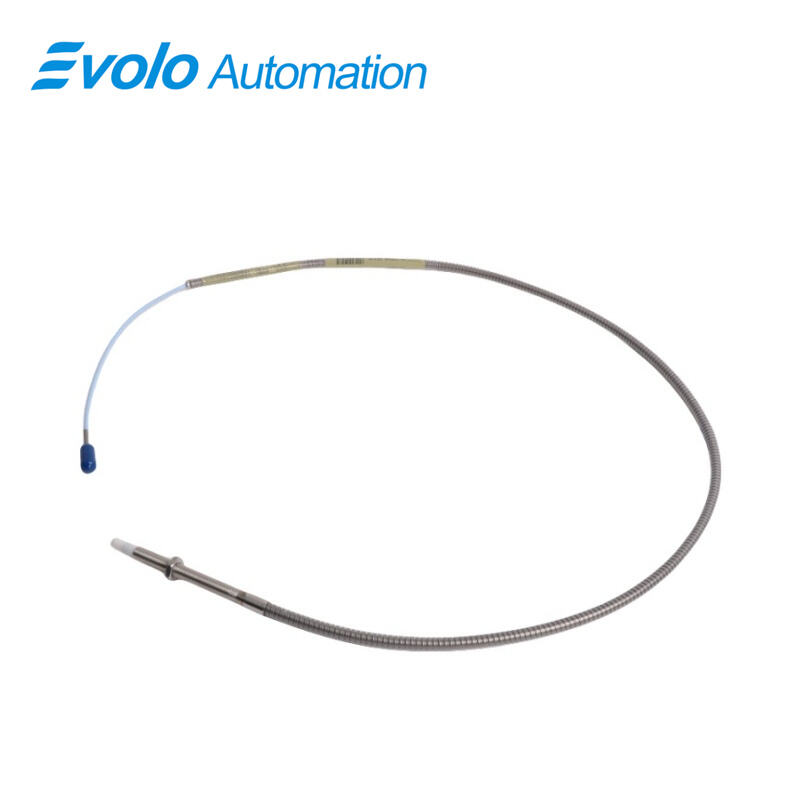

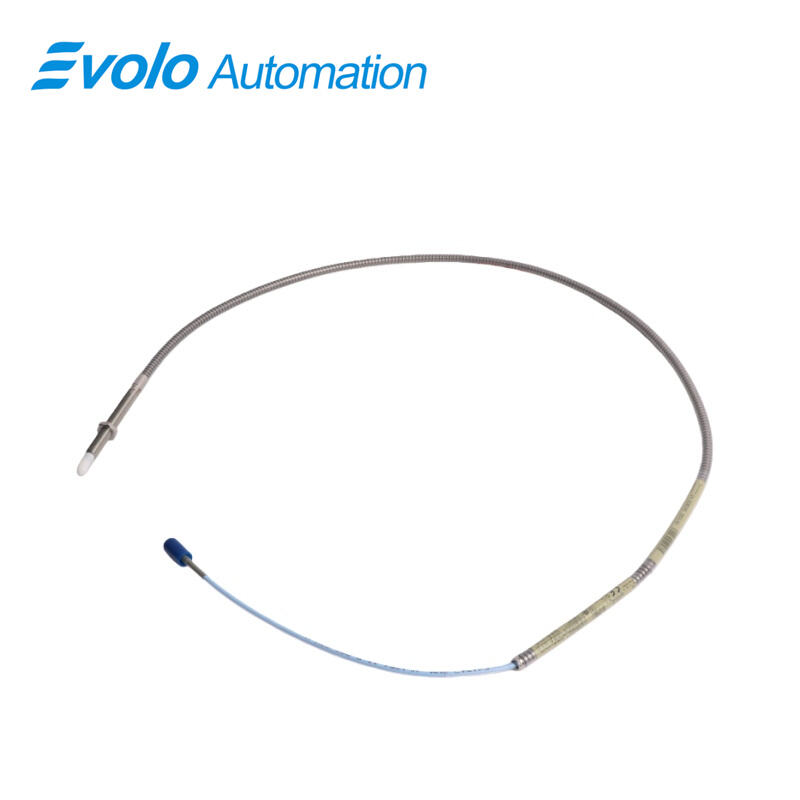

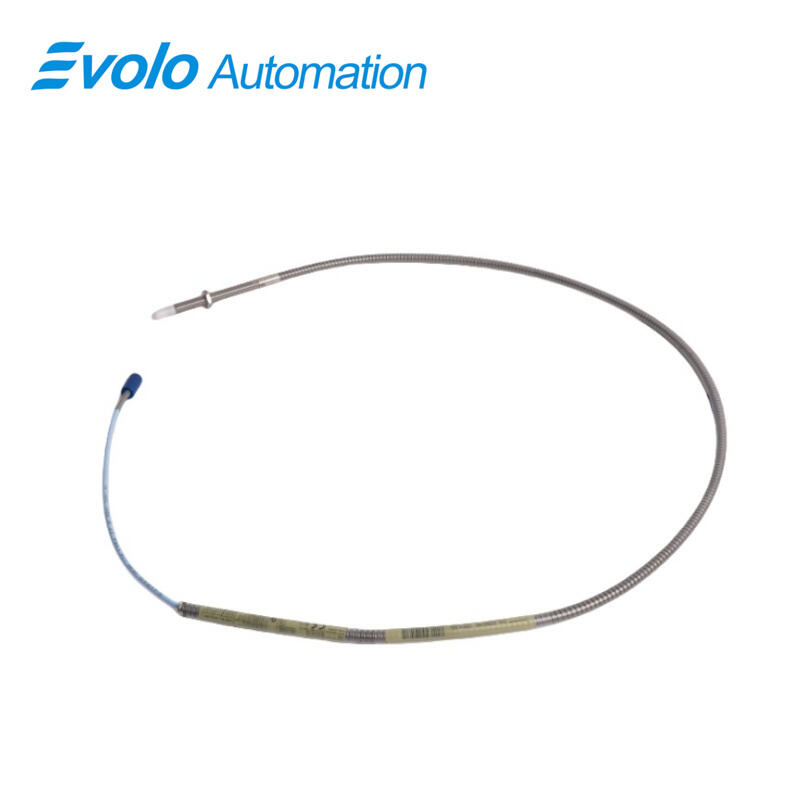

The 330904-00-25-50-02-00 3300 NSv Proximity Probe is a 250 mm stainless steel probe with 5.0-meter standard cable and M8X1 thread for use in centrifugal compressors, refrigeration compressors, and process gas compressors. The 330904-00-25-50-02-00 3300 NSv probe has a linear range of 1.5 mm (60 mils) and recommended gap of 1.0 mm (40 mils), transmitting radial and axial position, tachometer, and Keyphasor signals. It features 50 Ω output resistance, supply sensitivity below 2 mV/V, and supports field wiring from 0.2 to 1.5 mm² (16–24 AWG). The 330904-00-25-50-02-00 3300 NSv probe operates in -52°C to +177°C (-62°F to +351°F), uses a PPS probe tip, and ClickLoc connectors with TipLoc molding and CableLoc design for secure attachment, ensuring accurate monitoring in tight spaces and small-shaft installations.
Applications
Measure Radial Vibration on Small Shafts
The 330904-00-25-50-02-00 3300 NSv probe captures radial vibration on shafts smaller than 51 mm (2 in), maintaining 1.5 mm linear range for precise monitoring.
Measure Axial Position on Flat Targets
The 330904-00-25-50-02-00 3300 NSv probe records thrust or axial movement on flat targets down to 15 mm (0.6 in) diameter using a 1.0 mm recommended gap.
Transmit Tachometer and Keyphasor Signals
The 330904-00-25-50-02-00 3300 NSv probe delivers tachometer, zero-speed, and Keyphasor signals with less than 2 mV/V supply sensitivity for accurate rotational monitoring.
Specifications
|
Probe Temperature Range: |
-52°C to +177°C (-62°F to +351°F) |
|
Storage Temperature: |
-52°C to +177°C (-62°F to +351°F) |
|
Probe Tip Material: |
Polyphenylene sulfide (PPS) |
|
Probe Case Material: |
AISI 304 stainless steel (SST) |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG)[0.25 to 0.75 mm2 (18 to 23 AWG) with ferrules] |
|
Linear Range: |
1.5 mm (60 mils) |
|
Recommended Gap Setting: |
1.0 mm (40 mils) |
|
Output resistance: |
50 Ω |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
Competitive Advantage
Provide Accurate Vibration and Position Signals
The 330904-00-25-50-02-00 3300 NSv probe maintains linear range of 1.5 mm and 50 Ω output for precise measurement in small-shaft machinery.
Operate in Extreme Temperatures
The 330904-00-25-50-02-00 3300 NSv probe functions from -52°C to +177°C (-62°F to +351°F), supporting compressors and process machines in high-heat environments.
Ensure Secure Cable Attachment
The 330904-00-25-50-02-00 3300 NSv probe uses ClickLoc connectors with TipLoc molding and CableLoc design, providing 220 N pull strength for stable connections in industrial setups.
Enable Small-Target and Side-View Monitoring
The 330904-00-25-50-02-00 3300 NSv probe works with targets down to 15 mm diameter and 1.0 mm gap, enabling accurate monitoring where space or target size is limited.
