Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330904-00-12-05-02-00 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option: |
0 mm |
|
Overall Case Length Option: |
120 mm |
|
Cable Length Option: |
0.5 meter (20 in) |
|
Connector and Cable Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
Not required |
|
Probe Case Thread: |
M8X1 thread |
|
Maximum Length of Thread Engagement: |
12 mm |
|
Dimension: |
1.5x1.3x116cm |
|
Weight: |
0.1kg |
Description

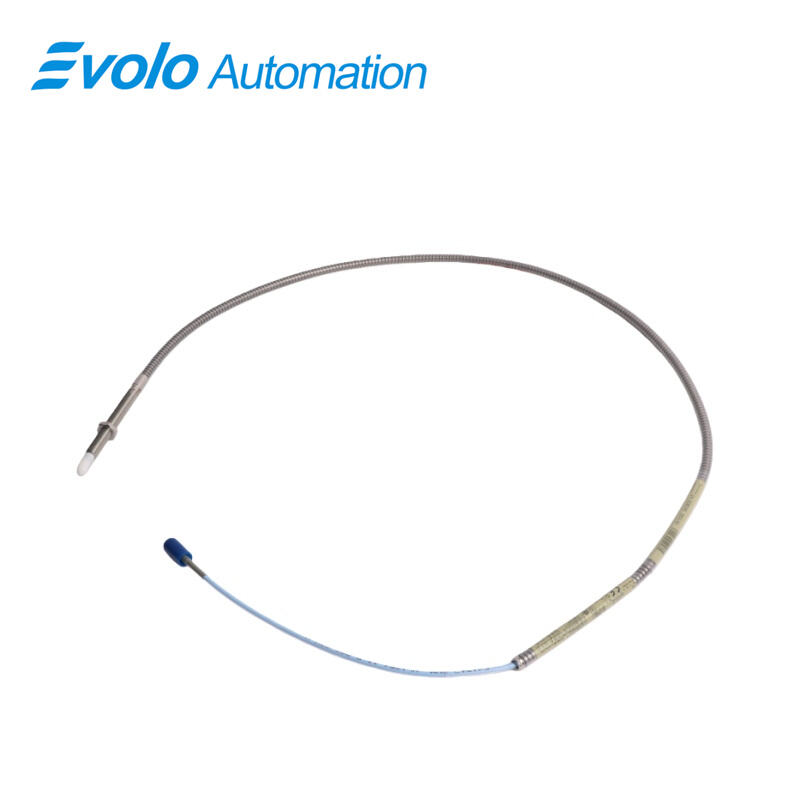

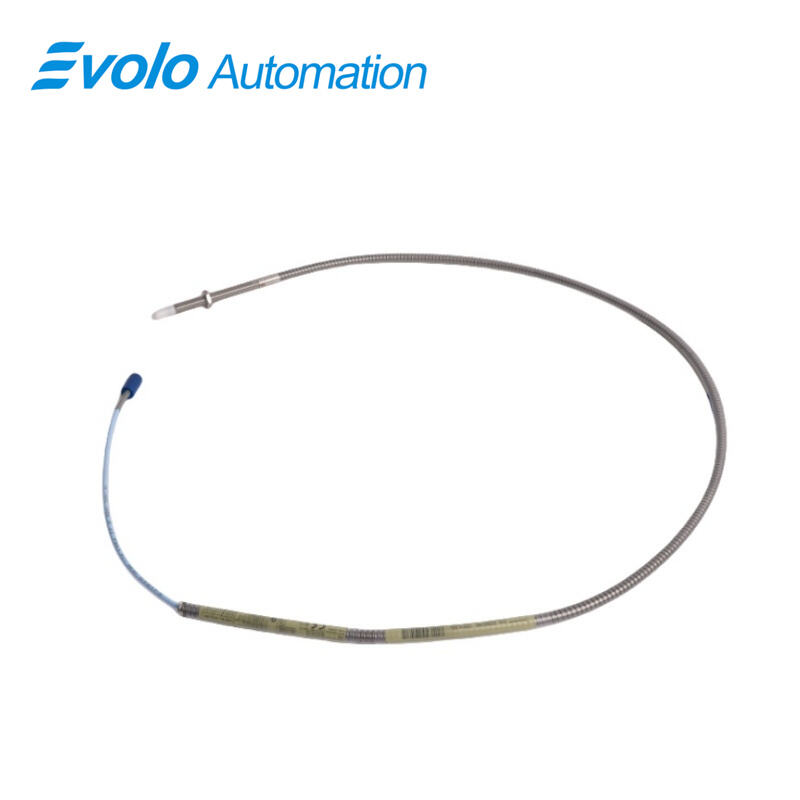

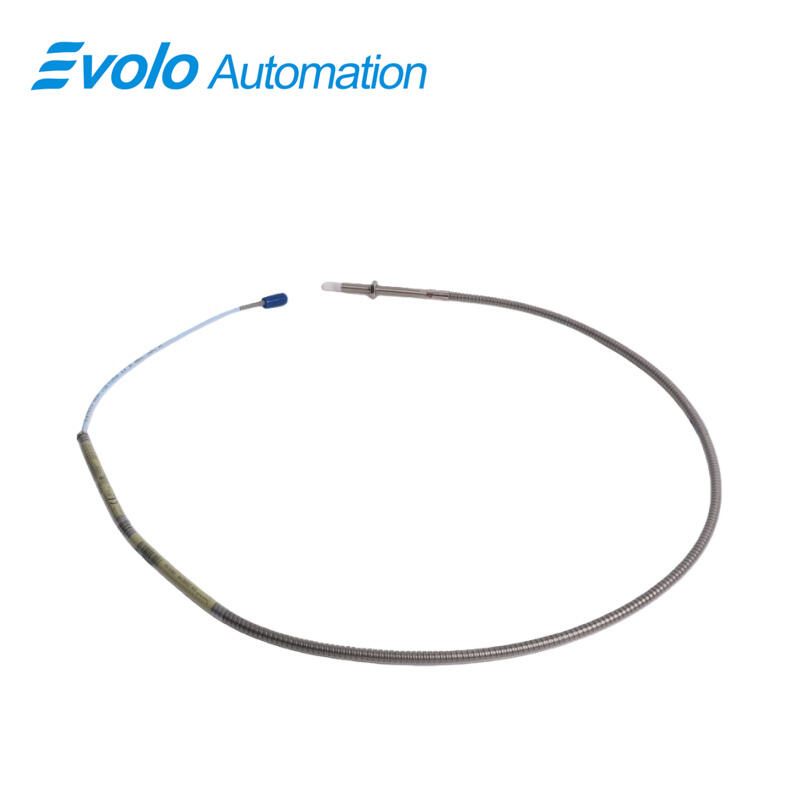

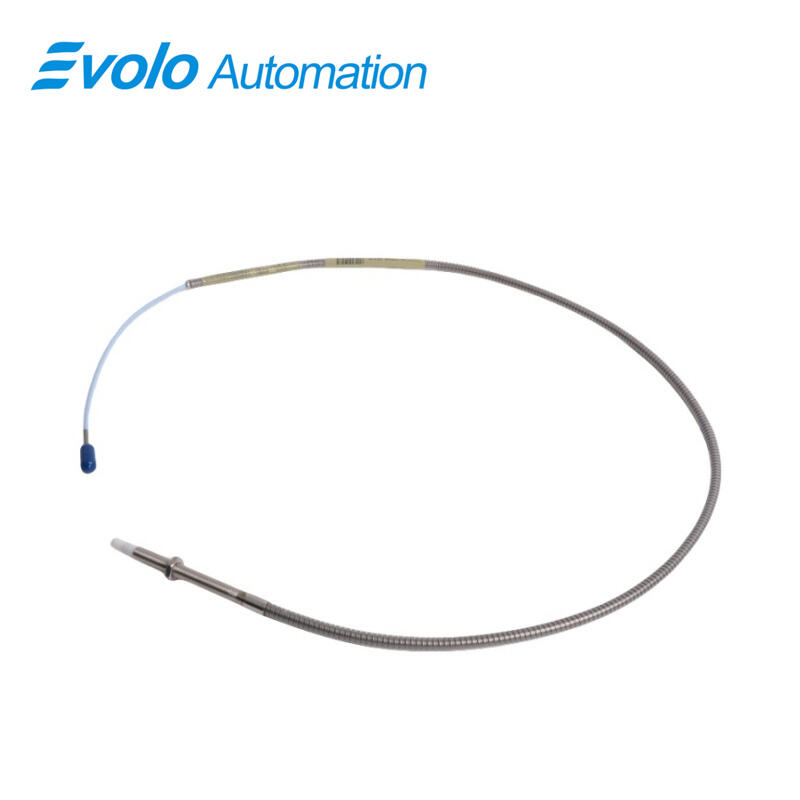

330904-00-12-05-02-00 is a 3300 NSv Proximity Probe designed for automation systems that require precise measurement in tight spaces. 330904-00-12-05-02-00 features an M8X1 threaded AISI 304 stainless steel case with a 120 mm overall length and a 0.5-meter miniature coaxial ClickLoc cable. The probe operates from -52°C to +177°C and supports field wiring from 0.2 to 1.5 mm². With a linear range of 1.5 mm, recommended gap of 1.0 mm, 50 Ω output resistance, and supply sensitivity below 2 mV per volt, 330904-00-12-05-02-00 converts radial and axial movement into reliable voltage signals for PLC, DCS, and automated monitoring systems. This probe is ideal for side-view or rear-view installations where small targets are present and space is limited.
Applications
Radial Vibration Measurement on Small Shafts
330904-00-12-05-02-00 transmits precise radial vibration signals from shafts smaller than 51 mm to PLC or DCS systems. With a linear range of 1.5 mm and output resistance of 50 Ω, 330904-00-12-05-02-00 ensures automated trip and alarm logic receives accurate displacement measurements.
Axial (Thrust) Position Measurement
330904-00-12-05-02-00 converts axial movement on flat targets under 15 mm into voltage signals for automated monitoring. The recommended gap of 1.0 mm allows 330904-00-12-05-02-00 to detect excessive thrust and enable machine adjustment in real time.
Tachometer and Zero-Speed Detection
330904-00-12-05-02-00 delivers Keyphasor and zero-speed signals from side-view installations to control systems. Its supply sensitivity under 2 mV per volt ensures reliable speed monitoring for automated sequencing.
Specifications
|
Probe Temperature Range: |
-52°C to +177°C (-62°F to +351°F) |
|
Storage Temperature: |
-52°C to +177°C (-62°F to +351°F) |
|
Probe Tip Material: |
Polyphenylene sulfide (PPS) |
|
Probe Case Material: |
AISI 304 stainless steel (SST) |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG)[0.25 to 0.75 mm2 (18 to 23 AWG) with ferrules] |
|
Linear Range: |
1.5 mm (60 mils) |
|
Recommended Gap Setting: |
1.0 mm (40 mils) |
|
Output resistance: |
50 Ω |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
Competitive Advantage
Compact Design for Tight Spaces
The 120 mm case and M8X1 thread of 330904-00-12-05-02-00 allow installation in side-view or rear-view locations where standard 3300 probes cannot fit.
Consistent Signal Output Under Supply Variation
With less than 2 mV change per volt, 330904-00-12-05-02-00 ensures accurate voltage signals from radial and axial measurements reach automation systems.
Chemical-Resistant Probe Tip
The PPS probe tip of 330904-00-12-05-02-00 resists chemical exposure, allowing automated monitoring in compressors, refrigeration, and process gas systems.
