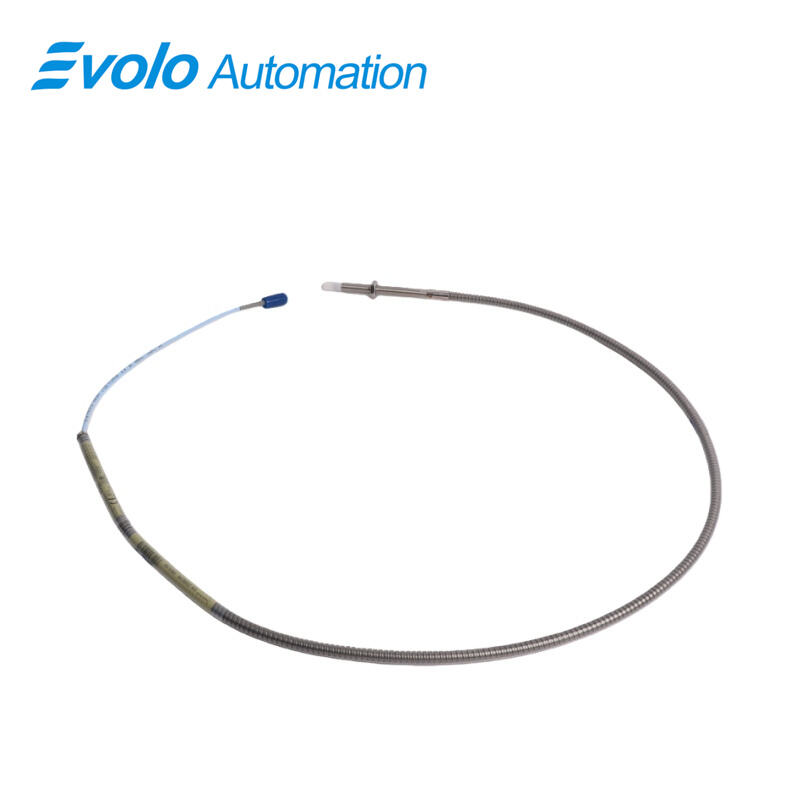

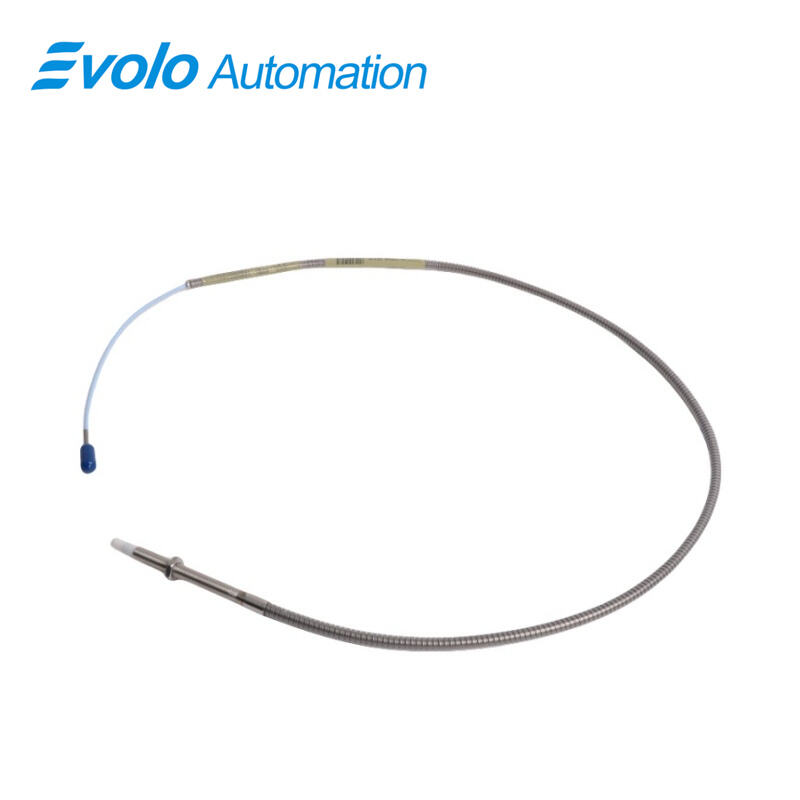

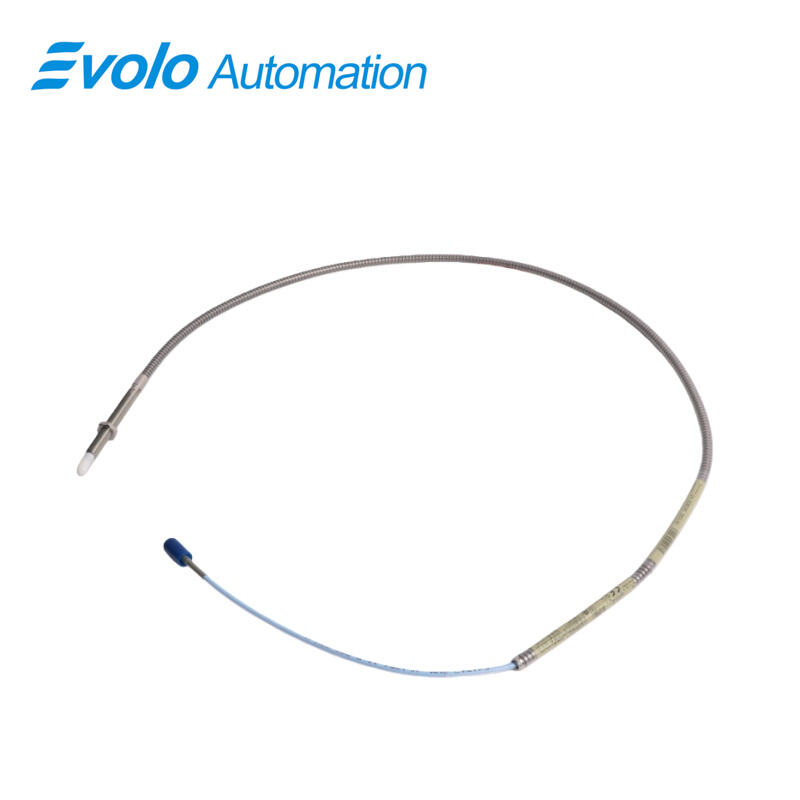

330904-00-09-10-02-05 3300 NSv Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330904-00-09-10-02-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330904-00-09-10-02-05 3300 NSv Proximity Probe delivers precise voltage output proportional to the distance between the probe tip and conductive surfaces, measuring both static (position) and dynamic (vibration) values in automated systems. With a linear range of 1.5 mm (60 mils), recommended gap of 1.0 mm (40 mils), 50 Ω output resistance, and less than 2 mV change per volt input, the 330904-00-09-10-02-05 3300 NSv Proximity Probe ensures accurate signal transmission to Proximitor sensors. Its M8X1 threaded stainless steel case and PPS probe tip operate from -52°C to +177°C (-62°F to +351°F). Equipped with a miniature coaxial ClickLoc connector and optional connector protectors, the 330904-00-09-10-02-05 3300 NSv Proximity Probe fits tight installation spaces and small targets, supporting precise automated monitoring in fluid-film bearing machinery. The TipLoc and CableLoc designs provide 220 N pull strength, securing the probe under vibration and process conditions.

Applications

Radial Vibration Measurement on Small Shafts
The 330904-00-09-10-02-05 3300 NSv Proximity Probe, with a linear range of 1.5 mm (60 mils) and a recommended gap of 1.0 mm, measures radial vibration on shafts smaller than 51 mm (2 in), providing automated monitoring of high-speed compressors and process machinery.

Axial Position Monitoring
Using the 330904-00-09-10-02-05 3300 NSv Proximity Probe, axial (thrust) position on flat targets smaller than 15 mm (0.6 in) can be captured with output resistance of 50 Ω and supply sensitivity below 2 mV/V, enabling precise automated control in tight installation areas.

Speed and Phase Reference Signals
The 330904-00-09-10-02-05 3300 NSv Proximity Probe generates accurate Keyphasor signals and tachometer outputs, supporting automation systems in real-time rotor speed measurement.

Fluid-Film Bearing Monitoring
Equipped with a PPS probe tip and stainless steel case, the 330904-00-09-10-02-05 3300 NSv Proximity Probe provides reliable vibration and position data for automated diagnostic systems on fluid-film bearing machines.

Specifications

Competitive Advantage

High-Temperature Operation
The 330904-00-09-10-02-05 3300 NSv Proximity Probe functions over -52°C to +177°C (-62°F to +351°F), ensuring continuous automated monitoring in extreme operating conditions.

Secure Electrical Connection
With gold-plated ClickLoc connectors and 220 N CableLoc pull strength, the 330904-00-09-10-02-05 3300 NSv Proximity Probe maintains accurate signals in vibration-intensive automation systems.

Chemical-Resistant Probe Tip
The PPS probe tip on the 330904-00-09-10-02-05 3300 NSv Proximity Probe resists process chemicals, allowing automated operation in compressors handling aggressive media.

Compact Side-View Design
The M8X1 threaded case of the 330904-00-09-10-02-05 3300 NSv Proximity Probe fits small side-view and counterbore areas, enabling automated installations where space is limited.

Linear Response for Accurate Automation
The 1.5 mm linear range and 50 Ω output resistance of the 330904-00-09-10-02-05 3300 NSv Proximity Probe ensures precise data collection for automated vibration and position control loops.
