330904-00-07-10-02-05 3300 NSv Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330904-00-07-10-02-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

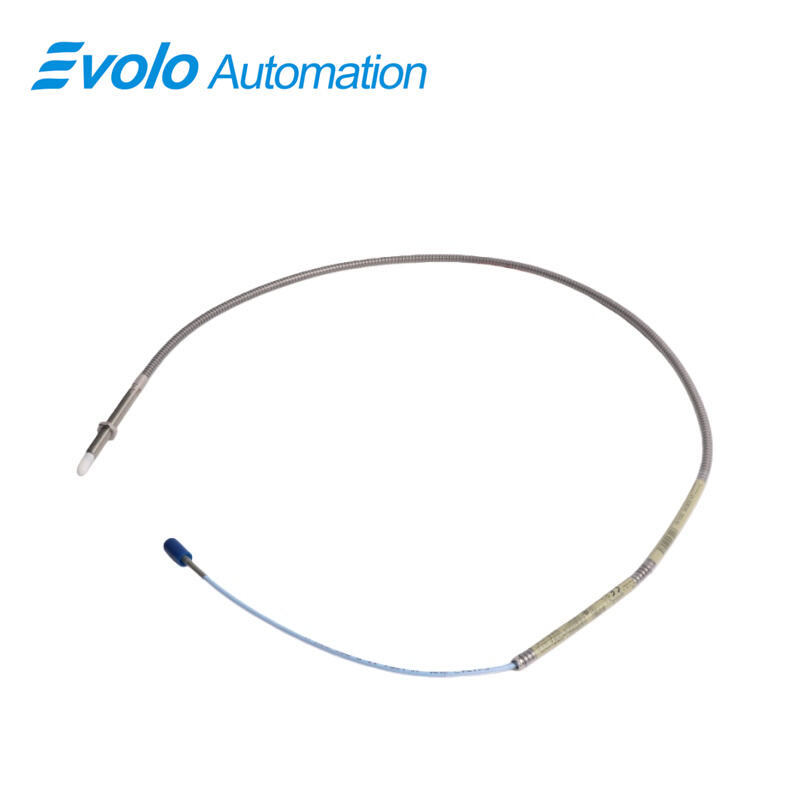

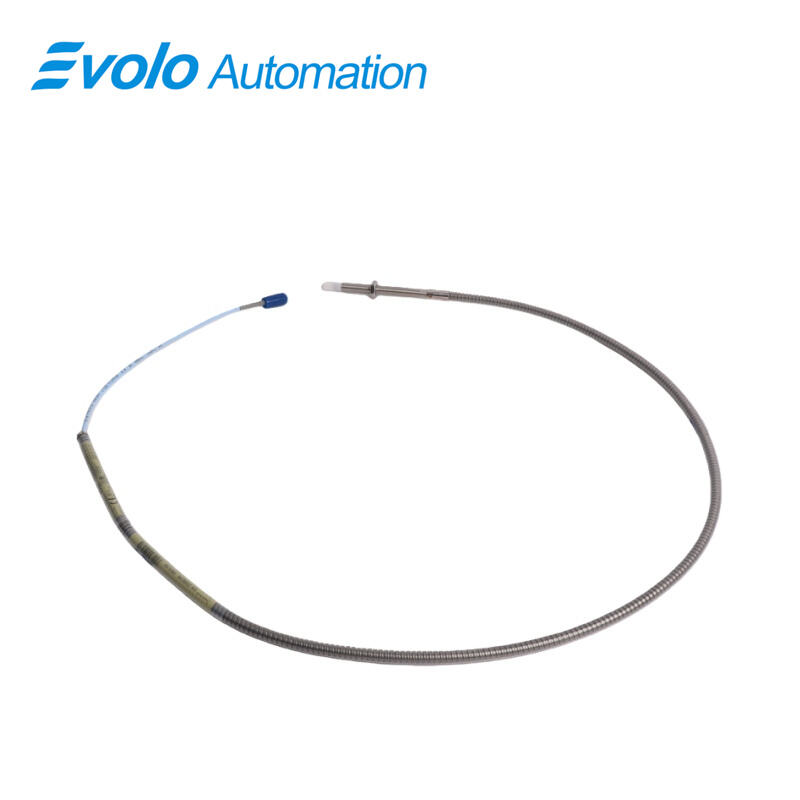

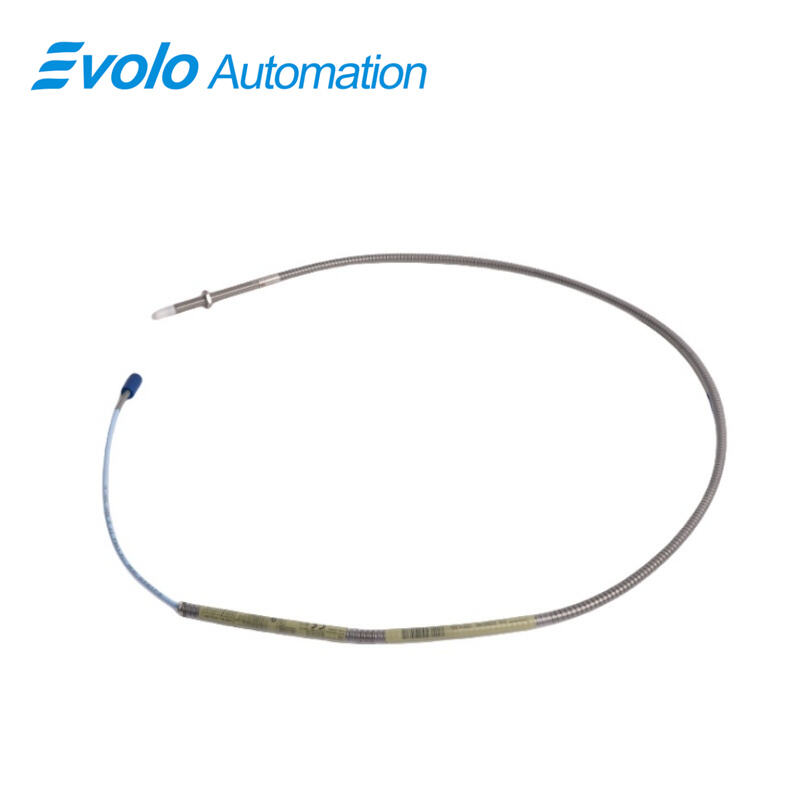

The 330904-00-07-10-02-05 3300 NSv Proximity Probe is a 1.0-meter (39 in) eddy current probe with an M8X1 case thread and maximum thread engagement of 12 mm. The 330904-00-07-10-02-05 3300 NSv Proximity Probe features a miniature coaxial ClickLoc connector with standard cable, supporting field wiring from 0.2 to 1.5 mm² (16–24 AWG). Its linear range of 1.5 mm (60 mils), output resistance of 50 Ω, and recommended gap of 1.0 mm (40 mils) allow precise radial and axial position measurements. Operating from -52°C to +177°C (-62°F to +351°F), the 330904-00-07-10-02-05 3300 NSv Proximity Probe is designed for small shaft, side-view, and rear-view installations in compressors, turbines, and fluid-film bearing machines, delivering accurate vibration, speed, and Keyphasor signals in automated monitoring systems.

Applications

Measure radial vibration on small shafts with high accuracy
The 330904-00-07-10-02-05 3300 NSv Proximity Probe measures radial vibration on shafts smaller than 51 mm (2 in) using its linear range of 1.5 mm (60 mils) and output resistance of 50 Ω, delivering precise vibration data for automated monitoring systems.

Monitor axial position on small targets
The 330904-00-07-10-02-05 3300 NSv Proximity Probe captures axial (thrust) position on flat targets smaller than 15 mm (0.6 in) with a recommended gap of 1.0 mm (40 mils), enabling accurate position measurements in tight machinery spaces.

Provide Keyphasor and zero-speed signals
The 330904-00-07-10-02-05 3300 NSv Proximity Probe supports phase reference (Keyphasor) and zero-speed detection in compressors and turbines, using its extension cable with 0.2–1.5 mm² field wiring for reliable signal transmission.

Install in side-view or rear-view restricted areas
With M8X1 case thread and maximum thread engagement of 12 mm, the 330904-00-07-10-02-05 3300 NSv Proximity Probe fits tight installation spaces where standard 3300 or 3300 XL probes cannot be used.

Specifications

Competitive Advantage

Maintain signal quality under extreme temperatures
The 330904-00-07-10-02-05 3300 NSv Proximity Probe operates from -52°C to +177°C (-62°F to +351°F), delivering consistent output across high- and low-temperature environments in automated systems.

Secure connections with ClickLoc connectors and protector
The 330904-00-07-10-02-05 3300 NSv Proximity Probe uses gold-plated ClickLoc connectors with protector, preventing accidental disconnection and maintaining signal accuracy in industrial automation setups.

Fit in compact or restricted installations
The 330904-00-07-10-02-05 3300 NSv Proximity Probe replaces 3300 RAM or 3000/7000-series probes while using the same Proximitor sensor, reducing downtime and installation complexity in limited spaces.

Deliver precise measurement signals for automation systems
With 1.5 mm linear range, 50 Ω output resistance, and 1.0 mm recommended gap, the 330904-00-07-10-02-05 3300 NSv Proximity Probe provides high-fidelity radial and axial measurements for automated machinery diagnostics.

Resist chemical exposure in process compressors
The 330904-00-07-10-02-05 3300 NSv Proximity Probe uses a PPS tip and AISI 304 stainless steel case, allowing use in chemical or process compressor environments without affecting measurement accuracy.
