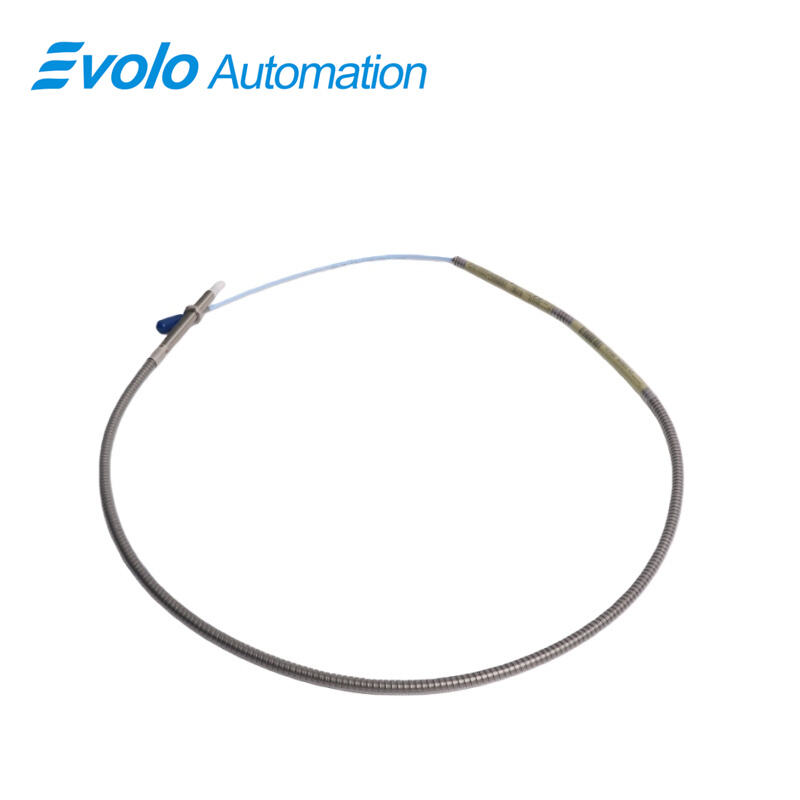

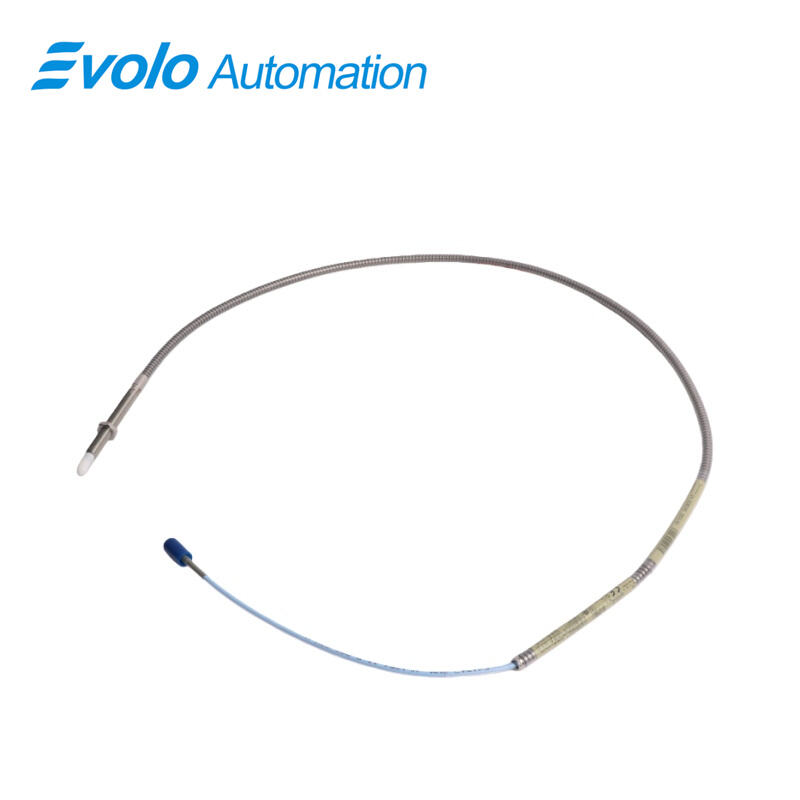

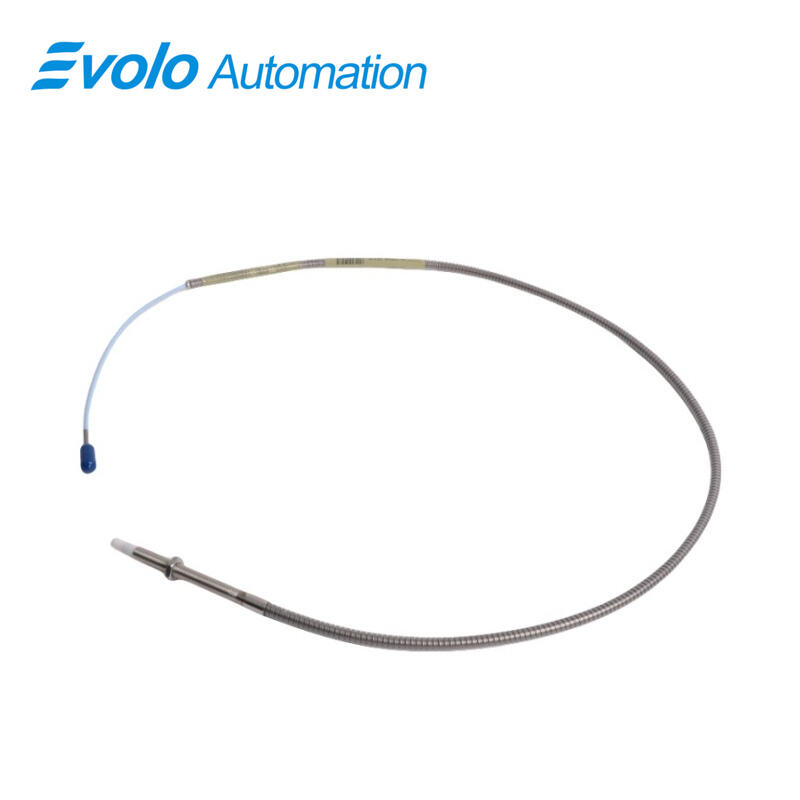

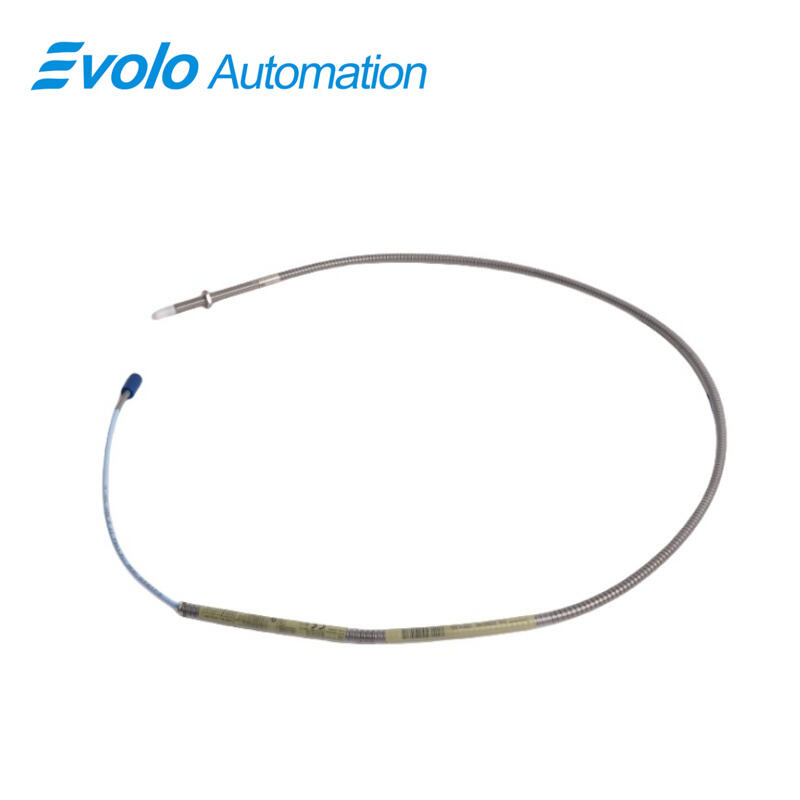

330904-00-05-70-01-05 3300 NSv Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330904-00-05-70-01-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330904-00-05-70-01-05 3300 NSv Proximity Probe is a precision 8 mm diameter transducer designed for automated machinery monitoring. The 330904-00-05-70-01-05 features an M8 x 1 threaded case with 12 mm maximum engagement and a 50 mm overall case length. Its PPS tip and AISI 304 stainless steel body enable reliable position detection in temperatures from -52°C to +177°C. With a 1.5 mm linear range and 1 mm recommended gap, the 330904-00-05-70-01-05 provides accurate displacement feedback for shafts, turbines, and compressors. The probe includes a 7 m miniature coaxial ClickLoc cable with connector protector and 50 Ω output resistance, supporting automated control loops and real-time monitoring. Field wiring accepts 0.2–1.5 mm² conductors. The 330904-00-05-70-01-05 3300 NSv Proximity Probe integrates easily into 3300 monitoring systems, enabling precise vibration, position, and zero-speed measurements in fluid film bearing machines.

Applications

Measure Motor Shaft Displacement with the 330904-00-05-70-01-05
Install the 330904-00-05-70-01-05 on motor shafts to detect axial and radial movement using its 1.5 mm linear range and 1 mm recommended gap.

Monitor Turbine Rotor Position Using the 330904-00-05-70-01-05
Mount the 330904-00-05-70-01-05 on turbine rotors to track vibration and rotational position under -52°C to +177°C conditions.

Track Compressor Rod Position with the 330904-00-05-70-01-05
Attach the 330904-00-05-70-01-05 to reciprocating compressor rods for precise rod drop and alignment measurements using its PPS tip and stainless steel case.

Provide Zero-Speed Detection in Automated Systems Using the 330904-00-05-70-01-05
Integrate the 330904-00-05-70-01-05 into automation loops to detect zero-speed events and provide phase reference signals with 50 Ω output resistance.

Specifications

Competitive Advantage

Precise Linear Measurement with the 330904-00-05-70-01-05
The 330904-00-05-70-01-05 offers a 1.5 mm linear range and 1 mm recommended gap, delivering accurate displacement data for automated control loops.

Operate in Extreme Temperatures with the 330904-00-05-70-01-05
Designed to function from -52°C to +177°C, the 330904-00-05-70-01-05 provides reliable position and vibration monitoring in industrial environments.

Quick Integration into Automated Control Systems with the 330904-00-05-70-01-05
The 330904-00-05-70-01-05 comes with a 7 m miniature coaxial ClickLoc cable and connector protector, allowing fast installation and secure connections.

Use in Hazardous Zones with the 330904-00-05-70-01-05
Multiple agency approvals enable the 330904-00-05-70-01-05 to operate safely in explosive or humid environments.

Durable Construction for Continuous Operation with the 330904-00-05-70-01-05
The PPS tip and AISI 304 stainless steel body of the 330904-00-05-70-01-05 withstand long-term use in rotating machinery and fluid film bearings.
