330903-17-19-05-02-00 3300 NSv Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330903-17-19-05-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

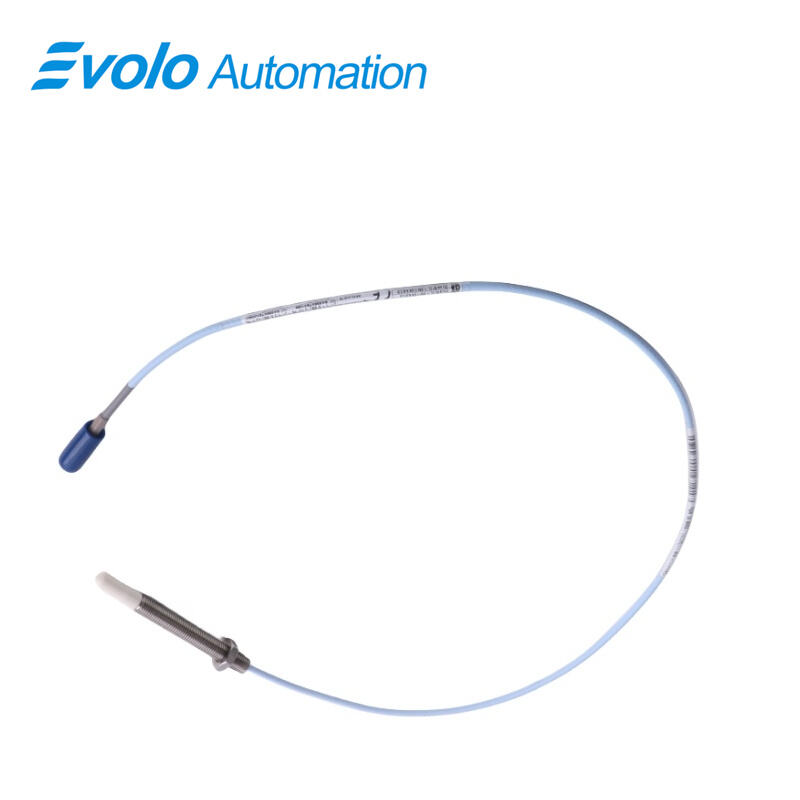

The 330903-17-19-05-02-00 3300 NSv Proximity Probe is a precision 8 mm transducer for automated machinery monitoring with limited installation space. The 330903-17-19-05-02-00 features an M8 x 1 thread with 12 mm maximum engagement, 170 mm unthreaded length, and 190 mm overall case length. Its PPS tip and AISI 304 stainless steel body operate from -52°C to +177°C, providing 1.5 mm linear range and 1 mm recommended gap for accurate shaft and rotor measurements. The 330903-17-19-05-02-00 includes a 0.5 m miniature coaxial ClickLoc cable with 50 Ω output resistance, supporting field wiring of 0.2–1.5 mm². The 330903-17-19-05-02-00 3300 NSv Proximity Probe is ideal for radial vibration, axial position, zero-speed detection, and Keyphasor signal monitoring on centrifugal compressors, refrigeration compressors, and other fluid-film bearing machines with small shafts or restricted side views.

Applications

Measure Radial Vibration on Small Shafts with the 330903-17-19-05-02-00
Install the 330903-17-19-05-02-00 on shafts smaller than 51 mm to monitor radial vibration using its 1.5 mm linear range.

Monitor Axial Position on Flat Targets Using the 330903-17-19-05-02-00
The 330903-17-19-05-02-00 measures axial thrust on flat targets smaller than 15 mm with a 1 mm recommended gap for precise control feedback.

Detect Zero-Speed Events with the 330903-17-19-05-02-00
Integrate the 330903-17-19-05-02-00 into automated systems to detect zero-speed conditions, using its 50 Ω output for reliable signal transmission.

Provide Phase Reference Signals Using the 330903-17-19-05-02-00
The 330903-17-19-05-02-00 outputs Keyphasor signals for synchronization in fluid film bearing machines and centrifugal compressors.

Specifications

Competitive Advantage

Precise Displacement Measurement with the 330903-17-19-05-02-00
The 330903-17-19-05-02-00 delivers 1.5 mm linear range and 1 mm recommended gap, enabling accurate shaft and rotor monitoring in automated control loops.

Operate in Extreme Temperature Environments with the 330903-17-19-05-02-00
With an operating range from -52°C to +177°C, the 330903-17-19-05-02-00 can measure shafts and rotors under high-heat or cold conditions.

Quick Installation with the 330903-17-19-05-02-00
The 330903-17-19-05-02-00 includes a 0.5 m miniature coaxial ClickLoc cable for fast connection and secure integration into monitoring systems.

Use in Tight Spaces with the 330903-17-19-05-02-00
Its 170 mm unthreaded length and 190 mm overall case length allow the 330903-17-19-05-02-00 to fit in counter bore, side-view, or rear-view restricted applications.

Extend Machine Operation with the 330903-17-19-05-02-00
The PPS tip and AISI 304 stainless steel body of the 330903-17-19-05-02-00 resist wear and allow continuous measurement on small shafts and fluid-film bearing machines.
