330903-16-23-10-01-00 3300 NSv Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330903-16-23-10-01-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

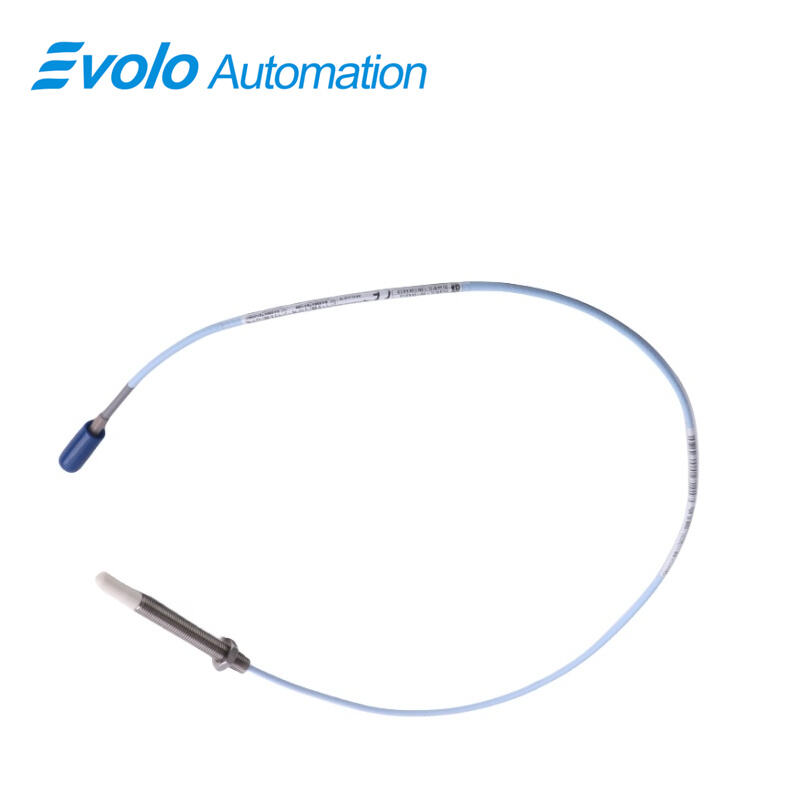

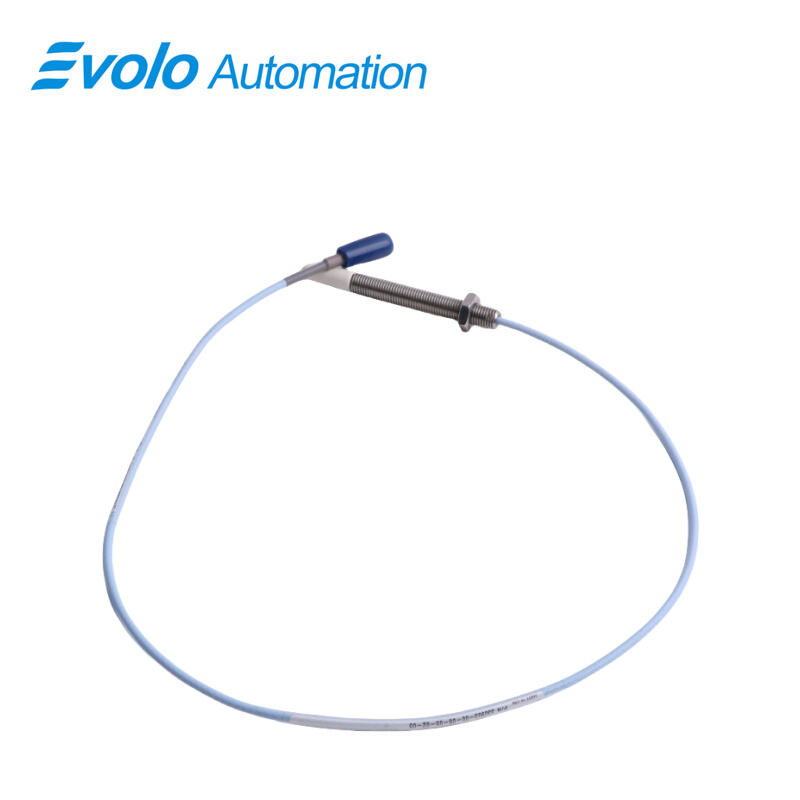

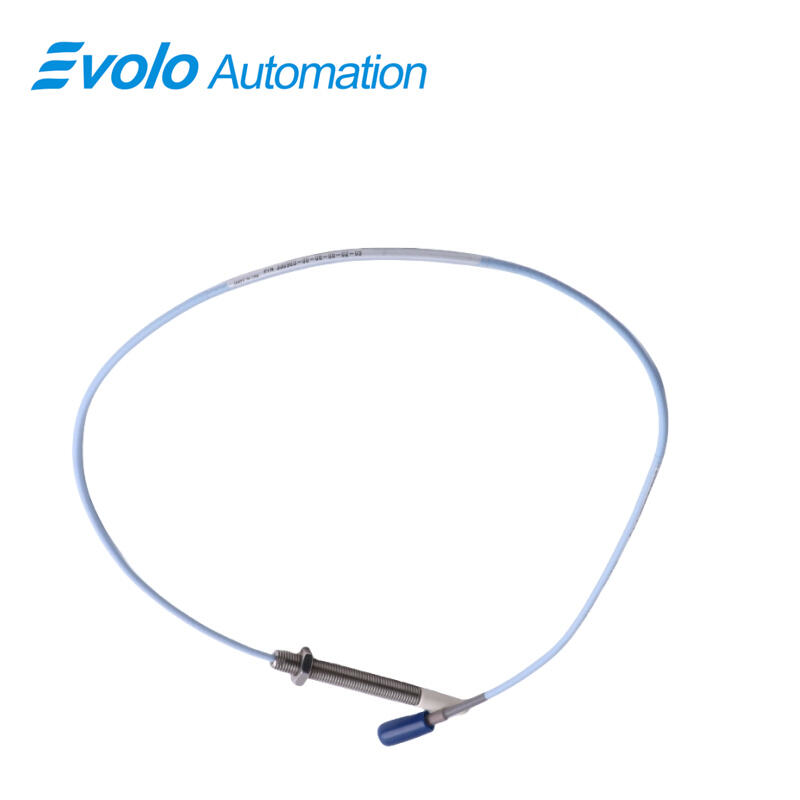

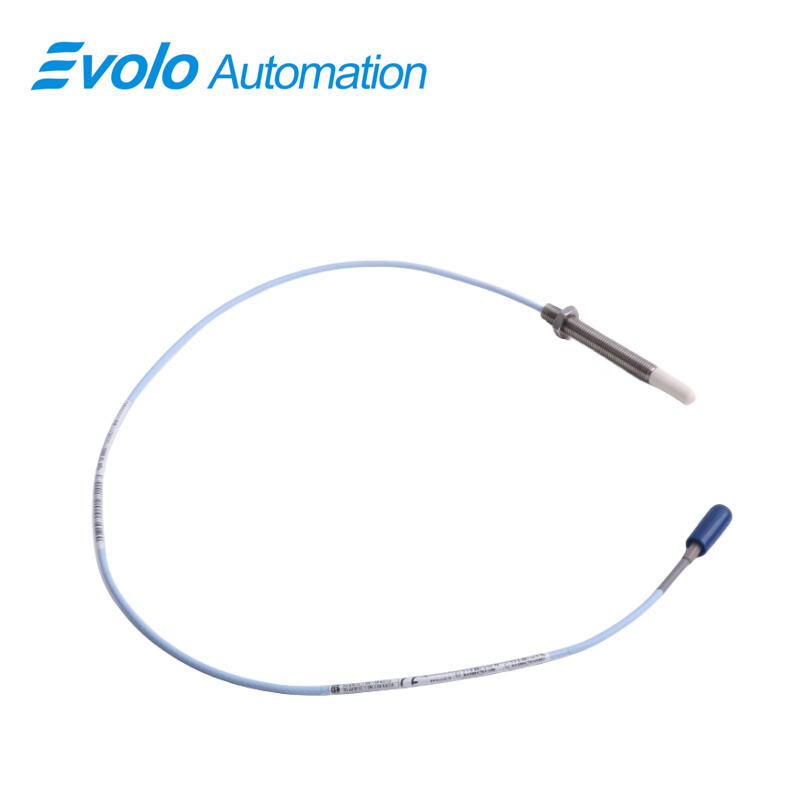

The 330903-16-23-10-01-00 3300 NSv Proximity Probe is designed for precise radial vibration and axial position measurement in centrifugal air compressors, refrigeration compressors, and process gas compressors. The 330903-16-23-10-01-00 3300 NSv Proximity Probe features an M8X1 thread, 230 mm overall case length, unthreaded length of 160 mm, and a 1.0 meter (39 in) standard cable with Miniature coaxial ClickLoc connector and protector. The probe tip is made of PPS, and the case is AISI 304 stainless steel, supporting operating temperatures from -52°C to +177°C (-62°F to +351°F). The 330903-16-23-10-01-00 3300 NSv Proximity Probe has a 1.5 mm linear range, 1.0 mm recommended gap, 50 Ω output resistance, and supply sensitivity under 2 mV per volt. Its design allows replacement of 3300 RAM and 3000-/7000-series transducers, enabling automated measurement of small shaft radial vibration, axial position, tachometer signals, and Keyphasor phase references in tight installation spaces.

Applications

Application – Radial Vibration Measurement
Use the 330903-16-23-10-01-00 3300 NSv Proximity Probe to measure radial vibration on shafts smaller than 51 mm (2 in). The probe’s 1.5 mm linear range and 1.0 mm gap allow accurate monitoring of small-shaft compressors, enabling real-time automated vibration tracking.

Application – Axial Position Monitoring
The 330903-16-23-10-01-00 3300 NSv Proximity Probe measures axial (thrust) position on flat targets smaller than 15 mm (0.6 in), ensuring precise monitoring of rotor movement. Its 50 Ω output resistance supports integration with standard Proximitor Sensors for automation systems.

Application – Tachometer and Zero Speed Detection
Deploy the 330903-16-23-10-01-00 3300 NSv Proximity Probe for tachometer readings and zero-speed detection. Its 1.0 mm recommended gap and robust PPS tip allow accurate rotational speed measurements in high-temperature environments (-52°C to +177°C).

Specifications

Competitive Advantage

Competitive Advantage – Tight Space Installation
The 330903-16-23-10-01-00 3300 NSv Proximity Probe is designed for areas with counter bore, sideview, or rearview limitations. Its 230 mm case length and 1.0 meter cable allow deployment in compact automated setups without interfering with other components.

Competitive Advantage – Chemical and Temperature Resistance
The 330903-16-23-10-01-00 3300 NSv Proximity Probe withstands -52°C to +177°C (-62°F to +351°F) and uses PPS tip and AISI 304 SST case materials, enabling automated monitoring in high-temperature or chemically aggressive process environments.

Competitive Advantage – Mechanical and Electrical Compatibility
The 330903-16-23-10-01-00 3300 NSv Proximity Probe is compatible with existing 3300 RAM and 3000-/7000-series extension cables and Proximitor Sensors. Automated system upgrades can reuse existing components, reducing downtime and installation effort.
