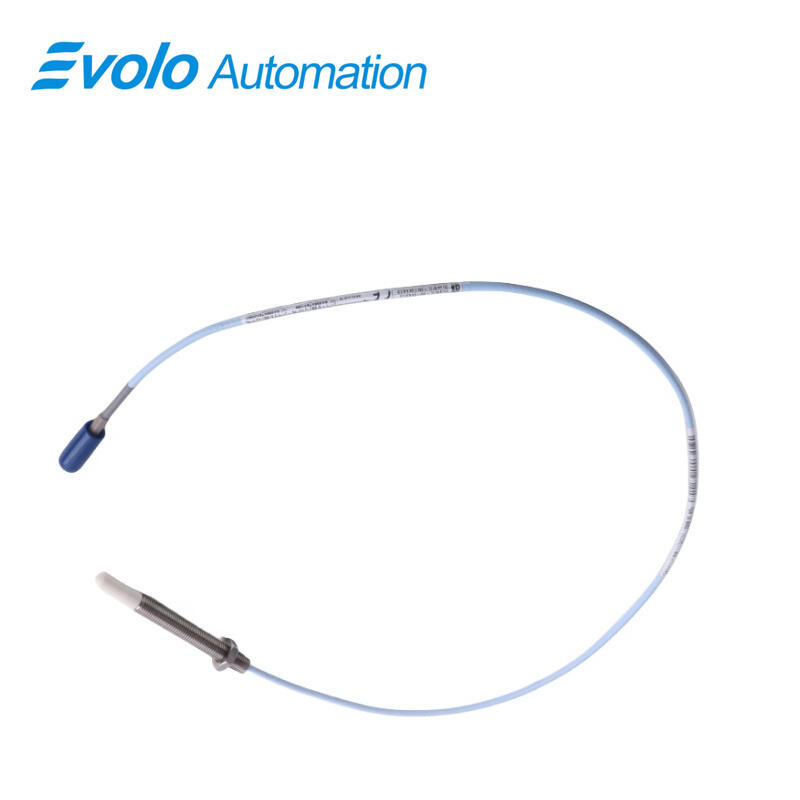

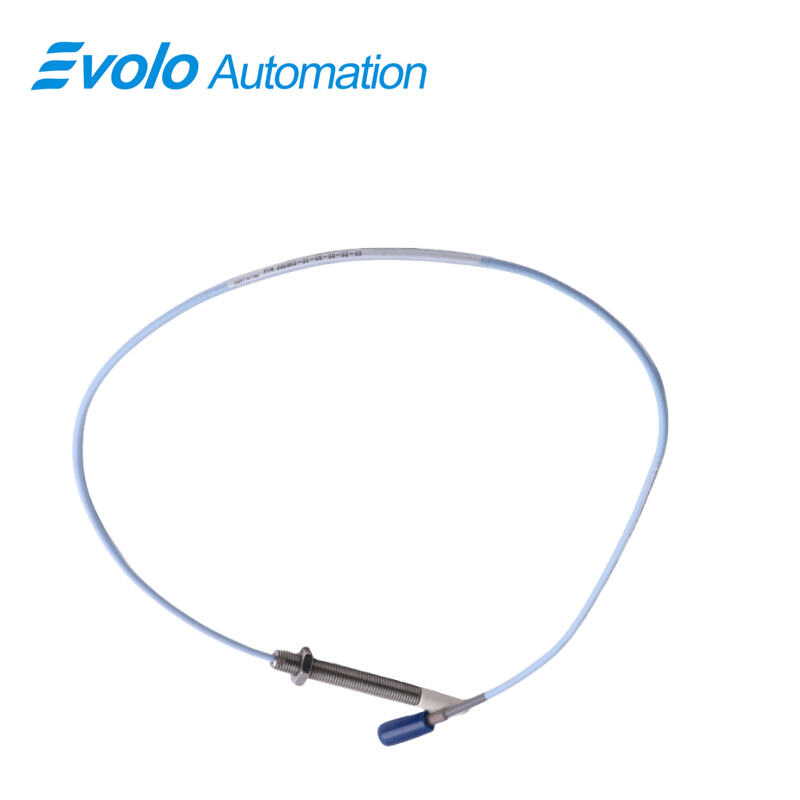

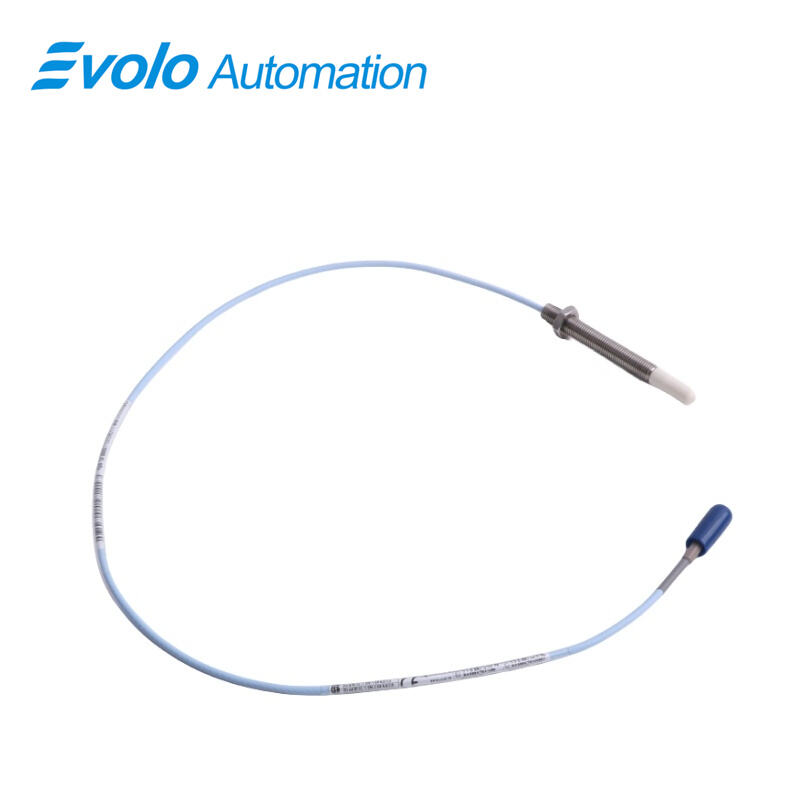

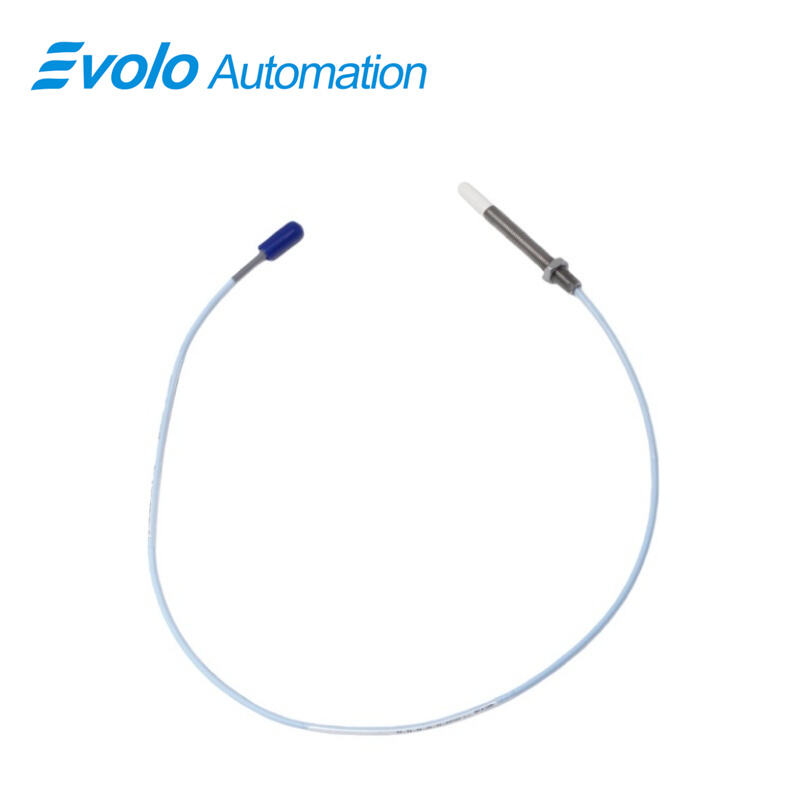

330903-00-11-05-02-05 3300 NSv Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330903-00-11-05-02-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330903-00-11-05-02-05 3300 NSv Proximity Probe is designed for precise measurement of radial vibration and axial position on small shafts and tight spaces in centrifugal air compressors, refrigeration compressors, and process gas compressors. With an M8X1 probe thread, 110 mm overall case length, and 0.5-meter cable, the 330903-00-11-05-02-05 3300 NSv Proximity Probe delivers accurate 1.5 mm (60 mils) linear range detection. Its Polyphenylene sulfide (PPS) probe tip and AISI 304 stainless steel body withstand temperatures from -52°C to +177°C (-62°F to +351°F). The 330903-00-11-05-02-05 3300 NSv Proximity Probe features a miniature coaxial ClickLoc connector, output resistance of 50 Ω, and supply sensitivity under 2 mV per volt input change. It supports field wiring from 0.2 to 1.5 mm² and allows precise 1.0 mm (40 mils) gap setting for automated monitoring systems. The probe’s compact design ensures seamless integration with existing 3300 RAM extension cables and Proximitor sensors, enabling automation of vibration monitoring, tachometer feedback, and Keyphasor phase reference detection.

Applications

Measure Radial Vibration on Small Shafts: The 330903-00-11-05-02-05 3300 NSv Proximity Probe captures precise radial vibration on shafts smaller than 51 mm (2 in), using its 1.5 mm (60 mils) linear range to support automated monitoring of fluid-film bearings.

Track Axial (Thrust) Position: Deploy the 330903-00-11-05-02-05 3300 NSv Proximity Probe for flat targets under 15 mm (0.6 in) to measure axial movement, utilizing its recommended 1.0 mm (40 mils) probe gap for accurate displacement readings.

Monitor Tachometer Signals: The 330903-00-11-05-02-05 3300 NSv Proximity Probe outputs 50 Ω resistance and <2 mV/V supply sensitivity, allowing precise shaft speed detection in automated compressor systems.

Generate Keyphasor Reference Signals: Use the 330903-00-11-05-02-05 3300 NSv Proximity Probe for phase reference in predictive maintenance; its PPS probe tip and AISI 304 stainless steel body maintain performance in temperatures from -52°C to +177°C.

Specifications

Competitive Advantage

Compact Design for Tight Installations: The 330903-00-11-05-02-05 3300 NSv Proximity Probe has an M8X1 thread and 110 mm overall case length, enabling installation in counter bore or side-view restricted locations.

Seamless System Integration: The 330903-00-11-05-02-05 3300 NSv Proximity Probe is compatible with 3300 RAM extension cables and Proximitor sensors, reducing setup and calibration time in automated systems.

High-Temperature and Chemical Resistance: The 330903-00-11-05-02-05 3300 NSv Proximity Probe operates reliably from -52°C to +177°C, allowing use in compressors and process environments exposed to harsh chemicals.

Precise Linear Range for Accurate Monitoring: With a 1.5 mm (60 mils) linear range and 1.0 mm recommended gap, the 330903-00-11-05-02-05 3300 NSv Proximity Probe provides high-resolution vibration and axial position data.

Robust Cable and Connector Design: The 330903-00-11-05-02-05 3300 NSv Proximity Probe uses ClickLoc connectors and CableLoc pull strength of 220 N (50 lb), securing the probe cable for consistent signal quality in automated systems.
