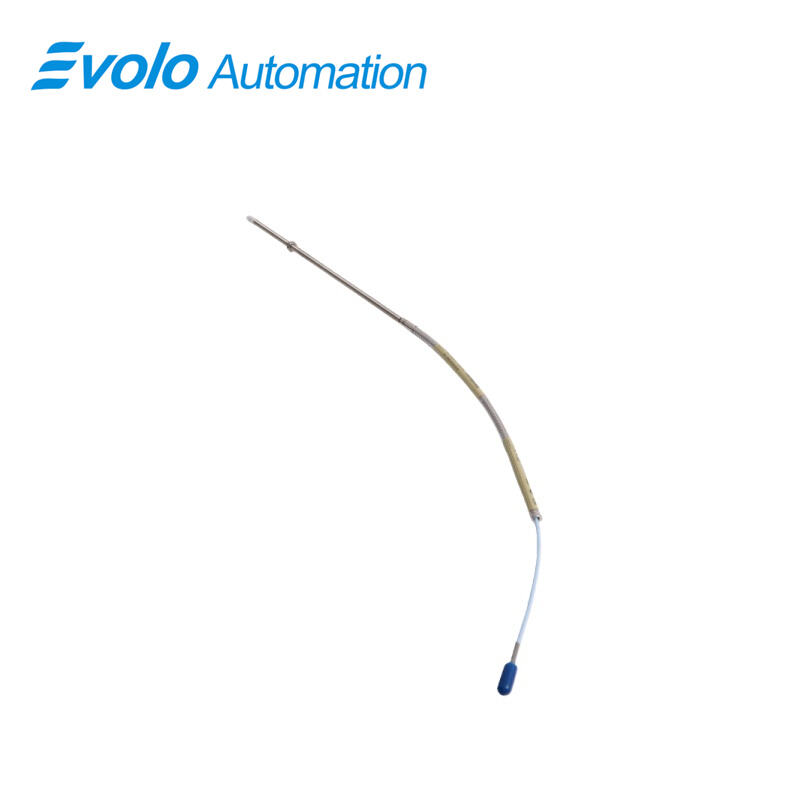

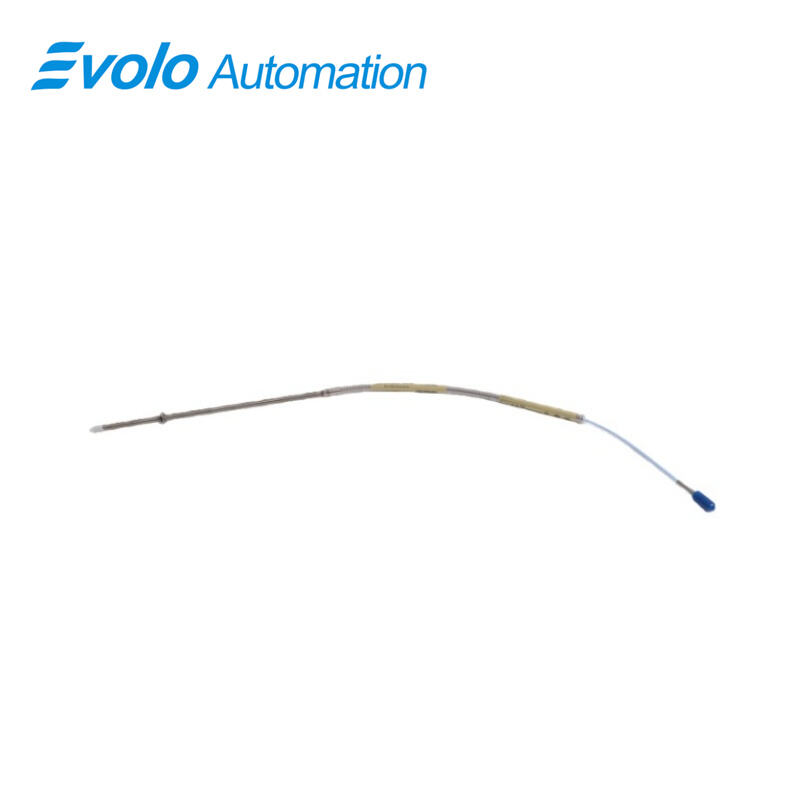

330902-00-95-10-02-00 3300 NSv Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330902-00-95-10-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330902-00-95-10-02-00 3300 NSv Proximity Probe provides precise vibration and axial position monitoring for centrifugal, refrigeration, and process gas compressors with limited installation space. This 330902-00-95-10-02-00 3300 NSv Proximity Probe features a 9.5-inch case, 1.0-meter (39 in) cable with miniature coaxial ClickLoc connector, 1/4-28 UNF thread, and PPS probe tip in AISI 304 stainless steel housing. It operates from -52°C to +177°C (-62°F to +351°F) and supports field wiring from 0.2 to 1.5 mm² (16 to 24 AWG). With 1.5 mm linear range, 7.87 V/mm output, and 50 Ω resistance, the 330902-00-95-10-02-00 3300 NSv Proximity Probe accurately measures radial vibration on shafts smaller than 51 mm (2 in) and axial position on flat targets under 15 mm (0.6 in). TipLoc molding and CableLoc design provide secure probe-cable connections, while the ClickLoc connector prevents loosening. The 330902-00-95-10-02-00 3300 NSv Proximity Probe enables reliable integration into automated monitoring systems and upgrades from older 3300 RAM or 3000/7000-series transducer systems.

Applications

Connect Probes in Tight Compressor Spaces
The 330902-00-95-10-02-00 3300 NSv Proximity Probe with its 9.5-inch case and 1.0-meter (39 in) cable allows operators to mount probes in centrifugal, refrigeration, and process gas compressors where counter bore or side-view space is limited. Its AISI 304 stainless steel housing and PPS probe tip ensure durability in automated monitoring systems.

Measure Radial Vibration on Small Shafts
Paired with the 330902-00-95-10-02-00 3300 NSv Proximity Probe, probes capture radial vibration on shafts smaller than 51 mm (2 in). Its 1.5 mm linear range and 7.87 V/mm output provide high-resolution vibration data for fluid-filmed bearing machines.

Monitor Axial (Thrust) Position
The 330902-00-95-10-02-00 3300 NSv Proximity Probe supports axial displacement measurement on flat targets smaller than 15 mm (0.6 in). Supply sensitivity of less than 2 mV per volt ensures consistent readings for automated control systems.

Transmit Tachometer and Keyphasor Signals
The 330902-00-95-10-02-00 3300 NSv Proximity Probe uses a miniature coaxial ClickLoc connector and 50 Ω output resistance to reliably transmit zero-speed, tachometer, and phase reference signals to monitoring equipment.

Upgrade Existing Automation Systems
Technicians can integrate the 330902-00-95-10-02-00 3300 NSv Proximity Probe into existing 3300 RAM or 3000/7000-series systems, replacing legacy probes while using the same monitoring infrastructure and extension cables.

Specifications

Competitive Advantage

Protect the Probe in Harsh Industrial Environments
The 330902-00-95-10-02-00 3300 NSv Proximity Probe operates from -52°C to +177°C (-62°F to +351°F) and resists chemical exposure in process compressors. This allows safe deployment near hot or humid equipment without signal loss.

Secure Probe and Cable Connections Quickly
ClickLoc connectors and TipLoc molding on the 330902-00-95-10-02-00 3300 NSv Proximity Probe lock the probe to the cable, enabling installers to maintain the recommended 1.0 mm gap efficiently.

Measure Small Targets Accurately
With 1.5 mm linear range and 7.87 V/mm output, the 330902-00-95-10-02-00 3300 NSv Proximity Probe delivers precise radial vibration and axial position data on small shafts or flat targets, even in limited side-view areas.

Integrate Stepwise Upgrades
The 330902-00-95-10-02-00 3300 NSv Proximity Probe can connect to legacy 3300 RAM systems, allowing incremental upgrades to the 3300 XL NSv automation platform without replacing extension cables or monitoring hardware.

Prevent Cable Pulling and Signal Loss
Patented CableLoc design provides 220 N (50 lb) pull strength, while ClickLoc connectors prevent loosening. The 330902-00-95-10-02-00 3300 NSv Proximity Probe maintains output voltage accuracy under operational stress.
