330902-00-40-10-01-05 3300 NSv Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330902-00-40-10-01-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

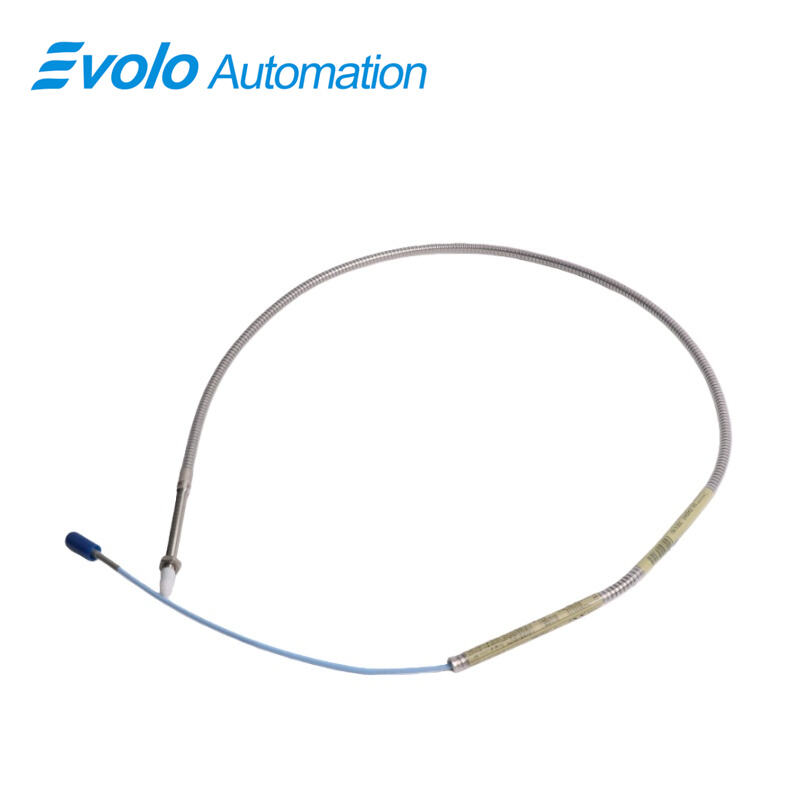

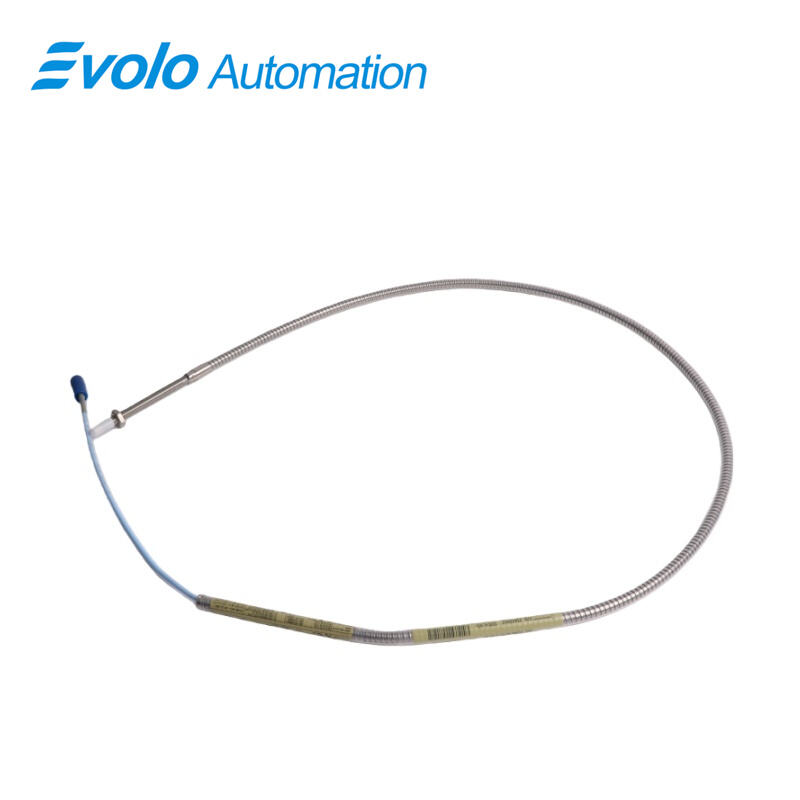

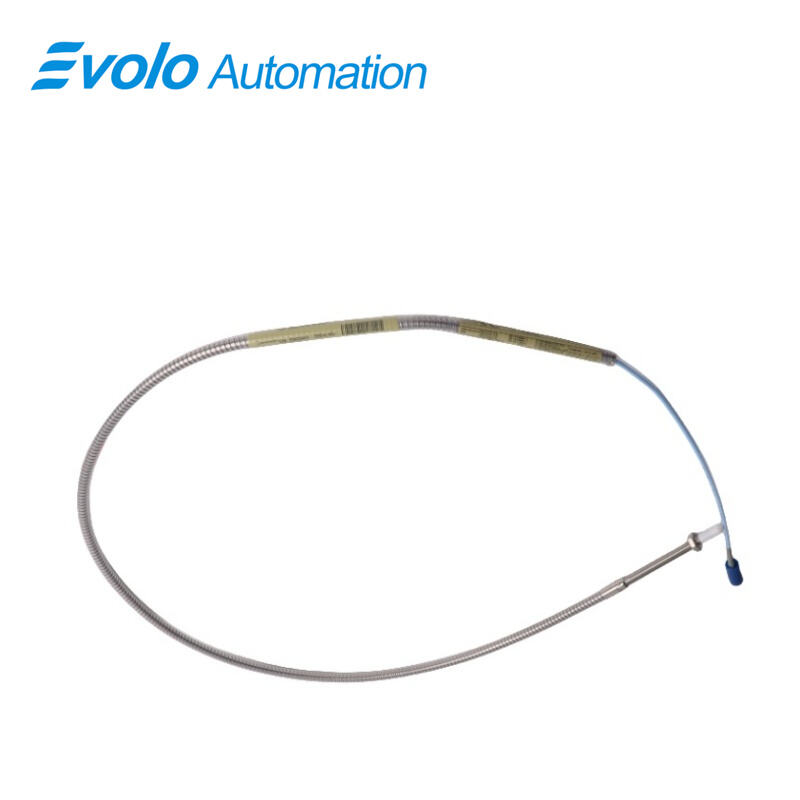

The 330902-00-40-10-01-05 3300 NSv Proximity Probe is a compact eddy current probe designed for industrial automation and machinery condition monitoring in installations with limited mounting space. Featuring a 1/4-28 UNF threaded probe case with a 4.0 in overall case length and 0.0 in unthreaded length, the 330902-00-40-10-01-05 3300 NSv Proximity Probe supports precise shaft and target monitoring where standard probes cannot be installed.

Equipped with a 1.0 meter (39 in) standard cable and a miniature coaxial ClickLoc connector with connector protector, the 330902-00-40-10-01-05 3300 NSv Proximity Probe enables secure signal transmission to monitoring systems. The probe delivers a linear range of 1.5 mm (60 mils) with a recommended gap of 1.0 mm (40 mils), supporting accurate displacement measurement for small shafts and flat targets. Output resistance is 50 Ω, with supply sensitivity controlled below 2 mV per volt.

Built with a PPS probe tip and AISI 304 stainless steel case, the 330902-00-40-10-01-05 3300 NSv Proximity Probe operates across a temperature range of -52 °C to +177 °C, making it suitable for compressors, turbines, and automated rotating equipment monitoring systems.

Applications

Measure radial shaft movement in compact compressor assemblies
The 330902-00-40-10-01-05 3300 NSv Proximity Probe is applied to measure radial vibration and radial position on shafts smaller than 51 mm in centrifugal air compressors and process gas compressors. Its 1.5 mm linear range and recommended 1.0 mm gap support precise displacement measurement in automation systems where side-view clearance is limited.

Track axial thrust position on flat targets
The 330902-00-40-10-01-05 3300 NSv Proximity Probe is used for axial position measurement on flat thrust collars smaller than 15 mm. The 50 Ω output resistance and controlled supply sensitivity below 2 mV per volt allow clean signal delivery to monitoring racks and PLC-based condition monitoring systems.

Provide tachometer and zero speed signals
The 330902-00-40-10-01-05 3300 NSv Proximity Probe supports tachometer and zero speed detection by monitoring shaft reference features. The 1.0 meter cable and ClickLoc connector simplify routing in automated machinery cabinets.

Specifications

Competitive Advantage

Fits tight mounting spaces using short probe body design
The 330902-00-40-10-01-05 3300 NSv Proximity Probe uses a 4.0 in case length and 1/4-28 UNF thread with a maximum thread engagement of 0.375 in, allowing installation in counterbore, side-view, and rear-view restricted locations.

Supports high-temperature machinery environments
With an operating and storage range of -52 °C to +177 °C, the 330902-00-40-10-01-05 3300 NSv Proximity Probe supports continuous use near compressors, turbines, and other heat-generating automation equipment.

Maintains signal accuracy under supply voltage variation
The 330902-00-40-10-01-05 3300 NSv Proximity Probe limits output change to less than 2 mV per volt of supply variation, supporting consistent displacement readings in industrial monitoring systems.

Protects probe tip and signal path in industrial use
The 330902-00-40-10-01-05 3300 NSv Proximity Probe uses a PPS probe tip, AISI 304 stainless steel case, and ClickLoc connector with protector to reduce mechanical wear and limit liquid ingress during long-term automation operation.
