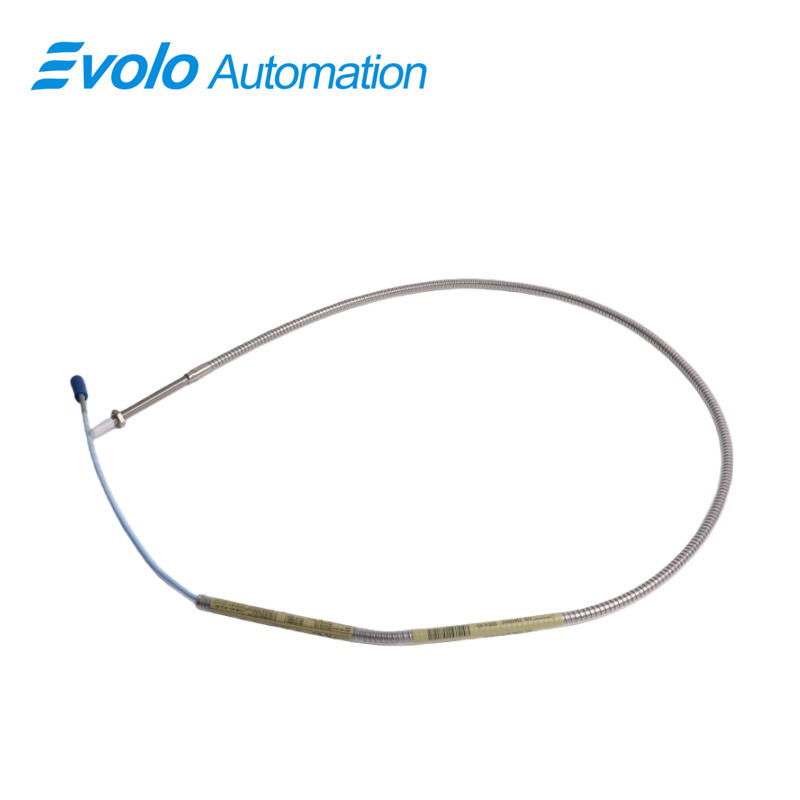

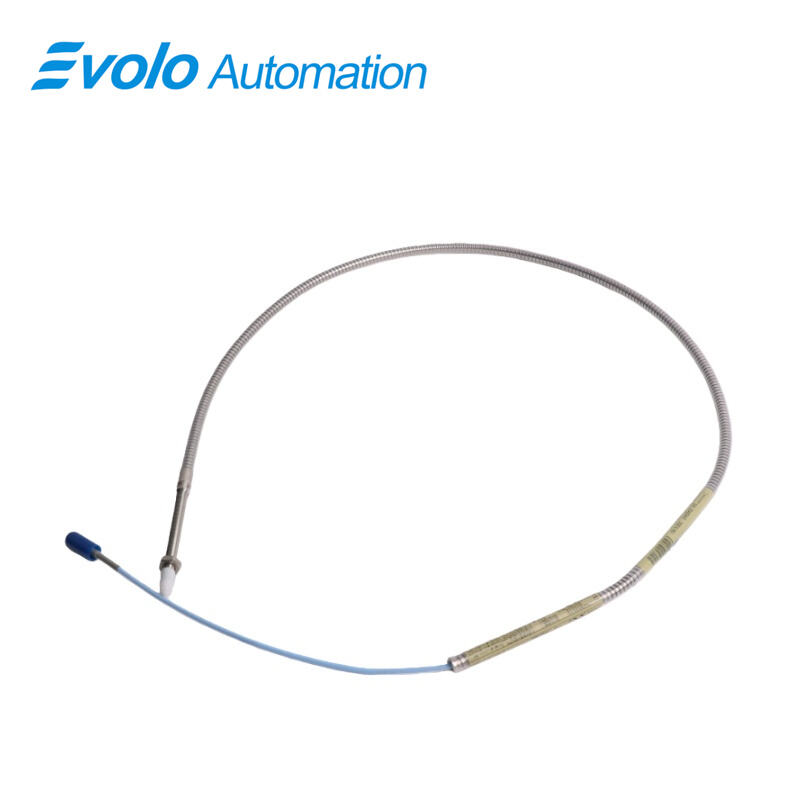

330902-00-38-05-02-05 3300 NSv Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330902-00-38-05-02-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330902-00-38-05-02-05 3300 NSv Proximity Probe delivers high-precision non-contact measurement for automated systems with tight installation spaces. Its linear range of 1.5 mm (60 mils) and average scale factor of 7.87 V/mm (200 mV/mil) allow accurate radial and axial position tracking on shafts smaller than 51 mm or flat targets under 15 mm. The 330902-00-38-05-02-05 3300 NSv features a 1/4-28 UNF thread with 0.375 in engagement, PPS probe tip, and AISI 304 stainless steel case, ensuring reliable mechanical mounting and chemical resistance in automated compressor and process systems. Its 50 Ω output resistance, 0.5 m standard cable, and ClickLoc connectors maintain signal integrity, while the -52°C to +177°C operating range supports extreme environments. The 330902-00-38-05-02-05 3300 NSv is compatible with existing 3300 RAM extension cables and Proximitor sensors, simplifying upgrades and automation integration. Patented TipLoc and CableLoc designs provide 220 N pull strength, securing the probe and cable during vibration or movement.

Applications

Measure Radial Vibration on Small Shafts
The 330902-00-38-05-02-05 3300 NSv is ideal for detecting radial vibration on shafts smaller than 51 mm (2 in) in automated centrifugal, refrigeration, and process gas compressors, leveraging its 1.5 mm linear range for precise motion capture.

Monitor Axial (Thrust) Positions
Use the 330902-00-38-05-02-05 3300 NSv to track axial movement on flat targets under 15 mm (0.6 in), providing high-resolution feedback for automated thrust control.

Tachometer and Zero-Speed Feedback
The 330902-00-38-05-02-05 3300 NSv outputs 7.87 V/mm (200 mV/mil) signals to enable accurate automated speed measurement and zero-speed detection in control loops.

Generate Phase Reference (Keyphasor) Signals
With the 330902-00-38-05-02-05 3300 NSv, automation systems can synchronize machinery by obtaining precise Keyphasor signals for timing and phase reference.

Compact Installation in Tight Spaces
The 330902-00-38-05-02-05 3300 NSv, with its 1/4-28 UNF probe thread and 0.375 in engagement, fits counter bore, sideview, and rearview restricted areas, enabling probe deployment where standard 3300 XL probes cannot.

Specifications

Competitive Advantage

Enhanced Chemical Resistance
PPS probe tip and AISI 304 stainless steel case allow the 330902-00-38-05-02-05 3300 NSv to operate in aggressive chemical environments within automated process compressors.

High Signal Integrity
With 50 Ω output resistance, less than 2 mV supply sensitivity, and ClickLoc connectors, the 330902-00-38-05-02-05 3300 NSv maintains consistent voltage output for precise automated control.

Secure Probe-Cable Attachment
Patented CableLoc design provides 220 N pull strength, ensuring the 330902-00-38-05-02-05 3300 NSv probe cable remains securely attached even under high-vibration automated conditions.

Backward Compatibility for System Upgrades
The 330902-00-38-05-02-05 3300 NSv works with existing 3300 RAM probes, extension cables, and Proximitor Sensors, simplifying automated system retrofits without extensive replacement.
