330902-00-10-10-01-05 3300 NSv Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330902-00-10-10-01-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

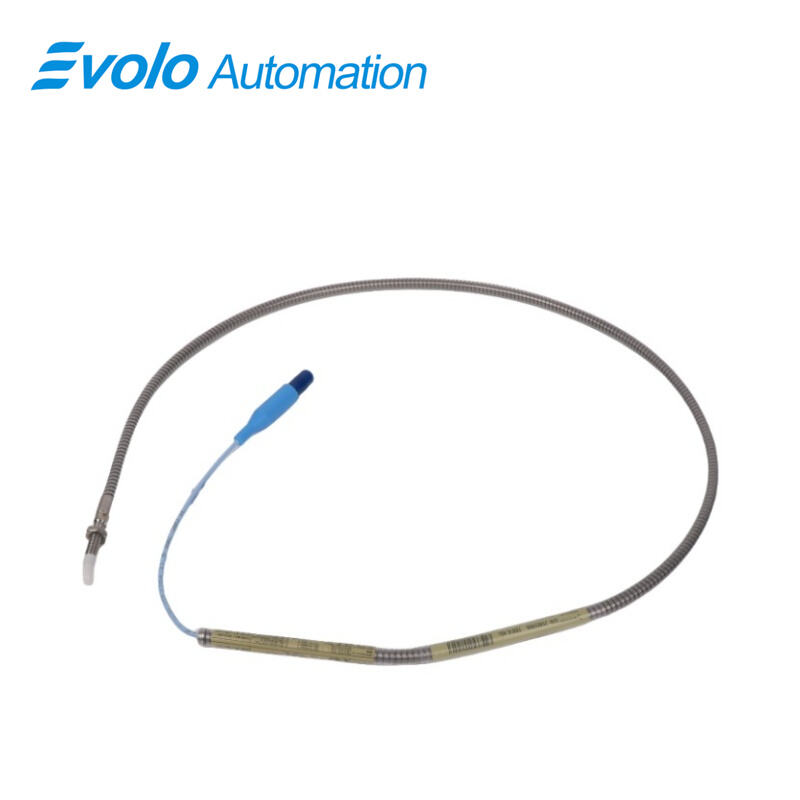

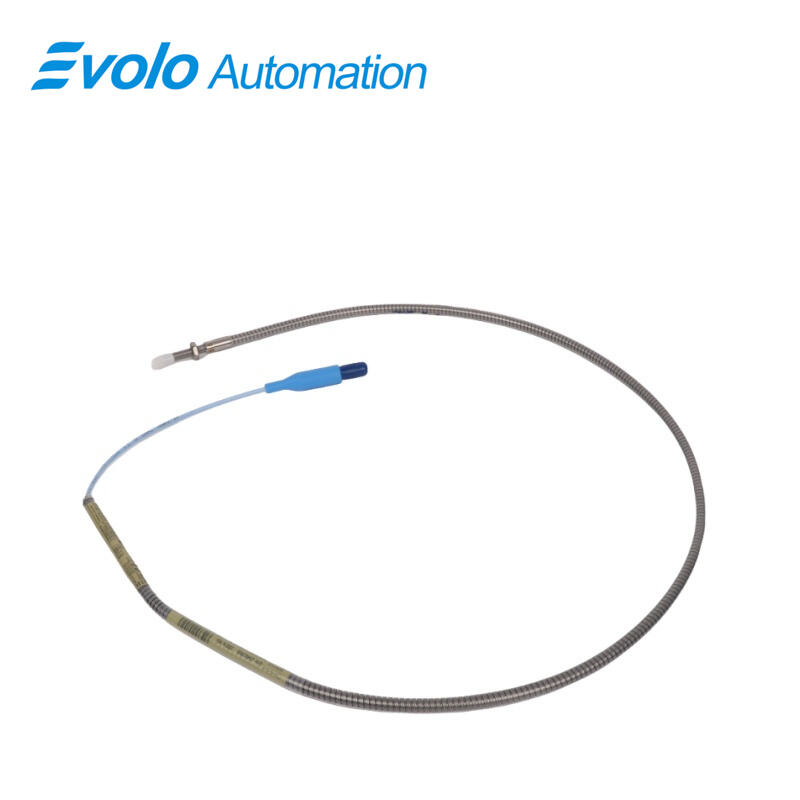

The 330902-00-10-10-01-05 3300 NSv Proximity Probe is a compact eddy current probe designed for industrial automation and machinery monitoring where installation space is limited. With a short 1.0 in overall case length and a 1/4-28 UNF threaded stainless steel probe body, the 330902-00-10-10-01-05 3300 NSv Proximity Probe fits counterbore, side-view, and rear-view restricted mounting locations found in compressors and rotating equipment.

The 330902-00-10-10-01-05 3300 NSv Proximity Probe provides a 1.5 mm (60 mils) linear range with a recommended 1.0 mm gap, supporting accurate shaft and target displacement measurement in automated condition monitoring systems. It uses a 1.0 meter standard cable with a miniature coaxial ClickLoc connector and protector to support secure signal routing. Output resistance is 50 Ω, and supply sensitivity is controlled below 2 mV per volt to support clean signal transmission to monitoring racks and PLC-based systems.

Built with a PPS probe tip and AISI 304 stainless steel case, the 330902-00-10-10-01-05 3300 NSv Proximity Probe operates from -52 °C to +177 °C, making it suitable for compressors, turbines, and automated rotating machinery applications.

Applications

Measure radial vibration on small compressor shafts
The 330902-00-10-10-01-05 3300 NSv Proximity Probe is used to measure radial vibration and radial position on shafts smaller than 51 mm in centrifugal air compressors and refrigeration compressors. Its 1.5 mm linear range and 1.0 mm recommended gap allow precise displacement measurement in automated condition monitoring systems with limited mounting depth.

Monitor axial thrust position on flat targets
The 330902-00-10-10-01-05 3300 NSv Proximity Probe supports axial position measurement on flat thrust targets smaller than 15 mm. The 50 Ω output resistance and controlled supply sensitivity below 2 mV per volt support accurate signal input to PLC and monitoring racks.

Provide tachometer and zero speed signals
The 330902-00-10-10-01-05 3300 NSv Proximity Probe is applied for tachometer and zero speed detection by sensing shaft reference features. The 1.0 meter cable and ClickLoc connector support direct routing in automation cabinets.

Specifications

Competitive Advantage

Fits extremely short mounting spaces
The 330902-00-10-10-01-05 3300 NSv Proximity Probe uses a 1.0 in overall case length with a 1/4-28 UNF thread and 0.375 in maximum thread engagement, allowing installation in tight counterbore and side-view locations.

Supports high temperature rotating equipment
With an operating and storage range from -52 °C to +177 °C, the 330902-00-10-10-01-05 3300 NSv Proximity Probe supports use near compressors, turbines, and other heat-producing automation equipment.

Maintains output level during supply voltage variation
The 330902-00-10-10-01-05 3300 NSv Proximity Probe limits output change to less than 2 mV per volt of input variation, supporting consistent displacement readings in industrial monitoring systems.

Protects probe tip and cable connection in harsh environments
The 330902-00-10-10-01-05 3300 NSv Proximity Probe uses a PPS probe tip, AISI 304 stainless steel case, and ClickLoc connector with protector to limit mechanical wear and liquid ingress during long-term automated operation.
