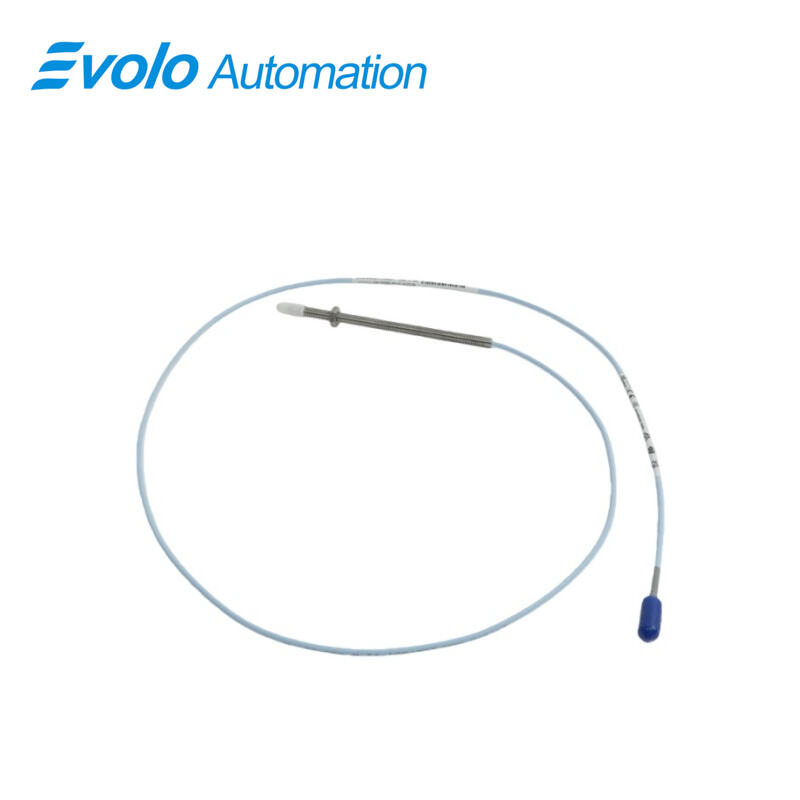

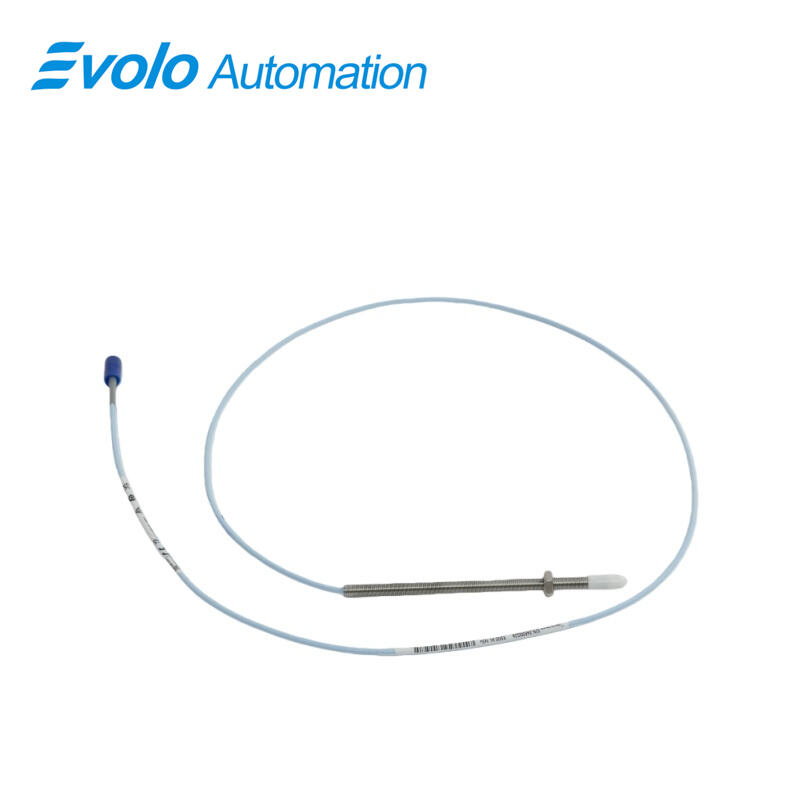

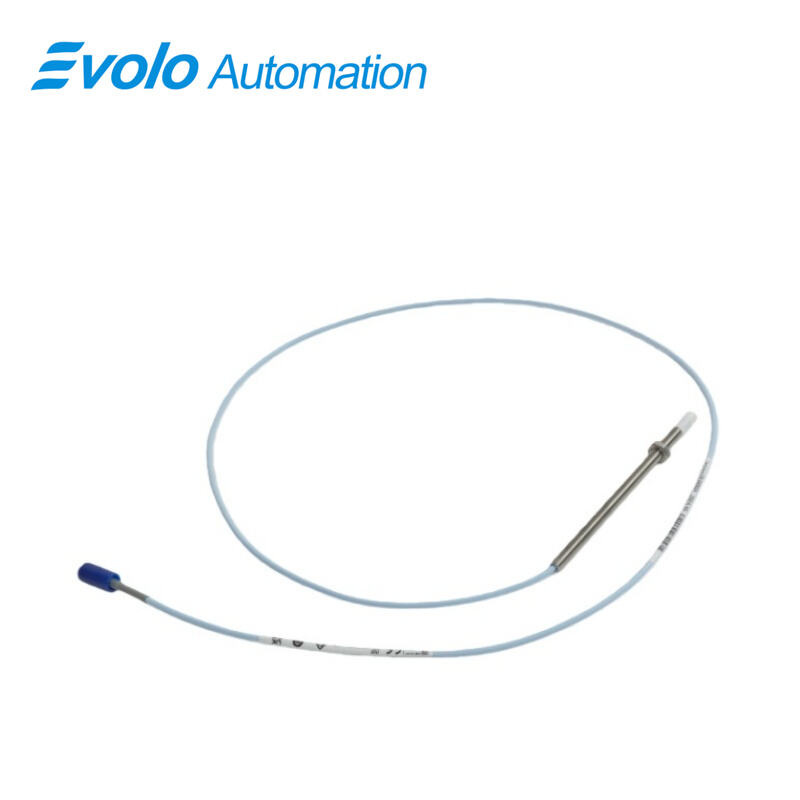

330901-22-40-10-01-00 3300 NSv Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330901-22-40-10-01-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330901-22-40-10-01-00 3300 NSv Proximity Probe features a 1/4-28 UNF threaded case with a 4.0 in overall length and 2.2 in unthreaded section, designed for precise vibration and position monitoring in automated machinery. With a 1.0-meter standard cable and miniature coaxial ClickLoc connector with protector, the 330901-22-40-10-01-00 3300 NSv Proximity Probe supports accurate radial vibration measurement on shafts below 51 mm and axial position detection on flat targets under 15 mm. Its 1.5 mm linear range, 50 Ω output resistance, and <2 mV/V supply sensitivity ensure reliable eddy-current signal output. The probe’s PPS tip and AISI 304 stainless steel case allow use in process compressors and fluid-film bearing machines. Recommended gap setting is 1.0 mm. Field wiring supports 16–24 AWG (0.2–1.5 mm²) conductors. The 330901-22-40-10-01-00 3300 NSv Proximity Probe is mechanically and electrically compatible with previous 3300 RAM probes, while ClickLoc connectors and CableLoc design provide 220 N pull strength, securing automated measurement connections. Operating and storage temperatures range from -52°C to +177°C. Ideal for automation systems requiring precise radial vibration, axial displacement, and Keyphasor speed monitoring, the 330901-22-40-10-01-00 3300 NSv Proximity Probe enhances probe-to-sensor reliability in tight installation spaces.

Applications

Radial Vibration Monitoring on Small Shafts
The 330901-22-40-10-01-00 3300 NSv Proximity Probe measures radial vibration on shafts smaller than 51 mm (2 in) in fluid-film bearing machines, providing accurate eddy-current signals with 1.5 mm linear range and <2 mV/V supply sensitivity.

Axial (Thrust) Position Detection
Use the 330901-22-40-10-01-00 3300 NSv Proximity Probe to track axial displacement on flat targets under 15 mm (0.6 in), with precise 1.0 mm recommended gap settings for automated machinery.

Tachometer and Zero Speed Measurements
The 330901-22-40-10-01-00 3300 NSv Proximity Probe delivers reliable output for speed and zero-speed monitoring in centrifugal and process compressors, supporting automation control systems with standard 1.0-meter cable and ClickLoc connectors.

Phase Reference (Keyphasor Signals)
Provides phase reference signals for Keyphasor applications, enabling automated vibration analysis and synchronization using the 330901-22-40-10-01-00 3300 NSv Proximity Probe with AISI 304 stainless steel case and PPS tip.

Specifications

Competitive Advantage

Mechanical and Electrical Compatibility
The 330901-22-40-10-01-00 3300 NSv Proximity Probe is interchangeable with 3300 RAM probes, allowing seamless system upgrades without replacing existing extension cables or monitoring sensors.

Enhanced Chemical Resistance
PPS probe tip and SST case enable the 330901-22-40-10-01-00 3300 NSv Proximity Probe to operate in harsh process environments, expanding application in compressors and automation systems.

Side-View and Compact Target Advantage
The 330901-22-40-10-01-00 3300 NSv Proximity Probe fits counter bore, side-view, and rear-view installations, ideal for tight machinery spaces where standard 3300 XL probes cannot be mounted.

Secure Connection and Cable Retention
Gold-plated ClickLoc connectors and CableLoc design provide 220 N pull strength, ensuring the 330901-22-40-10-01-00 3300 NSv Proximity Probe maintains consistent signal transmission in automated monitoring setups.

Flexible Mounting Options
Available in 1/4-28, 3/8-24, M8X1, and M10X1 threads, the 330901-22-40-10-01-00 3300 NSv Proximity Probe can be reverse-mounted or customized for various automation equipment layouts.
