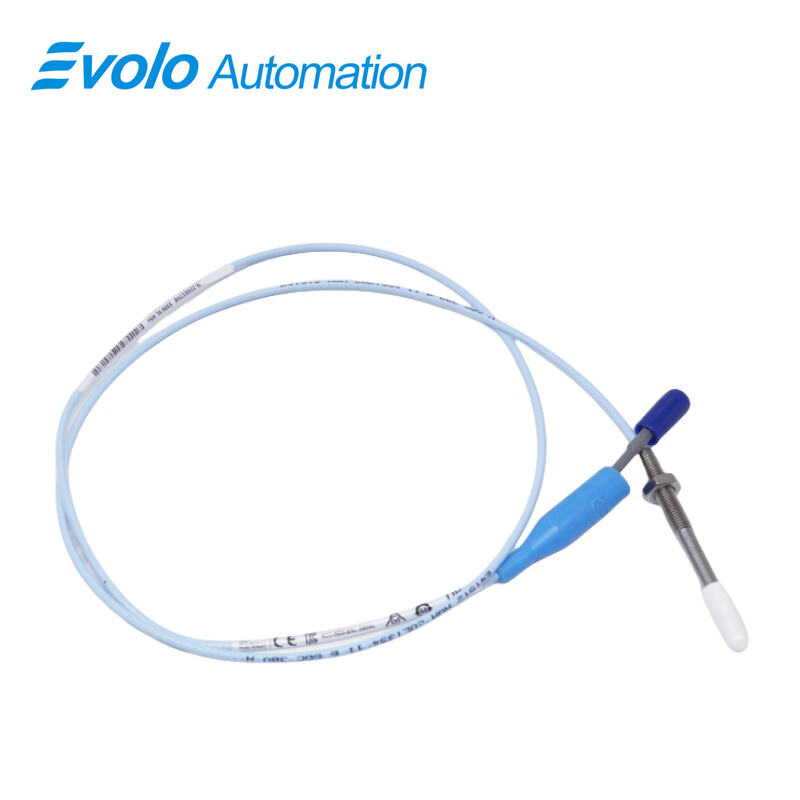

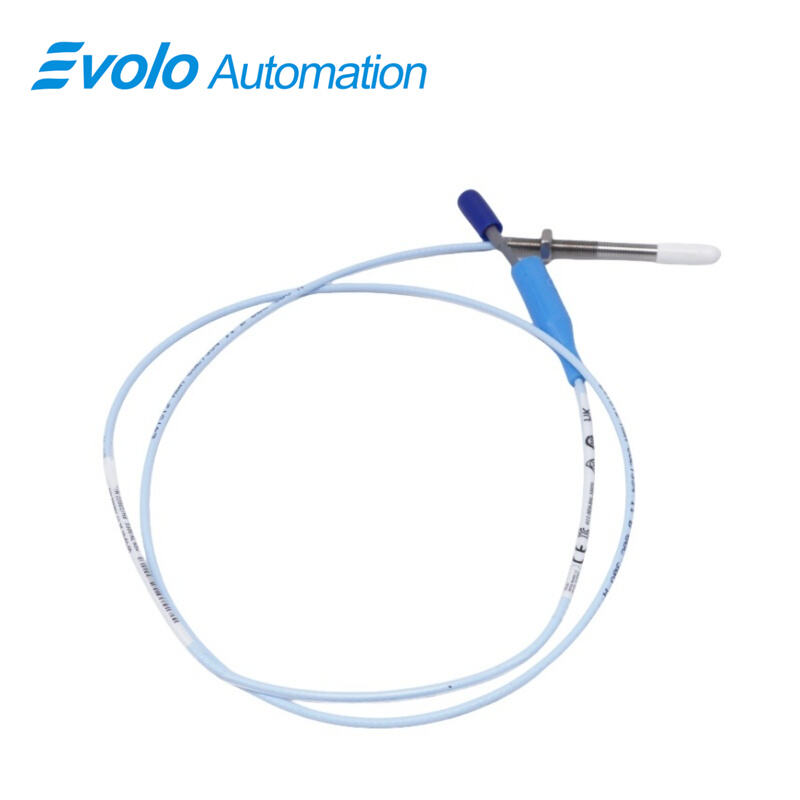

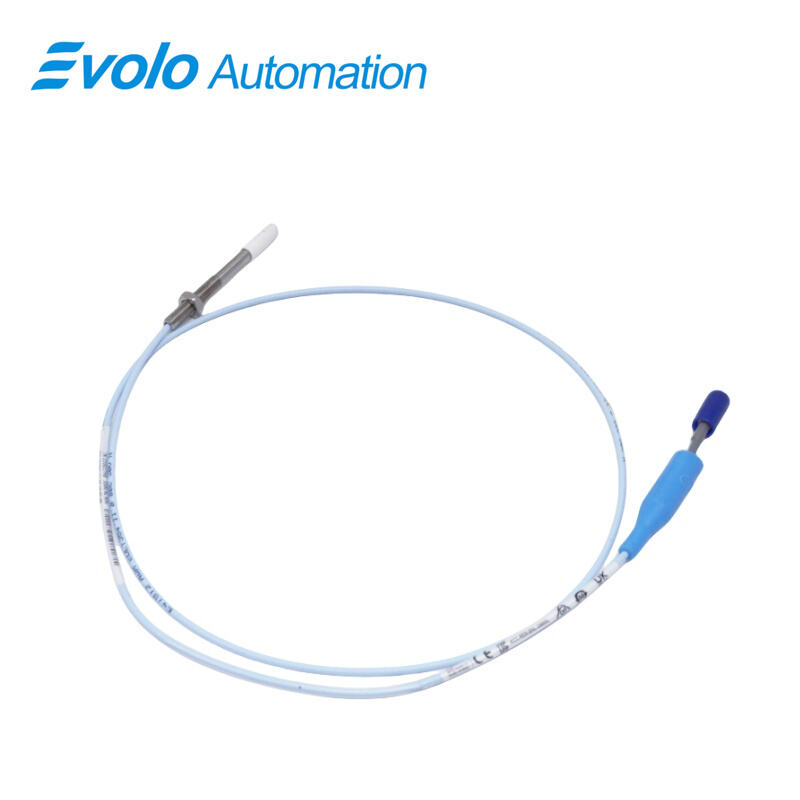

330901-14-43-05-02-05 3300 NSv Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330901-14-43-05-02-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330901-14-43-05-02-05 3300 NSv Proximity Probe is designed for automated monitoring of radial vibration, axial position, and rotational speed in centrifugal air compressors, refrigeration compressors, and process gas compressors. The 330901-14-43-05-02-05 3300 NSv Proximity Probe features a 1/4-28 UNF thread, 4.3 in overall case length, 1.4 in unthreaded length, and 0.5 meter (20 in) standard cable with Miniature coaxial ClickLoc connector. Its PPS probe tip and AISI 304 SST case withstand temperatures from -52°C to +177°C (-62°F to +351°F). With a 1.5 mm linear range, 1.0 mm recommended gap, 50 Ω output resistance, and less than 2 mV per volt supply sensitivity, the 330901-14-43-05-02-05 3300 NSv Proximity Probe provides precise measurements in tight spaces where standard 3300 XL 5 and 8 mm transducers cannot fit. Compatible with existing 3300 RAM probes and extension cables, the 330901-14-43-05-02-05 3300 NSv Proximity Probe supports seamless automation upgrades and accurate small-target detection in fluid-filmed bearing machines.

Applications

Application – Radial Vibration Monitoring
The 330901-14-43-05-02-05 3300 NSv Proximity Probe is optimized for monitoring radial vibration on shafts smaller than 51 mm (2 in). With a 1.5 mm linear range and 1.0 mm recommended gap, the 330901-14-43-05-02-05 3300 NSv Proximity Probe delivers precise automated measurements in centrifugal air compressors and process gas compressors.

Application – Axial (Thrust) Position Measurement
Use the 330901-14-43-05-02-05 3300 NSv Proximity Probe to measure axial movement on flat targets smaller than 15 mm (0.6 in). Its PPS tip and AISI 304 SST case ensure reliable output resistance of 50 Ω and minimal voltage variation (<2 mV per volt), making the 330901-14-43-05-02-05 3300 NSv Proximity Probe suitable for continuous automated process monitoring.

Application – Tachometer and Zero-Speed Detection
The 330901-14-43-05-02-05 3300 NSv Proximity Probe provides precise tachometer signals and zero-speed detection. Its miniature coaxial ClickLoc connector ensures secure connections and reduces signal loss, allowing the 330901-14-43-05-02-05 3300 NSv Proximity Probe to deliver accurate rotational monitoring in automation systems.

Application – Phase Reference (Keyphasor Signals)
For automated control, the 330901-14-43-05-02-05 3300 NSv Proximity Probe generates accurate Keyphasor signals. Its 0.5 m (20 in) cable and compact 4.3 in overall case length support flexible installation where limited space exists, ensuring the 330901-14-43-05-02-05 3300 NSv Proximity Probe functions efficiently in confined setups.

Specifications

Competitive Advantage

Competitive Advantage – Tight Installation Fit
The 330901-14-43-05-02-05 3300 NSv Proximity Probe fits into constrained spaces with reduced side-view or rear-view clearance. Its M8X1 thread and maximum engagement of 0.375 in allow precise placement in automated machinery.

Competitive Advantage – High Temperature and Chemical Resistance
Operating from -52°C to +177°C (-62°F to +351°F), the 330901-14-43-05-02-05 3300 NSv Proximity Probe uses PPS and AISI 304 SST materials for reliable automated measurements in chemical-exposed environments.

Competitive Advantage – Reuse Existing Components
The 330901-14-43-05-02-05 3300 NSv Proximity Probe is mechanically and electrically compatible with 3300 RAM probes and extension cables, simplifying automated system upgrades without changing Proximitor Sensors.

Competitive Advantage – Enhanced Small Target Measurement
With a 1.5 mm linear range, 50 Ω output resistance, and ClickLoc connectors, the 330901-14-43-05-02-05 3300 NSv Proximity Probe enables precise gap adjustment and small-target monitoring for automated vibration and position control.
