Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330901-00-32-05-02-05 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option: |
0.0 in |
|
Overall Case Length Option: |
2.2 in |
|
Cable Length Option: |
0.5 meter (20 in) |
|
Connector and Cable Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
Multiple Approvals |
|
Probe Case Thread: |
1/4-28 UNF thread |
|
Maximum Length of Thread Engagement: |
0.375 in |
|
Dimension: |
1.2x1x117cm |
|
Weight: |
0.05kg |
Description

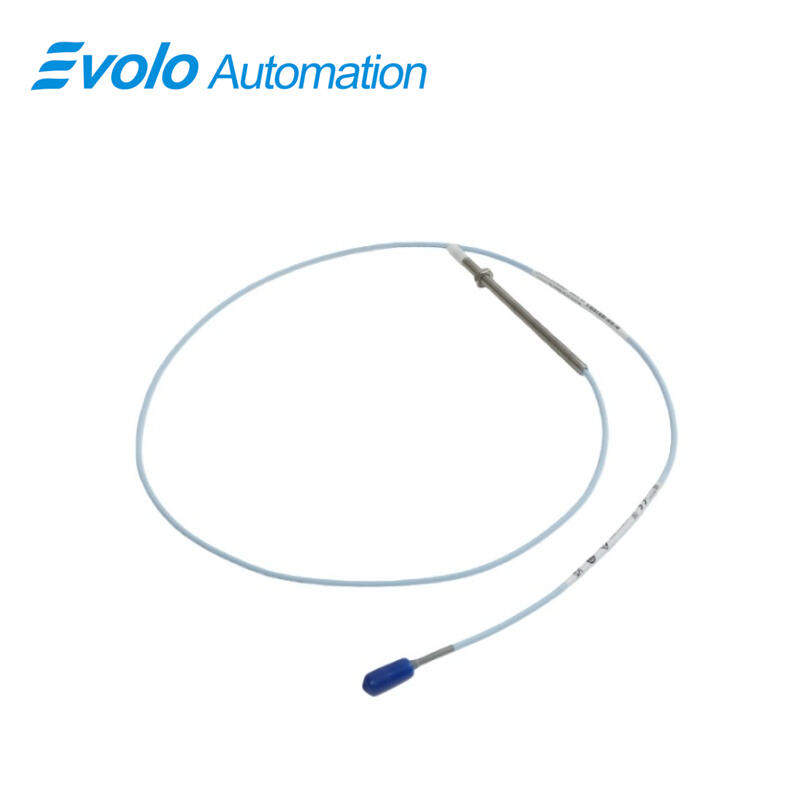

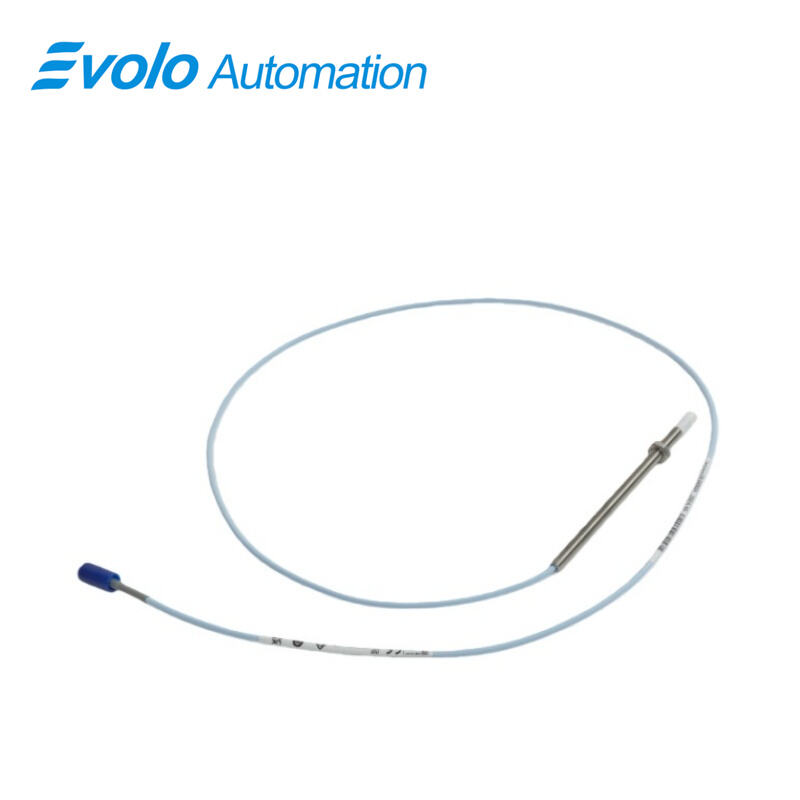

The 330901-00-32-05-02-05 3300 NSv Proximity Probe features a 2.2-inch overall case length and 0.5-meter (20 in) standard cable with a miniature coaxial ClickLoc connector, suitable for automated monitoring of centrifugal air compressors, refrigeration compressors, and process gas compressors. The probe’s 1.5 mm (60 mils) linear range supports precise radial and axial position measurements on small shafts under 51 mm (2 in) diameter or flat targets smaller than 15 mm (0.6 in). Constructed from AISI 304 stainless steel (SST) with a PPS tip, the 330901-00-32-05-02-05 3300 NSv Proximity Probe operates in temperatures from -52°C to +177°C (-62°F to +351°F) and supports field wiring from 0.2 to 1.5 mm² (16–24 AWG). Its 1/4-28 UNF thread and maximum engagement of 0.375 in simplify mounting in tight or side-view restricted spaces. Supply sensitivity is under 2 mV per volt, and output resistance is 50 Ω, ensuring accurate signal transmission. The probe’s TipLoc and CableLoc designs provide secure mechanical attachment, and ClickLoc connectors maintain signal integrity in automated systems while preventing liquid intrusion.
Applications
Radial Vibration Monitoring on Small Shafts
Use the 330901-00-32-05-02-05 3300 NSv Proximity Probe to measure radial vibration on shafts under 51 mm (2 in) diameter, ideal for compact fluid-film bearing machines.
Axial Position Measurements
Monitor axial (thrust) position on flat targets smaller than 15 mm (0.6 in) to support automated alignment and gap detection.
Tachometer and Zero Speed Measurement
Generate Keyphasor signals and speed measurements for real-time machine control and automation monitoring.
Side-View or Rearview Restricted Applications
Deploy the 330901-00-32-05-02-05 3300 NSv Proximity Probe where counter bore, side-view, or rear-view limitations prevent standard 3300 or 3300 XL 5 and 8 mm probes from fitting.
Specifications
|
Probe Temperature Range: |
-52°C to +177°C (-62°F to +351°F) |
|
Storage Temperature: |
-52°C to +177°C (-62°F to +351°F) |
|
Probe Tip Material: |
Polyphenylene sulfide (PPS) |
|
Probe Case Material: |
AISI 304 stainless steel (SST) |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG)[0.25 to 0.75 mm2 (18 to 23 AWG) with ferrules] |
|
Linear Range: |
1.5 mm (60 mils) |
|
Recommended Gap Setting: |
1.0 mm (40 mils) |
|
Output resistance: |
50 Ω |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
Competitive Advantage
Compact 2.2-Inch Probe Case for Tight Spaces
Allows installation in restricted side-view or counter bore areas without mechanical modification.
ClickLoc Connector Secures Signal Connections
Gold-plated brass connectors lock in place, preventing loosening and signal disruption in automated systems.
TipLoc and CableLoc Designs for Mechanical Durability
The 330901-00-32-05-02-05 3300 NSv Proximity Probe provides a 220 N (50 lb) pull strength attachment, ensuring secure probe-cable bonding.
Wide Operating Temperature Range
Supports environments from -52°C to +177°C (-62°F to +351°F), enabling use in industrial and compressor automation applications.
Chemical-Resistant PPS Tip and Stainless Steel Case
Enhanced chemical resistance compared to previous 3300 RAM probes, suitable for challenging process environments.
