330901-00-20-05-02-00 3300 NSv Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330901-00-20-05-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

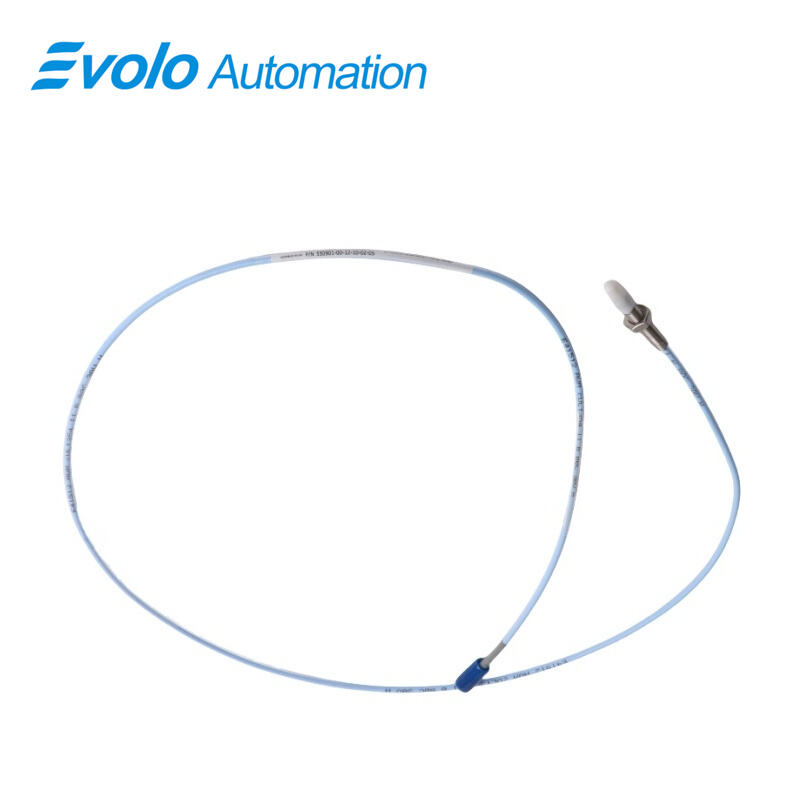

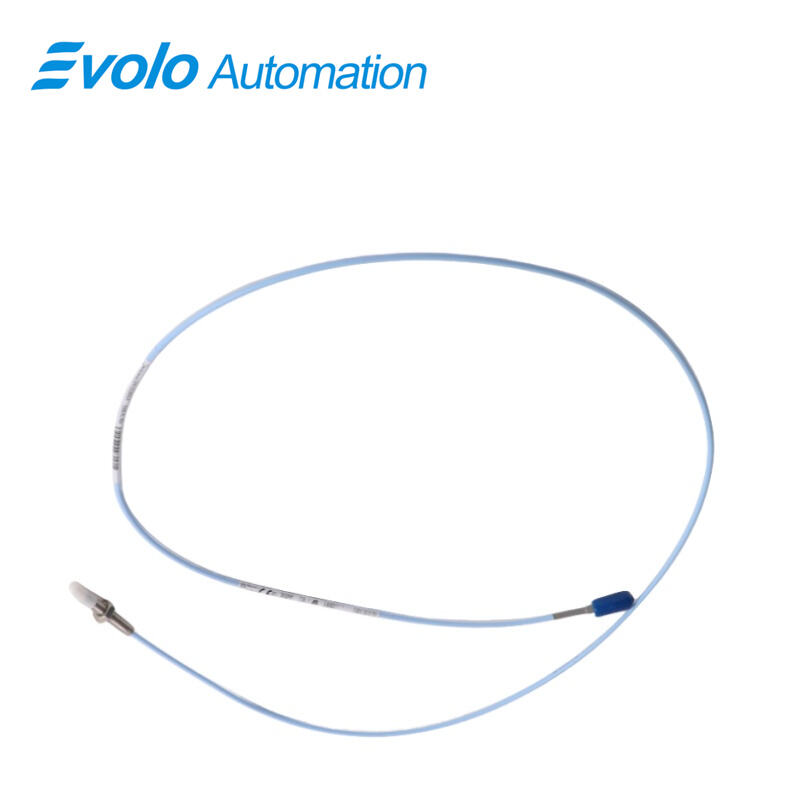

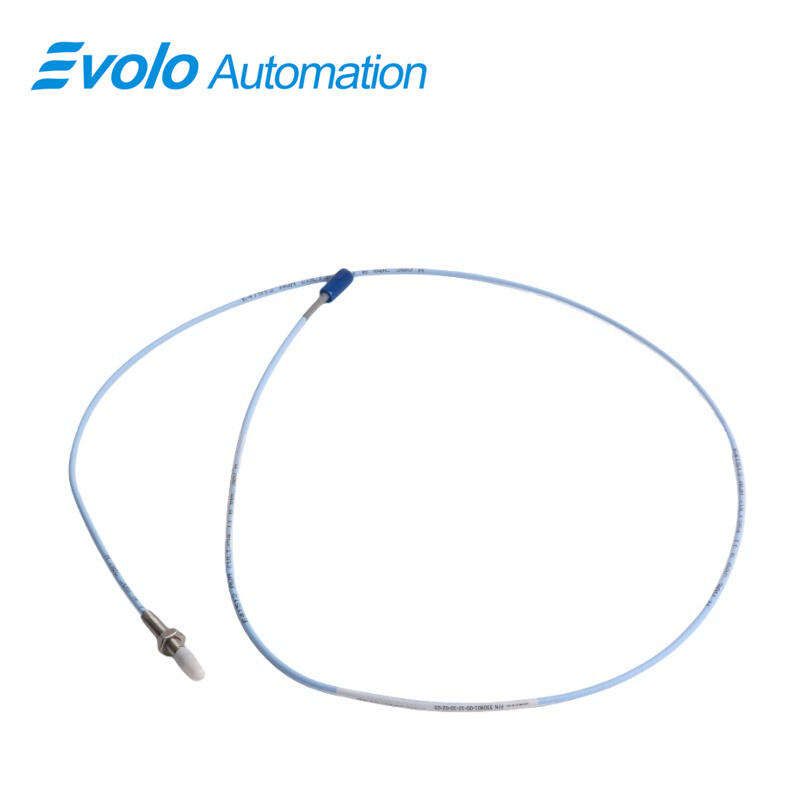

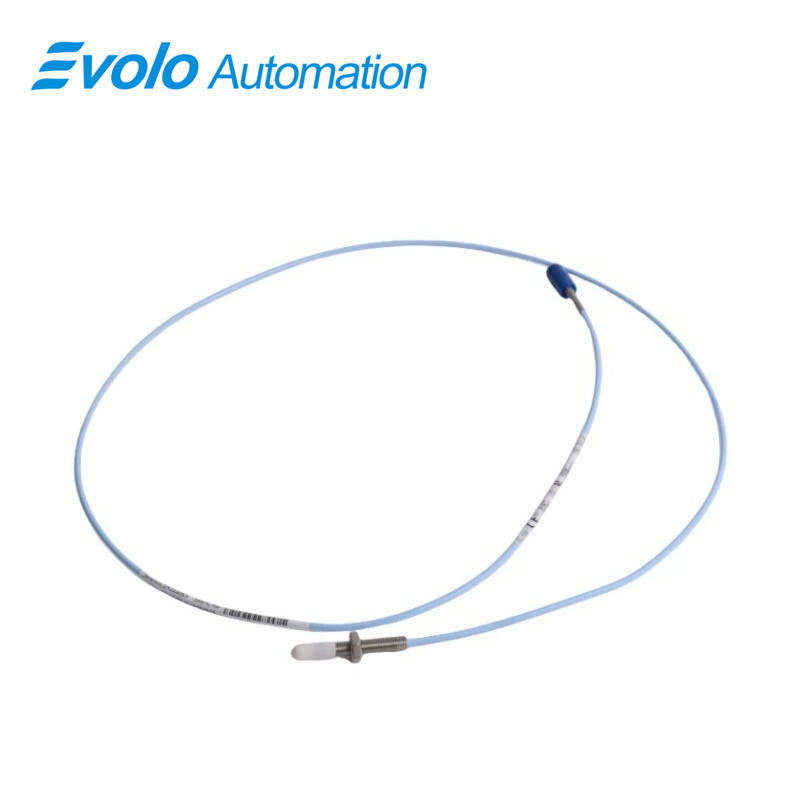

The 330901-00-20-05-02-00 3300 NSv Proximity Probe is designed for centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines with limited installation space. With a 1/4-28 UNF thread and 2.0 in overall case length, the 330901-00-20-05-02-00 3300 NSv Proximity Probe fits tight counter bore, side-view, or rear-view locations. Its 0.5 meter (20 in) standard cable and Miniature coaxial ClickLoc connector ensure reliable signal transfer, while the probe tip made of PPS and AISI 304 stainless steel body operate in temperatures from -52°C to +177°C (-62°F to +351°F). The 330901-00-20-05-02-00 3300 NSv Proximity Probe provides a linear range of 1.5 mm (60 mils) and recommended gap of 1.0 mm (40 mils), with 50 Ω output resistance and less than 2 mV/V supply sensitivity. Ideal for measuring radial vibration on shafts under 51 mm (2 in), axial position on flat targets under 15 mm (0.6 in), and generating Keyphasor signals, the 330901-00-20-05-02-00 3300 NSv Proximity Probe integrates seamlessly with 3300 RAM extension cables and Proximitor sensors, enabling automated vibration and position monitoring in fluid-film bearing systems.

Applications

Radial Vibration on Small Shafts: The 1.5 mm linear range and 1.0 mm recommended gap of the 330901-00-20-05-02-00 3300 NSv Proximity Probe allow accurate measurement on shafts under 51 mm (2 in) diameter. The 50 Ω output ensures signal integrity for automation systems.

Axial (Thrust) Position Detection: The PPS probe tip and AISI 304 stainless steel case of the 330901-00-20-05-02-00 3300 NSv Proximity Probe resist chemical exposure, enabling consistent axial displacement measurements on flat targets smaller than 15 mm (0.6 in).

Tachometer and Zero-Speed Monitoring: The <2 mV/V supply sensitivity ensures that variations in input voltage minimally affect output, providing precise rotational speed data for automated control systems.

Specifications

Competitive Advantage

Compact Installation: With a 2.0 in overall case length and 1/4-28 UNF thread, the 330901-00-20-05-02-00 3300 NSv Proximity Probe fits restricted spaces where standard probes cannot, reducing modification costs in automated plants.

Temperature and Chemical Tolerance: Operating from -52°C to +177°C (-62°F to +351°F) with a PPS tip, the probe maintains measurement accuracy in extreme process conditions.

Seamless System Upgrade: Fully compatible with existing 3300 RAM extension cables and Proximitor sensors, reducing installation time and avoiding recalibration of automated systems.

Signal Accuracy: 50 Ω output resistance and <2 mV/V supply sensitivity of the 330901-00-20-05-02-00 3300 NSv Proximity Probe ensure minimal voltage drift, critical for precise automation feedback loops.

Small Target Performance: The 1.5 mm linear range allows detection on small shafts or limited side-view areas, providing reliable vibration and position data for automated machinery control.
