Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330901-00-12-10-02-05 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option: |
0.0 in |
|
Overall Case Length Option: |
1.2 in |
|
Cable Length Option: |
1.0 meter (39 in) |
|
Connector and Cable Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
Multiple Approvals |
|
Probe Case Thread: |
1/4-28 UNF thread |
|
Maximum Length of Thread Engagement: |
0.375 in |
|
Dimension: |
1.3x1.1x119cm |
|
Weight: |
0.01kg |
Description

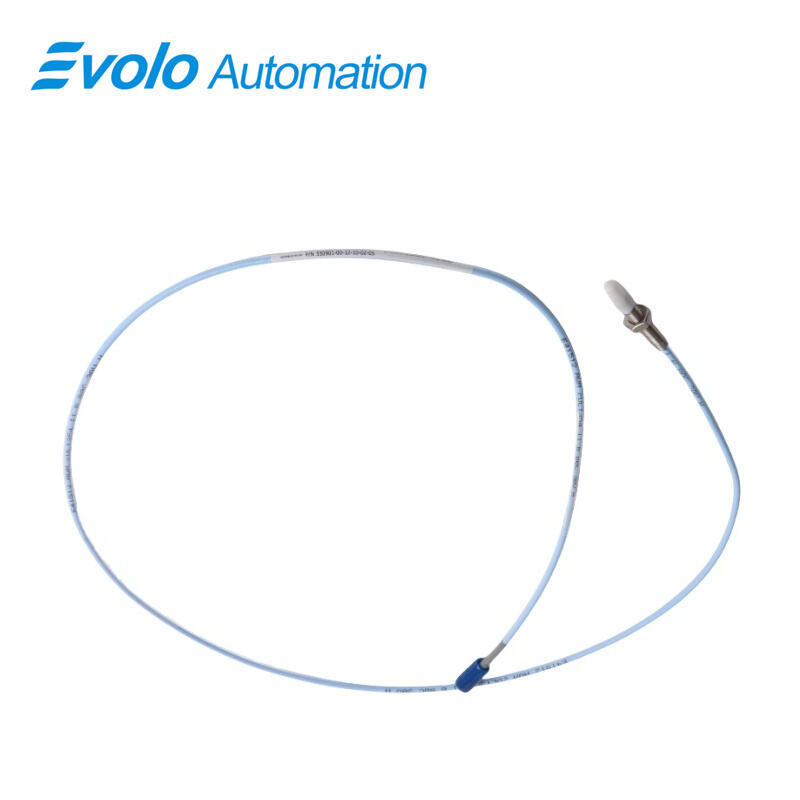

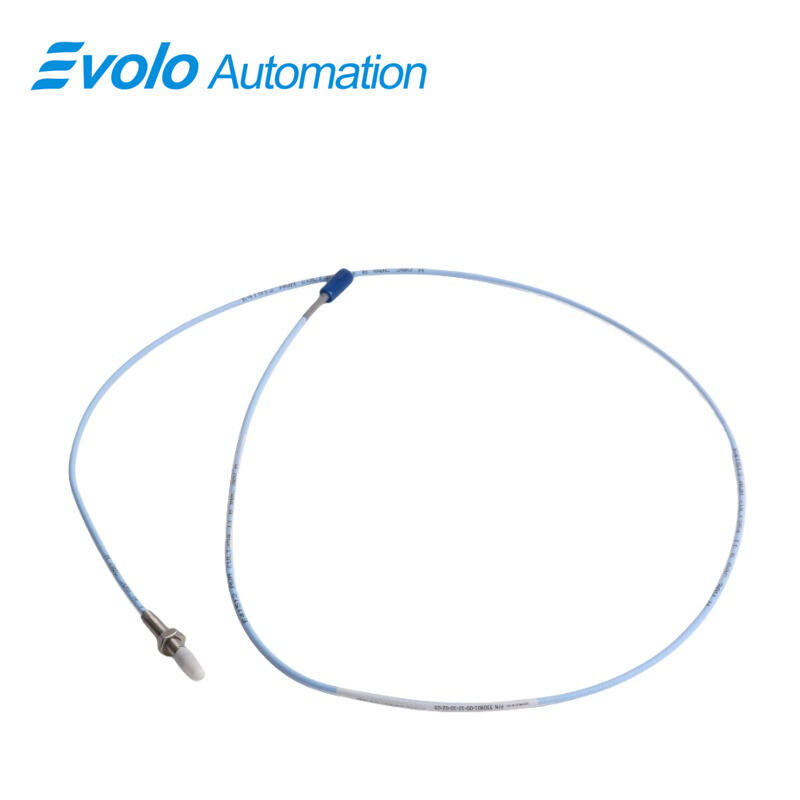

The 330901-00-12-10-02-05 3300 NSv Proximity Probe provides precise radial vibration and axial position measurements for centrifugal air compressors, refrigeration compressors, and process gas compressors with tight installation spaces. Featuring a 1.5 mm linear range, 7.87 V/mm output, and a 1/4-28 UNF threaded 1.2 in case, the 330901-00-12-10-02-05 3300 NSv Proximity Probe measures shafts smaller than 51 mm and flat targets under 15 mm. Its PPS probe tip and AISI 304 stainless steel case operate from -52°C to +177°C and resist chemical exposure. The miniature coaxial ClickLoc connector and 1.0-meter cable ensure secure signal transmission. Designed for upgrades from 3300 RAM and 3000/7000-series 190 systems, the 330901-00-12-10-02-05 3300 NSv Proximity Probe allows existing monitoring systems to remain while enhancing small target and side-view measurements in fluid-film bearing machines.
Applications
Measure Radial Vibration on Small Shafts
The 330901-00-12-10-02-05 3300 NSv Proximity Probe can detect radial vibration on shafts smaller than 51 mm (2 in) using its 1.5 mm linear range and 7.87 V/mm output, providing accurate motion tracking for centrifugal air compressors.
Monitor Axial (Thrust) Position
Use the 330901-00-12-10-02-05 3300 NSv Proximity Probe to measure axial positions on flat targets smaller than 15 mm (0.6 in), ensuring precise thrust displacement readings on refrigeration compressors.
Track Rotational Speed and Zero Speed
The 330901-00-12-10-02-05 3300 NSv Proximity Probe provides tachometer and zero speed measurements on process gas compressors with tight mounting constraints, using its miniature coaxial ClickLoc connector and 1.0-meter cable for reliable signal output.
Specifications
|
Probe Temperature Range: |
-52°C to +177°C (-62°F to +351°F) |
|
Storage Temperature: |
-52°C to +177°C (-62°F to +351°F) |
|
Probe Tip Material: |
Polyphenylene sulfide (PPS) |
|
Probe Case Material: |
AISI 304 stainless steel (SST) |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG)[0.25 to 0.75 mm2 (18 to 23 AWG) with ferrules] |
|
Linear Range: |
1.5 mm (60 mils) |
|
Recommended Gap Setting: |
1.0 mm (40 mils) |
|
Output resistance: |
50 Ω |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
Competitive Advantage
Compact Design for Restricted Spaces
With a 1.2-inch overall case and 1/4-28 UNF thread, the 330901-00-12-10-02-05 3300 NSv Proximity Probe fits into counter bore, sideview, and rearview restricted areas where standard probes cannot be installed.
High Temperature and Chemical Resistance
The 330901-00-12-10-02-05 3300 NSv Proximity Probe operates from -52°C to +177°C, and its PPS probe tip with AISI 304 stainless steel case allows operation in chemically challenging environments.
Secure Electrical Connection
The miniature coaxial ClickLoc connector of the 330901-00-12-10-02-05 3300 NSv Proximity Probe locks into place, preventing loosening, while the patented CableLoc design supports 220 N pull strength, ensuring consistent signal transmission.
