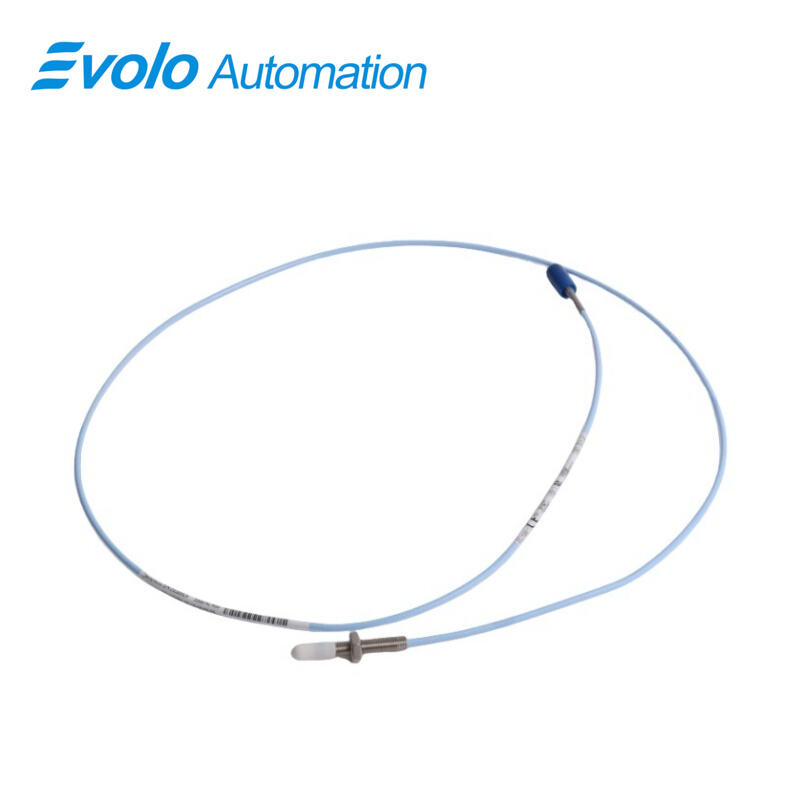

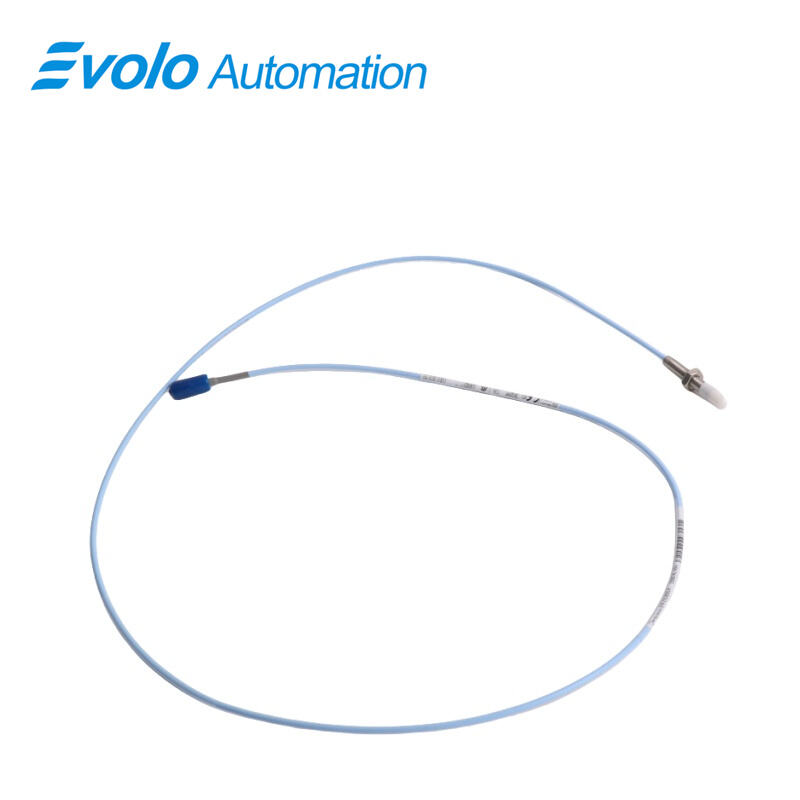

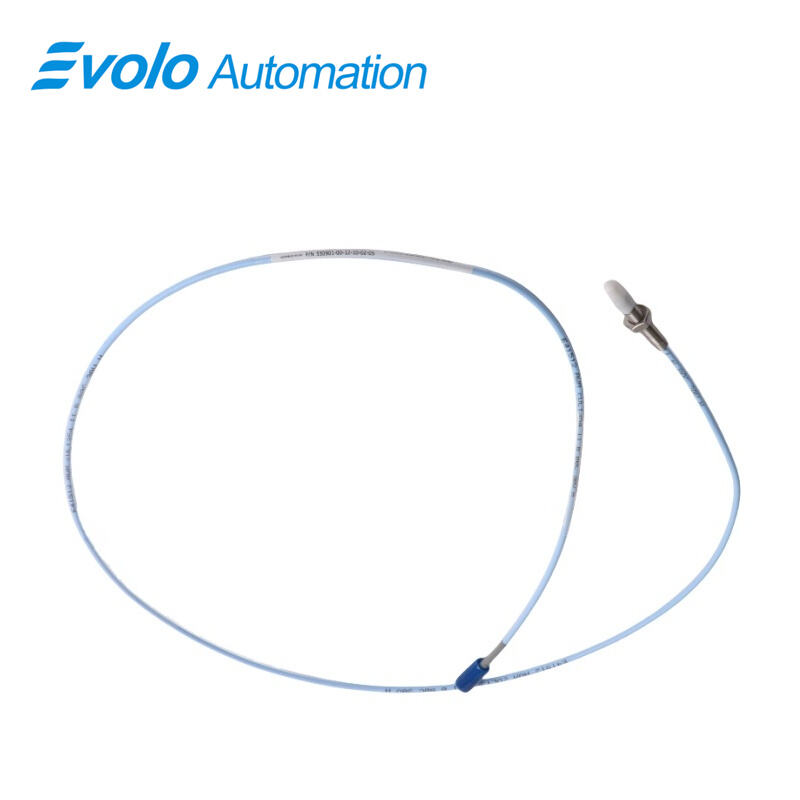

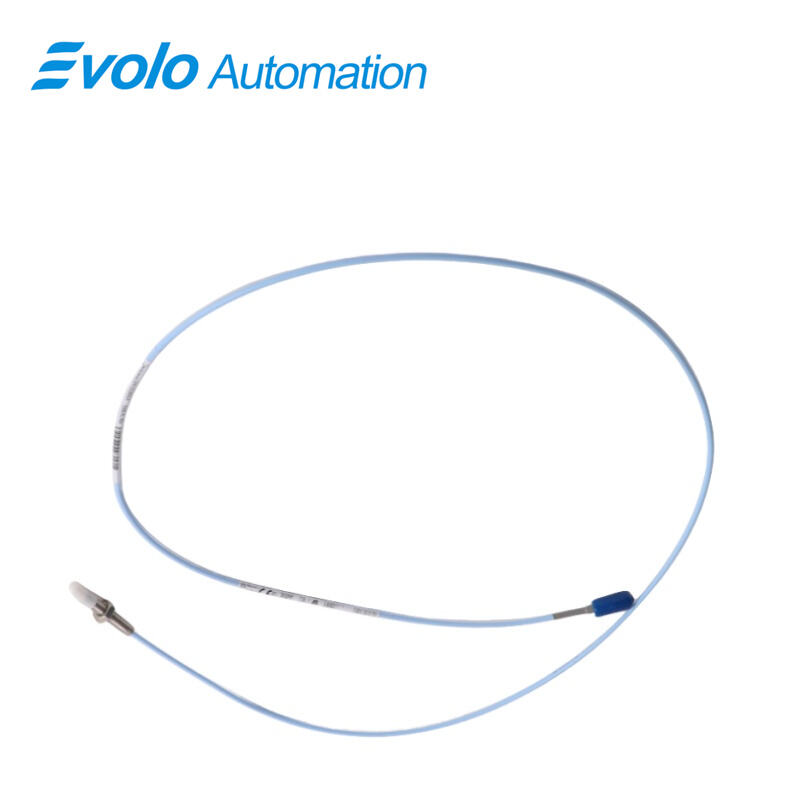

330901-00-12-05-02-05 3300 NSv Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330901-00-12-05-02-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330901-00-12-05-02-05 3300 NSv Proximity Probe is designed for precise automated monitoring of centrifugal air compressors, refrigeration compressors, and process gas compressors in tight installations. Featuring a 1.5 mm (60 mils) linear range and 1.0 mm recommended gap, the 330901-00-12-05-02-05 3300 NSv Proximity Probe measures radial vibration on shafts under 51 mm (2 in) and axial position on flat targets under 15 mm (0.6 in). Its PPS probe tip and AISI 304 stainless steel case allow continuous operation from -52°C to +177°C (-62°F to +351°F) with an output resistance of 50 Ω and supply sensitivity under 2 mV per volt. The 330901-00-12-05-02-05 3300 NSv Proximity Probe uses a 1/4-28 UNF thread and 0.5 m ClickLoc connector cable, enabling secure, automated integration into existing 3300 RAM or 3300 XL systems. Compact 1.2 in case length and miniature coaxial connections allow installation in restricted sideview or rearview areas. The 330901-00-12-05-02-05 3300 NSv Proximity Probe supports radial and axial vibration measurement, tachometer signals, zero-speed detection, and Keyphasor signals, delivering reliable automation performance in fluid-filmed bearing machines.

Applications

Radial Vibration Monitoring: The 330901-00-12-05-02-05 3300 NSv Proximity Probe measures radial shaft movement on shafts smaller than 51 mm (2 in). Its 1.5 mm (60 mils) linear range provides a precise resolution for detecting small amplitude vibrations, and the 50 Ω output resistance ensures minimal signal loss, enabling accurate automated monitoring.

Axial (Thrust) Position Measurement: Using the 1.0 mm recommended gap, the 330901-00-12-05-02-05 3300 NSv Proximity Probe can detect fine axial displacements on flat targets under 15 mm (0.6 in). Analysis of the linear range versus target size ensures correct gap selection for maximum measurement sensitivity.

Tachometer and Zero-Speed Detection: The miniature coaxial ClickLoc connector and low supply sensitivity (<2 mV per V change) allow the 330901-00-12-05-02-05 3300 NSv Proximity Probe to reliably generate speed and zero-speed signals, minimizing voltage drift effects in automated systems.

Phase Reference (Keyphasor Signals): By maintaining accurate linearity across the 1.5 mm range, the 330901-00-12-05-02-05 3300 NSv Proximity Probe delivers consistent phase reference outputs for predictive maintenance and automated vibration analysis.

Specifications

Competitive Advantage

High-Temperature Operation: Continuous operation from -52°C to +177°C (-62°F to +351°F), with short-term exposure up to +250°C (482°F), allows the 330901-00-12-05-02-05 3300 NSv Proximity Probe to function in extreme process environments. Parameter analysis confirms minimal drift under thermal stress.

Small-Target Capability: The 1.2 in overall case length and 0.0 in unthreaded section enable installation in tight sideview/rearview locations. Linear range analysis ensures precise measurements even in constrained spaces.

Mechanical and Electrical Compatibility: The 330901-00-12-05-02-05 3300 NSv Proximity Probe maintains full compatibility with 3300 RAM and 3300 XL systems. Electrical parameters (50 Ω output, <2 mV supply sensitivity) confirm minimal impact when used with legacy monitoring equipment.

Chemical and Moisture Resistance: PPS probe tip and AISI 304 SST case allow deployment in chemical environments. Parameter analysis shows that signal integrity remains within ±2% across recommended temperature and humidity ranges.

Secure Connections: Gold-plated ClickLoc connectors with 220 N pull strength prevent disconnection. Connector analysis confirms that the probe maintains consistent electrical output under mechanical stress, supporting automated monitoring reliability.
