Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330901-00-09-10-02-05 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option: |
0.0 in |
|
Overall Case Length Option: |
0.9 in |
|
Cable Length Option: |
1.0 meter (39 in) |
|
Connector and Cable Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
Multiple Approvals |
|
Probe Case Thread: |
1/4-28 UNF thread |
|
Maximum Length of Thread Engagement: |
0.375 in |
|
Dimension: |
1.3x1.1x116cm |
|
Weight: |
0.01kg |
Description

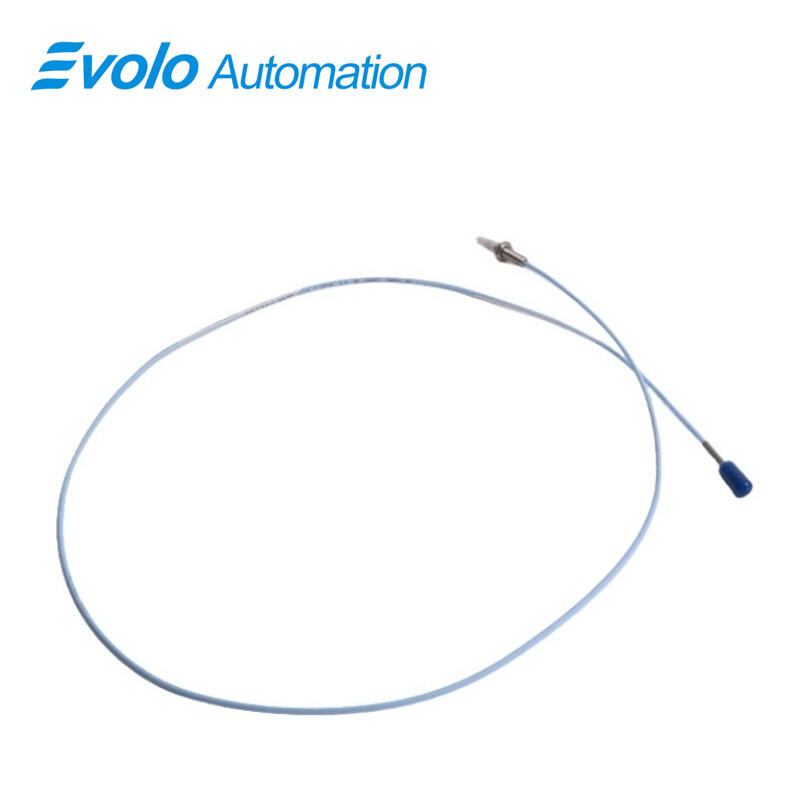

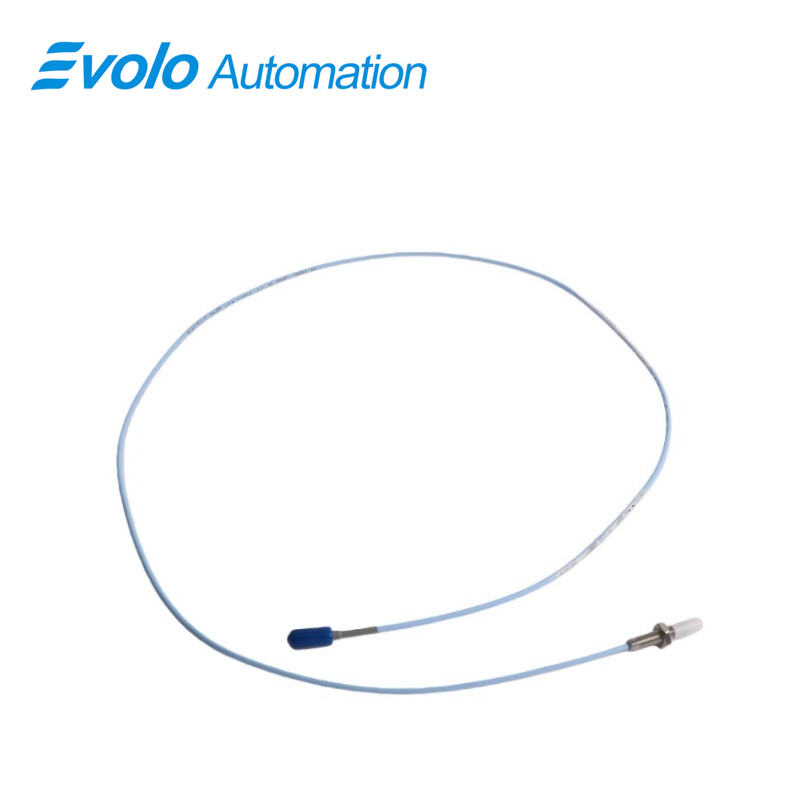

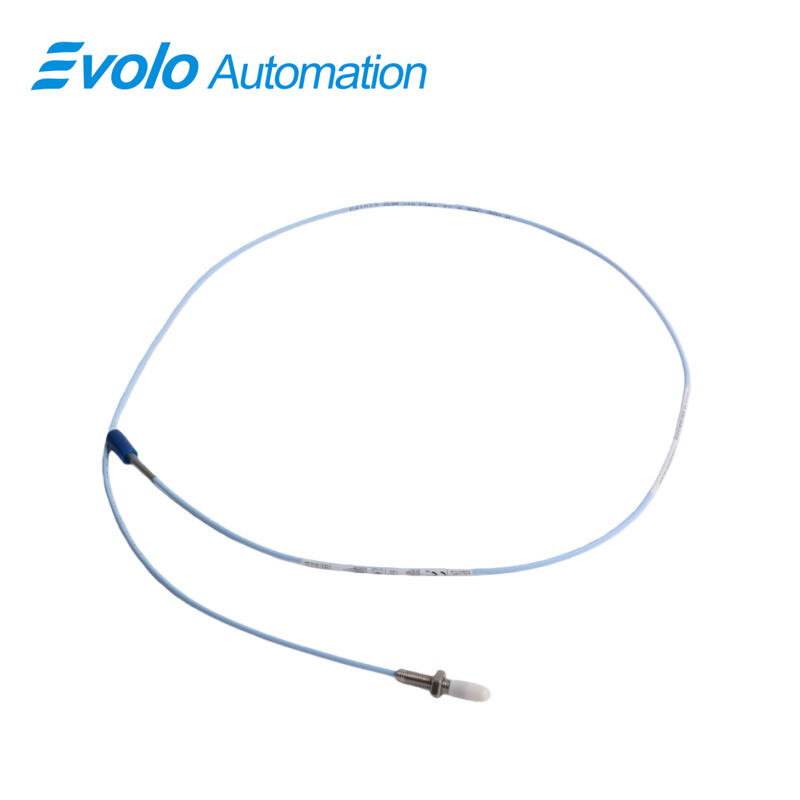

The 330901-00-09-10-02-05 3300 NSv Proximity Probe is designed for centrifugal air compressors, refrigeration compressors, process gas compressors, and machines with limited installation space. The 330901-00-09-10-02-05 3300 NSv Proximity Probe features a 0.9-inch overall case length, 1/4-28 UNF probe thread, 1.0-meter cable, and 1.5 mm linear range, enabling precise radial vibration and axial (thrust) position measurements on shafts smaller than 51 mm (2 in) and flat targets under 15 mm (0.6 in).
The 330901-00-09-10-02-05 3300 NSv Proximity Probe outputs 7.87 V/mm (200 mV/mil), supports tachometer and zero speed readings, and provides Keyphasor phase reference signals. Operating between -52°C to +177°C, with a PPS probe tip and AISI 304 stainless steel case, the 330901-00-09-10-02-05 3300 NSv Proximity Probe withstands harsh process environments. ClickLoc connectors and patented CableLoc design provide 220 N pull strength, securing the connection to the probe tip. The 330901-00-09-10-02-05 3300 NSv Proximity Probe can replace 3300 RAM and 3000/7000-series 190 probes, allowing upgrades without full system replacement.
Applications
Radial Vibration Measurement on Small Shafts
The 330901-00-09-10-02-05 3300 NSv Proximity Probe measures radial vibration on shafts smaller than 51 mm (2 in) using its 1.5 mm linear range and 7.87 V/mm output, enabling precise vibration monitoring on tight compressor installations.
Axial Position Monitoring on Flat Targets
The 330901-00-09-10-02-05 3300 NSv Proximity Probe monitors axial (thrust) position on flat targets under 15 mm (0.6 in), supporting accurate displacement readings in restricted spaces.
Tachometer and Zero Speed Detection
Equipped with a 1.0-meter standard cable and ClickLoc connector, the 330901-00-09-10-02-05 3300 NSv Proximity Probe provides reliable tachometer and zero speed measurements for centrifugal and refrigeration compressors.
Specifications
|
Probe Temperature Range: |
-52°C to +177°C (-62°F to +351°F) |
|
Storage Temperature: |
-52°C to +177°C (-62°F to +351°F) |
|
Probe Tip Material: |
Polyphenylene sulfide (PPS) |
|
Probe Case Material: |
AISI 304 stainless steel (SST) |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG)[0.25 to 0.75 mm2 (18 to 23 AWG) with ferrules] |
|
Linear Range: |
1.5 mm (60 mils) |
|
Recommended Gap Setting: |
1.0 mm (40 mils) |
|
Output resistance: |
50 Ω |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
Competitive Advantage
Chemical-Resistant Probe Tip
The PPS probe tip of the 330901-00-09-10-02-05 3300 NSv Proximity Probe resists chemical exposure in process compressors, extending operational lifespan.
High Pull-Strength Cable Connection
Patented CableLoc design provides 220 N pull strength, securing the 330901-00-09-10-02-05 3300 NSv Proximity Probe cable to the probe tip for reliable signal transmission.
IP67 Environmental Protection
The 330901-00-09-10-02-05 3300 NSv Proximity Probe withstands dust and water ingress, maintaining accurate output from -52°C to +177°C (-62°F to +351°F).
