Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330901-00-08-10-02-CN |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option: |
0.0 in |
|
Overall Case Length Option: |
0.8 in |
|
Cable Length Option: |
1.0 meter (39 in) |
|
Connector and Cable Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
Multiple Approvals |
|
Probe Case Thread: |
1/4-28 UNF thread |
|
Maximum Length of Thread Engagement: |
0.375 in |
|
Dimension: |
1.2x1x66cm |
|
Weight: |
0.02kg |
Description

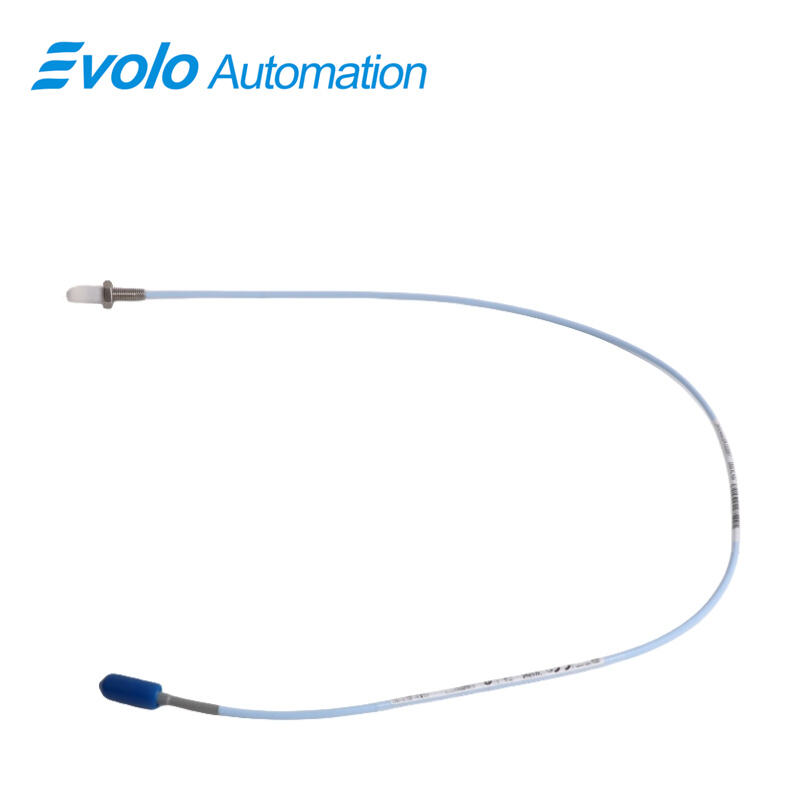

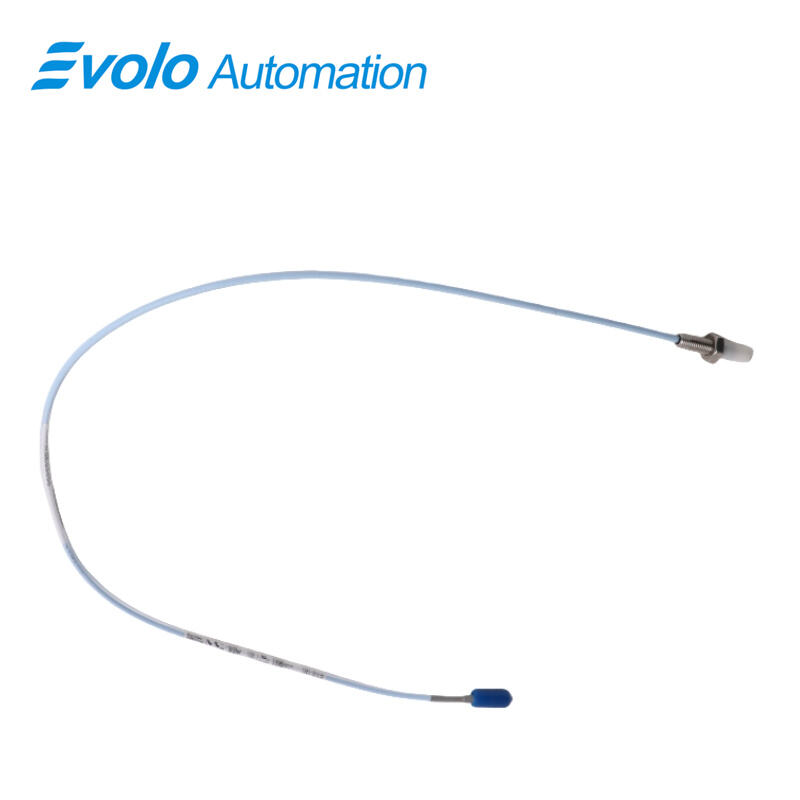

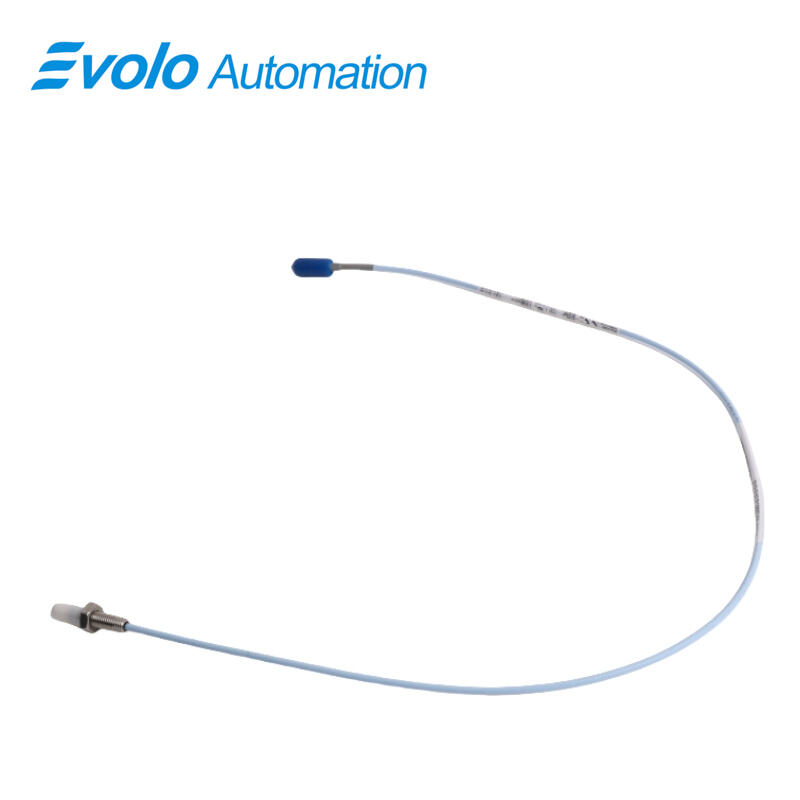

The 330901-00-08-10-02-CN 3300 NSv Proximity Probe is a high-precision, side-view eddy current transducer designed for tight-space industrial machinery monitoring. Compatible with centrifugal air compressors, refrigeration compressors, and small process gas compressors, this probe is ideal for radial and axial vibration measurement where standard 3300 XL probes cannot fit due to limited clearance. The probe features a 1/4-28 UNF stainless steel case, Polyphenylene sulfide (PPS) tip, and Miniature coaxial ClickLoc connector, providing robust mechanical and electrical stability. Its 1.5 mm (60 mils) linear range and recommended 1.0 mm gap setting allow precise measurement of small shafts (<51 mm) and flat targets (<15 mm). Operating between -52°C and +177°C (-62°F to +351°F) and supporting field wiring of 0.2 to 1.5 mm² (16–24 AWG), the NSv probe delivers accurate, reliable performance in harsh industrial environments. Patented TipLoc and CableLoc designs provide strong tip-cable bonding with 220 N (50 lbf) pull strength, while optional connector protectors prevent fluid ingress, maintaining signal integrity. The probe is fully backward compatible with 3300 RAM systems and upgrades legacy 3000/7000 series transducer systems with minimal modification, delivering highly reliable automation and vibration monitoring.
Applications
Compact Shaft Radial Vibration Measurement
Ideal for measuring radial vibration on small shafts (<51 mm) in centrifugal air compressors, providing precise data for predictive maintenance.
Axial (Thrust) Position Monitoring
Accurately tracks axial shaft displacement on pumps or small compressors, ensuring optimal performance and preventing machinery damage.
Harsh Environment Deployment
Suitable for chemical, petrochemical, or refrigeration compressors with temperatures ranging from -52°C to +177°C, including wet or high-humidity conditions.
Specifications
|
Probe Temperature Range: |
-52°C to +177°C (-62°F to +351°F) |
|
Storage Temperature: |
-52°C to +177°C (-62°F to +351°F) |
|
Probe Tip Material: |
Polyphenylene sulfide (PPS) |
|
Probe Case Material: |
AISI 304 stainless steel (SST) |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG)[0.25 to 0.75 mm2 (18 to 23 AWG) with ferrules] |
|
Linear Range: |
1.5 mm (60 mils) |
|
Recommended Gap Setting: |
1.0 mm (40 mils) |
|
Output resistance: |
50 Ω |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
Competitive Advantage
Side-View Design for Restricted Spaces
1/4-28 UNF case and compact profile allow installation in counterbore or rearview restricted machinery.
High Measurement Accuracy
1.5 mm linear range with <2 mV/V supply sensitivity ensures precise gap and vibration monitoring.
Chemical and Thermal Resistance
PPS tip and 304 stainless steel case withstand chemicals and extreme temperatures for reliable operation.
Mechanical Strength and Cable Security
Patented CableLoc design provides 220 N pull strength, ensuring cable-tip connection integrity in industrial environments.
