Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330901-00-08-10-02-05 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option: |
0.0 in |
|
Overall Case Length Option: |
0.8 in |
|
Cable Length Option: |
1.0 meter (39 in) |
|
Connector and Cable Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
Multiple Approvals |
|
Probe Case Thread: |
1/4-28 UNF thread |
|
Maximum Length of Thread Engagement: |
0.375 in |
|
Dimension: |
1.2x1x66cm |
|
Weight: |
0.02kg |
Description

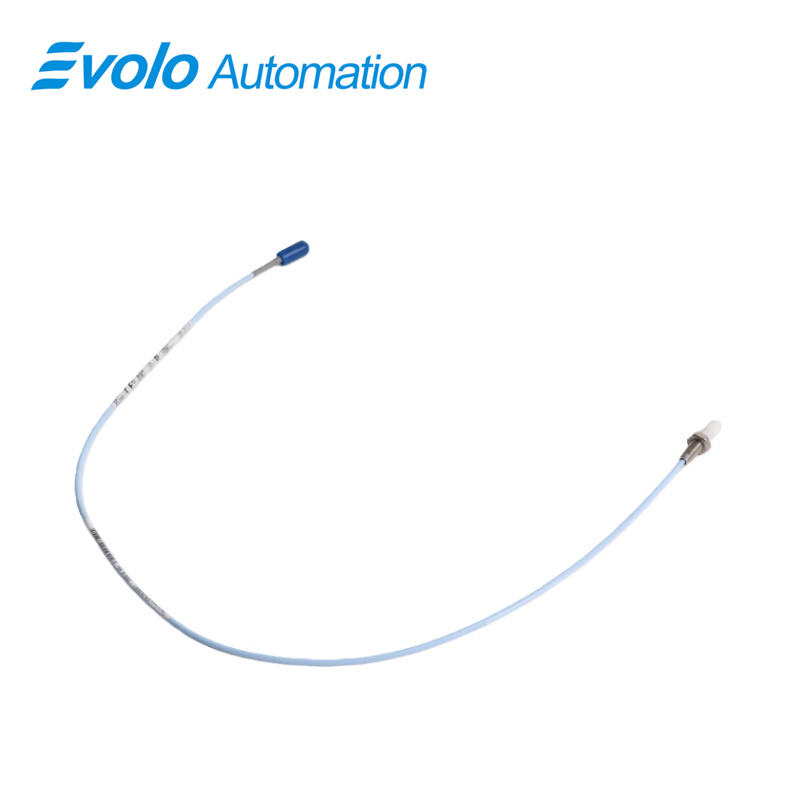

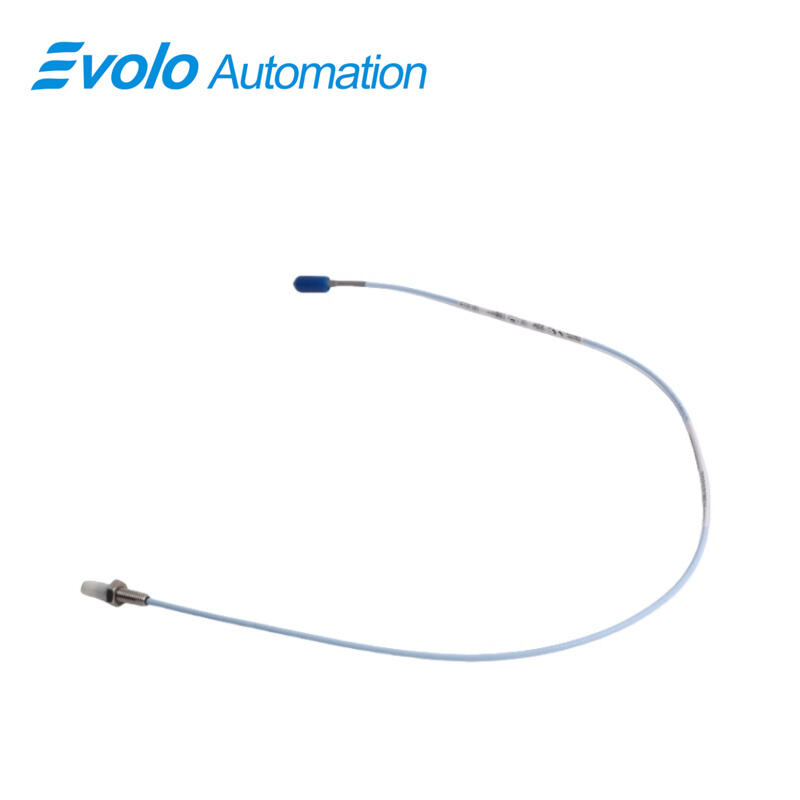

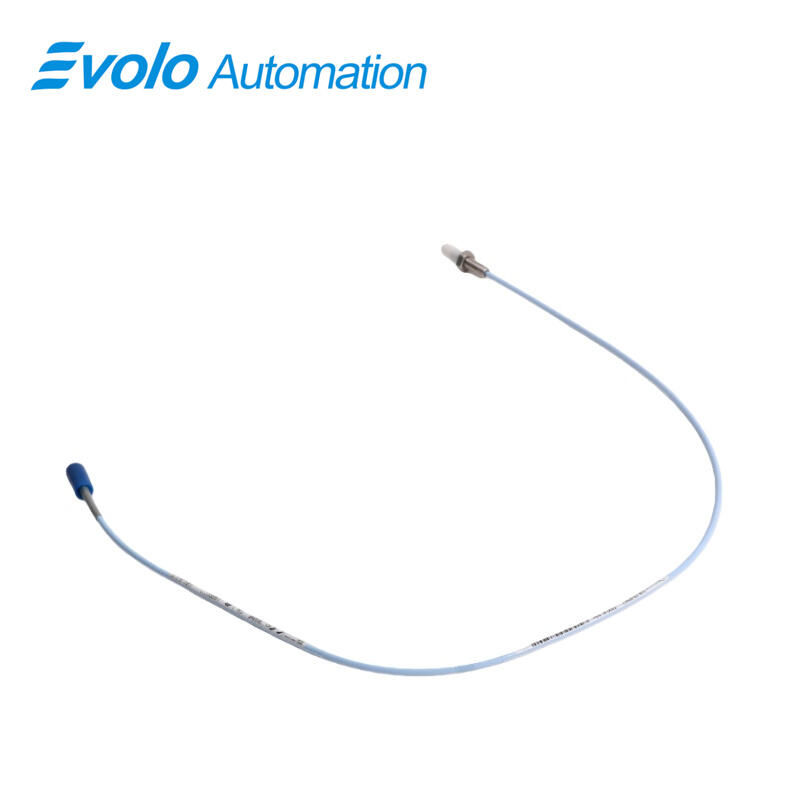

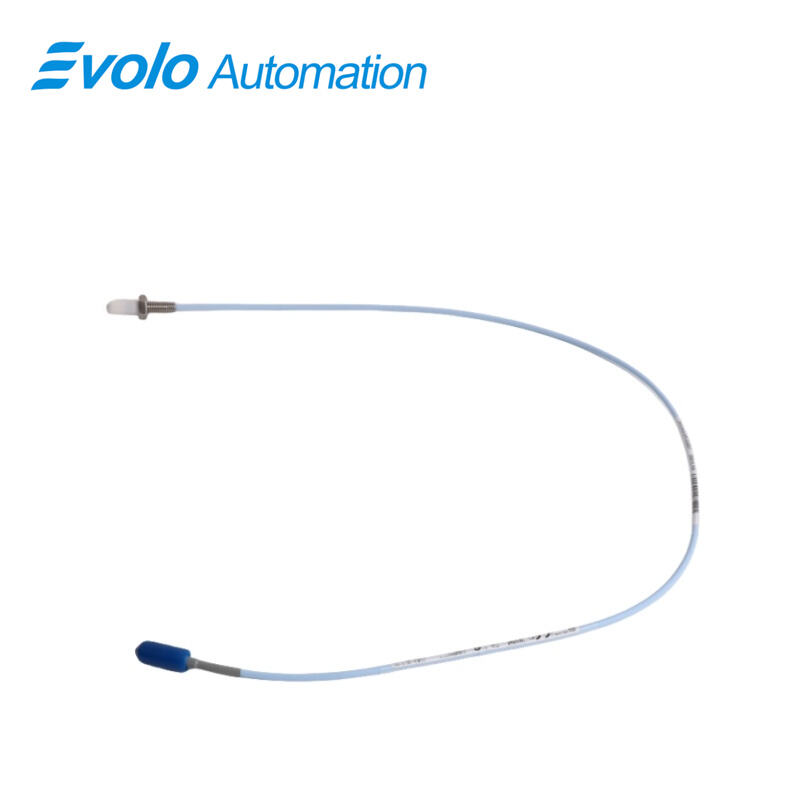

The 330901-00-08-10-02-05 3300 NSv Proximity Probe is designed for centrifugal air compressors, refrigeration compressors, and process gas compressors with limited installation space. Its 0.8 in overall case length, 1/4-28 UNF probe thread, and 1.0 meter total cable length allow precise measurement of radial vibration on shafts smaller than 51 mm and axial position on flat targets under 15 mm. The 330901-00-08-10-02-05 3300 NSv Proximity Probe delivers 7.87 V/mm output with a 1.5 mm linear range, supporting radial and axial vibration measurements, tachometer and zero-speed detection, and Keyphasor phase reference signals. Its IP67-rated AISI 304 stainless steel case and PPS tip enable use in harsh environments, while the ClickLoc miniature coaxial connector and 220 N pull strength CableLoc design secure connections. The 330901-00-08-10-02-05 3300 NSv Proximity Probe is compatible with 3300 RAM and 3000/7000-series 190 transducer systems, allowing upgrades with existing monitoring systems when paired with NSv Proximitor sensors. Optional connector protectors prevent liquids from entering connections, maintaining reliable signal output in tight and fluid-exposed applications.
Applications
Measure Radial Vibration on Small Shafts
The 330901-00-08-10-02-05 3300 NSv Proximity Probe measures radial vibration on shafts smaller than 51 mm (2 in) with high precision. Its 1.5 mm linear range and 7.87 V/mm output allow accurate detection of dynamic motion in compact machinery.
Axial Position Monitoring on Flat Targets
Use the 330901-00-08-10-02-05 3300 NSv Proximity Probe for axial thrust position measurements on flat targets smaller than 15 mm (0.6 in). The 0.8 in overall case length and 1/4-28 UNF thread enable installation in tight spaces.
Tachometer and Zero Speed Detection
The 330901-00-08-10-02-05 3300 NSv Proximity Probe provides reliable tachometer output and zero-speed detection for centrifugal and process gas compressors. Its miniature coaxial ClickLoc connector ensures consistent electrical connection during high-speed operation.
Phase Reference (Keyphasor) Signals
Deploy the 330901-00-08-10-02-05 3300 NSv Proximity Probe to generate Keyphasor signals for machine monitoring. The probe’s 1.0 meter cable length and IP67-rated AISI 304 stainless steel case allow operation in tight and fluid-exposed environments.
Specifications
|
Probe Temperature Range: |
-52°C to +177°C (-62°F to +351°F) |
|
Storage Temperature: |
-52°C to +177°C (-62°F to +351°F) |
|
Probe Tip Material: |
Polyphenylene sulfide (PPS) |
|
Probe Case Material: |
AISI 304 stainless steel (SST) |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG)[0.25 to 0.75 mm2 (18 to 23 AWG) with ferrules] |
|
Linear Range: |
1.5 mm (60 mils) |
|
Recommended Gap Setting: |
1.0 mm (40 mils) |
|
Output resistance: |
50 Ω |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
Competitive Advantage
Compact Design for Tight Installations
The 330901-00-08-10-02-05 3300 NSv Proximity Probe fits in counter bore, sideview, and rearview restricted areas, providing measurement access where standard 3300 XL probes cannot.
High Output for Accurate Measurement
With 7.87 V/mm output and 1.5 mm linear range, the 330901-00-08-10-02-05 3300 NSv Proximity Probe delivers precise readings for small target vibration and axial measurements.
Durable Electrical Connections
Gold-plated ClickLoc connectors and patented CableLoc design with 220 N pull strength secure the probe cable, reducing disconnections during operation.
Environmental Protection
IP67-rated case, PPS tip, and optional connector protectors prevent dust, moisture, and liquids from entering the probe, ensuring reliable output even in fluid-exposed applications.
