Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
190501-10-00-00 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Mounting Hardware Option: |
Plate Stud M6x1 to M6x1with 3/8- in 24 adapter |
|
Connection Option: |
MIL-C-5015 connection interface |
|
Agency Approval Option: |
No Approvals |
|
Dimension: |
3.6x3.1x10cm |
|
Weight: |
0.38kg |
Description

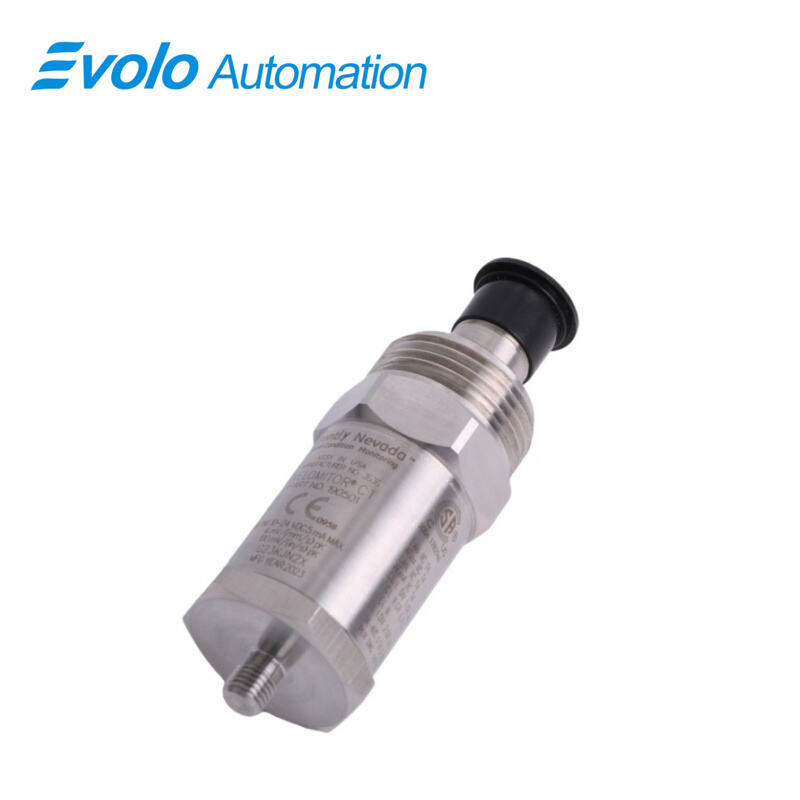

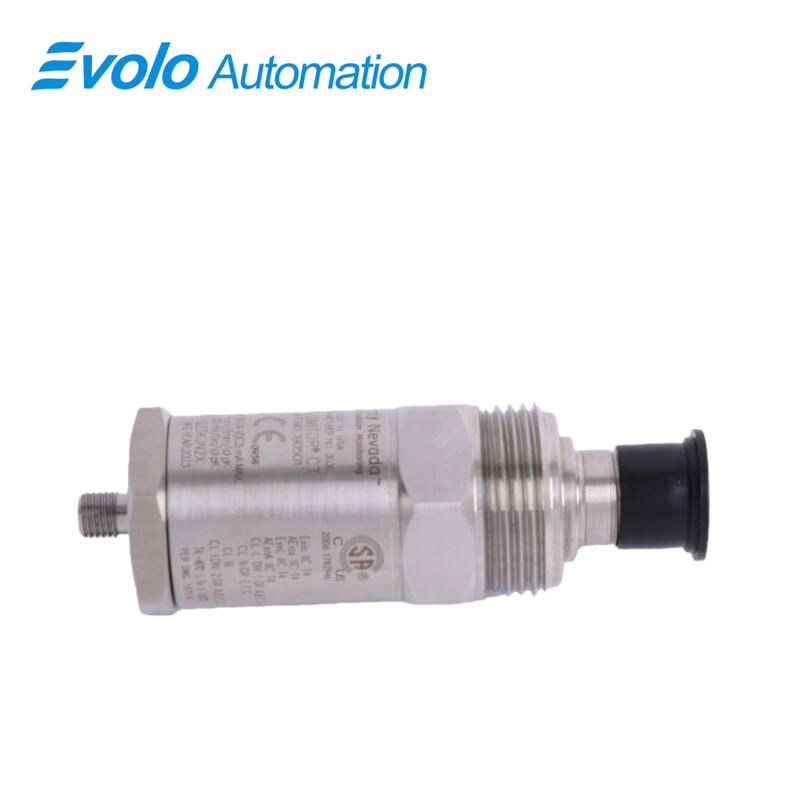

The 190501-10-00-00 Velomitor CT Velocity Transducer is designed for precise vibration velocity measurement on cooling tower and air-cooled heat exchanger fans. The 190501-10-00-00 features a 316L stainless steel case, MIL-C-5015 2-pin top connector, and mounting hardware with Plate Stud M6x1 to M6x1 and 3/8-in 24 adapter. Operating from -40°C to +85°C, the 190501-10-00-00 Velomitor CT delivers sensitivity of 3.94 mV/mm/s (100 mV/in/s) ±5% and frequency response from 3 Hz to 900 Hz ±1 dB. It supports any mounting angle on a 33 mm diameter surface with 4.5 N-m ±0.6 N-m torque. The 190501-10-00-00 can measure vibration amplitudes and fan motor frequencies, withstand shock up to 5000 g pk, and operate in 100% condensing humidity, making it ideal for automated vibration monitoring in industrial fan assemblies.
Applications
Fan Assembly Vibration Monitoring
The 190501-10-00-00 measures vibration velocities on cooling tower and air-cooled heat exchanger fans operating at 90–300 rpm. Its frequency response of 3.0 Hz to 900 Hz allows the 190501-10-00-00 Velomitor CT to capture both motor and fan-induced vibration amplitudes accurately.
Motor Shaft and Gearbox Analysis
The 190501-10-00-00 can detect vibration generated by fan motors and speed reducers. With its high sensitivity of 3.94 mV/mm/s, the 190501-10-00-00 Velomitor CT provides precise data for automated monitoring systems.
Industrial Equipment Health Monitoring
The 190501-10-00-00 operates in extreme temperatures (-40°C to +85°C) and high humidity conditions, allowing consistent measurement of vibration in industrial plants without disruption.
Specifications
|
Sensitivity: |
3.94 mV/mm/s (100 mV/in/s) ±5% |
|
Frequency Response: |
3.0 Hz to 900 Hz (180 to 54,000 cpm) ±1.0 dB or 1.5 Hz to 1.0 kHz (90 to 60,000 cpm) ±3.0 dB |
|
Temperature Sensitivity: |
-8% to +5% typical over the operating temperature range |
|
Case Material: |
316L stainless steel |
|
Connector: |
2-pin 316L stainless steel MIL-C-5015, top |
|
Mounting Torque： |
4.5 N-m ± 0.6 N-m (40 in– lbf ± 5 in-lbf) |
|
Mounting Angle： |
Any orientation |
|
Mounting Surface： |
33 mm diameter (1.3 in diameter) |
|
Operating Temperature: |
-40°C to +85°C (-40°F to +185°F) |
|
Storage Temperature: |
-40°C to +100°C (-40°F to +212°F) |
|
Shock Limit: |
5000 g pk, maximum |
|
Humidity Limit: |
100% condensing, non-submerged |
Competitive Advantage
Easy Installation on Any Surface
The 190501-10-00-00 Velomitor CT supports any mounting angle with a 33 mm diameter surface and 4.5 N-m torque. Its Plate Stud M6x1 to 3/8-in 24 adapter enables quick and repeatable installation.
High Accuracy Data Collection
With 3.94 mV/mm/s sensitivity and a frequency range of 3.0 Hz to 900 Hz, the 190501-10-00-00 captures both low-frequency and fan-induced vibration signals for automated monitoring systems.
Durable Material Construction
The 190501-10-00-00 Velomitor CT 316L stainless steel case resists corrosion and mechanical wear, ensuring long-term operation in industrial environments.
Shock and Environmental Resistance
The 190501-10-00-00 withstands shocks up to 5000 g pk and operates in 100% condensing humidity, making it suitable for fan assemblies, heat exchangers, and industrial monitoring applications.
