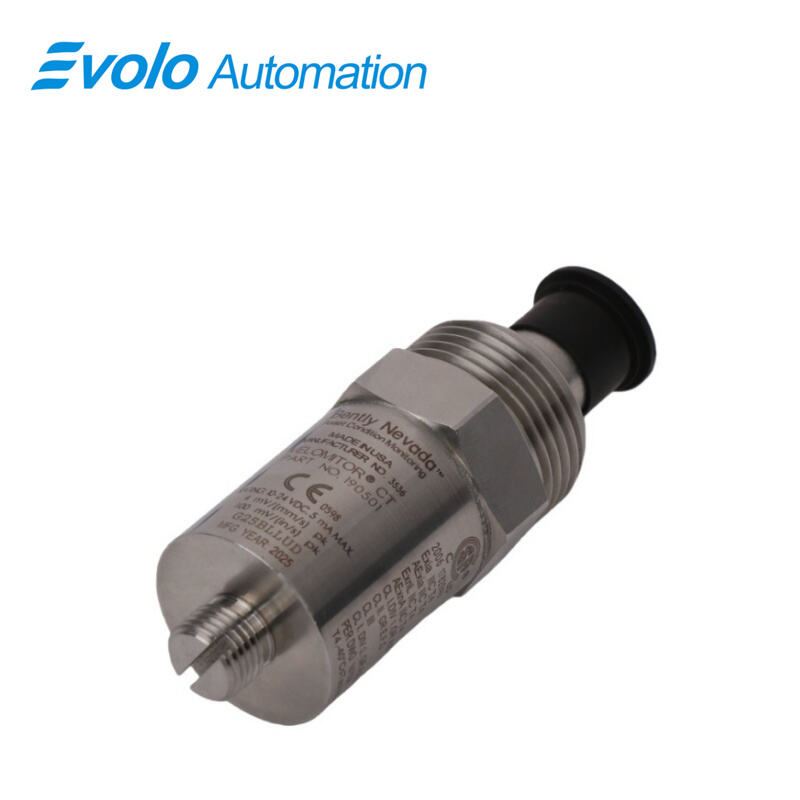

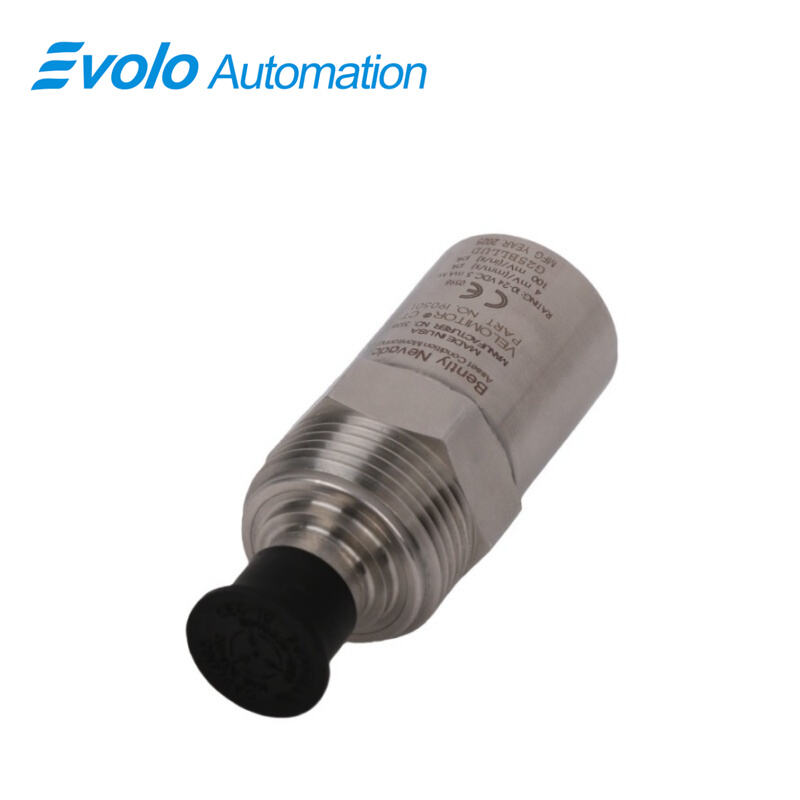

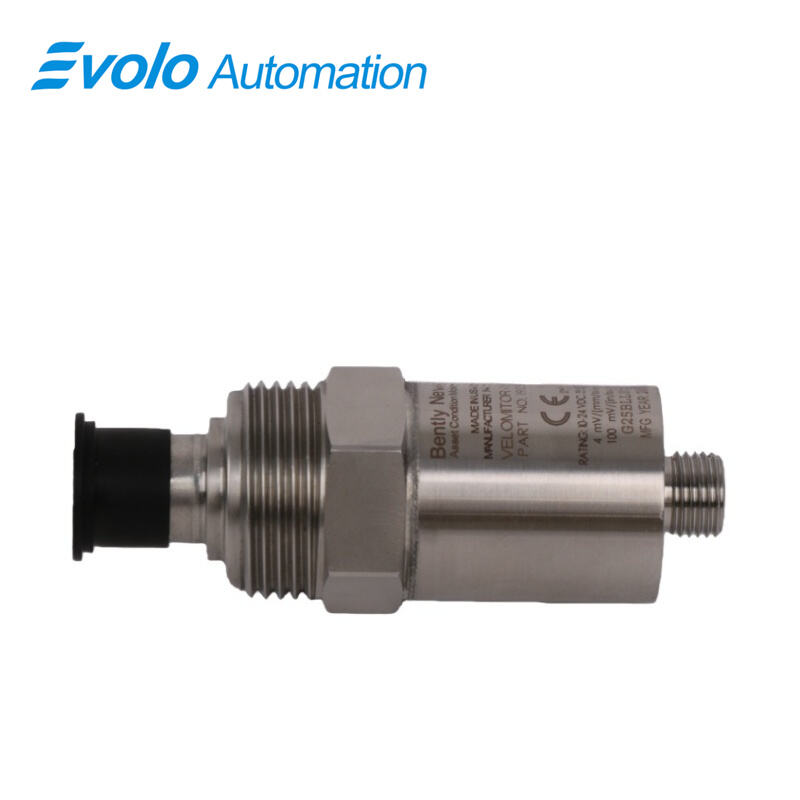

190501-02-00-05 Velomitor CT Velocity Transducer

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	190501-02-00-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 190501-02-00-05 Velomitor CT Velocity Transducer provides precise measurement of vibration velocity in automated cooling tower and air-cooled heat exchanger systems. Featuring a 316L stainless steel case, MIL-C-5015 2-pin connector, and stud mounting from 3/8-24 to 1/2-20, the 190501-02-00-05 Velomitor CT operates from -40°C to +85°C, measuring vibration frequencies from 3 Hz to 900 Hz (±1 dB) or 1.5 Hz to 1 kHz (±3 dB). Sensitivity is 3.94 mV/mm/s (±5%), with temperature variation from -8% to +5%. The transducer withstands 5000 g shock and 100% condensing humidity, supporting robust automated monitoring. Mounting torque is 4.5 N·m ±0.6 N·m, and mounting angle is unrestricted, allowing flexible integration into automated control systems. The 190501-02-00-05 Velomitor CT reliably detects vibration amplitudes generated by fan motors and speed reducers at 90–300 rpm, delivering real-time data for automated vibration analysis and control loops.

Applications

Monitor Cooling Tower Fan Speed and Vibration
The 190501-02-00-05 Velomitor CT measures vibration velocities of fans operating at 90–300 rpm. Its sensitivity of 3.94 mV/mm/s and frequency response up to 900 Hz allow automated monitoring systems to detect abnormal vibrations and trigger alerts without manual inspection.

Track Heat Exchanger Fan Assemblies
Using the 190501-02-00-05 Velomitor CT, air-cooled heat exchanger fans can be continuously monitored. The 316L stainless steel case and IP67-rated construction ensure the transducer maintains accurate vibration readings in high-humidity environments.

Automated Motor and Speed Reducer Diagnostics
The 190501-02-00-05 Velomitor CT provides precise output voltage signals proportional to vibration velocity, enabling automated control systems to detect imbalance or misalignment in motors and speed reducers in real-time.

Integration with Automated Control Systems
The 190501-02-00-05 Velomitor CT supports MIL-C-5015 connectors and 4.5 N·m mounting torque, allowing easy integration into PLCs or SCADA systems for automated feedback loops and predictive maintenance.

Specifications

Competitive Advantage

High-Sensitivity Measurement Across Key Frequency Range
With 3.94 mV/mm/s sensitivity and a frequency range of 3–900 Hz (±1 dB), the 190501-02-00-05 Velomitor CT captures low- and mid-frequency vibrations that are critical for fan and motor monitoring.

Durable Design for Extreme Industrial Environments
The 190501-02-00-05 Velomitor CT operates from -40°C to +85°C and tolerates 100% condensing humidity. Its 316L stainless steel case and 5000 g shock rating ensure reliable operation in harsh automated facilities.

Flexible Mounting Options for Automated Systems
The 190501-02-00-05 Velomitor CT supports stud mounting from 3/8-24 to 1/2-20 and allows mounting at any angle, simplifying installation on cooling towers, heat exchangers, or motor housings without requiring custom adapters.

Real-Time Output for Automated Monitoring
The 190501-02-00-05 Velomitor CT delivers voltage outputs proportional to vibration velocity, allowing integration with control systems and enabling automated diagnostics, threshold alarms, and data logging without manual intervention.
